Post Up your rear Setups.

There ya go

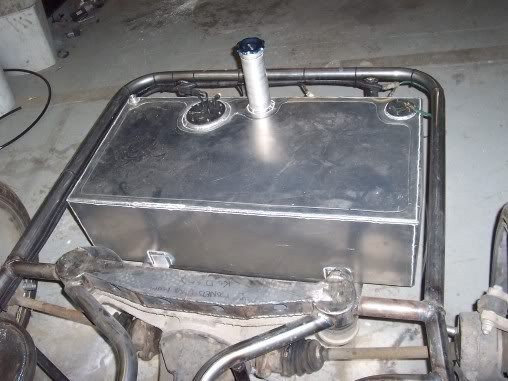

not exactly what you asked for! Rx7 rearend

Posted doubles

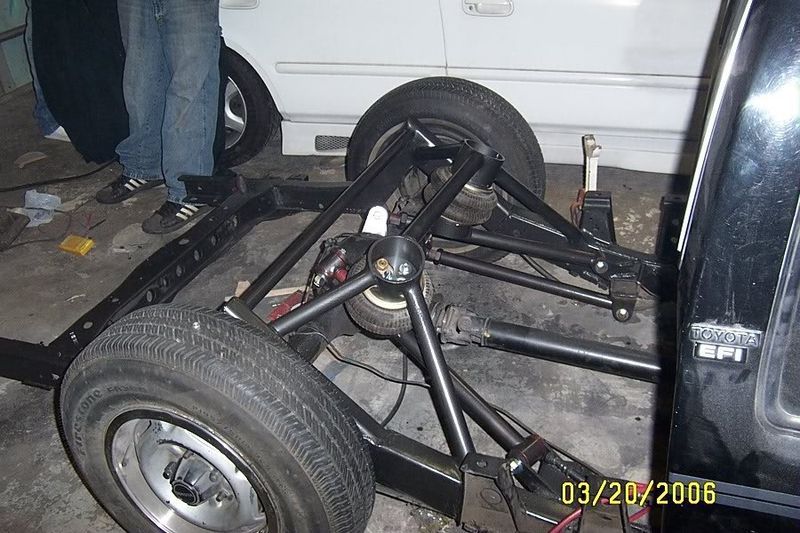

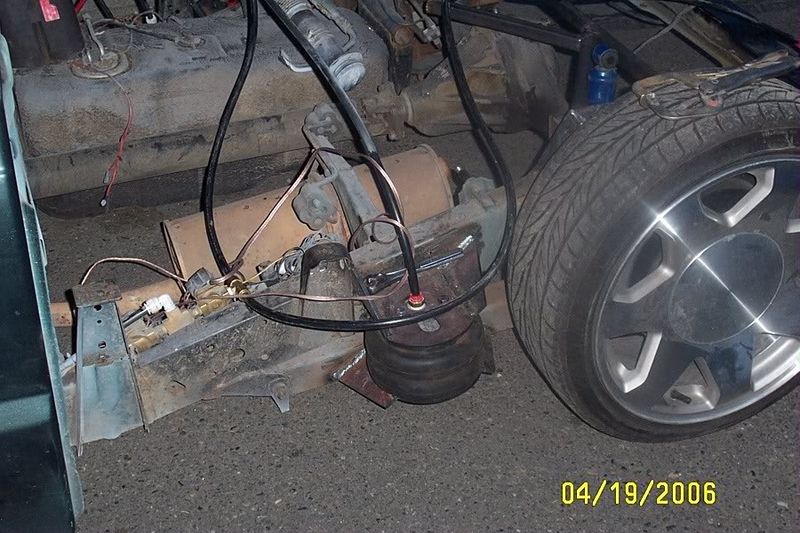

thats the setup i did on my buddies yota





then i redid the rear of my mazda. it seams i always do the cooler shit on customers rides

Originally posted by dragmatic





that kinda looks unsafe..... you are relying on those two bars( one on each bag) to hold the whole back end up... id hate o ever see that snap on you...

Originally posted by ven



What I want to see is your rear 4 link setups (NOT cantilevered or bag on bars)under the bed.



guess im the only one that can read....because Dragmatic, and Seth have been the only to to do what the guy asked for. As seth said his is easily adaptable to bag over.

and who the hell threw in a IRS, It has nothing to do with what this guy asked to see not even close

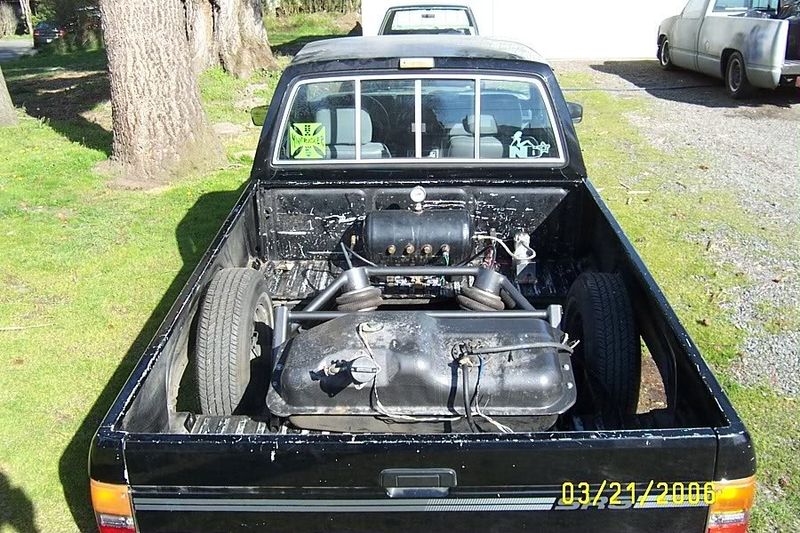

I posted the IRS because he asked for air tank and gas tank placement also but the double pic I posted was supposed to be of the air tank

Edited: 6/1/2006 10:26:18 AM by HOLCOMBE347

here is what i have...its a pretty basic setup. sorry its all dusty

http://i70.photobucket.com/albums/i95/holcombe347/083005045.jpg

Thanks guys...Keep em coming.
Question though....I have noticed some people running the triangulated bars like this |\/| and some like this |/\| what is the difference in these two setups. Im thinking the first one would be the correct way...but some clarification would be helpful. Thanks
