project nightmare build-up

now that i found this this let update it a little bit

Edited: 6/4/2009 12:10:18 PM by bdydrp18

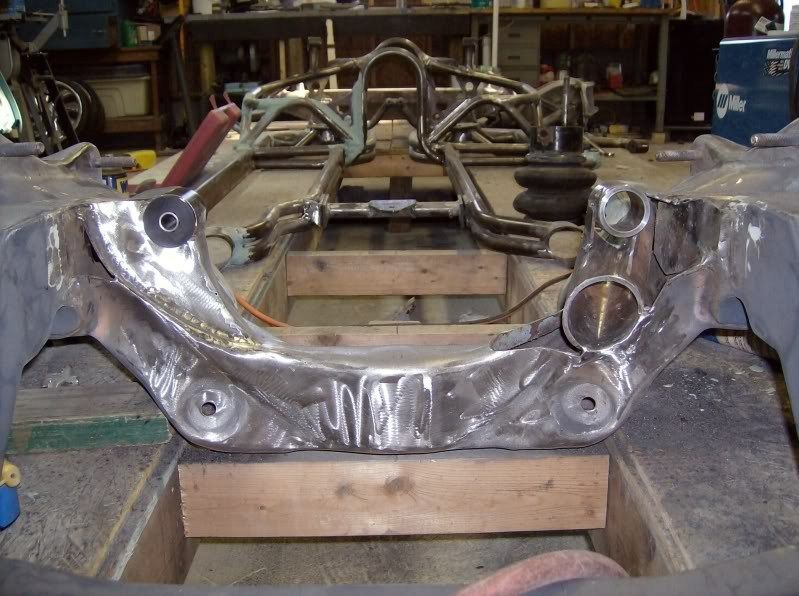

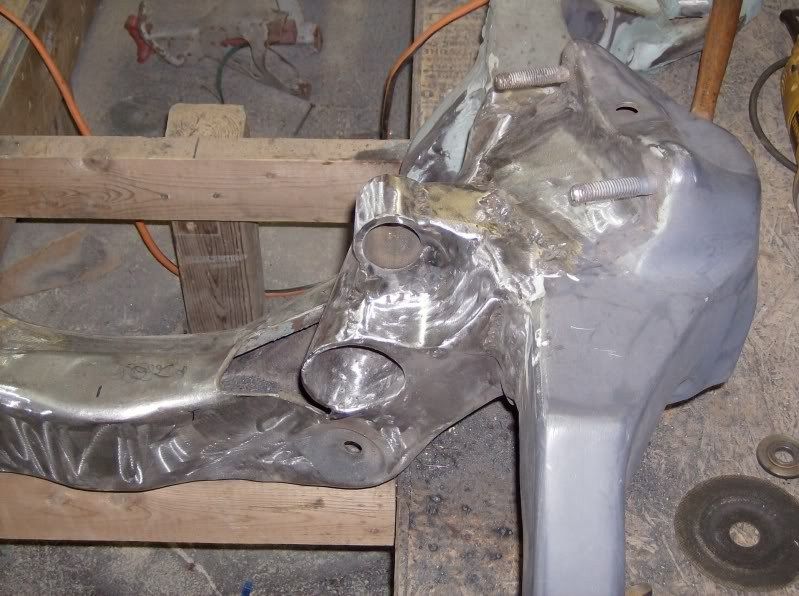

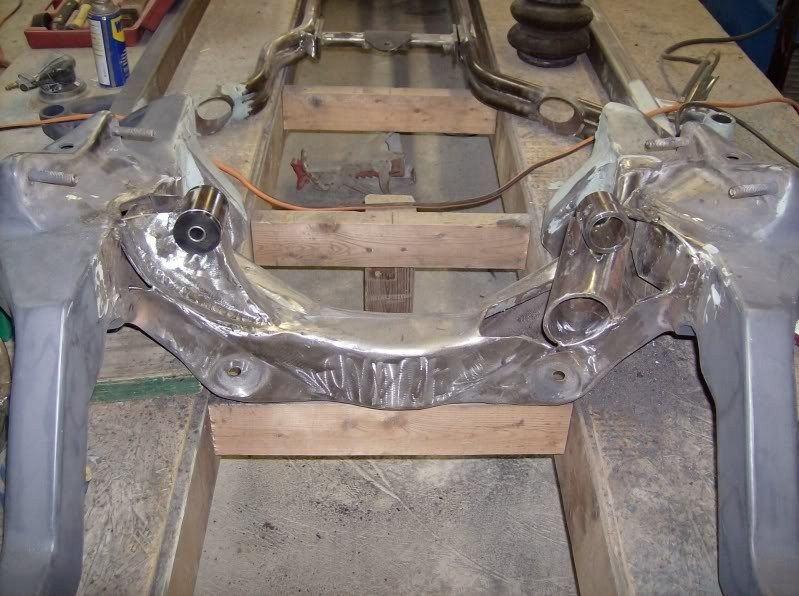

started building the new motor mounts

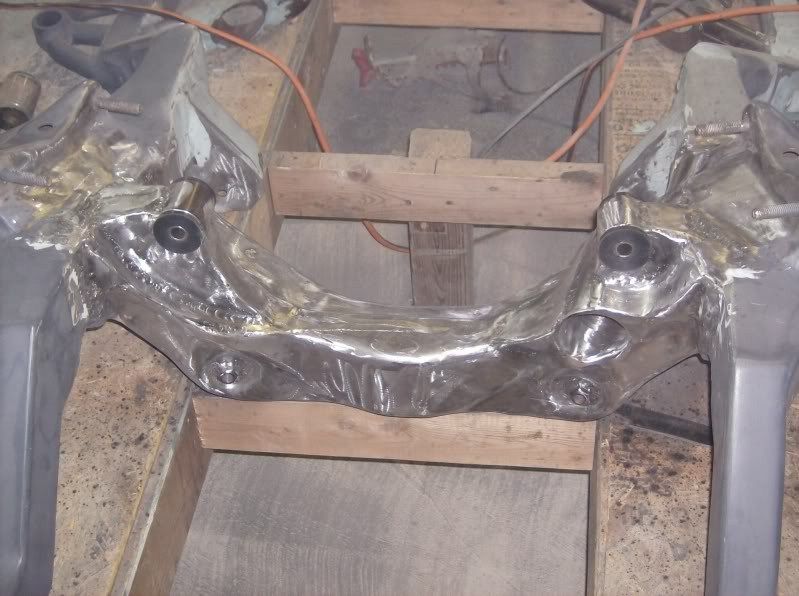

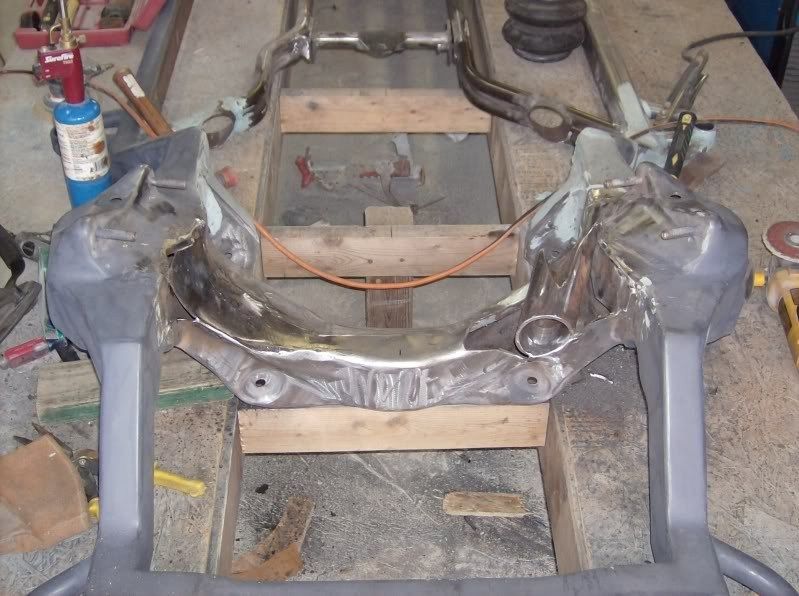

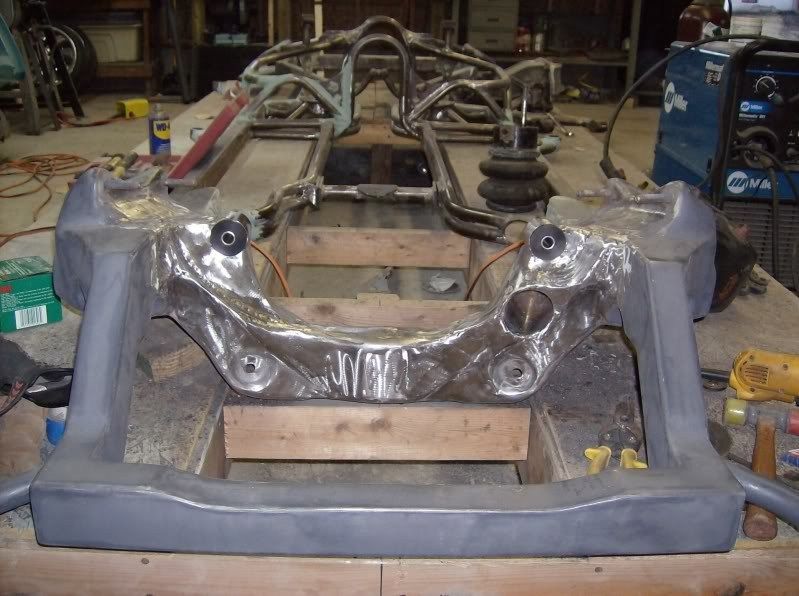

all finished

Edited: 6/4/2009 12:07:22 PM by bdydrp18

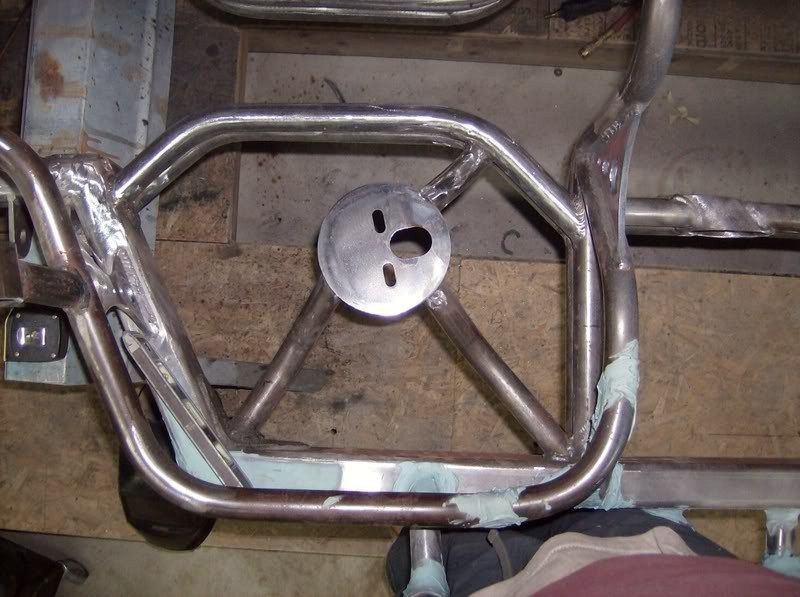

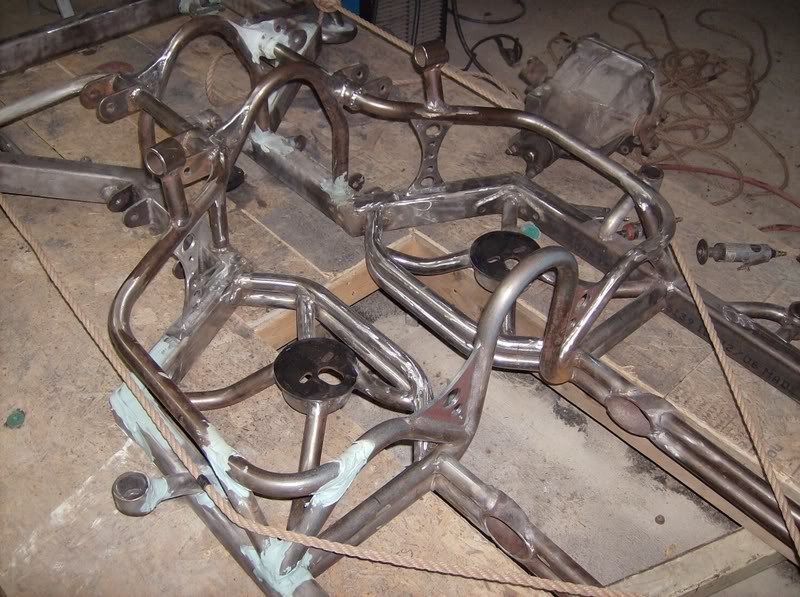

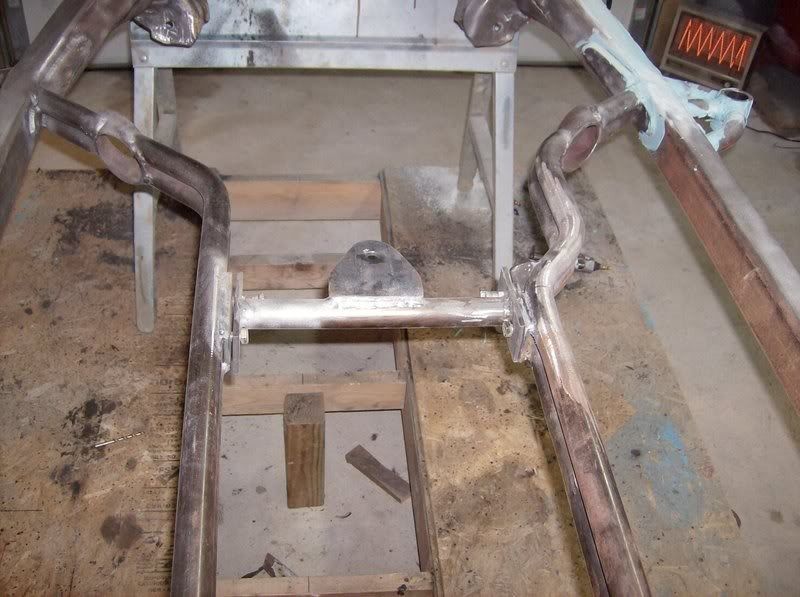

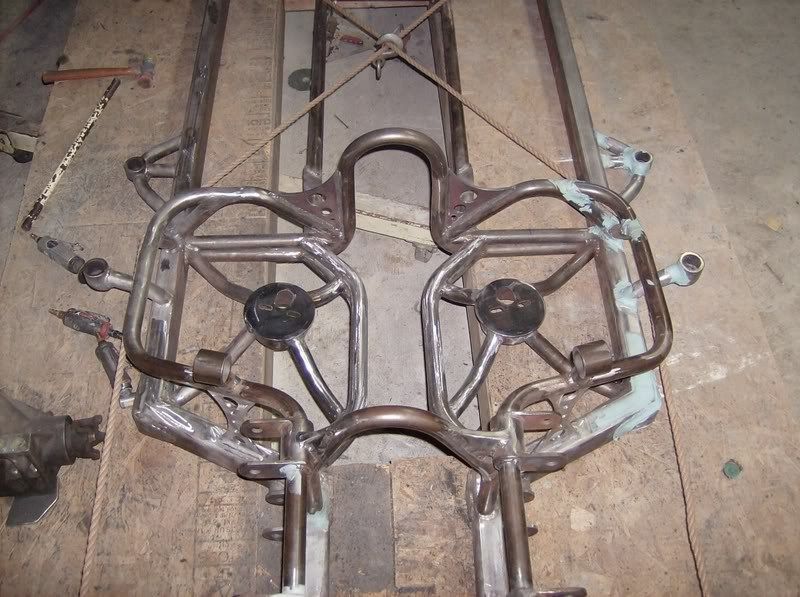

finished adding all the tubing in for the bag mounts build the transmission cross-member

Nice work, amazing at how much time and effort goes into these tpye of builds ah? Nice to see a fellow dime be see low and looking good

wow bro this is gonna be one sick dime when ur done...props on all of ur fab work...hope the bed does not hide any of that custom work

Edited: 6/4/2009 2:18:10 PM by humanmachinehead

i'm prob missing something,  but just out of curiosity, if the frame will be up off the ground like you said, wont that affect the total amount of lift you get with the truck since it will be on the ground, but the frame is not?  Seems like it would take a few inchs out of the lift? build looks phenomenal tho

---------------------------------------------Originally posted by humanmachineheadEdited: 6/4/2009 2:18:10 PM by humanmachineheadi'm prob missing something,  but just out of curiosity, if the frame will be up off the ground like you said, wont that affect the total amount of lift you get with the truck since it will be on the ground, but the frame is not?  Seems like it would take a few inchs out of the lift? build looks phenomenal tho --------------------------------------------- i'm a little lost on what you are asking me?  the whole frame lays flat on the when laid out.  so i'm not sure what part you are asking about that is off the ground.  unless you're talking about the part that holds the fuel cell??   either way it gets pretty good lift.  i have about 8-9" of frame to ground clearance at only 100 psi.

---------------------------------------------Originally posted by society_outkastwow bro this is gonna be one sick dime when ur done...props on all of ur fab work...hope the bed does not hide any of that custom work --------------------------------------------- nope going to be all open.  just a little work to hind something i don't want people to see, but other then that is will be open down to the ground

This is one bad build!!! 1 question...Whay did you keep part of the old frame?I often see that, is it that much harder to do the extra 15% of the frame?

--------------------------------------------- Originally posted by bdydrp18 --------------------------------------------- Originally posted by humanmachinehead Edited: 6/4/2009 2:18:10 PM by humanmachinehead i'm prob missing something,  but just out of curiosity, if the frame will be up off the ground like you said, wont that affect the total amount of lift you get with the truck since it will be on the ground, but the frame is not?  Seems like it would take a few inchs out of the lift?   build looks phenomenal tho  --------------------------------------------- i'm a little lost on what you are asking me?  the whole frame lays flat on the when laid out.  so i'm not sure what part you are asking about that is off the ground.  unless you're talking about the part that holds the fuel cell??    either way it gets pretty good lift.  i have about 8-9" of frame to ground clearance at only 100 psi.  --------------------------------------------- yea i missed something lol, i didnt sleep much. I didnt notice the kick up in the rear. i thought it was all flat front to back.  so when the fuel cell question came up, i thought the whole frame was gonna be mounted to where it layed just body and not frame, which would take away some of the travel.  My bad, keep up the great work
