77 CC squarebody sfbd build thread..it rolls and runs

glad so ...... mustve been another build i was following
making good progress on the build all of a sudden , i still remember a time you wherent even driving a dually
im still in that stage at the moment not even own a driveable car right now and not even sure if i can keep all the truckparts im having at the moment

you are thinking about lil j's dually. he is converting his truck to the newer body style front end...

ive got over 1100 views on this thread.... and im just now starting to take the truck apart ..

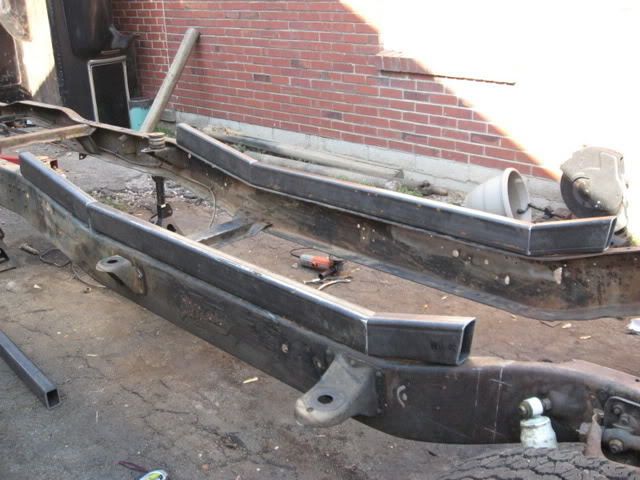

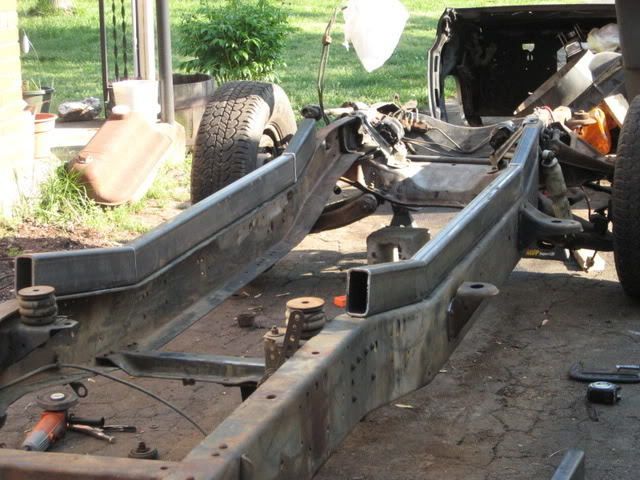

the 2x4's have been cut and welded in place.

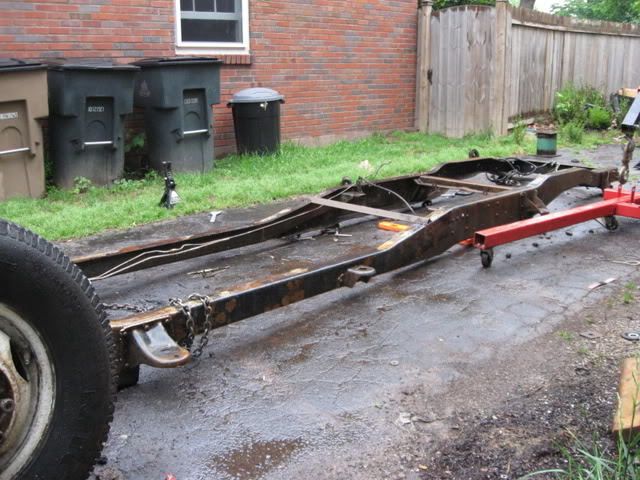

i cut the bottom of the frame off . im just about ready to do the z



more pics to come as soon as it stops raining...

had to z it up 4 3/4" to get my lower control arms to be even with the bottom of the frame.

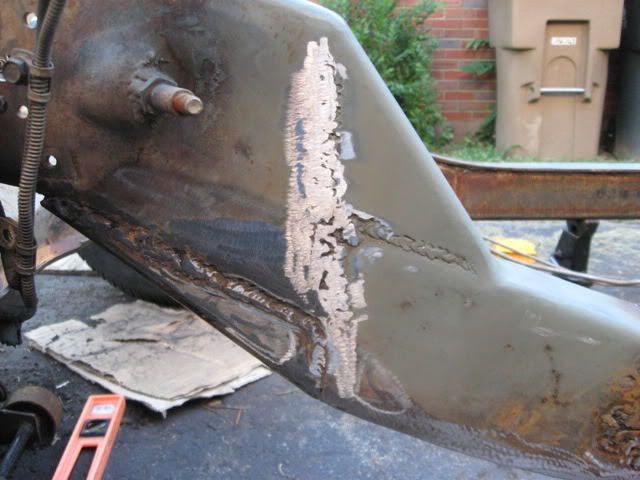

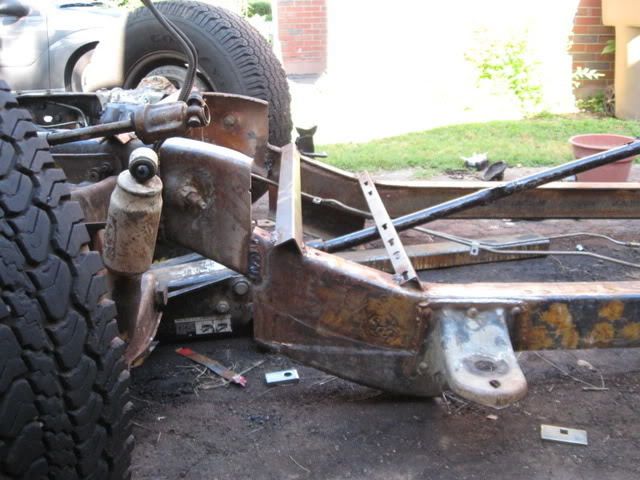

the z before i plated the sides. i used a couple pieces of 1/4" 2x4's as gussets

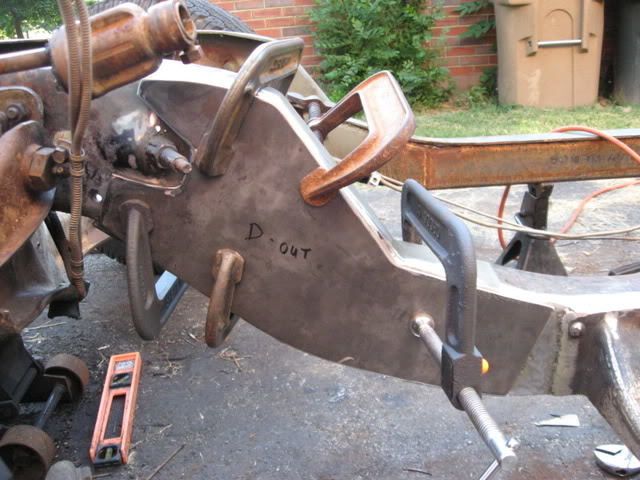

fitting the outside 3/16th reinforcement plates.

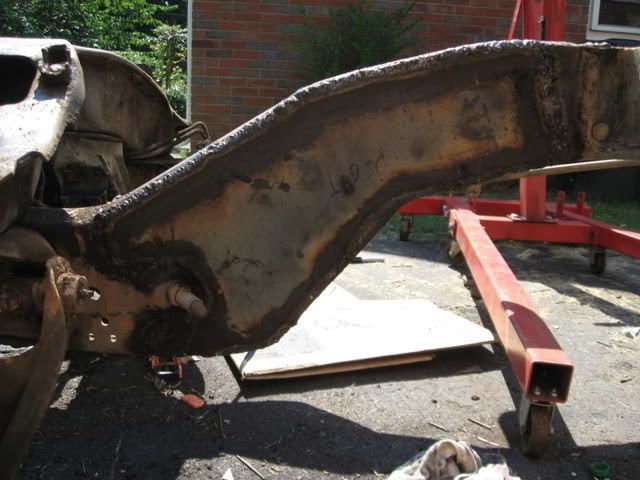

passenger side after i flipped the frame upside down and welded it. i am going to smooth down all the welds after im done..

Looks good sir! keep up the good work

thanks alot...

i am in the process of cutting the reinforcement frame plates for the inside of the z.. i should have them done tomorrow or the next . i need to get the pressure washer back out and remove all the grease from the engine cross member that i missed the first time around..

the truck is going to weigh more than it did from the factory when im done...lmao
ive spent almost 500.00 in steel so far..

i would love to bag mine but i wouldnt even know where to start :S i think i nice static drop and some wheels will do for now

keep it up

this is my first time doing something like this. i had to just get out there and start tearing it apart. its been fun chopping my dually up.... the next one i stock floor should go alot smoother..

if you want to drive your truck any time soon. a static drop would be a good choice...lol

more pics!

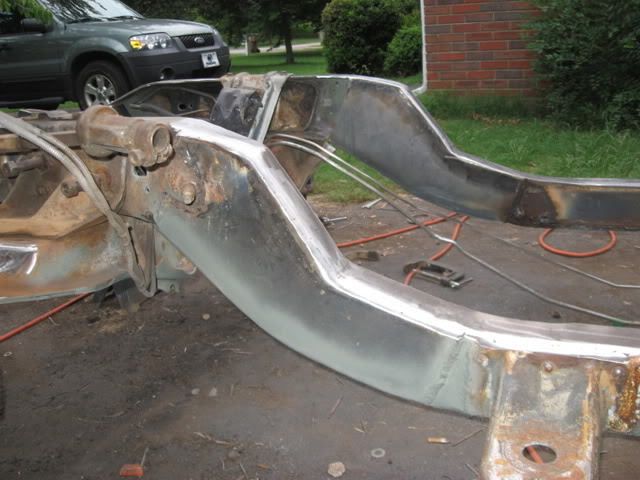

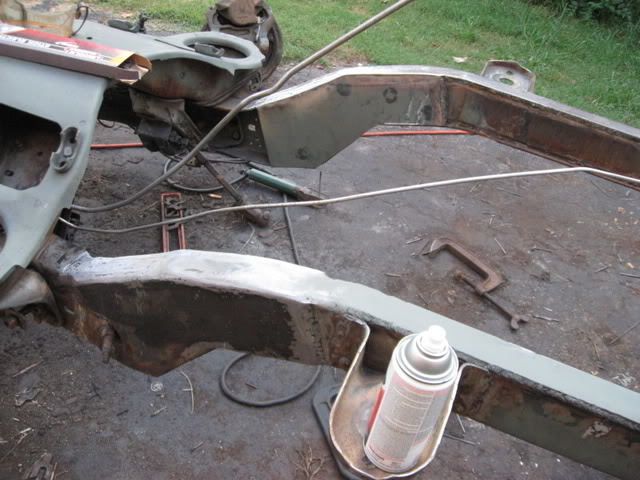

the Z is 95% done. the top inside of the frame needs to be capped to make sure no water gets inside .

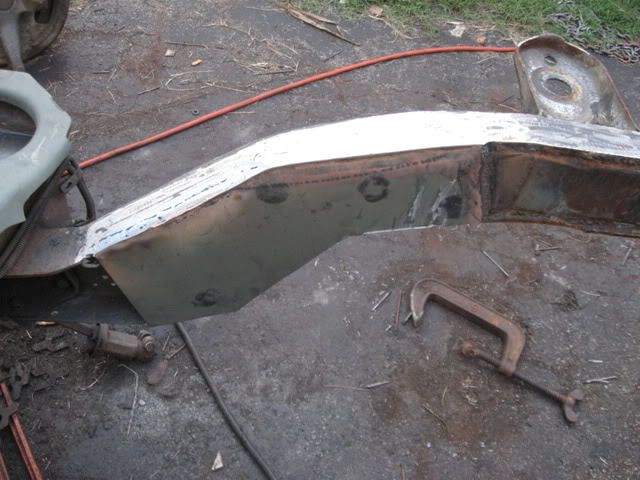

i went ahead and put some 2 inch x1/4 inch plate on the bottom of the frame. grinding my brand new frame on pavement doesn't sound very good to me. plus, it moves my control arms a little farther from the ground when its layed out.






im thinking about painting my frame a semigloss black...

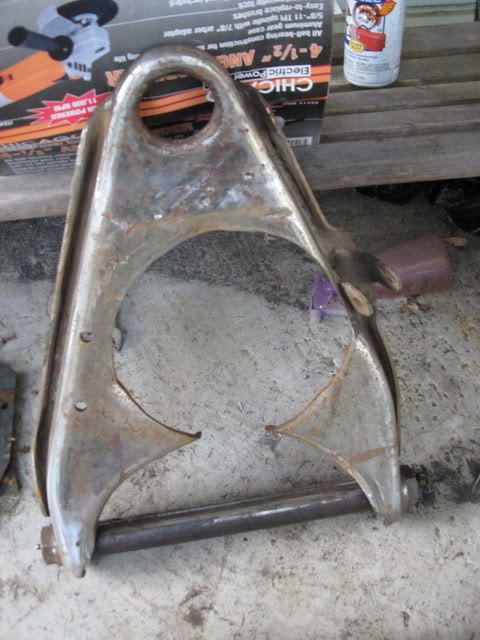

i cut 1 of my lower arms so far..

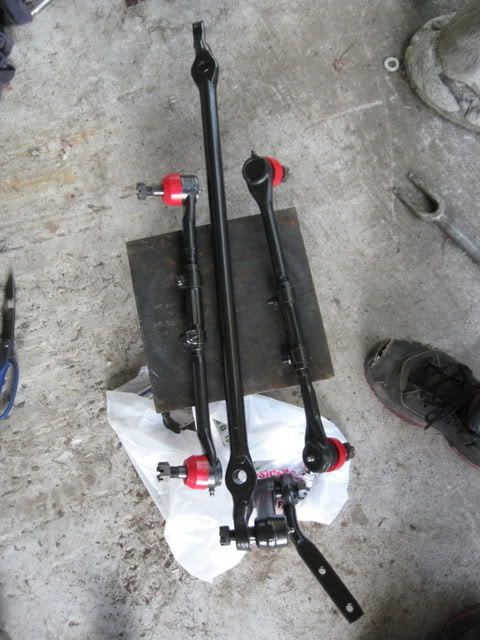

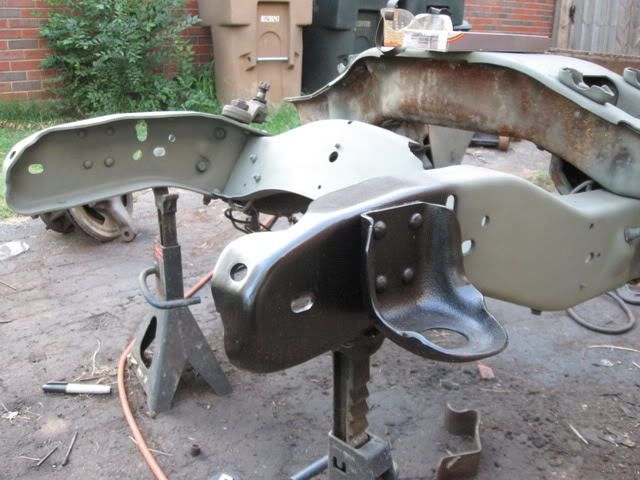

i replaced the tie rod boots with Brand new polyurethane ones. the upper and lower ball joints have new red boots as well...the tie rods etc.. were sanded down and painted .the steering box is next.
the guy i bought it from replaced all the steering and suspension parts under the truck not to long ago... one less thing i had to pay for..

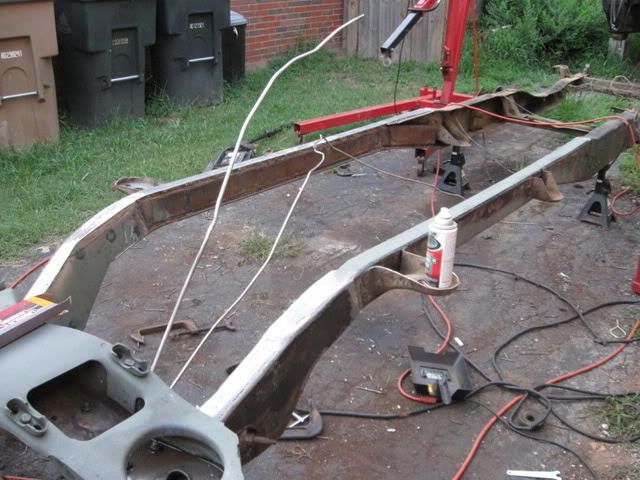

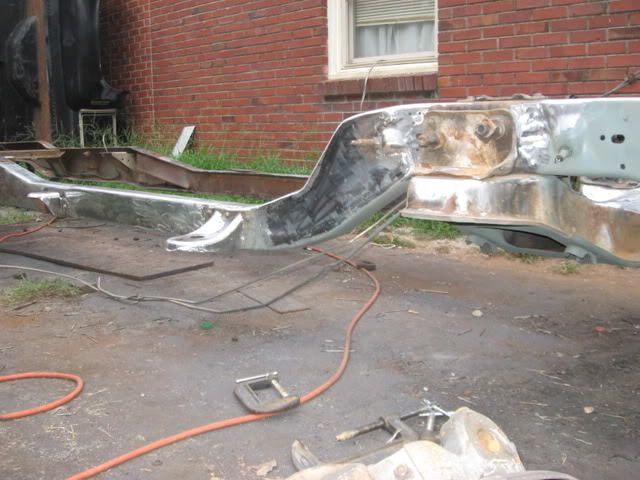

i flipped the frame back over and smoothed the welds down .
