Dually Projects \  89' chevy crew cab dually project. take a look-

89' chevy crew cab dually project. take a look-

Dually Projects
views 48903
replies 211
following 31

04_duramax   +1y

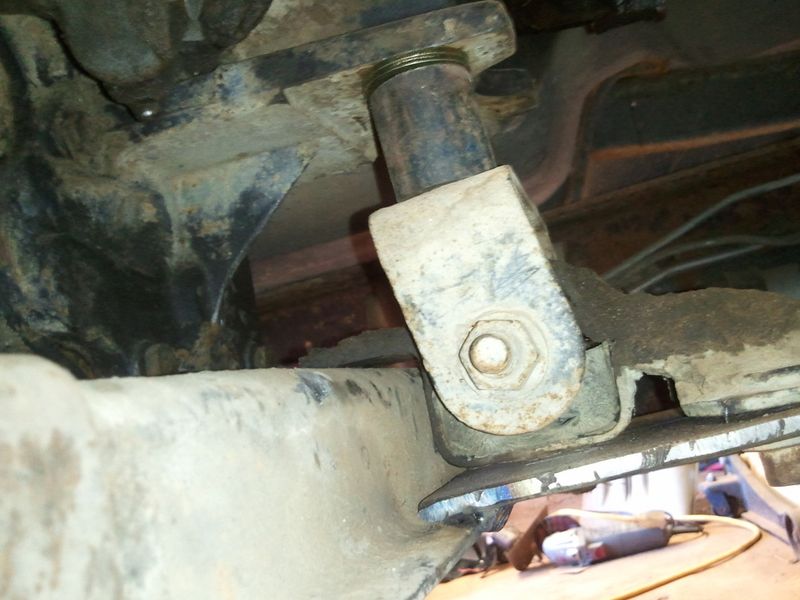

Thanks for the props man! I used the stock arms, 2" stepped ball joints, cut out the cups, plated the bottom of the arms and made new cups out of 8" 1/4" wall pipe. it also has 3" drop spindles.
04_duramax   +1y
thread post photo


thread post photo

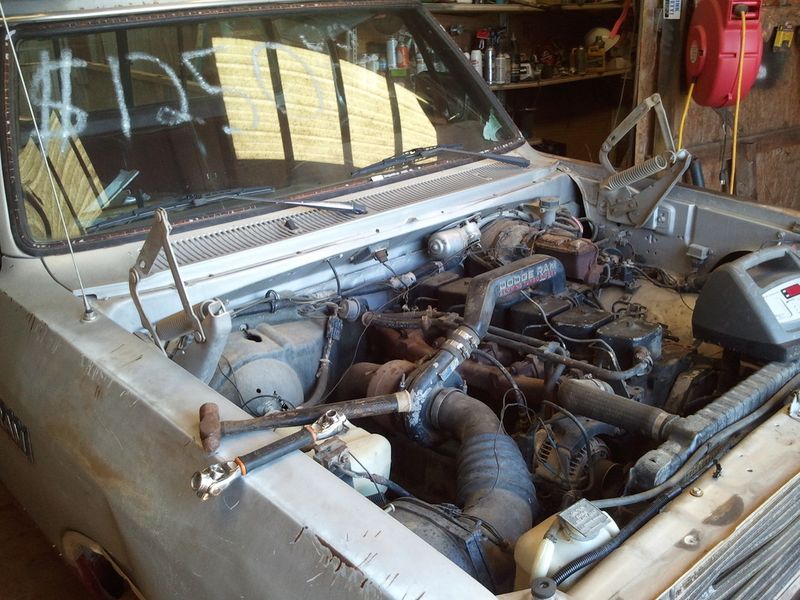

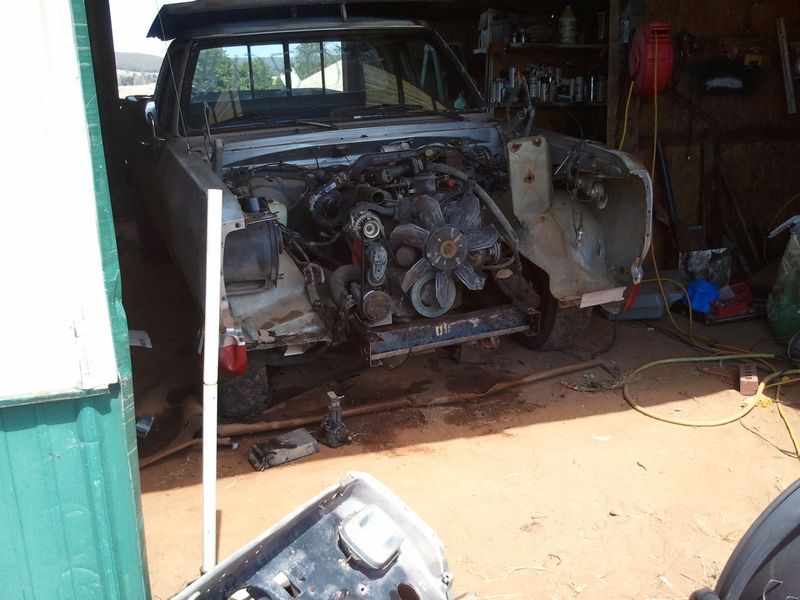

Engine Mounts

thread post photo


thread post photo

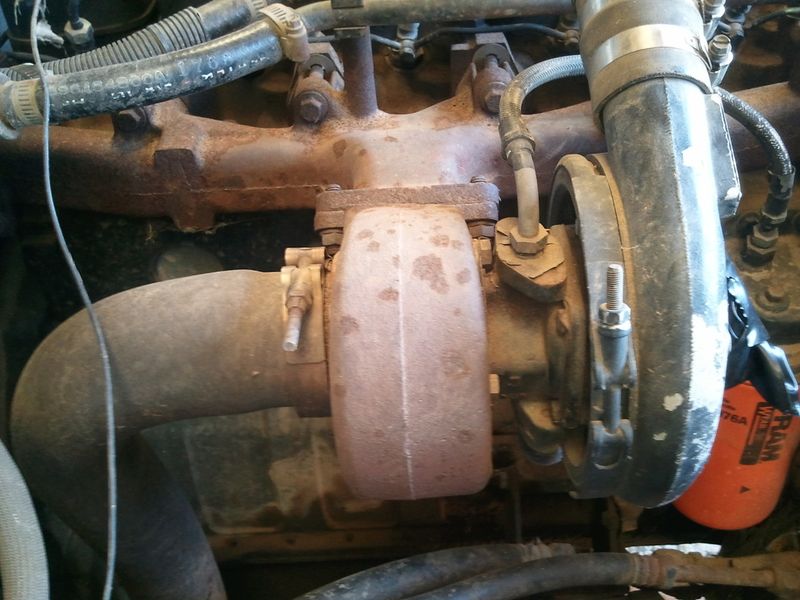

Baby Turbo charger with no waist gate haha. I thought this was funny.
04_duramax   +1y

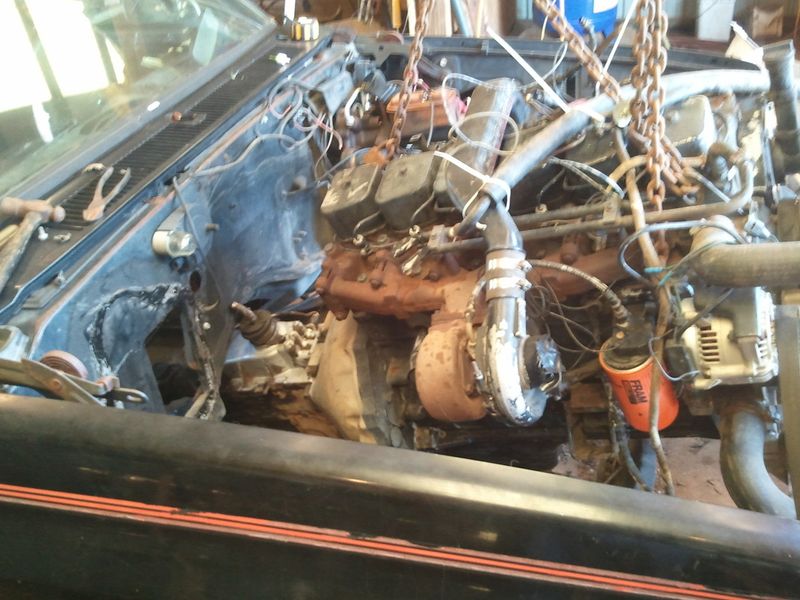

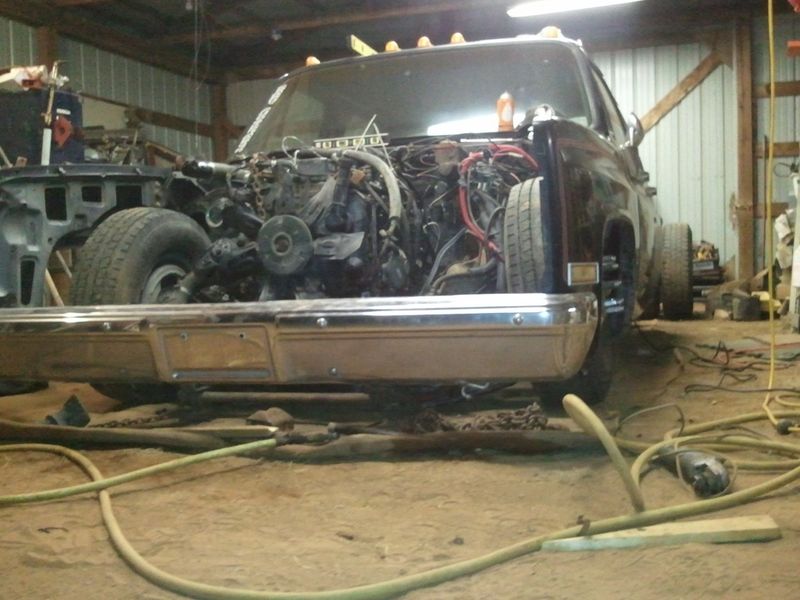

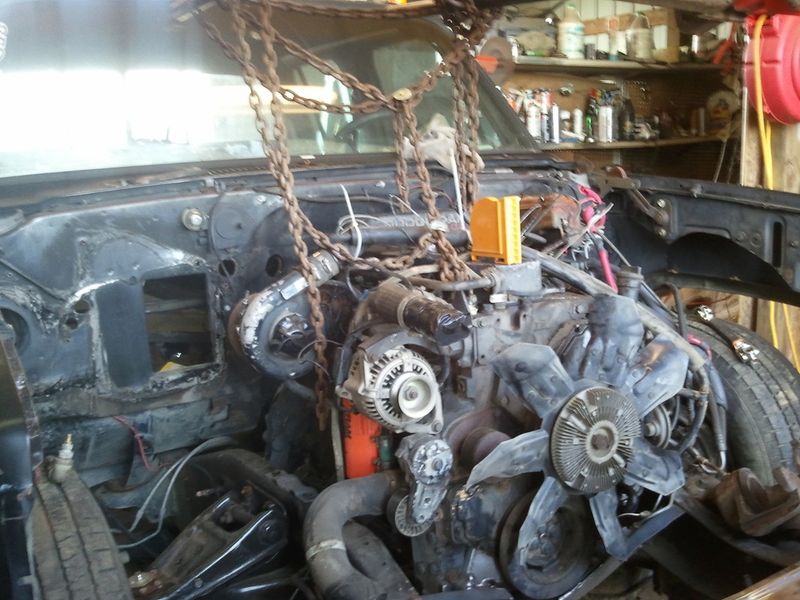

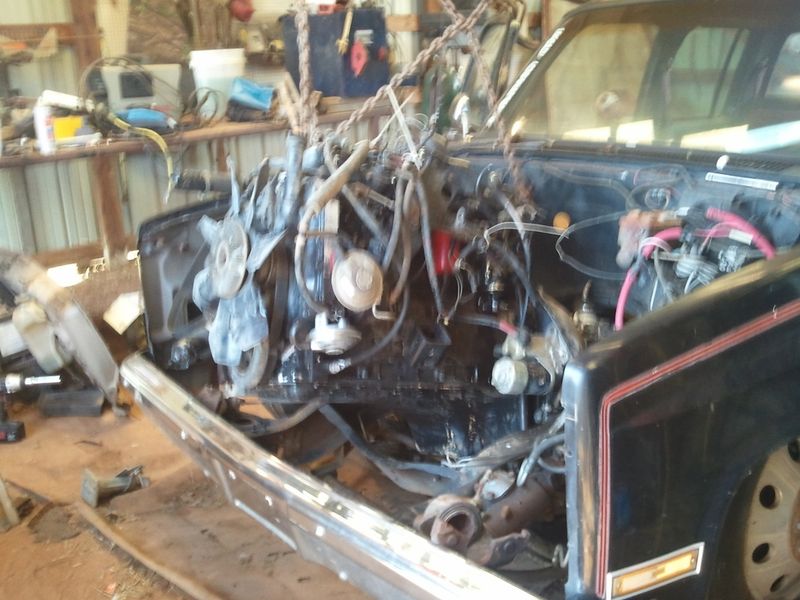

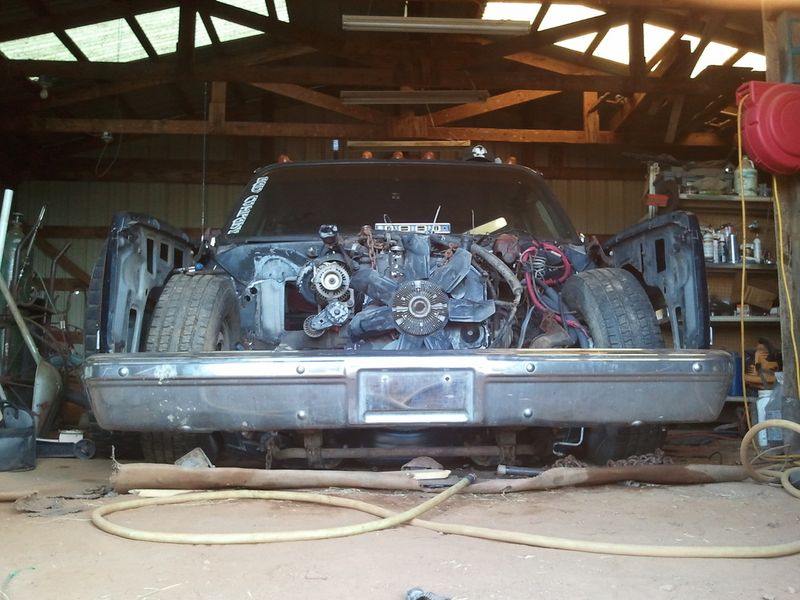

here we go!!!
thread post photo



thread post photo

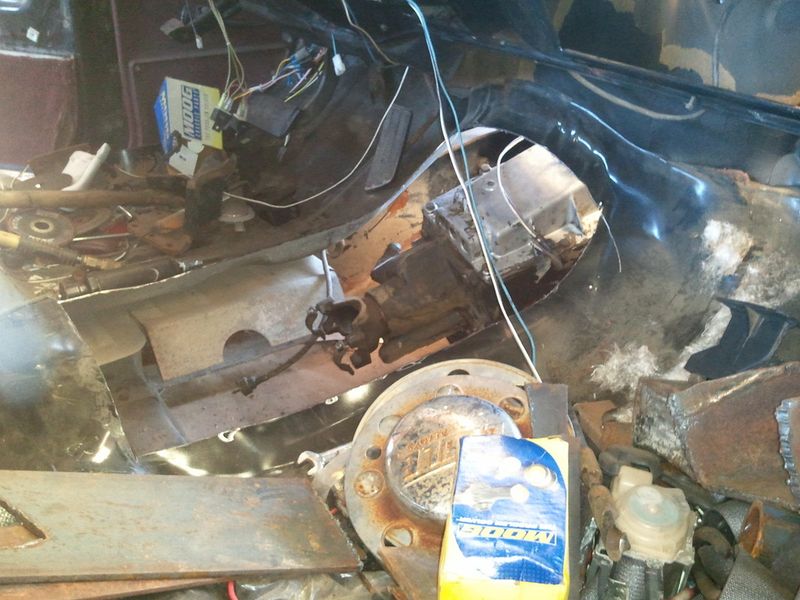

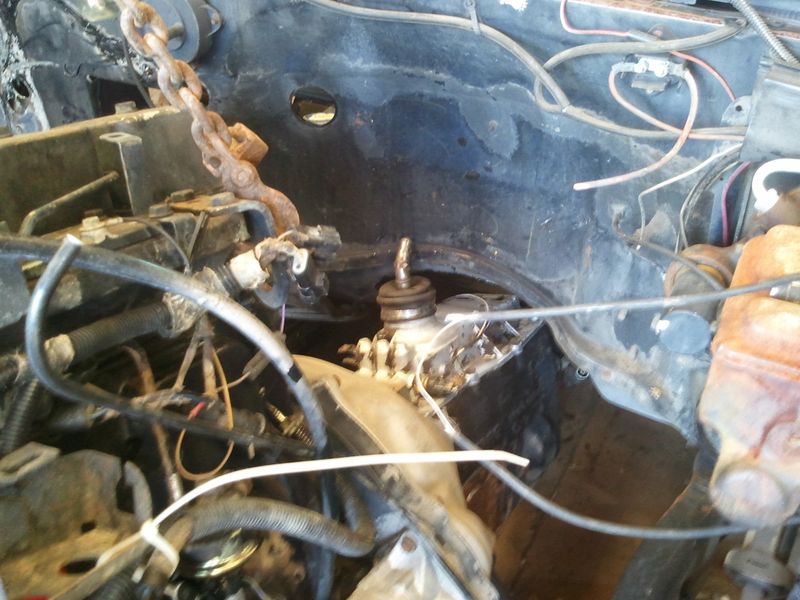

Good bye tranny tunnel
thread post photo


thread post photo


thread post photo
04_duramax   +1y

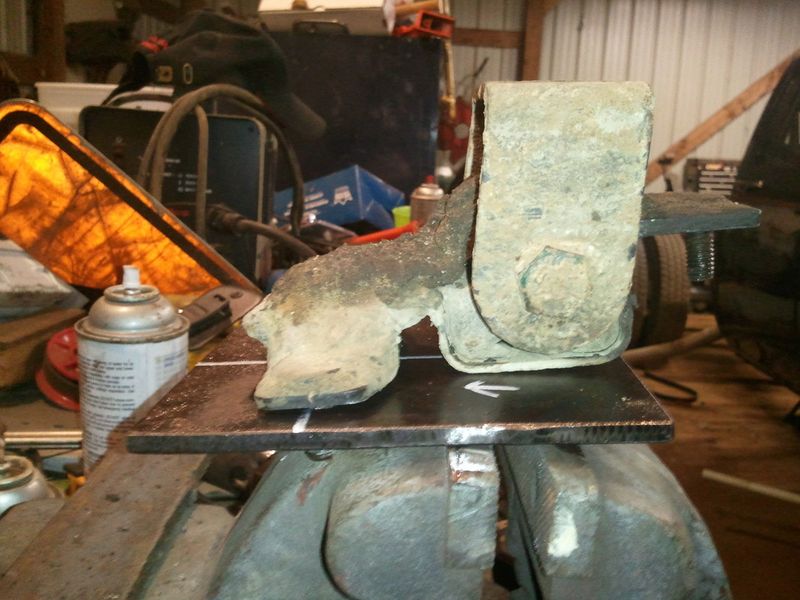

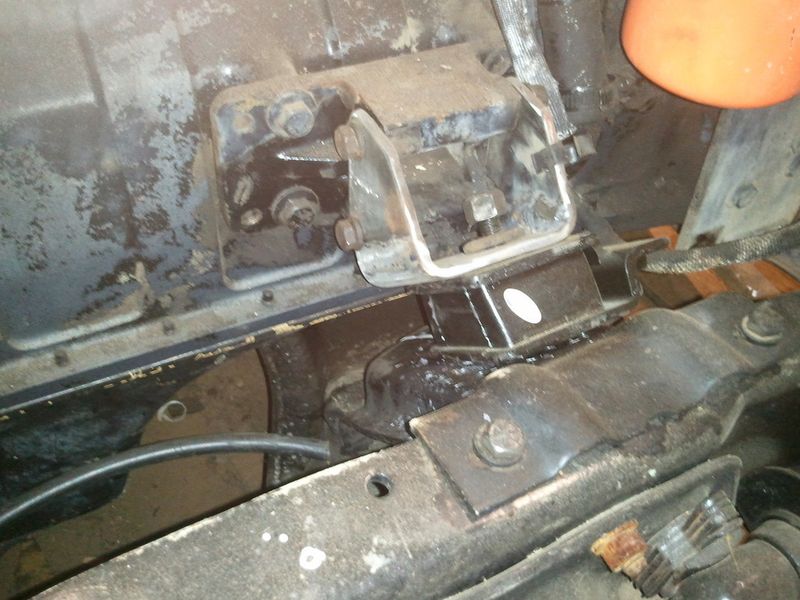

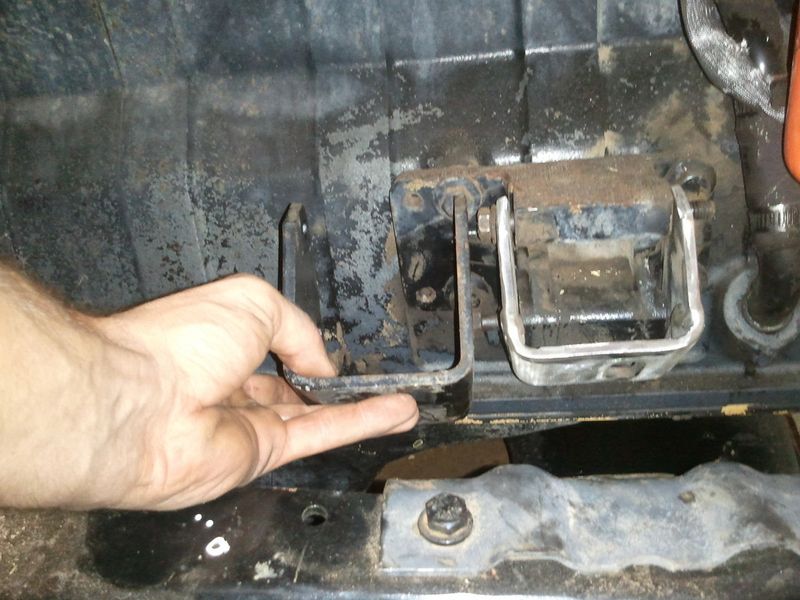

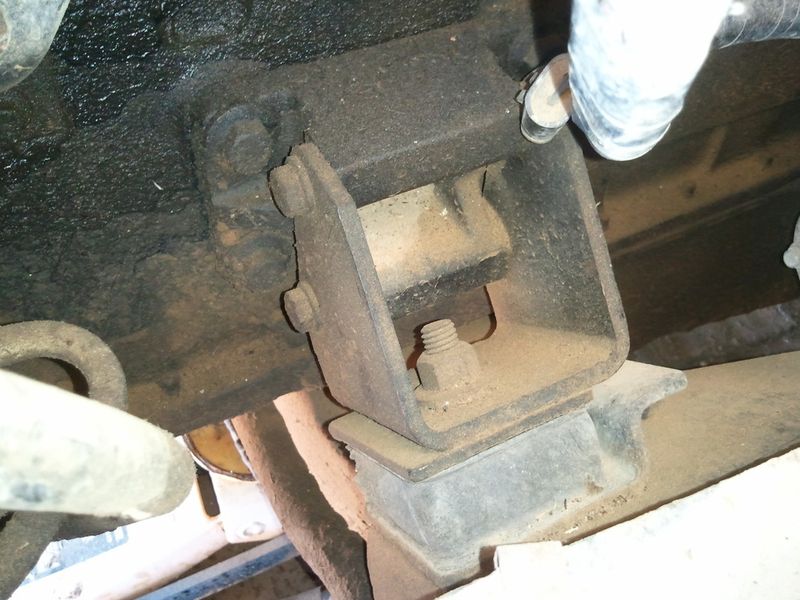

Factory Engine Mount brackets, cut down 3/4", used chevrolet big block pirches.
thread post photo


thread post photo


Factory dodge trans mount, Chevrolet trans crossmember with added brackets.
thread post photo


thread post photo
04_duramax   +1y

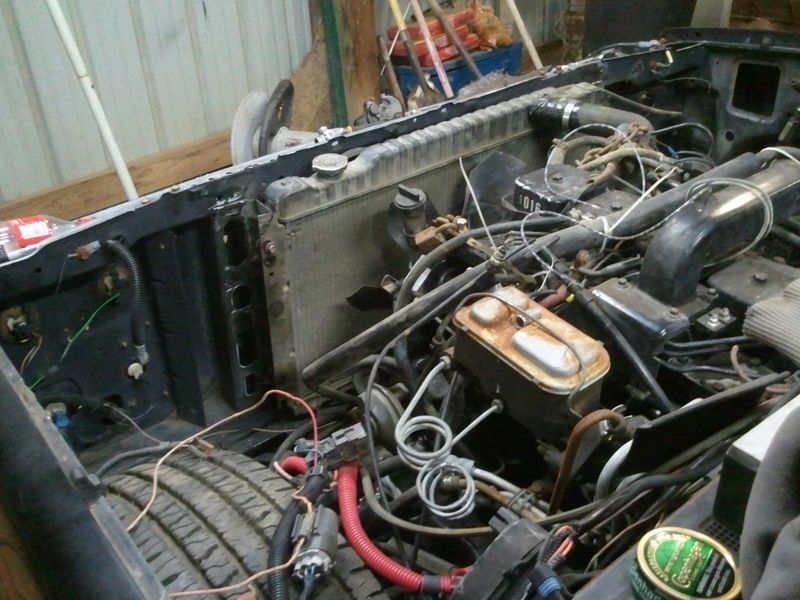

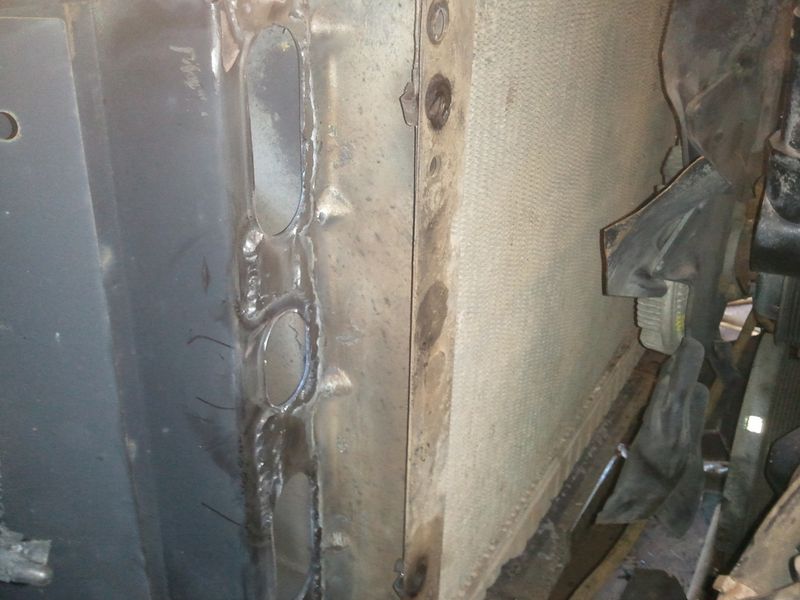

factory dodge radiator, I cut the factory mounts out of the dodge core support and fitted them to the chevy core support, so i could still bolt every in like normal.
thread post photo


thread post photo
04_duramax   +1y

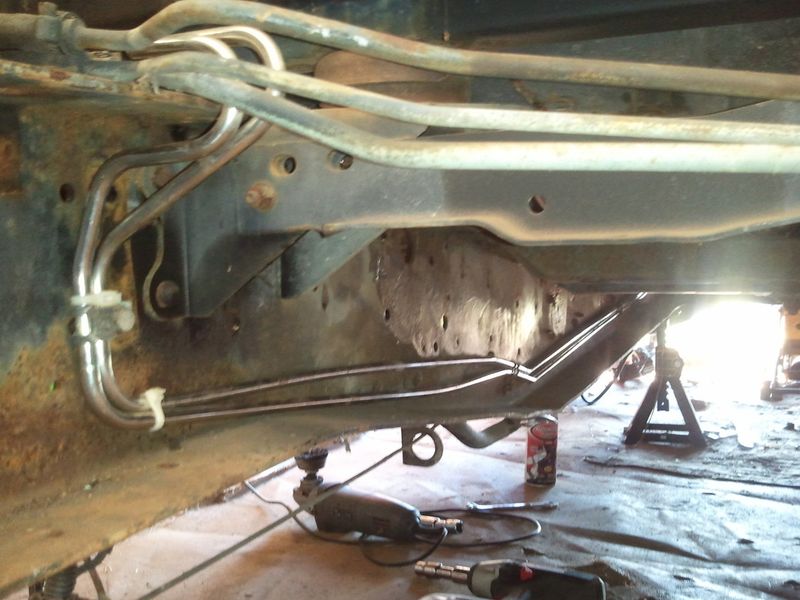

new fuel lines, i forgot to take pics of the fuel sender. but that part is a cake walk, take the pump of sender and put a piece of fuel line in place. unless you have a carbuerated sending unit.
thread post photo

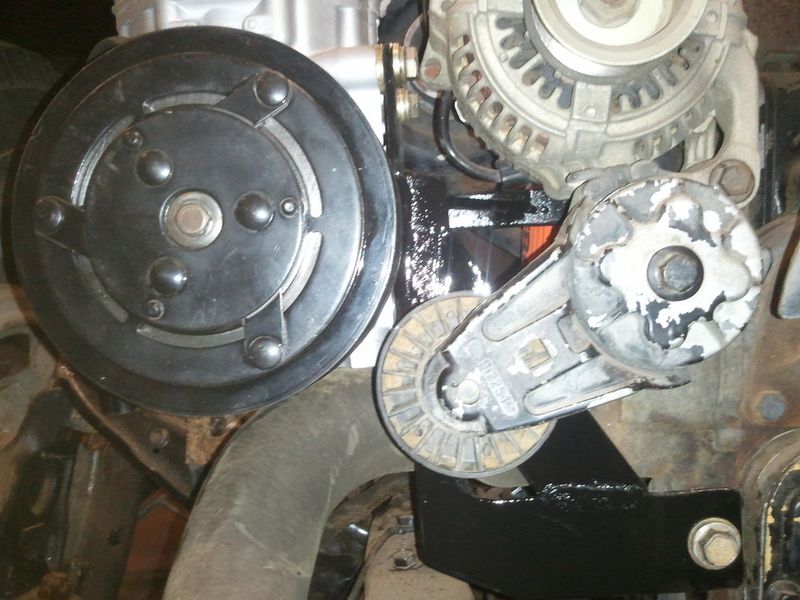

York 210 compressor for the air supply, fabbed up the mounts for that.
thread post photo
04_duramax   +1y
thread post photo


thread post photo

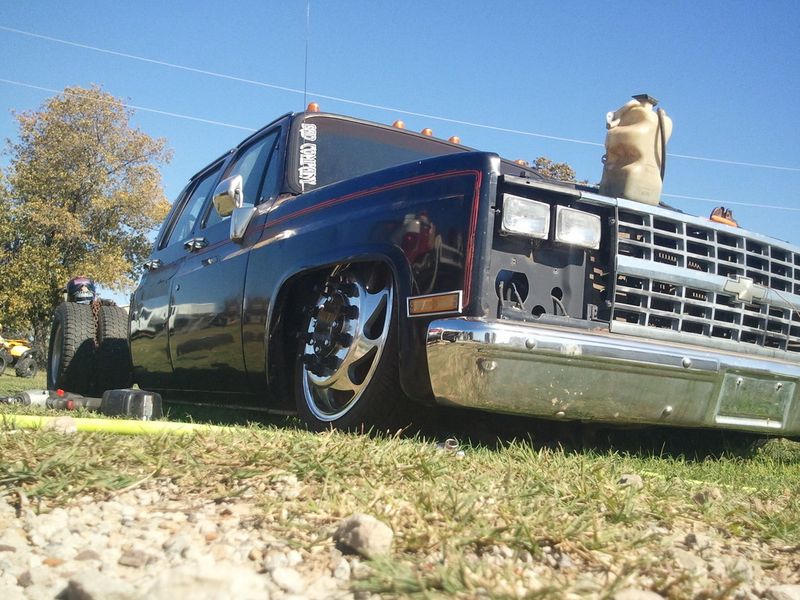

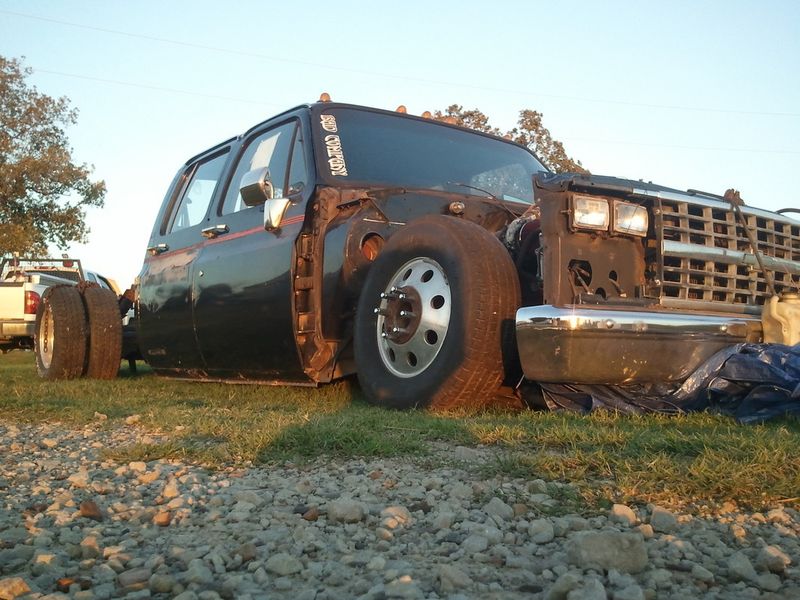

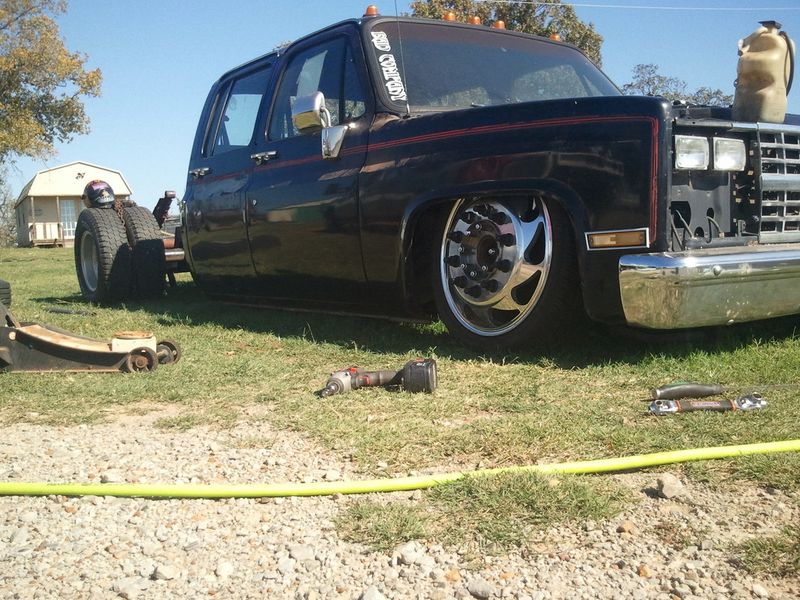

Finally put the shoes on her!
thread post photo


thread post photo
04_duramax   +1y

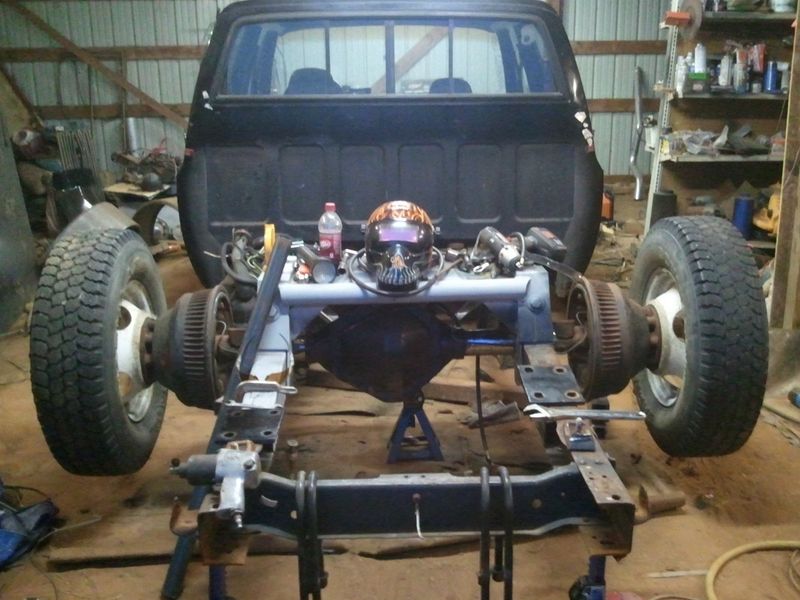

Factory DANA 70 rear, 55" back plate to back plate.

this is the before pic.
thread post photo


this is a pic of the after.

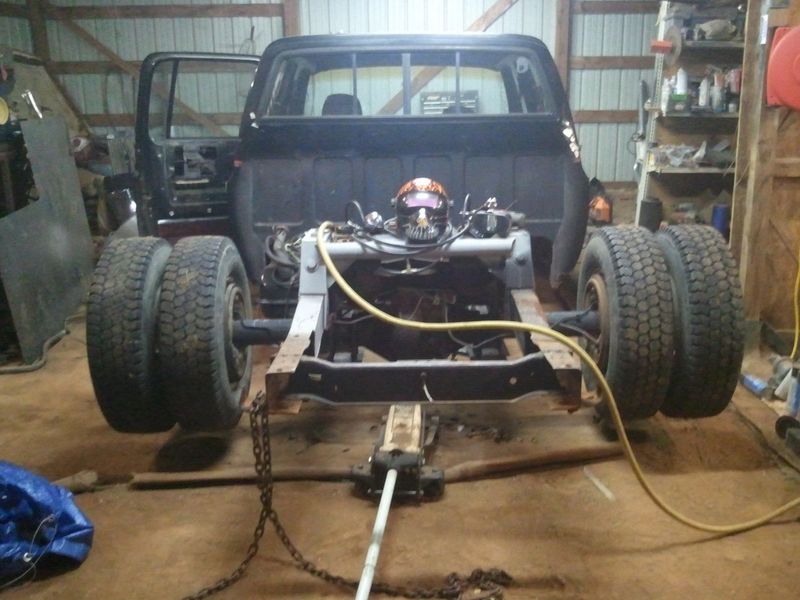

Corporate 14 bolt C&C rear. 46 1/2" plate to plate.
With this rear end the semis will tuck in the fenders with no issues.
thread post photo
04_duramax   +1y
thread post photo


this is my new 2 link setup for the C&C rear end because of the offset differential housing. the bars aren't finished out yet, i have to finish stiffening them up. I know the mounting tabs on the frame are a little shady looking, but they are temporary, needless to say it was cold and i was tired haha!
