help bag setup ideas

twisted you have any pics of your wish bone on someones truck and when you say affordable what we talkin for my truck a 93 mazda b2600

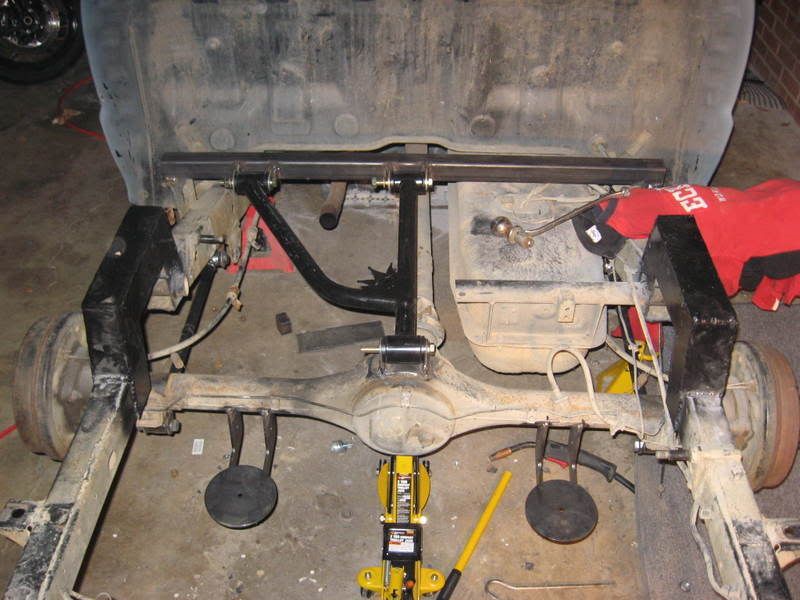

Heres Marcus' picture installed.

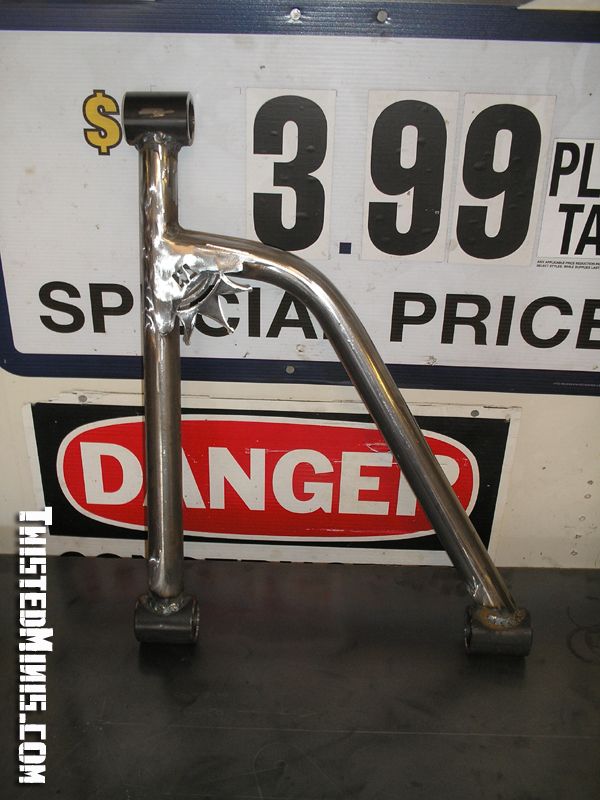

I will build them any way you want, to your specs. How its mounted is up to you, because I am not designing the setup for you. I would prefer to TIG them from now on since I have the abilities easily available, where as before I outsourced it.

And by affordable, I mean it will cost less than SD builds them for. They quoted me about $325 for the one I built Marcus, I charged him around $225 shipped.

so do they come with the bushings and bolts to put wish bone on are the barrings already in the wish bone thats a clean little setup this is what i am looking to do i want to leave my tank in the stock place is this one still in the stock place are did you end up having to move it up are over are anything this seams like an easy setup and another question if you have any more pics of this like after you have the uper bag bracets on please send the i like this this is what i am looking for

AND AM I SEEING THIS WRONG ARE IS THE BAR THAT IS WELDED TO THE FRAME THAT THE WISH BONE CONNECTS TO IS THAT WELDED TO THE TOP OF THE BED MOUNTS HOW ARE YOU PLANNING ON PUTTING ON THE BED

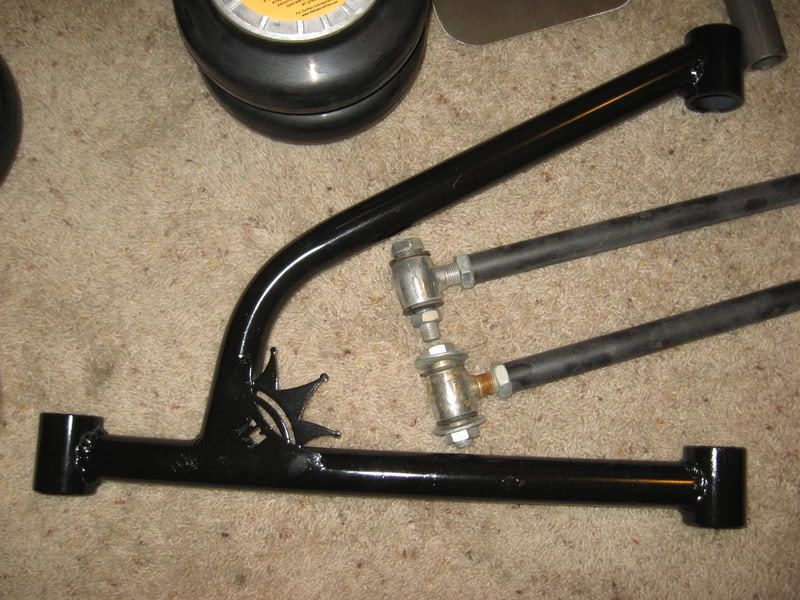

I do supply the bushings. I can supply the bolts too, as well as custom tabs that wrap around the pumpkin for the strongest connection.

This setup will allow you to leave the tank int he stock location, but ti should be moved up a bit for ground clearance. This can be done with spacers and longer bolts.

I offer them with basically nay options you want. I can build them with an adjustable bushing on one end, a fixed bushing, or a heim joint. It depends on what you want.

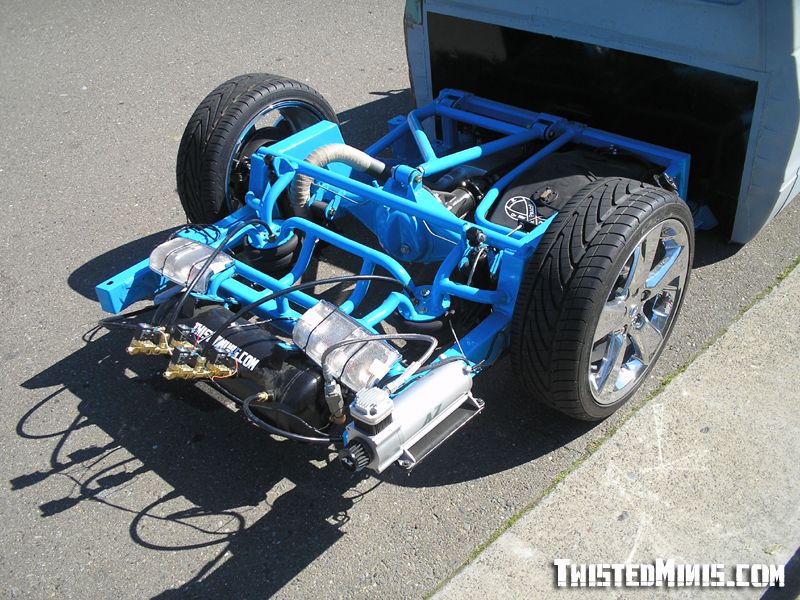

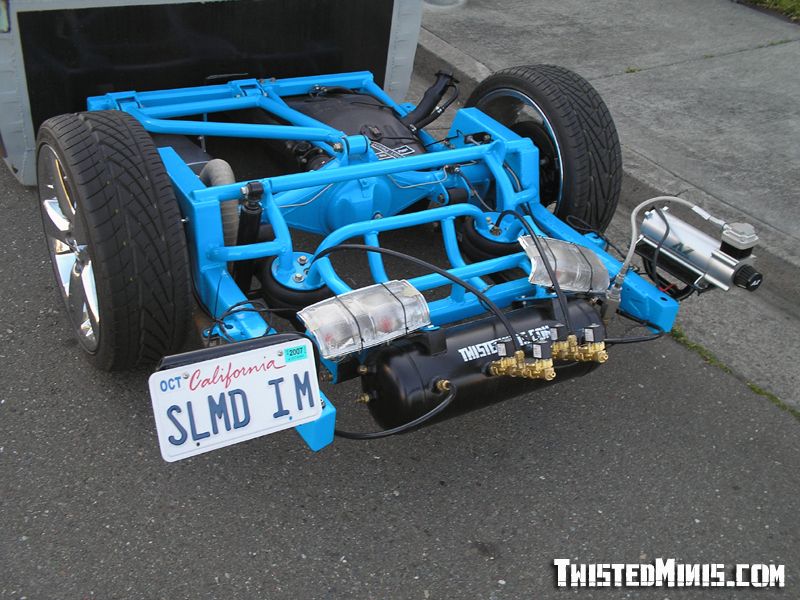

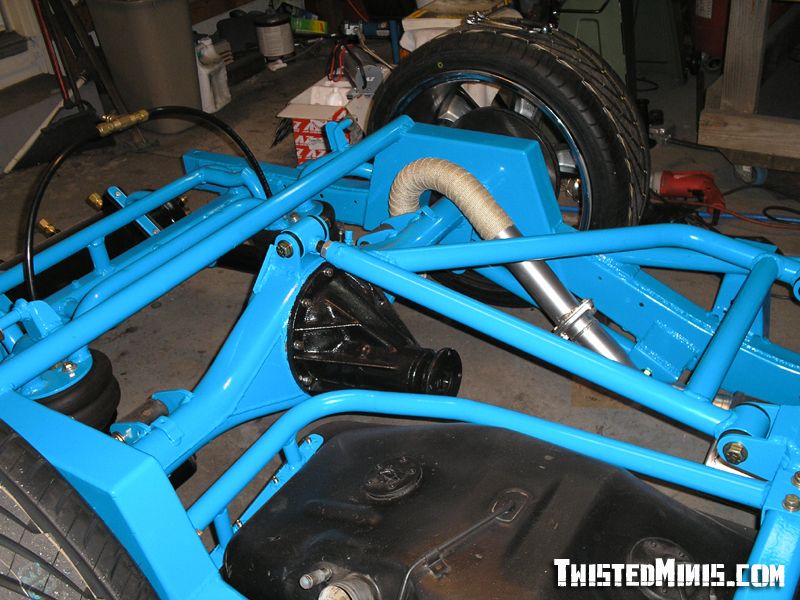

I don't think Marcus has his bag mounts on yet. But here is a picture of my truck.

THE COLOR THAT THAT FRAME IS PAINTED WHAT IS IT CALLED (MAHOMA MAMA BLUE) OR WHAT

Its powdercoated. Its Miller Blue.

i dunno whose this setup is but it needs some bracing where the driver side of the crossmember for the wishbone meets the frame!! that's a definate weak point!!
://i135.photobucket.com/albums/q144/DevB22/peter22.jpg

Honestly I think the DS looks plenty strong. Its got a 90 degree bend attaching to the frame in two places, and the crossmember is attached to that in two places which acts as a gusset.

i did not see the front point on the frame where it's attached... i just saw the rear most and almost shit my pants thinking that was it. my bad
