B2200 Engine help

Hey there guys .I was wondering if anybody had a picture with the ignition coil and spark plug wires.Unfortunately the cables were riped out and i dont know the way they go.Can someone please post a detailed picture.so i can figure out this mess.thanks

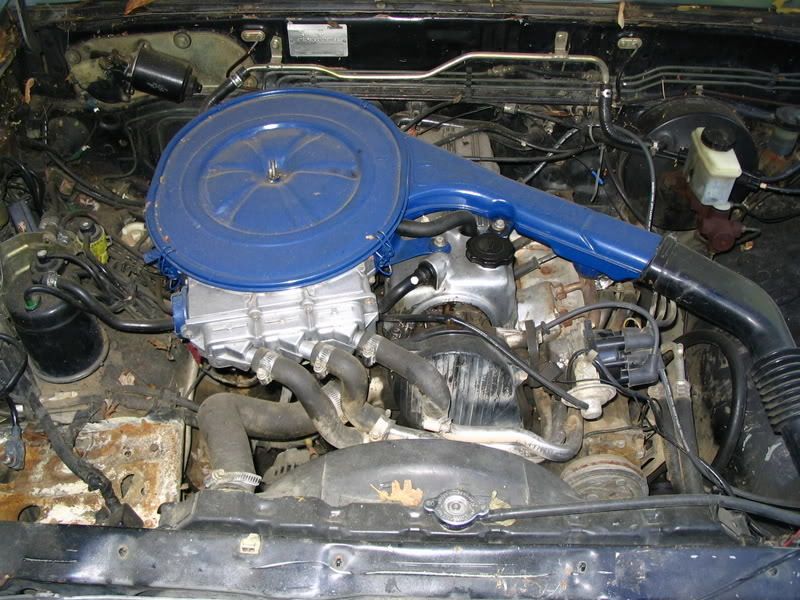

this is the only pic i have right now, i will take much better ones for you in an hour or so and post em up when i get home, gotta tear into it anyway.

hope these help they arent the best but my batteries dies lol, lemme know if it helps.

ok this is what the book calls for. this may not work....... mine was the 2nd picture that i corrected

the book


this is the way my motor is

or the easy way:

1: remove plug wire at coil
2: remove #1 spark plug
3: stick finger in hole where the spark plug was
4: have a friend "bump" the key. no it wont hurt it will just blow your finger out of the hole lightly. dont hold on the key, just tap it.
5: once your finger is blown to pieces.... not really ..... remove cap from the dist. where ever the rotor is pointing thats where you want to put your #1 wire.
6:install the rest of the wires in order 1,3,4,2

hm mine doesnt follow that diagram.. i dunno but mine runs perfect so, like i said in one f my other post, one thing i know about mazdas is all of them are different.

my bad mine follows the seconf one, didnt notice there was 2 diagrams

Thanks for the feedback guys.Iwent by the book and the truck ran like arse so i think the second pic of the diagram will work.ill keep you guys posted

My '88 B2200 is just like this one.
