Front bag/bracket install

I originally installed a set of AIM front bag mounts and Im wanting to redo my front bag mounts since they bent and rubbed the balljoint. I have found a few pics on here and Im looking for any info and or pics on how to do this properly. thanx

This link should help:




Dev

So here's what I've



low87 are the bag mounts supposed to be angled up so the bag is squared up when flat?

No disrespect to whoever owns the first pic, but I would disregard it!!!!

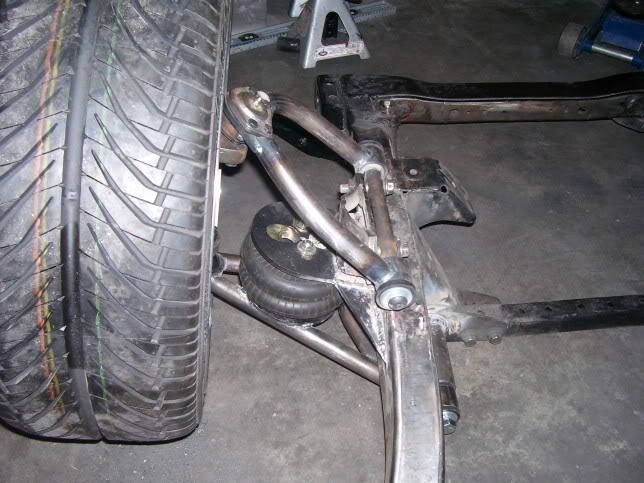

See the way the bag folds over itself at a slant and hits the lower control arm?

NOT GOOD!

The others good though!



Dev

Sorry I didn't finish,

The bag should fold over itslef, but straighter the better!

Almost like when you eat a hamburger and smoosh it down to get your mouth around it!


^^



Dev

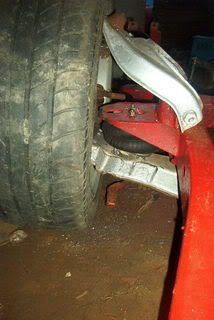

i seen a post talkin bout this today and thought it would be relevant..the red one is mine ..yea make the upper mount level.. its easier to play around with the lower mount....yea who did that first setup you must go through a bag a weak there should be NO rubbing on metal EVER!..

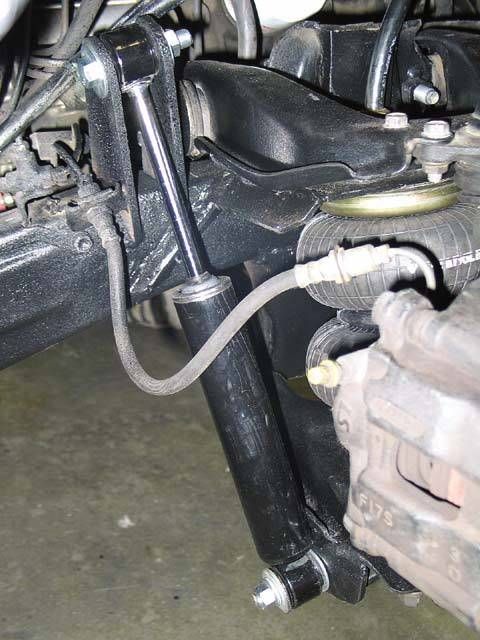

that last on looks about the best. the upper bag plate should be angled up like 25 degrees, depending on how much of an angle the lower control arm is when layed out. you'll want it to sit squarely on itself, or as close as possible like DEV said - smash a hamburger and see it in action i'm hungry

^^^ Nice Install Man!!!!

VERY NICE!

Why the hell haven't you done a Write-Up for everyone to see!


Good work broham!



Dev

on the first set of pics on the very last pic, i could see those plates bending up over time with the gussets only going out as far as they do.
