Hey i got some 1/2"smc valves , i was wondering if anyone has a diagram of how they set up their valves

Im not 100% sure on what fittings to use and how to set it up but heres a rough idea

im gunna run FBSS ,i got 8 valves
i want to run 4 dump controls
this is how i want it to work:

i got 2 Tanks each 3 Gallon,3 ports

so thats 6 ports in total
Tank 1 :
1 port for the compressor
1 airline running from the tank to the valves
1 airline for the air gauge

Tank 2:
1 port for the compressor
1 airline running to the valves
1 airline for the air gauge

Also i will have a line that splits off and runs to the pressure switch from the line to the air gauges


So i got two airlines ,each one running to 4 valves [one set for the front one set for the back]

oviously there has to be a airline going in one end of the valves ,2 dump control will be in the mix and another airline leaving the valves feeding the bags (that will split into two ,one per bag)
but im not 100% sure how to set this up anyone got pictures or diagrams , ive seen the ones from SD but they dont really help

theres so many different ways to do that buddy

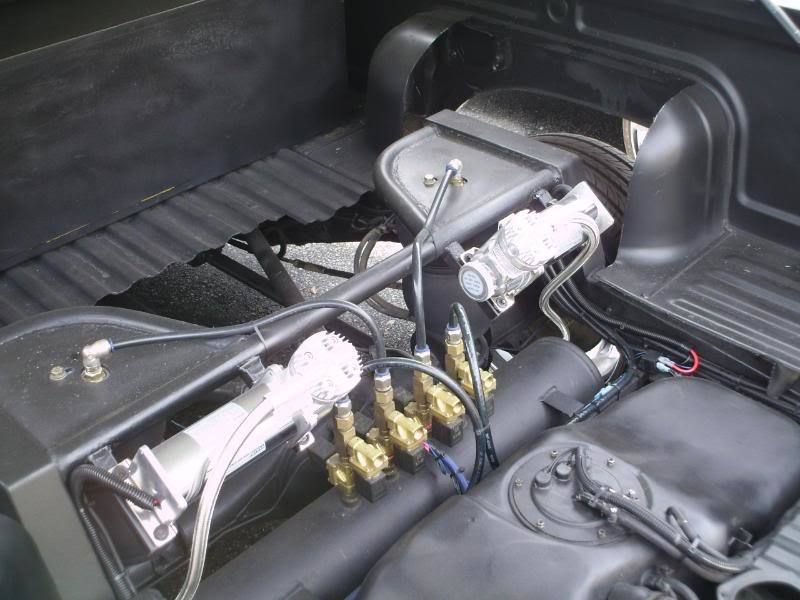

Not stealing the thread but just wanted to say that is a nice clean setup in the pics nick is that a eight gallon tank
