hey i need some help knowing which screws and bolts go where to re-assemble my dash back in my truck... ive got them all sorted i just dont know where each one goes... any help would be good thanks.

thread post photo
fastonthetrack   +1y
lol.. cant find a diagram online? i have a book but not sure.. ill look in there and see if i can find a diagram
addiktion   +1y
sweet thanks bud
mazdaman82   +1y
wow thats a hell of a lot more then i ever put back...lol...
addiktion   +1y
ok ill sum it all up, i repainted my whole interior...
addiktion   +1y
i found it....

addiktion   +1y
so it didnt help me as much as i thought it would... fml lol
anymore help would be much appreciated
addiktion   +1y
ive got 36 of these...

thread post photo

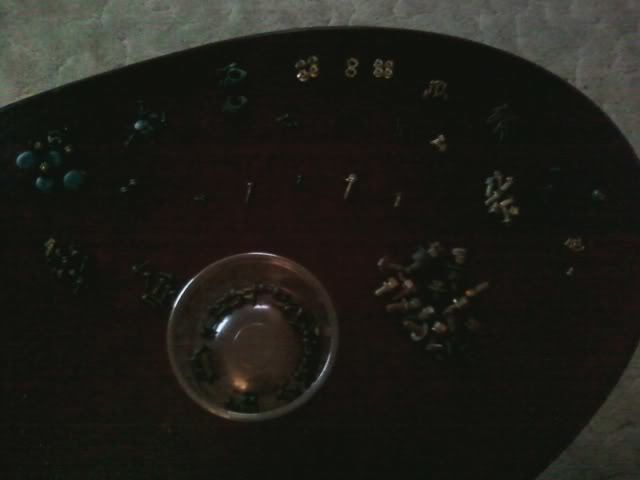

how many you see are how many ive got...

thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo
bagged89mazda   +1y

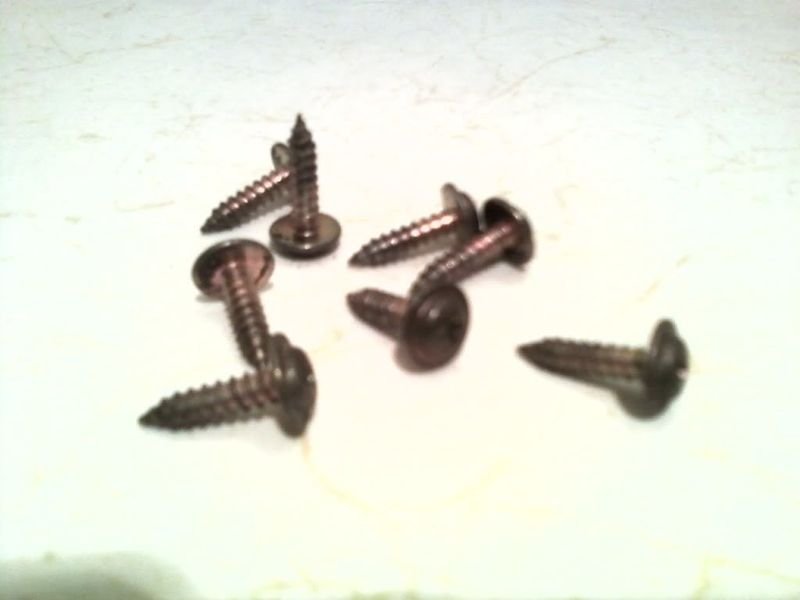

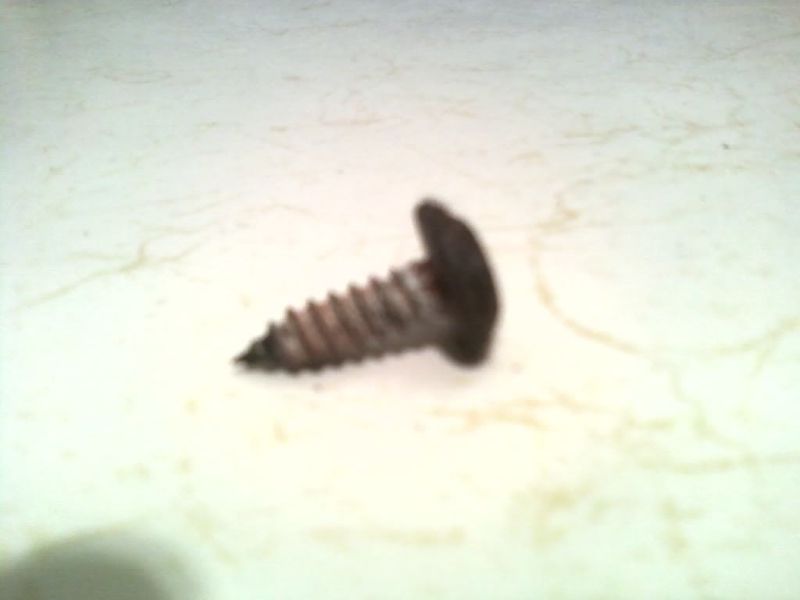

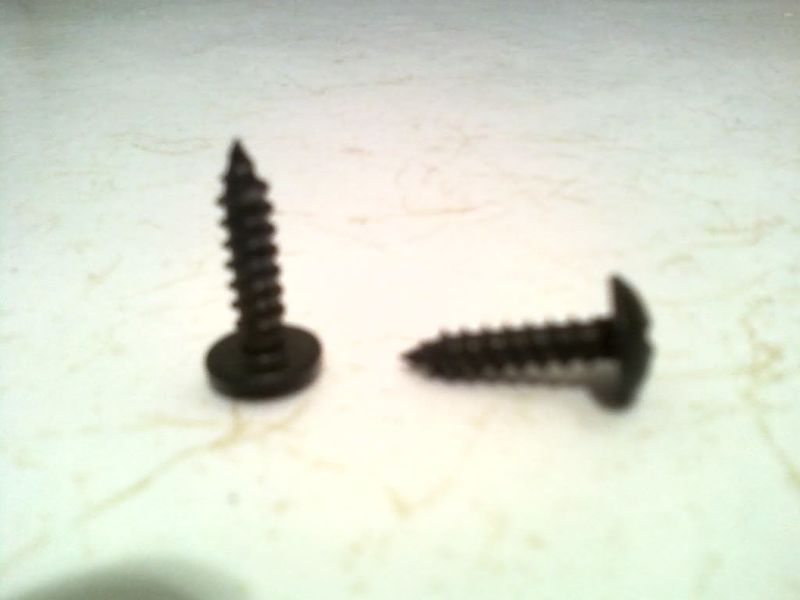

i believe the screws second to last are to put the surround back on the gauage cluster ...

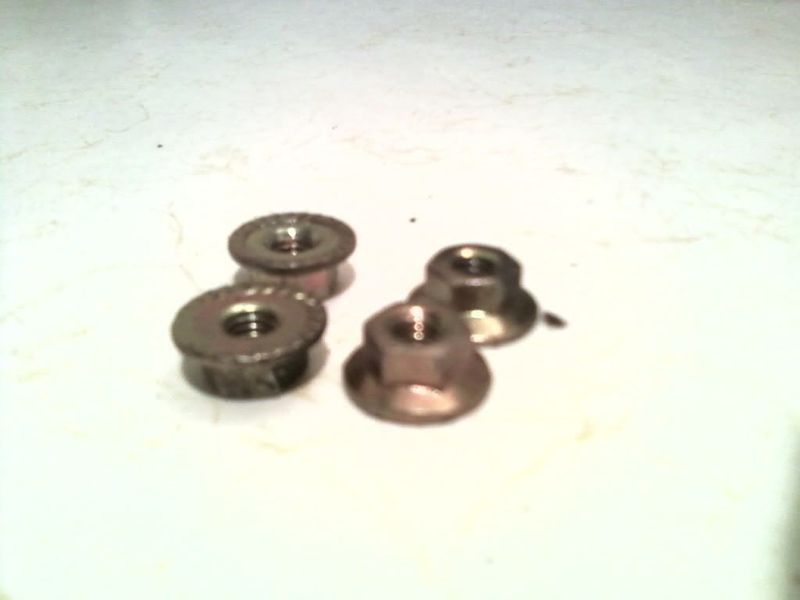

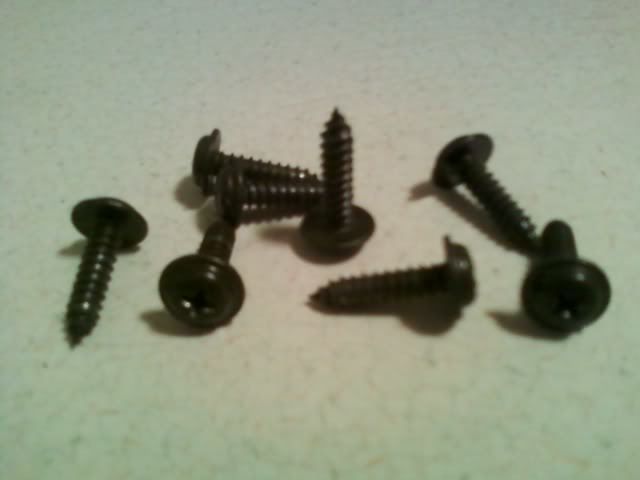

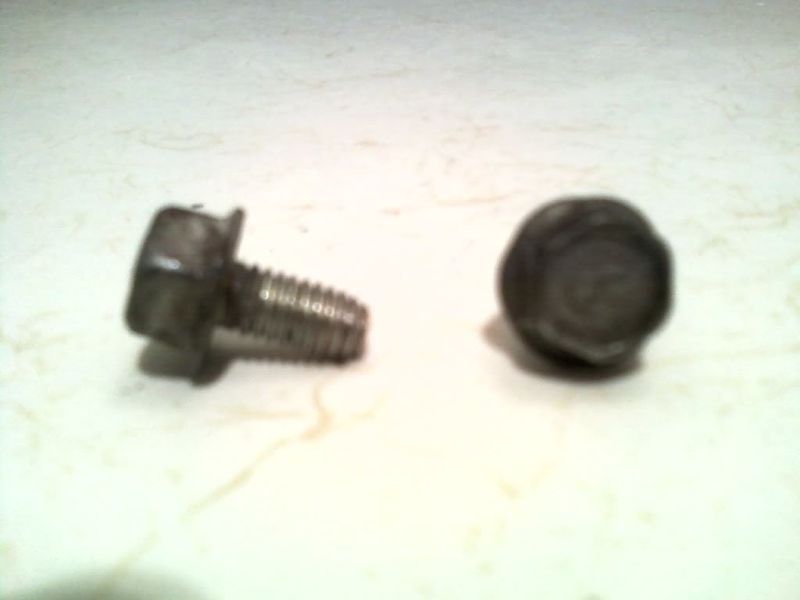

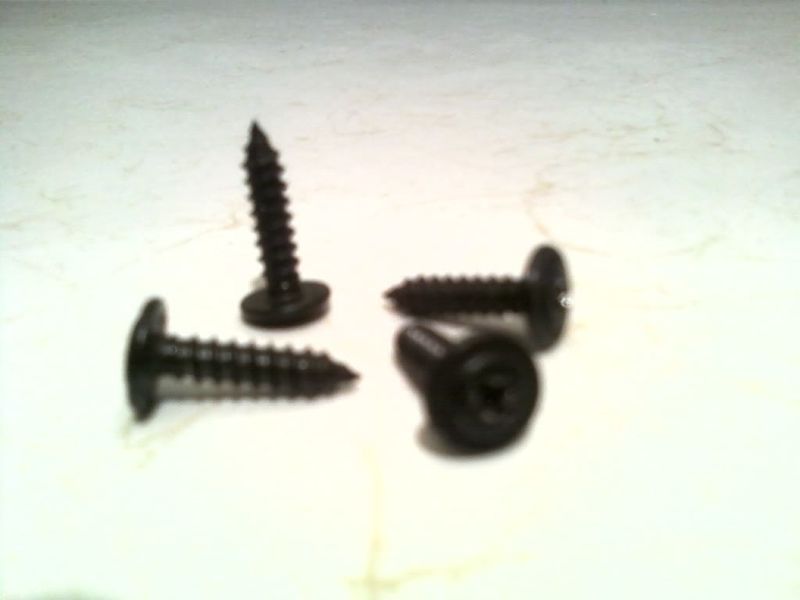

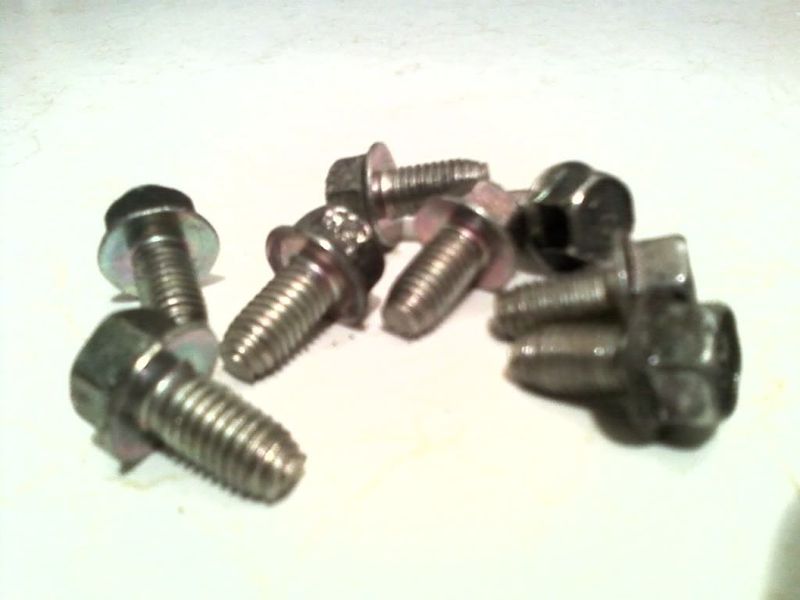

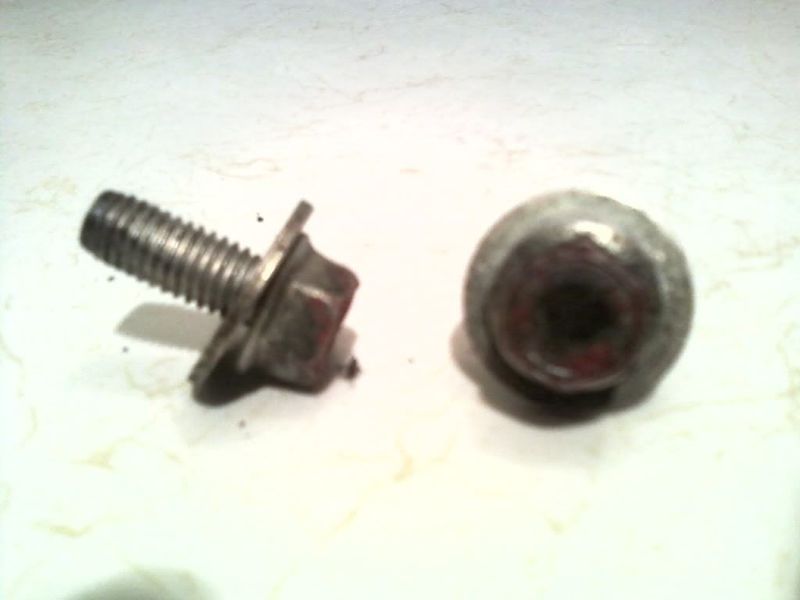

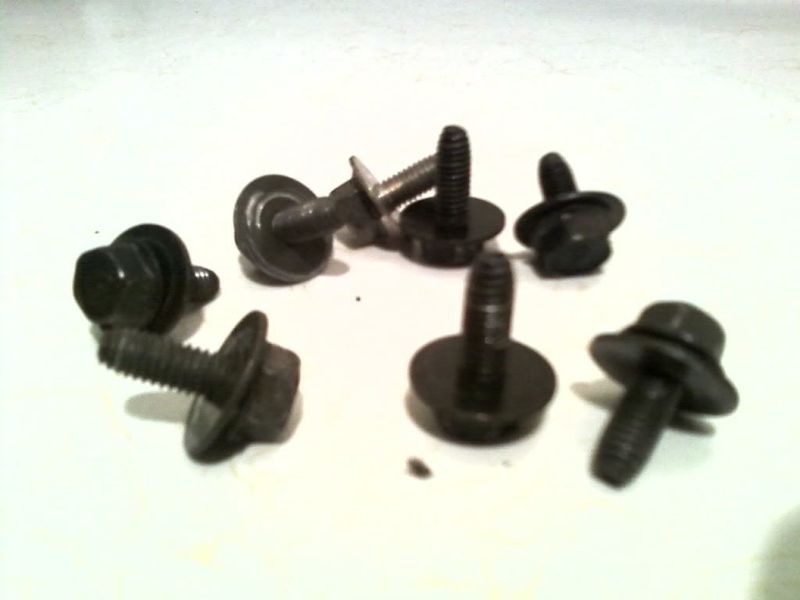

i believe the one above that one is the bolts that mount the dash back to the cab of the truck... one bolt per end , and 5 i think along the top . the last pic of the nuts ( atleast 2 of them) are to go on the screws on the underside near the upper part of the kick panels .. the reg screws would (should ) be for your interior panels you removed ...

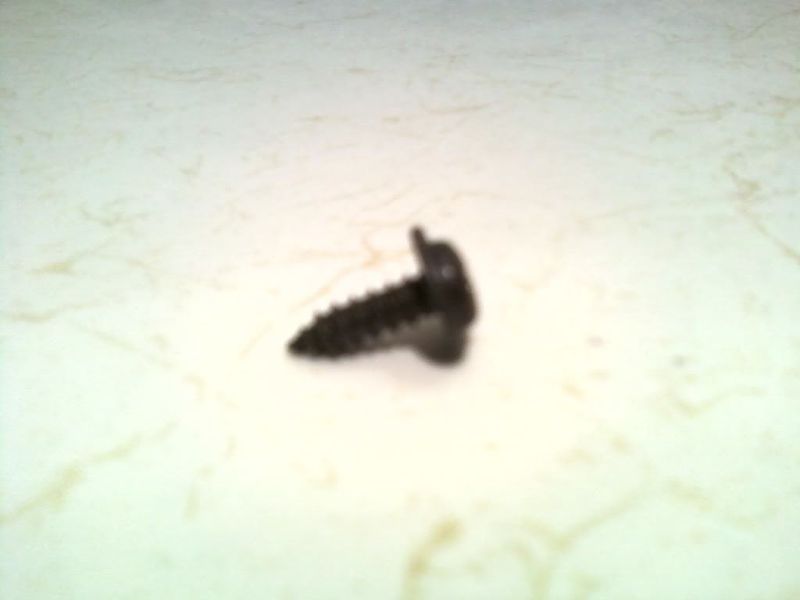

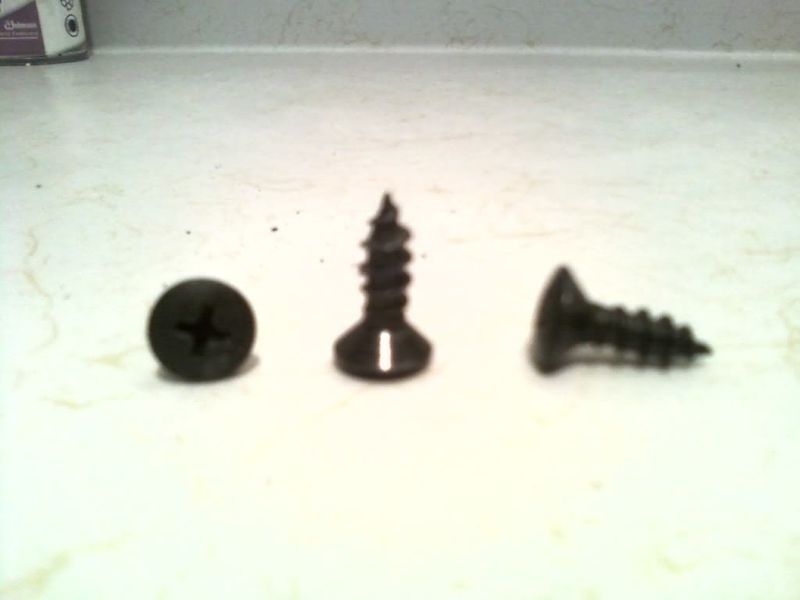

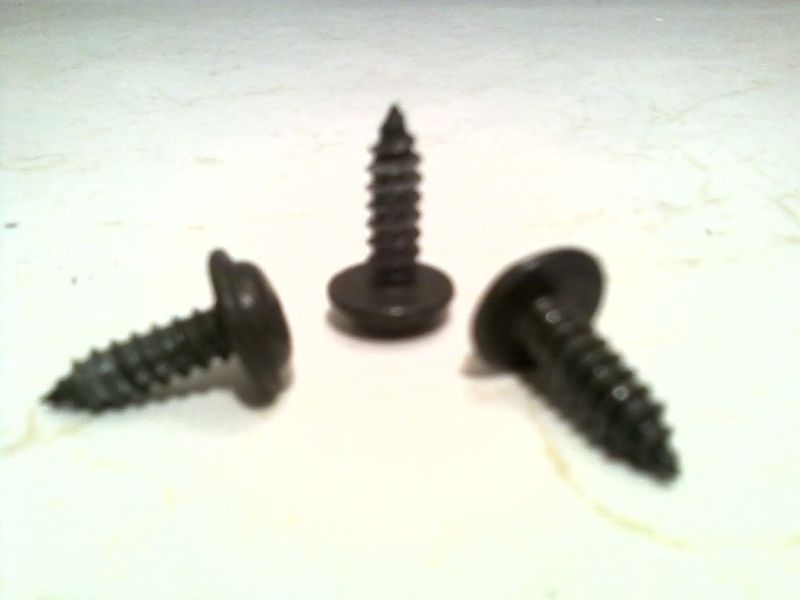

the small philips screw with the point should go in the secret screw location on your ac/heat suround .
