Vaccum line misery

Hey guys im in the middle of swapping a 2.6 from a d50 into my mazda b2600 4x4. well from looking at my motor and looking at the d50's there are a considerate amount of differance in the # of vaccum lines. the d50 has much less. im not sure if thats just because the motor isnt in anything or what. but what im trying to find is some good pictures or diagrams to help me out with were each line goes......Wish i had the $ for a weber....

the guys at



have some really good diagrams

ima check it out now. thanks much!

all they have is the 2600i version and all the others but the 2600

just to show what im working with......

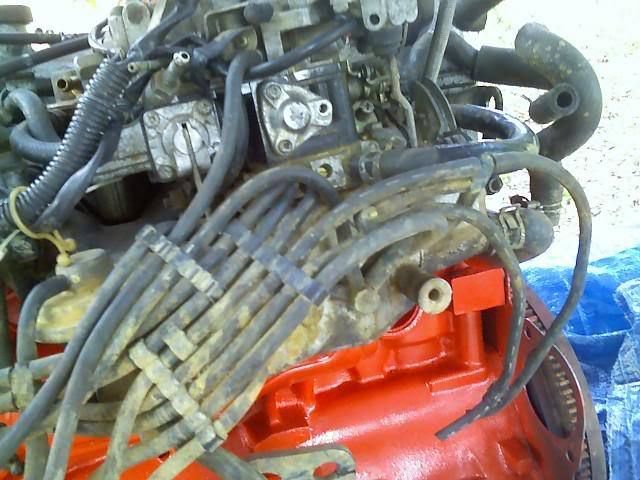

d50 vacuum lines-

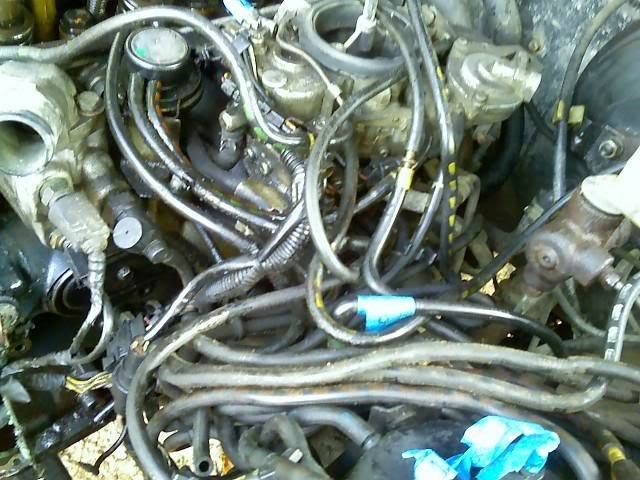

mazda's-

shit slap a wbere on there and you would only have 2 or 3 i beleive

I feel your pain. I had an 87 B2600 once and often wondered how many feet of vacuum line was under the hood. The only way I found a diagram was to buy a subscription from or watch for a factory service manual on ebay. Good luck!
