87 Mazda bagged body dropped build

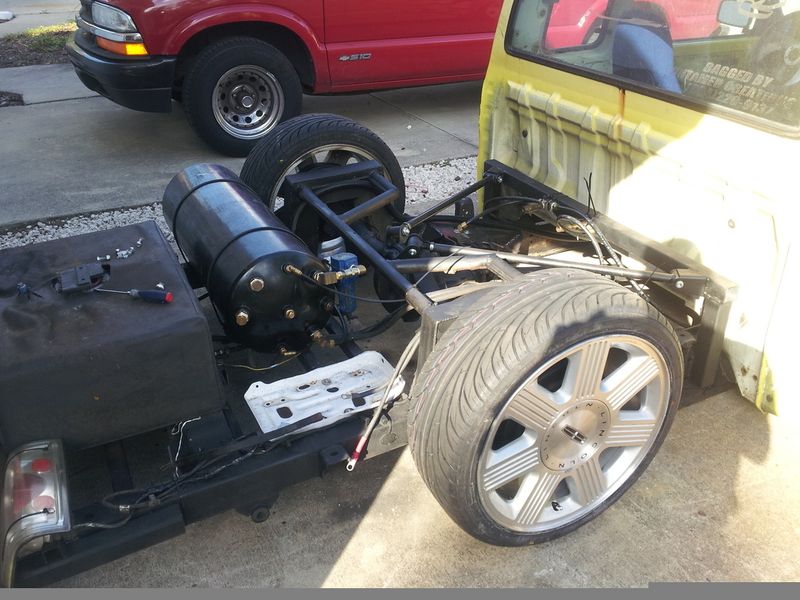

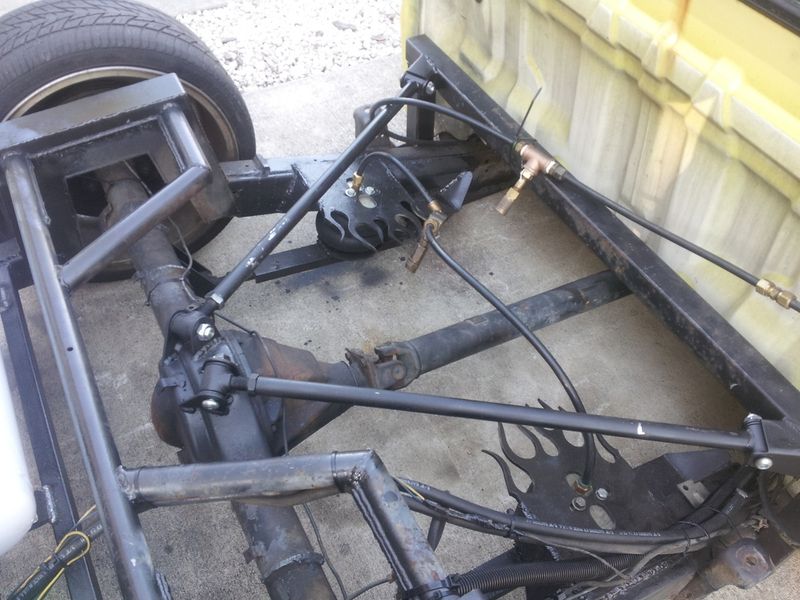

Ripped all that garbage out and installed new 4 link repaired frame and relo'ed gas tank, Batt, new air tank...

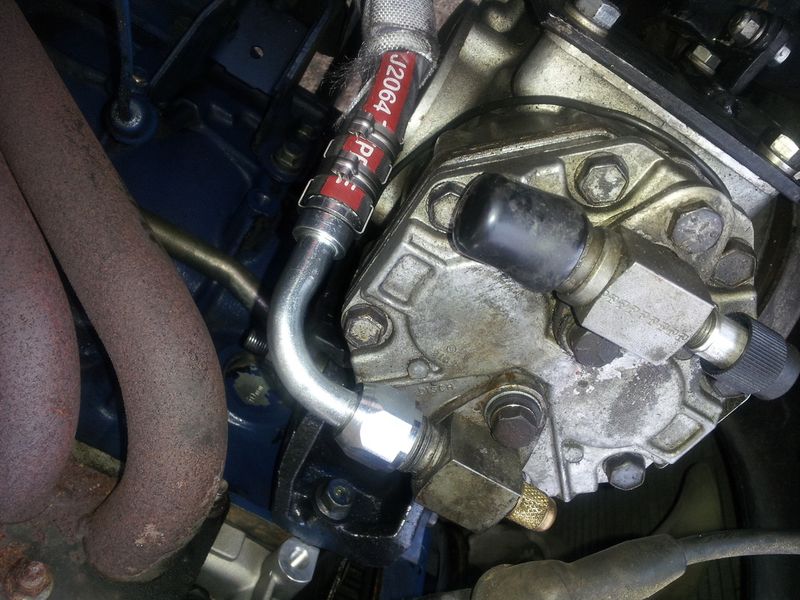

Next I bought a York A/C compressor and blocked off the one port at front seal to keep oil in it and mounted where old a/c comp was. With a little fabbing.... haha




Everything worked great after 3 trips to auto parts to get right size belt and about 12 times taking it on and off to get fittment right and alignment....

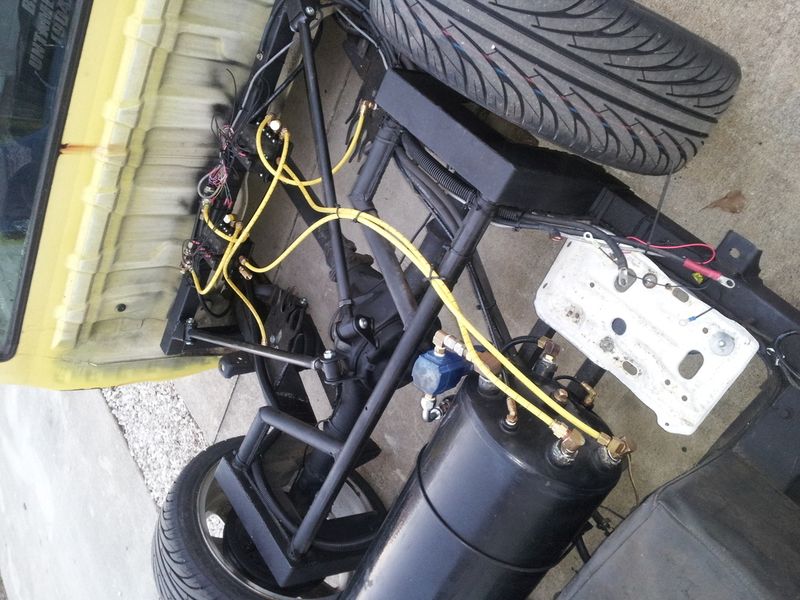

Next came air management: Had two six pack Hadley valves donated to the cause...
Used 8 valves for air ride and the other four will be for the air dump bed im going to install so i can get access under raised floor bed in the future to work on it or change battery. the other two will be for air horns maybeeeeeeee...

My buddy said all i was missing was a rubber spider to hang in the middle of the plumbing... hey it works great... LOL!!!!

Stay tuned I have about 30 more pics to upload. I'm wayyyy behind...

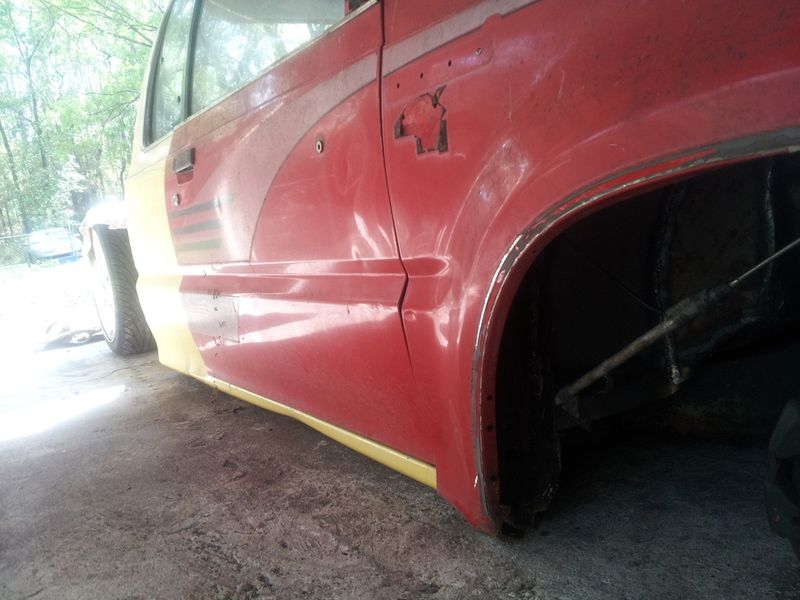

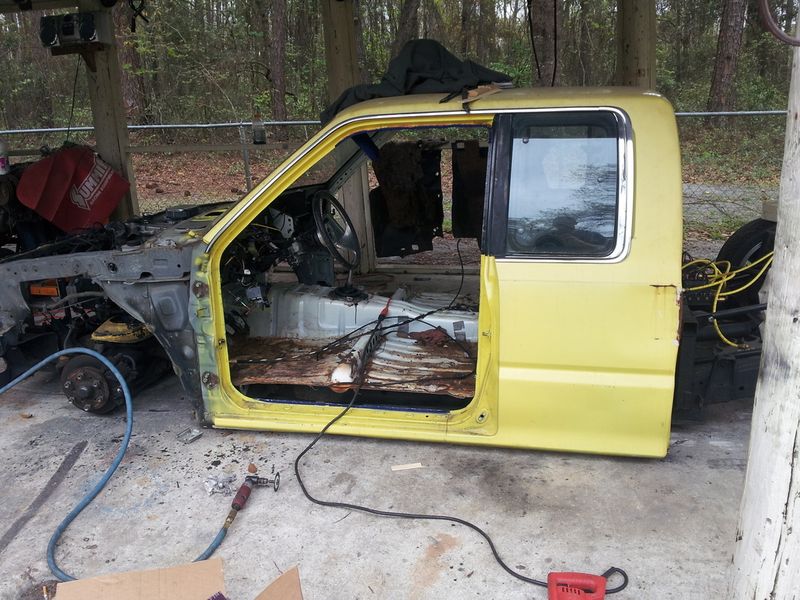

Its on the ground

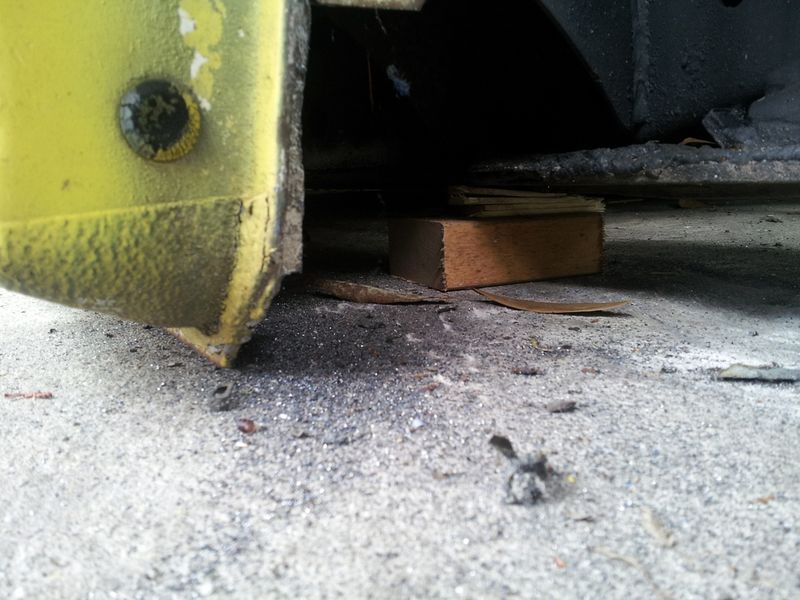

Still have a 2x4 and then sum under the frame so I can cut the rockers almost to the doors. We'll see where it needs to be

Trick I was told to do so panels lined up together... it worked

://static.mazdabscene.com/userphotos/2014/110/8772/l.jpg

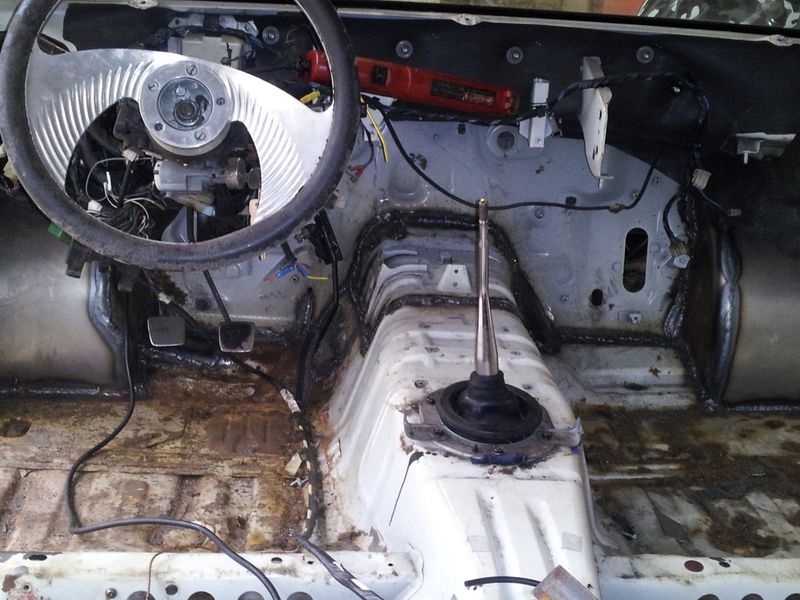

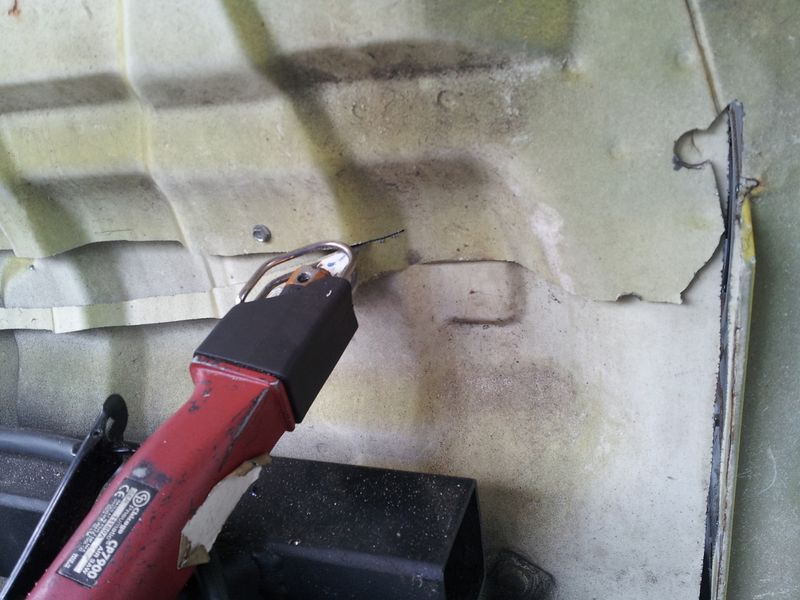

Lots of cutting and fitting but its all coming together

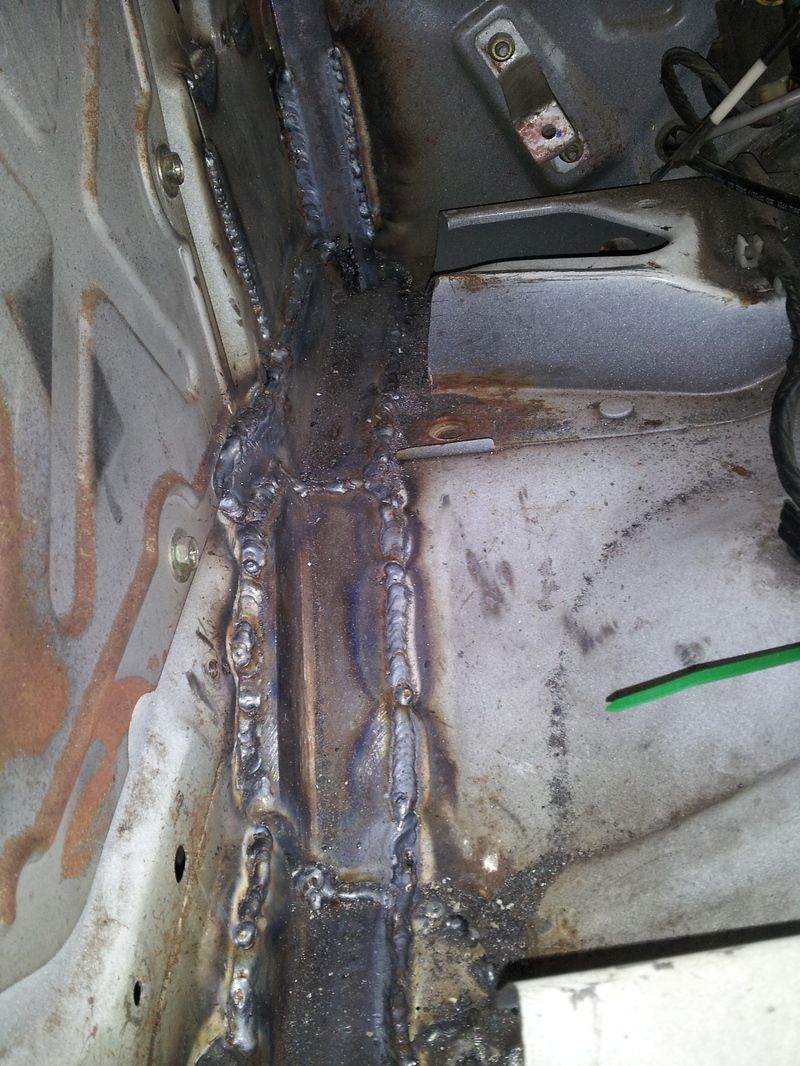

AS u can see lots of welding and more welding...

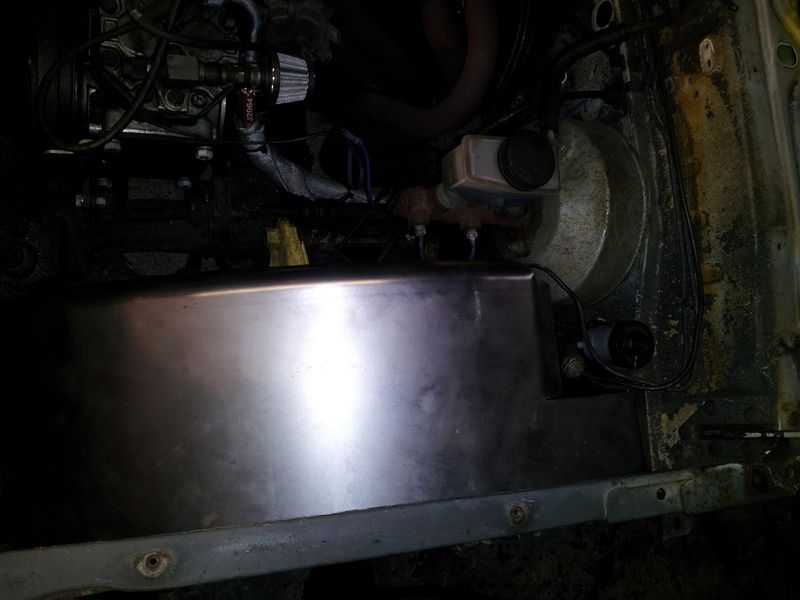

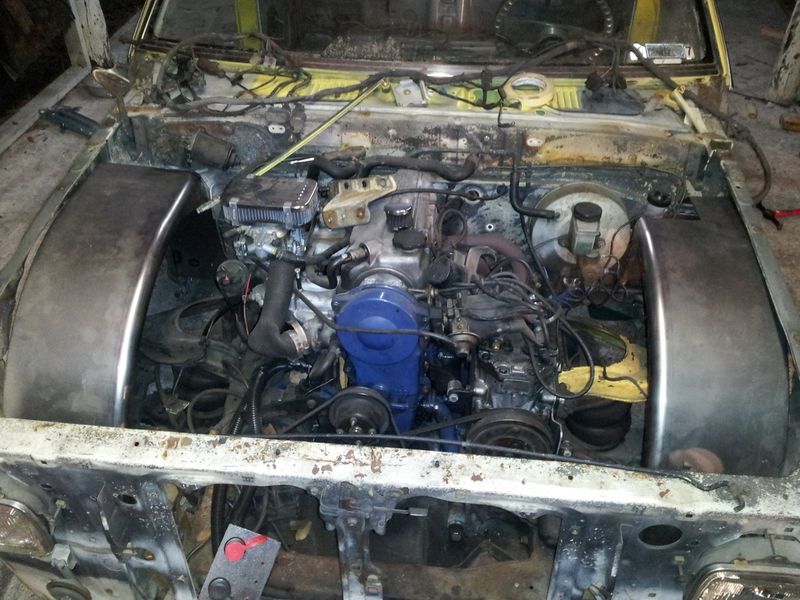

I used a double trailer fender for inners cut in half and a single for the firewall tubs cut in half... worked well

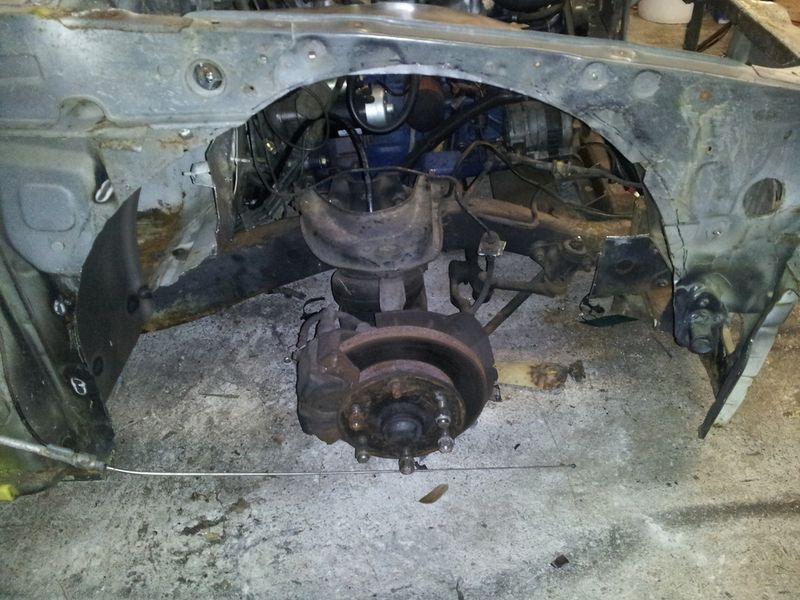

Measured and cut openings big enough for 20's.....

Good idea on the pre-fab fenders!

used 1x1 angle to make braceing for floor on both sides... My buddy Ray cut all the peaces and I welded in...

I put the 4x4 metal on to start fitting everything...
