thanks man.
i like it too, it won't be staying tho. needs bodywork, plus hood and tailgate don't match. probably a single stage or hrf temporarily

i got the haynes mazda book the chiltons are better some member got em maybe they"ll post up some pages u get ur carb. figured out so it wont hit the hood??

ur runnin a weber so most of it can go if not all on the passenger side wheel well think the only thing stays is the wiper harness

that'd be great mazdalade. I really jus wanna eliminate as much as possible from that harness.

And yeah, the carb clears now but that's with no filter on it.

I don't get what you mean in your 2nd comment. most of what can go there? and i don't need a wiper harness either, shaved cowl.

But the harness I'm referring to runs along the driver side. big group of wires from the fusebox all the way up to by the radiator

ok yeah i was talking about the wire harness coming out of the passenger firewall all that can go and for the driverside harness i thats ur headlights markers all that good stuff i dont have a chilton some1 should or will post up some diagrams i would from the haynes but my scanner is broke

also what did u do for the lower radiator hose? im curious cuz i never body dropped a truck b4 btw i love how u got ur doors and what is that tank in ur bed think thats pretty cool too

yeah, that's how i plan on doing em on my c10 too but I was doing it because it's right hand drive so i'd do the passenger (driver) side to keep with the theme.
and that's the gas tank

well, got the clutch cylinder relocated today...way easier than we figured. got the pedals shortened and the seat mocked in. awesome day. she should be rolling out for a test spin tomorrow!


cut out around driver vent

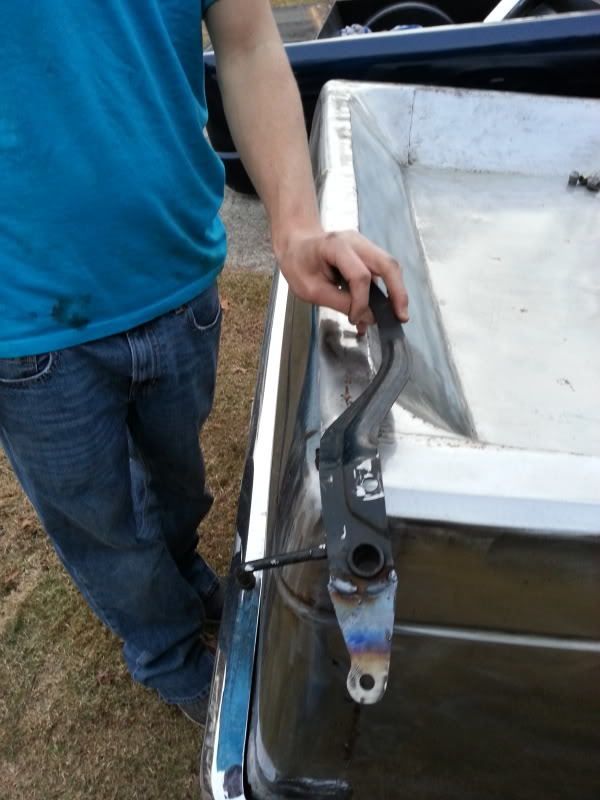

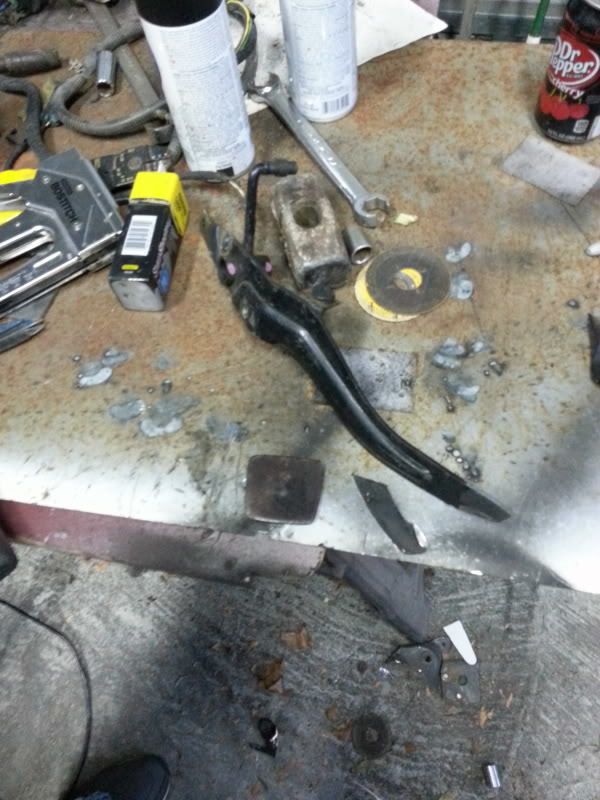

shortening the clutch pedal

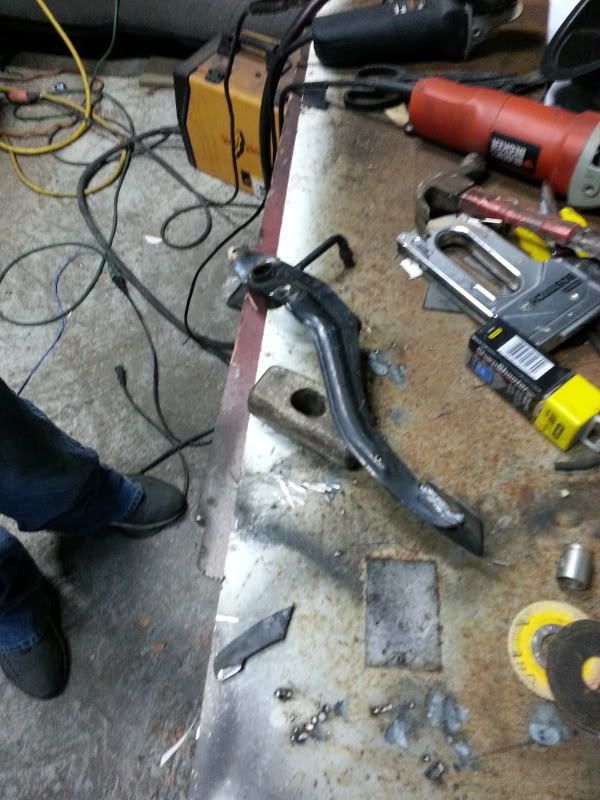

clutch pedal done

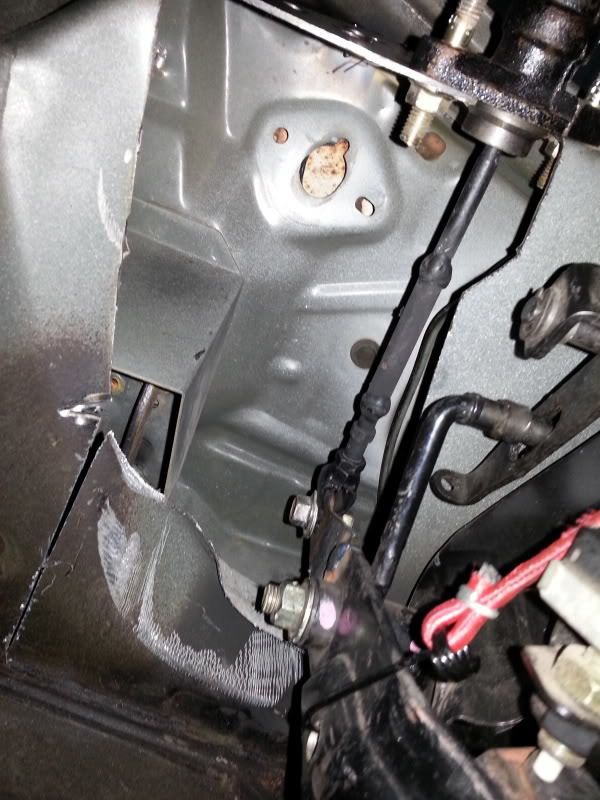

new tab on top of pedal to accomodate rod that previously extended through firewall

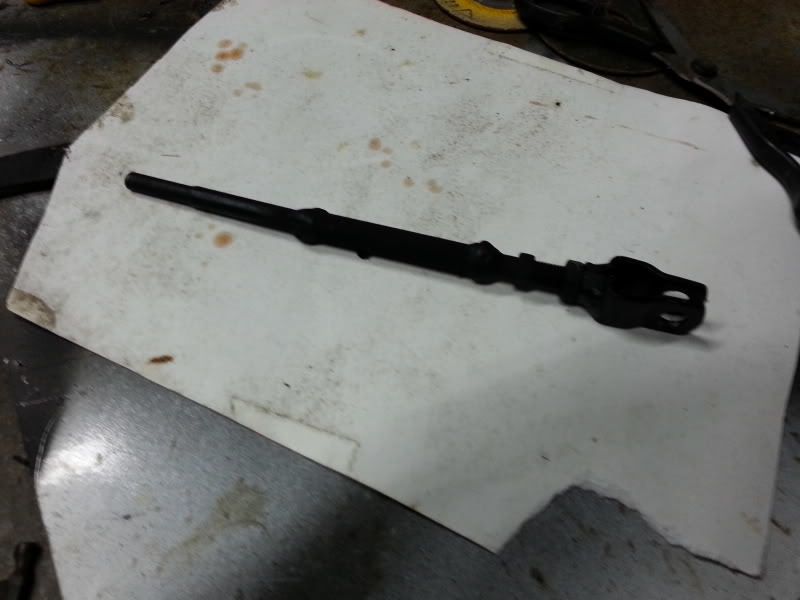

where we lengthened the rod

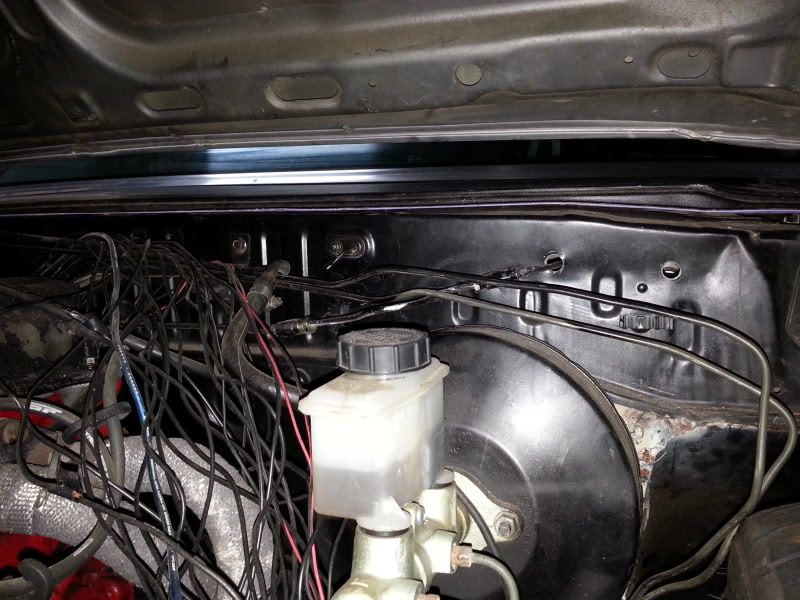

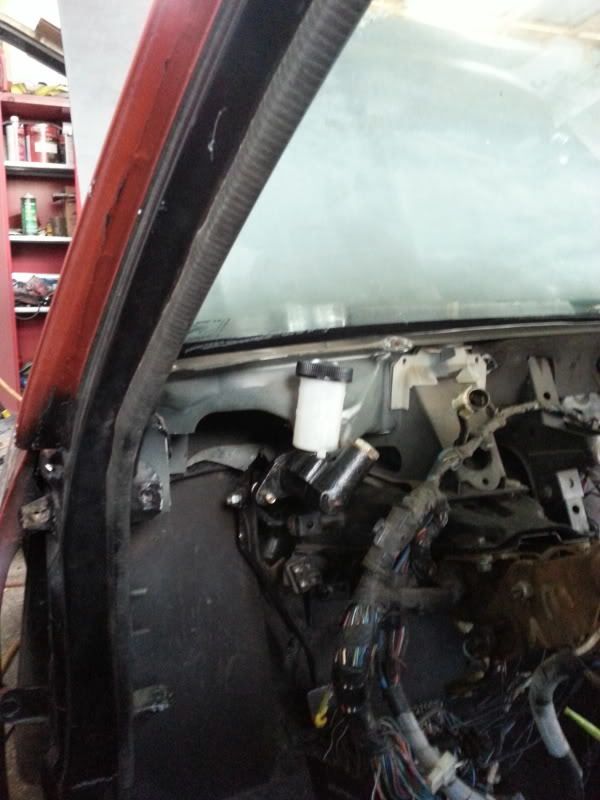

ran clutch hardline through

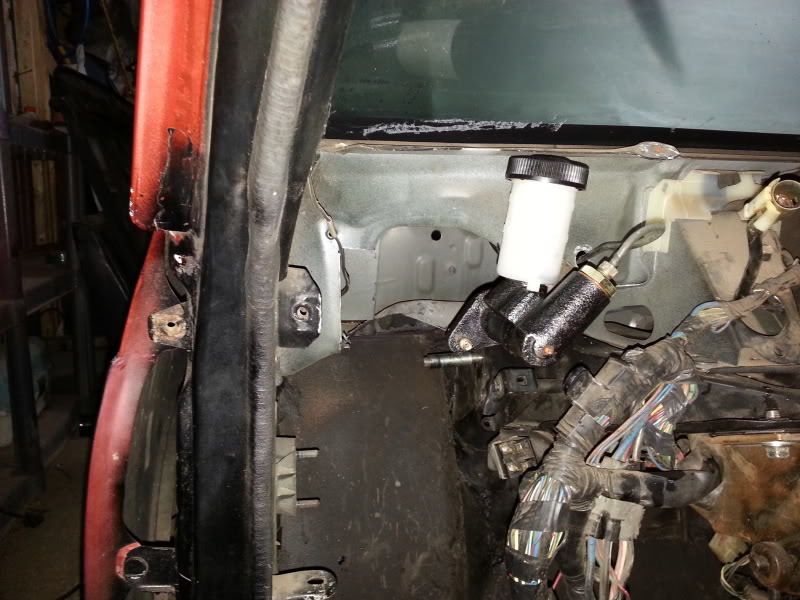

where it'll stay

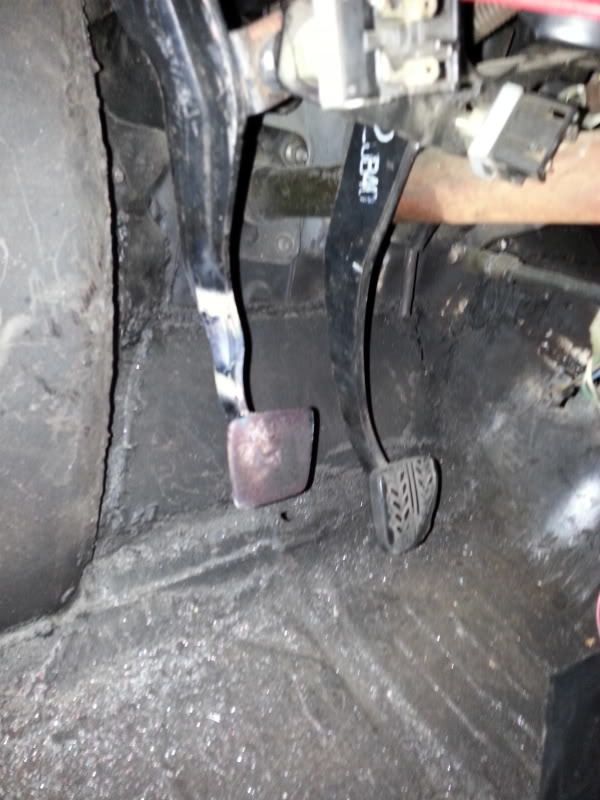

brake pedal will need to be shortened next

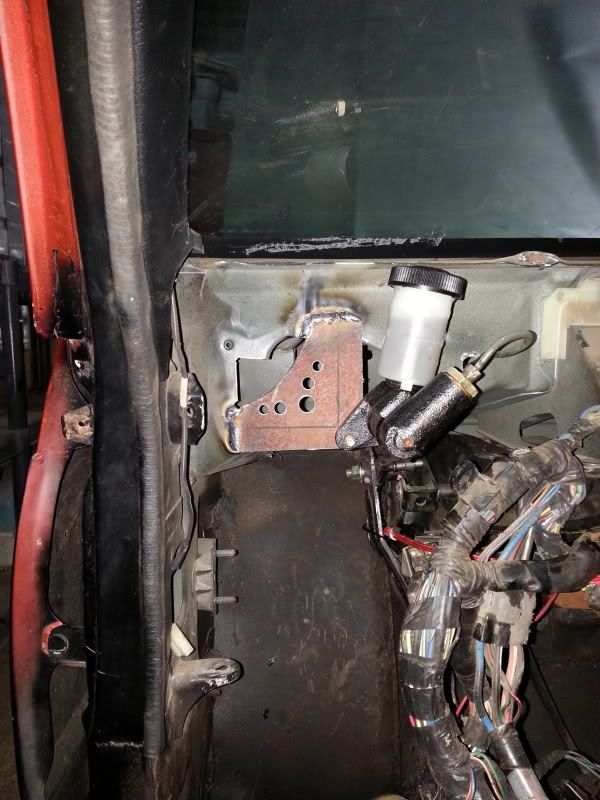

mounting plate. ignore those random ass holes lol. Rance being stupid

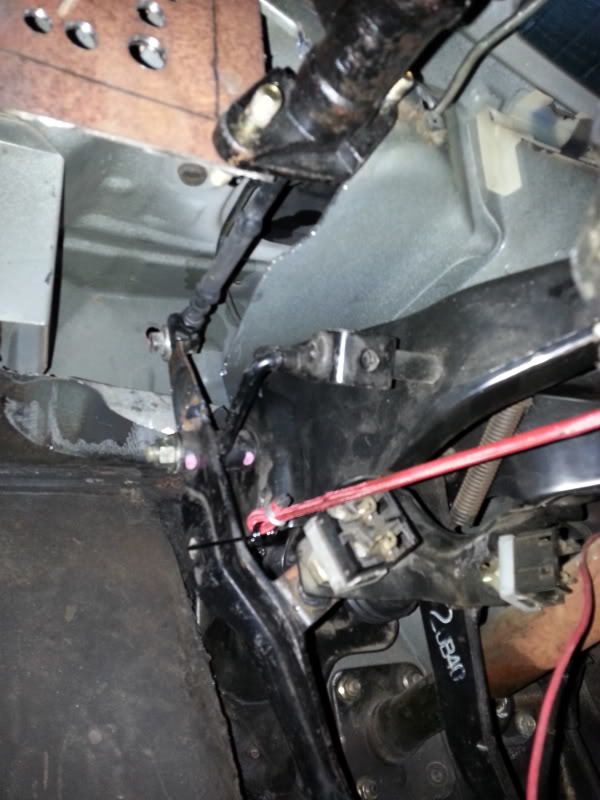

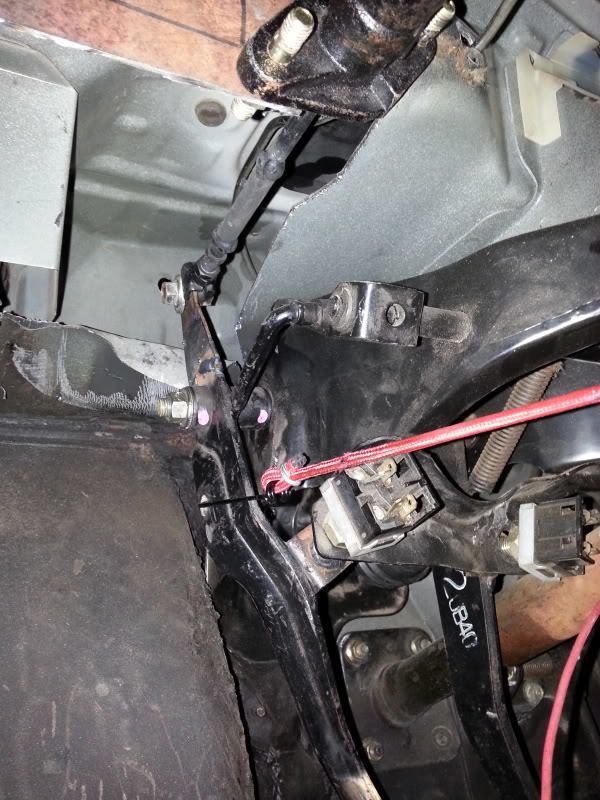

this is how the rod comes off the top of the pedal into the cylinder now

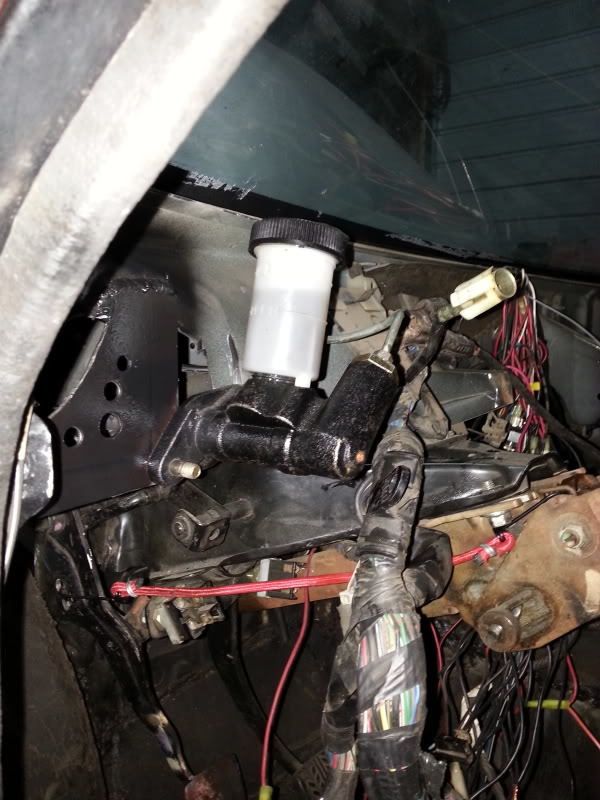

where it'll stay!

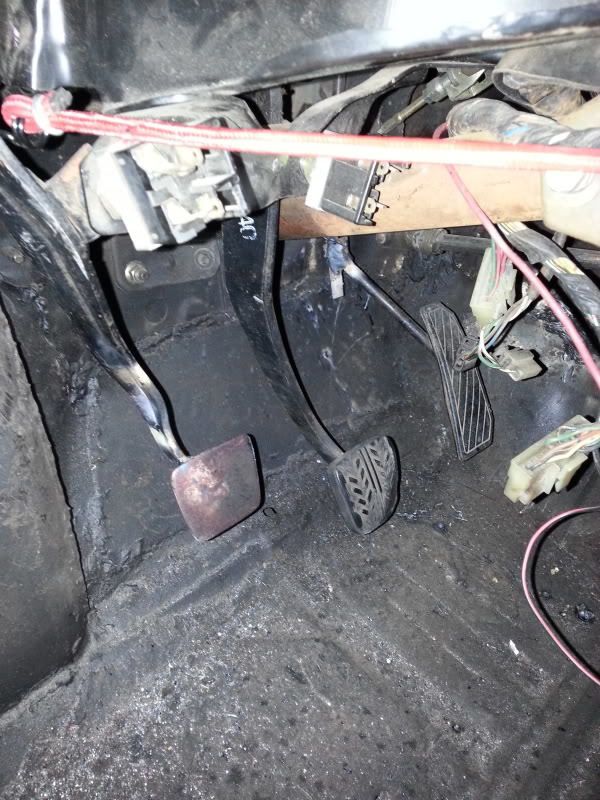

gas pedal shortened & mocked up in extended position

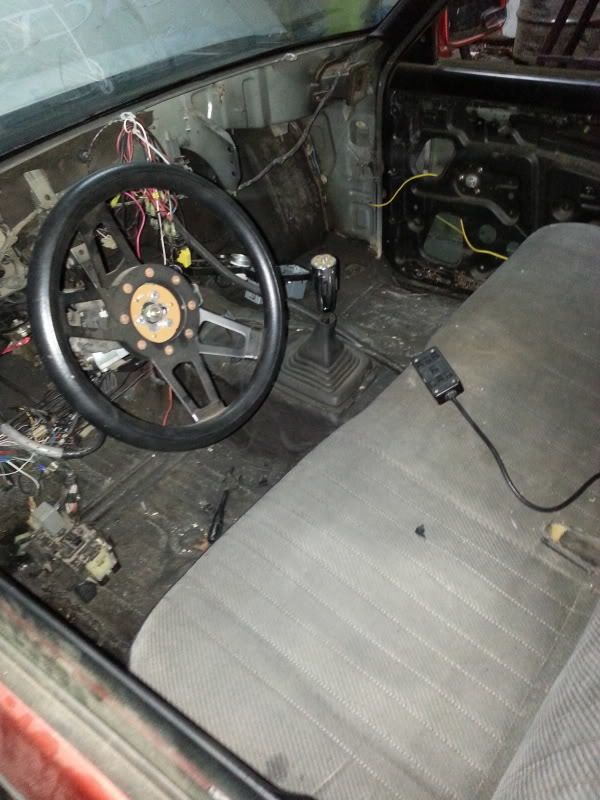

seat in. had to take mounts off the bottom, was sitting too high lol


that's better

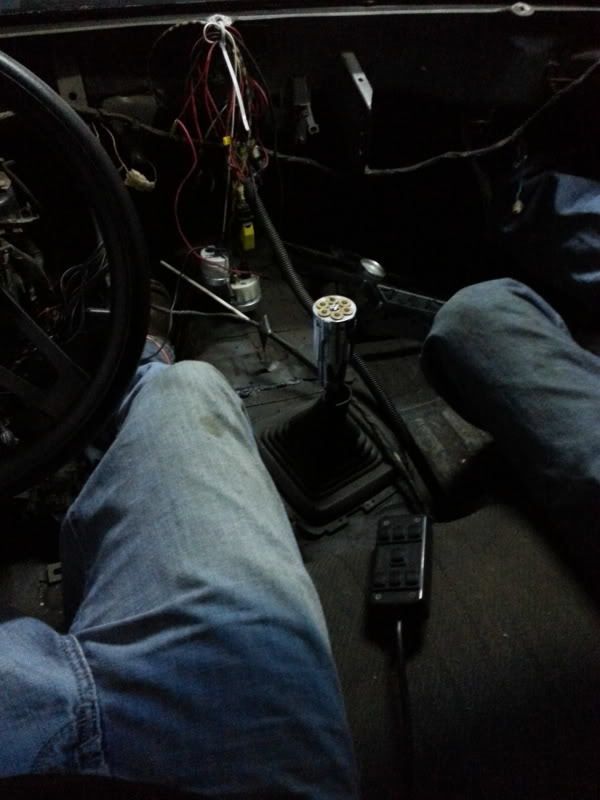

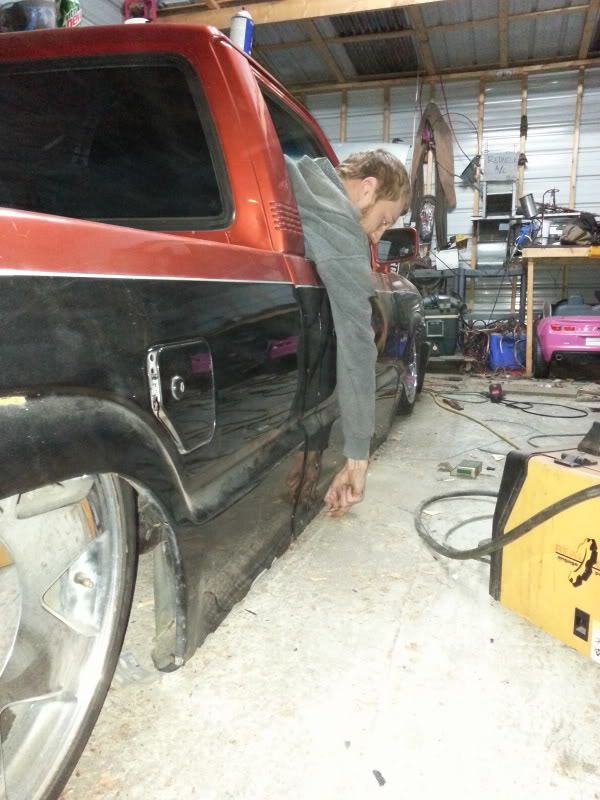

leg & head room

fukk post up some pics of that chevy what kind of motor u got in in that thing and wheels look like smoothies

damn mad props man didnt realize that much work is involved in bodydroppin a truck good stuff though lookin great!!!

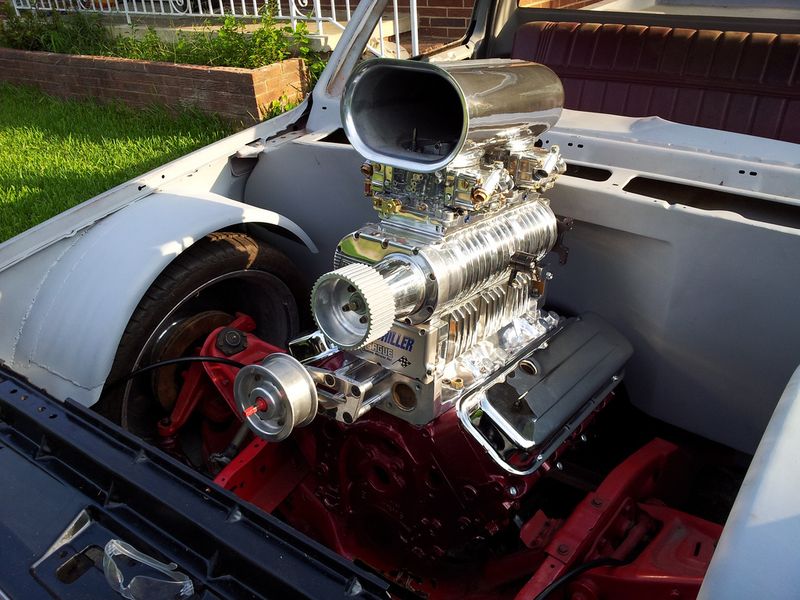

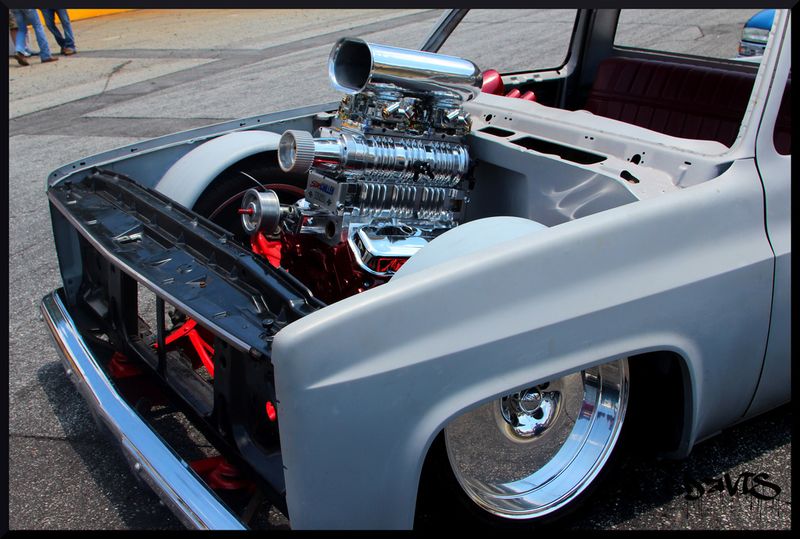

the motor currently in it is just a mock up 396bbc with the blower on it. it's set to house a 502 with that blower on top of it when it's all said and done. can't wait for that.

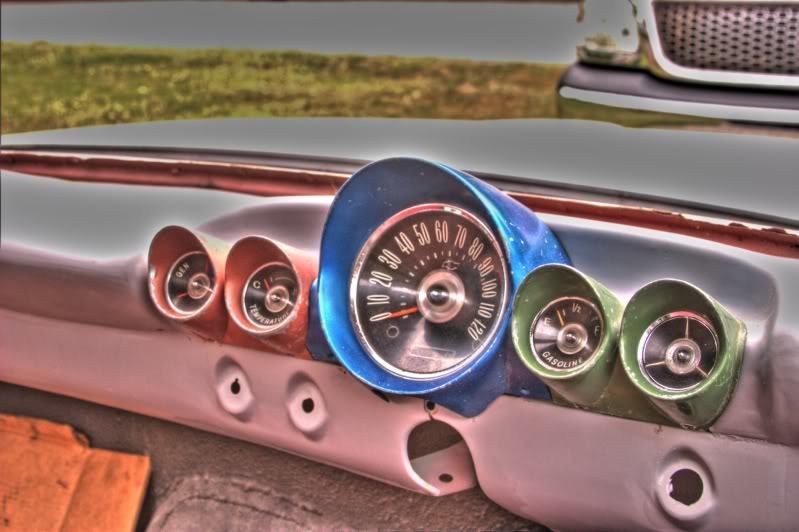

basic rundown on my c10 is.. bagged, bodied, z'd frame, right hand drive, impala dash, shaved EVERYTHING, etc. can't claim the work on that one though. bout it from a guy who lost interest. all i've done really is finish up the steering linkage and pull out the 5.3





got plenty more pics of it... jus idk where lol
