92 b2200 + 94 Gt project

As you can see the truck is definitely used I did not clean anything yet. Diving right in. I should be able to make time to build brackets for the engine crossmember in the next couple days

Here is the donor car

://images.tapatalk-cdn.com/15/05/07/73bf94d42e7573dcf3975ca0204e8da1.jpg

Cant wait

Here is what I came up with on my lunch break at work.....overlook my lack of welding skills. But be assured it's sturdy...lol

Also I used a 7018 1 welding rod

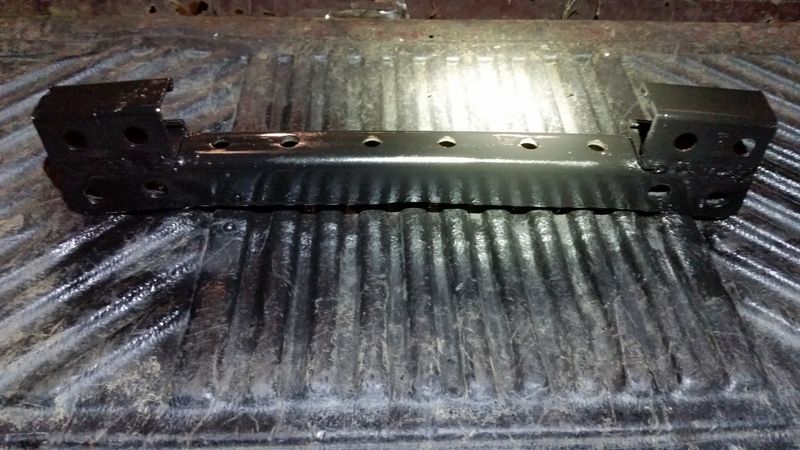

That is the engine crossmember

I found this while searching the Web for info on rear end swap from the gt to the B. Good info retrieved from toonutsracing.com ford rear end widths from mounting surface to mounting surface.


*57.25" - 57-59 Ranchero/Station Wagon 9"
*57.25" - 57-64 Ford Full Size 9"
*57.25" - 65/66 Mustang 8" and 9"
*58.50" - 77-81 Granada/Versailles 9" width
*59.25" - 67/68 Mustang 8" and 9" width
*59.25" - 69/70 Mustang 8" and 9" width
*59.25" - 67-71 Comet/Cougar 9" width
*59.25" - 86-93 Mustang 8.8" width - zero offset - 28 spline axles - 29.188" axle length
60.8" - 94-98 Mustang 8.8" width - zero offset - 28 spline axles - 29.969" axle length (Unsure of this width)
*59.50" - 91-94 Explorer 8.8" width - 3.250" tube diameter - 3.875" passenger side offset - 31 spline axles - 30.5" driver side axle length, 27.625" passenger side axle length
*59.50" - 95-01 Explorer 8.8" width
*61.25" - 71-73 Mustang 8" and 9" width
- 99-04 Mustang 8.8" width - zero offset - 28 spline axles - 30.688" axle length
- 02-05 Explorer 8.8" width

Got the bed off, interior out and engine bay pressure washed yesterday. Anybody know a way to mount a fuel tank from a mustang. Only I'd like to use it because I just so happen to have a brand new one and the mazda one doesn't have a splash guard. And I prefer not to use a in line fuel pump

Build a mount for it. Shouldnt be hard.

**
I got some on my list as well, actually started by trying to keep a list of possible donors that had 6 lug rear ends, but eventually it just became a jumbled mess of everything I came across:

VEHICLE---------------WIDTH---------------REAR END GEAR
Mazda B2200---------------58"-58.5"---------------3.9
Mazda B2600---------------58"-58.5"---------------4.1 or 3.727

Toyota 79-85 4wd (55")
Isuzu pickup (pre-87) 54"
S10 (83 to 01) 54.7 rear
S10 4x4 = 58 inches
Passport or Rodeo = 60.75
Camaro (76-80) = 60.5
Trooper ~63
97 4Runner = 58.9
Xterra - 61.8
Colorado (2010) = 57.5
Jeep CJ (72-75) 51 inches?
Passport or Rodeo (93-up) 58?
Ranger 56.5 (83-92 w/7.5 inch rear)
Ranger 56.5 (90-92 w/8.8 inch rear)
Ranger 58.5 (93-09)
Explorer 59.5 (year?)
Nissan Datsun truck 4wd 82
Nissan Hardbody (86.5 to 97) 59 inches
Jeep CJ6 1974 - 50" (DANA 44) 51.5" (DANA 60)
Jeep CJ7 1983 - 56" (Dana 30) 55" (AMC 20)
