jobbadahut613   +1y
Ok there was a thread that had been started on Mazdatruckin before it went down, I wanted to see if we could get it started here. This thread could have interchangeable part numbers or model specific numbers. Here is the part number for the clips on the bottom of the cab plus window trim UB54-50-818. they are still available from the dealer for about $10 each. While I was at the dealership I also found out that you can still get a gasket set for the 2600i. Part number 8DUC-10-271. This set from the dealer is still about $280. Ok guys lets post up what ya got or know.
87_b2600   +1y
i got a engine site and more i think. . i think thats how you spell it if not just go to a search provider and type in parts dinosaur. and it will say parts dinosaur located in phynix arizona.
Cusser   +1y
Dealer parts

(888) 802-0074

mazdapartscenter.com 1-800-650-4896 discount Mazda dealer parts



My NPR pistons and rings came from Ebay seller DomesticGaskets

Speaker size 4 inch
Decent fenders


Upgraded door seals
Rodeo and Passport seals also fit
PCV Valve Elbows (AutoZone) Motormite or Dorman PCV Valve #46017 ($10)

I made a pair tube block off plate from a Simpson Strong Tie wire shield from Home Depot (56 cents).
I later removed those bolts and used the original mount assembly which also mounts to the engine.
I used 14mm x 1.5mm wheel lugs from O'Reillys ($4.99 for four) to plug the pair tube outlets coming out the upper manifold heat shield.

Pre-converter gasket (top of front converter) - FEL-PRO Part number is 60534
(Special order Autozone $3.99)
Bottom gasket (3-hole) Fel-Pro 60286 (stocked at Autozone $3.49)

Exhaust pipes, second converter, muffler, etc. (need three or four)
87forever   +1y
thread post photo

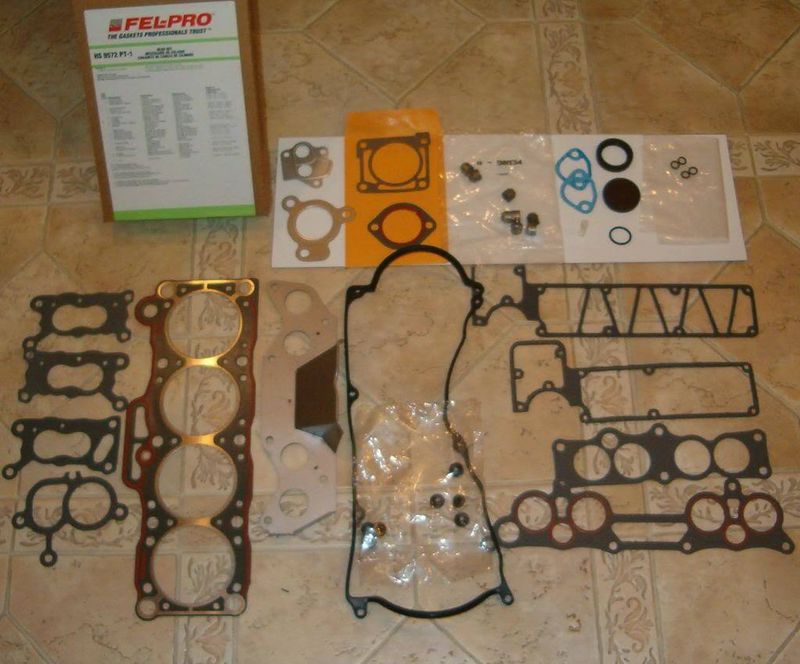

Here is a felpro headgasket kit part # HS 9572 PT-1 comes with literally everything for a b2200 like valve cover gasket with rubber grommets for bolts,oring distrib,egr gaskets,intake and exhaust,carb gaskets,too many parts but extra stuff galore.Bought from auto zone price was 82.99.Hope this pic does justice.Oh and also the gasket that goes inside the valve cover and thermostat,rear cam shaft cap.Ok
Cusser   +1y
That's the same kit I used as well. I had to buy a gasket for between the lower part of exhaust manifold and upper cat. There were only a few in that kit that I didn't need (like two types supplied for the baffle inside the valve cover).
87forever   +1y
thread post photo

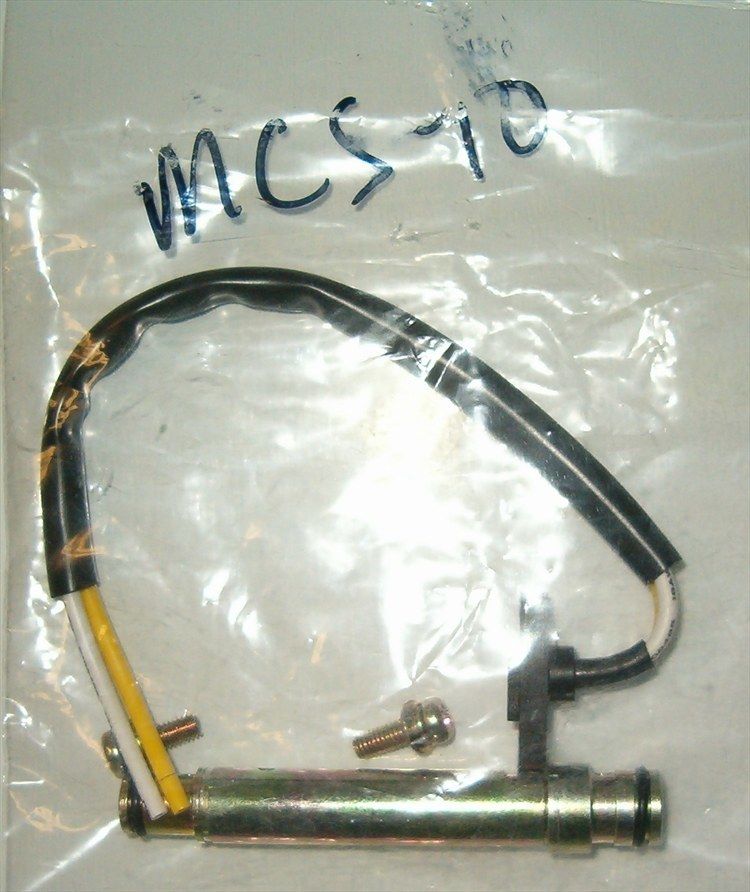

Here is the mixture control solenoid FOR the nikki stock carb b2200 part #MCS-10 from " target="_blank cost 125.96 plus shipg to your address.Keep in mind it may be cheaper to go with a refurbished carb same company over just this part,but sharing after someone asked about said item.
atkins dan   +1y
Working on putting more Parts up for the rest of the Mazda line.. but if count here is another place





Dan
87forever   +1y
here are parts related to manual shifters b2200/b2000 same.Parts in pic are the rubber boot on top m51317480a cost 34.02,m-50117481 bushing 2.81,m50517482 wave washer 4.48,999633130 shim 1.05.Now these are the parts I purchased from " target="_blank has the same parts close on price but they alter there part # listing for example the mazda # rubber boot M51317480A on mazda trix 17-480A-513 same stuff.They also carry a short throw shifter just search it some just sharing after researching this months ago now.If any ?s ask just throwing this up quick but I replaced all the worn items boot,plastic bushing on end of shifter,shims,washers.
87forever   +1y
Just adding for the b2200 a goodyear timing belt kit this includes a goodyear gatorback belt,tensioner and idle roller from auto zone part GTK0134 cost 121.99.Duralast waterpump b2200 part #BWP-652 cost 41.99.Heater core from advance auto 398281 b2200 49.99.Last is a Gp sorenson factory nikki carb rebuild kit for the carburetor for the b2200 96690 cost 43.29 advance auto.Keep in mind the B2000 has a different carb rebuild kit!!!Note on the carb kit this includes ALL the gaskets,orings,float seat parts,and you will not typically use all the gaskets.Only replace gaskets that are actually on the carb.Hope this helps
87forever   +1y
thread post photo

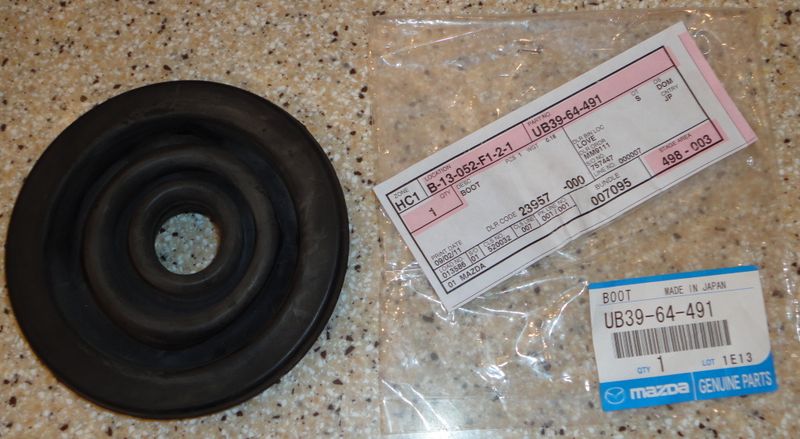

I know the part # was listed just snapped a pic with my orig packing for the boot that is directly under the shifter boot that wears out.I have a used one for reference.
