some updated pictures 56k beware

here are some updated pictures of my 4runner frame. i'm getting kinda happy after i get it inspected this month i can start tearing it apart for the frame swap.

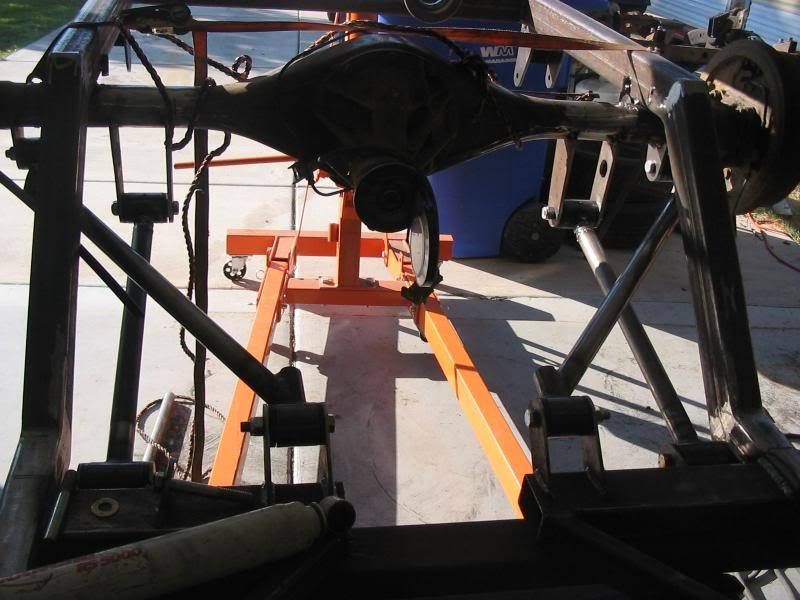

rear susension forward 4 link with watts link to come

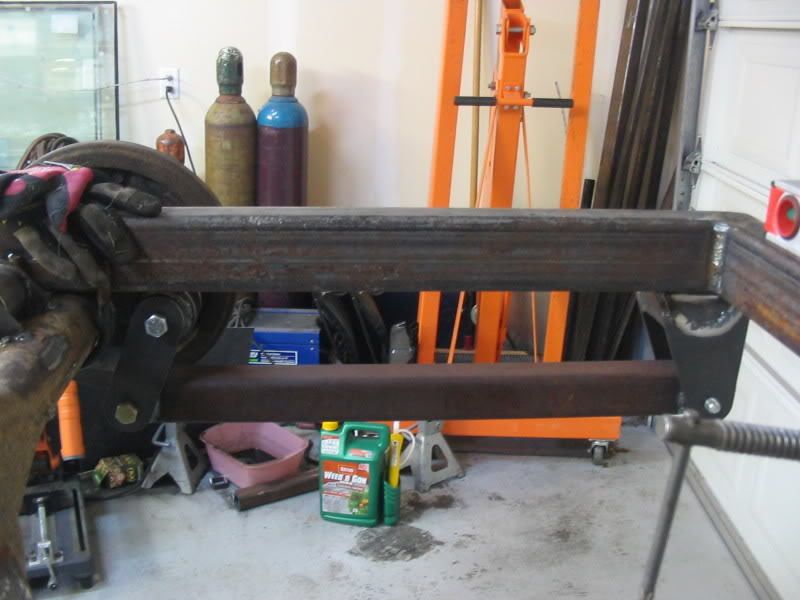

rear lift bars

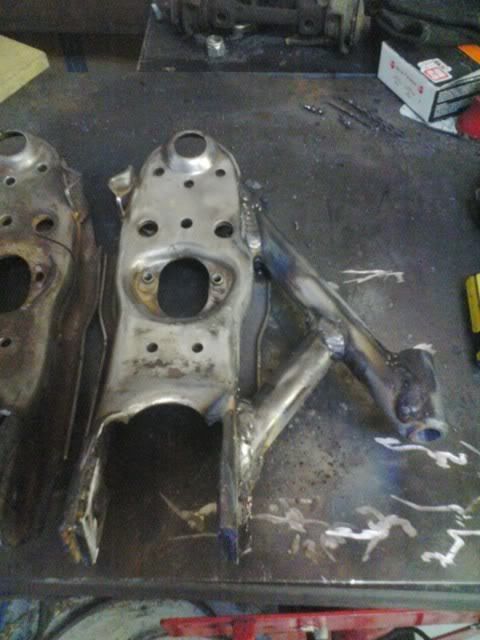

modified lower arm, still needs clean up and some more work

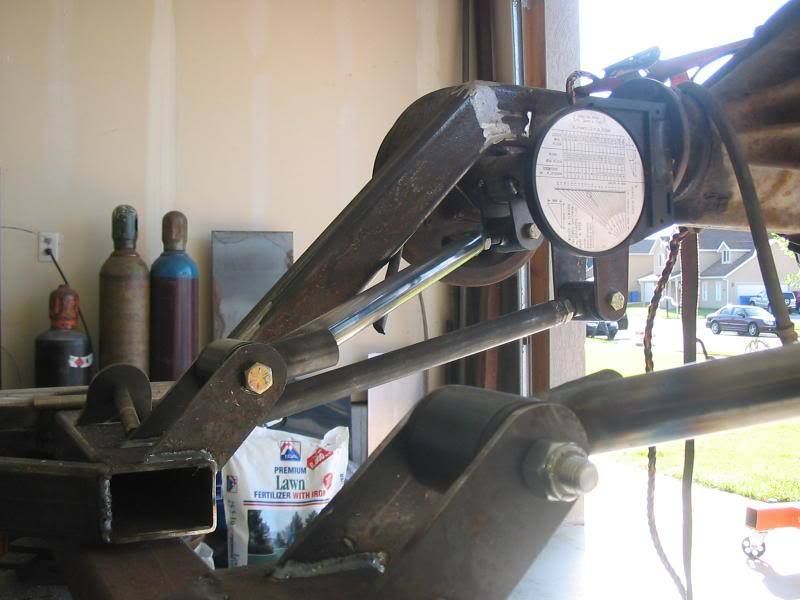

upper arm mocked up, it has new mounts now

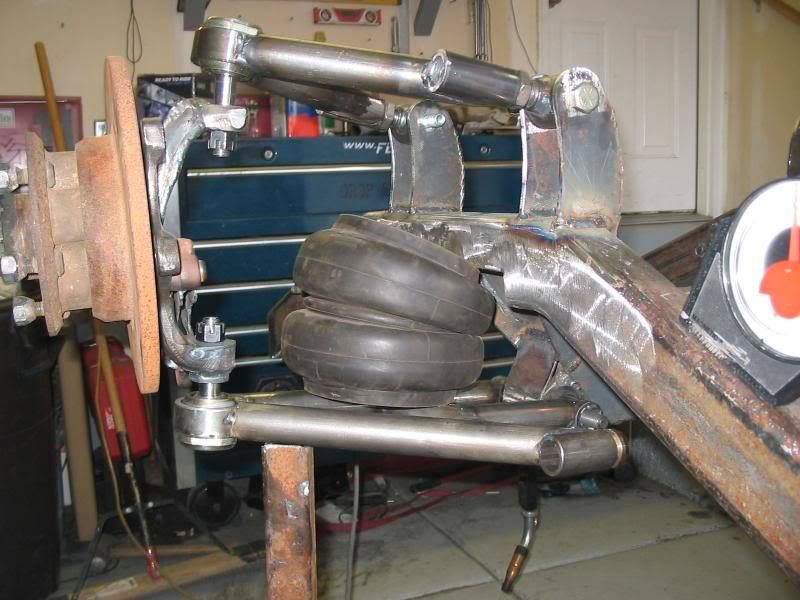

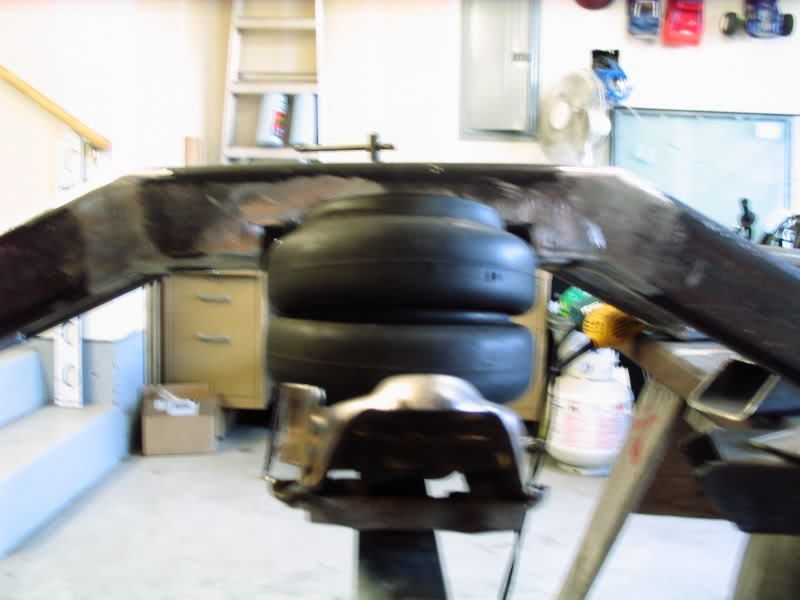

bag mocked up (re-7 it clears the picture looks decieving)

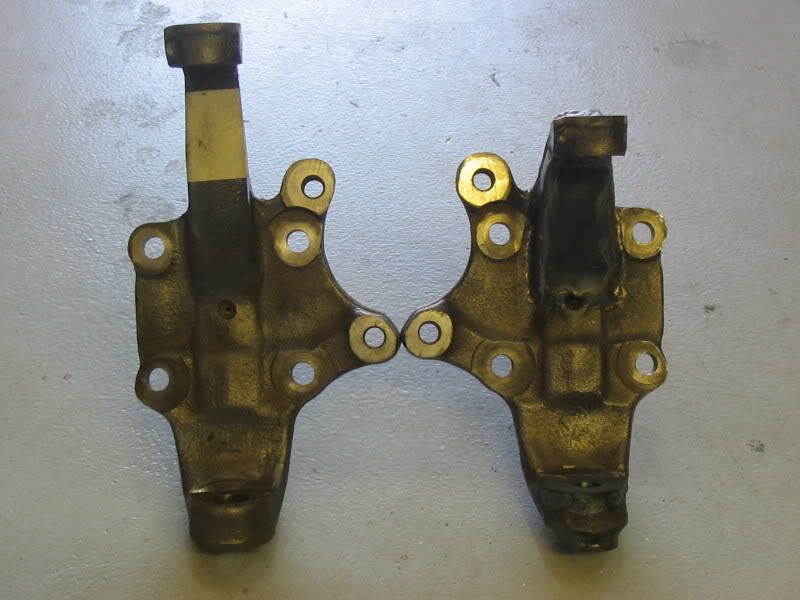

stock 79 toyota spindle modified for a 2in drop (cause i'm poor and can't afford to purchase good drop spindles

Progress looks great!! You want to modify my front spindles cause Im poor too!!

Your 4-link looks to be at a pretty severe angle. That will cause the wheel to move a lot through the first several inches of travel until it becomes more level.

yea i know when i designed it it was at half travel and looked pretty good after i got it welded up i started thinking wtf did i do. i might end up cutting the axle brackets off and redoing them or doing a slip driveline.

I would redo the mounts some how. At half travel the lower bar should be level with the ground or pointing up a few degrees.

yea i know. my biggest problem is the front mounts i don't want to raise them to much i want to keep the back seat as low as possible. at the axle the upper bar would be 2 or 3 inches lower than the axle. thats one of the main reasons i havn't redone then yet i can't figure out a design that will give me the correct geometry without adding a crap load of gussets.
does that make any sense?

Yeah you can run the bars under the axle. Just not too far. Rock crawlers do the opposite.

yea i think i figured it out i'm going to go from 28deg to 18deg at full drop but it will be closer to where it should be.

here's are some updated pictures

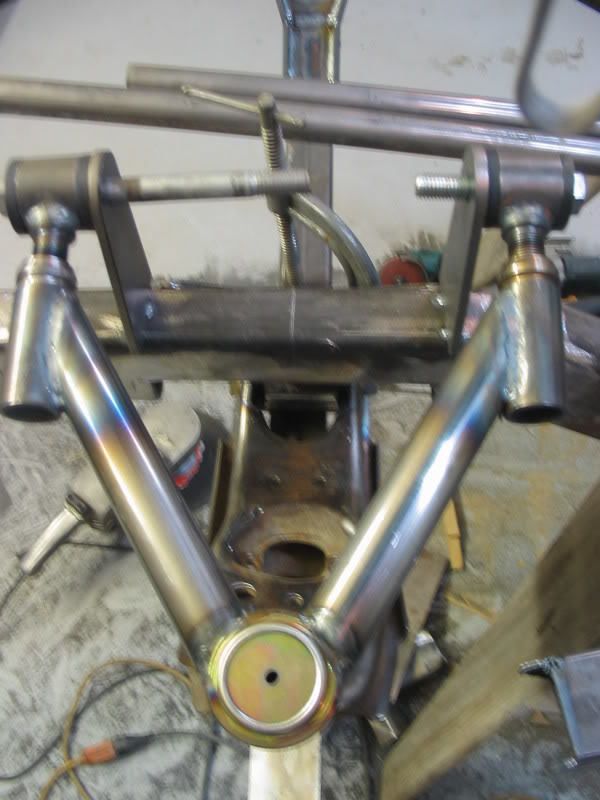

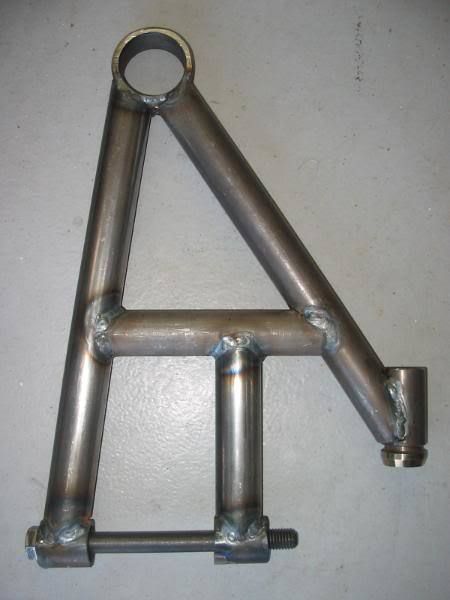

new lower control arm

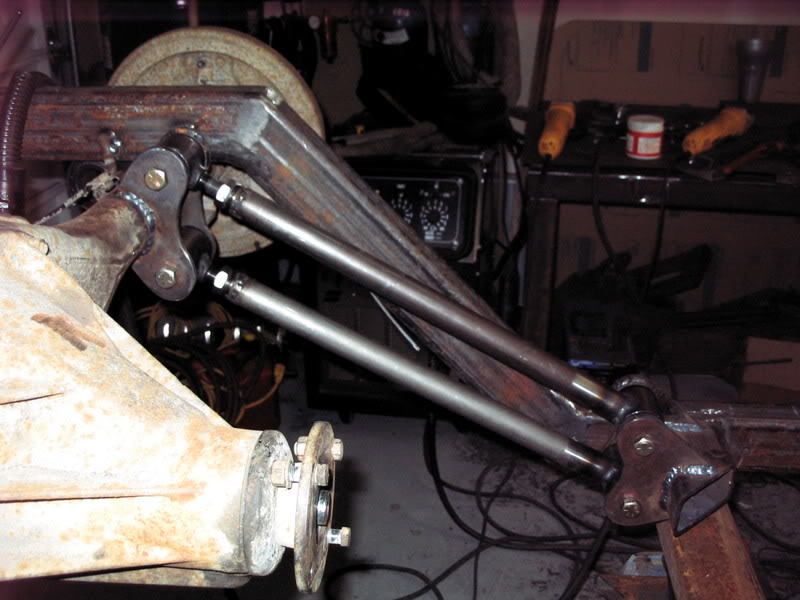

changed up my rear link to a tri 4 link

How did you mod your spindle? Just cut and weld? Is it cast? I'm an s10 guy and don't know much about the yota scene.
