Alright I pretty much got the 4-link down or I think I do I have been looking at a lot of pics of 4-links and dont need any special this is what I figure I'm going to do let me know
The lower bars like Johnny5 and have a stud coming out of the frame and they will be parellal to the ground at ride height or close to it
The upper bars will be close to 35 degree off center \/ with the front pivots as close to inline with the lowers as close as I can
With the uppers as parallel or a little down with the lower bars
what should the pinion angle be? 3 degree down??
The upper bars will be a little longer than the top, was going to build a crossmember for the upper bar mounts that run inbetween the fram rails Let me know what you think

this is what hes talking about lol

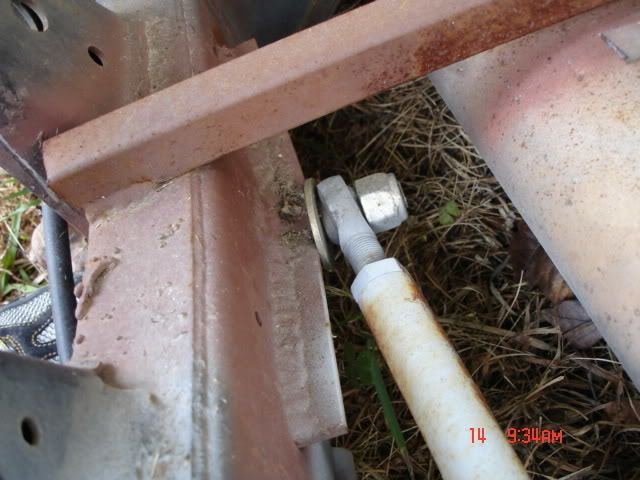

^^^ thats the first time ive ever seen it done like that. what keeps the hiem from moving side to side on the bolt?

it still gets side to side on the axle side lol but that washer in the pic keeps it from moving side to side right there but it works great

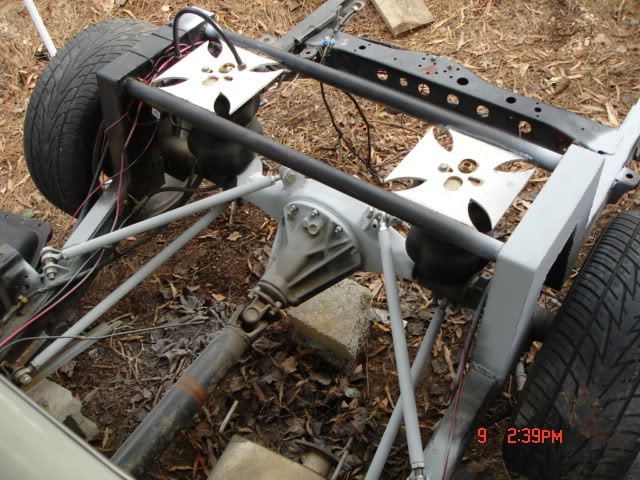

thats how mine is currently.....ghetto...

i dont care for heim joints. personal preference tho.

I may not run Heims I may get a Super Pivot?? I dont see how it is Ghetto to run the bar off the frame I'm going to have a spacer to space it off a little but I dont see why it wont work and be reliable??

if you run that set up are you going to put a panhard bar in there the keep the axle from going side to side? Just having the upper bars triangulated isn't going to be stout enough. I'd be afraid that ass end would walk like a mofo.

weird setup but thats kewl

its a 4-link you don't need a pan hard bar for a 4-link and plus i've had this setup now for 3 years and no problems and its stout as hell. plus my lower bars are triangled a little to for more stoutness lol
