stumbledin   +1y
Yes, the arms, crossmember and all from any 63-87 square body GM truck and some duallys and suburbans thru 91 all have the same basic suspension.

so get the spindles, arms and all from any GM fullsize from 71-87 and have disc brakes. plus drop spindles and drop springs are available, plus bag setups, plates and all that.

The rear is a different story. So just cut it all off and start with new mounts in the rear.
98L150   +1y
i have got a dropmember on mine fro Porterbuilt street rods and it lays out the front with it. More infor canbe found onit at:

http://67-72chevytrucks.com/vboard/showthread.php?t=211503

tuckinlugs06   +1y
what does that drop member run
granth   +1y
you will more in the drop member setup than buying a front clip, replacing the bushings and balljoints and matching up steering between the two generations...
tuckinlugs06   +1y
well what does that member run...i know prob more than the truck will be worth
tuckinlugs06   +1y

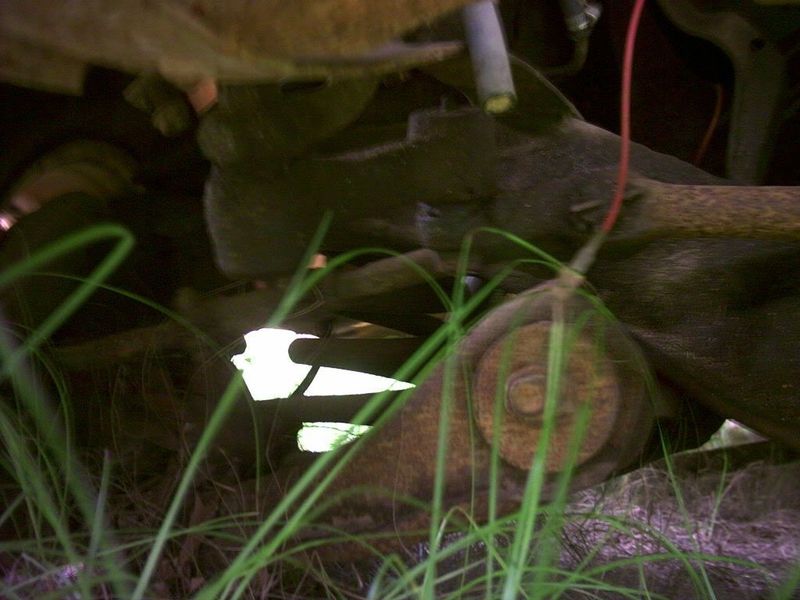

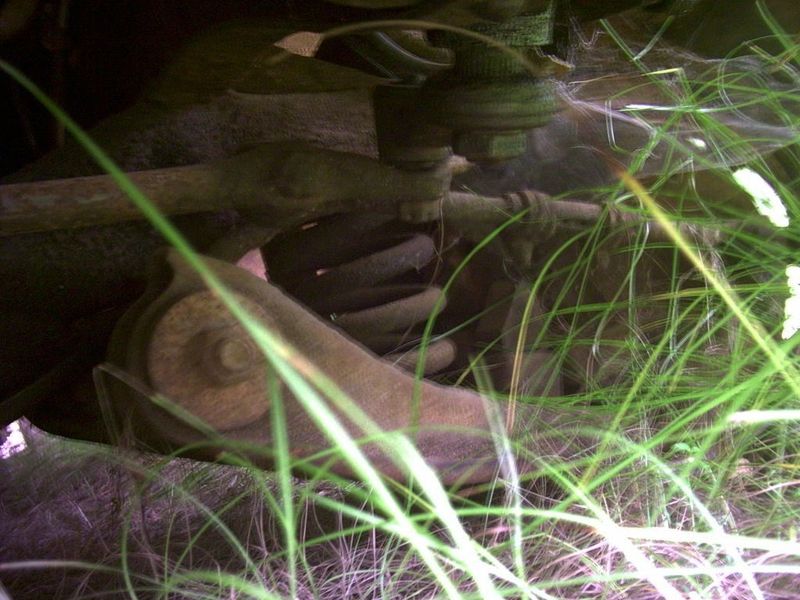

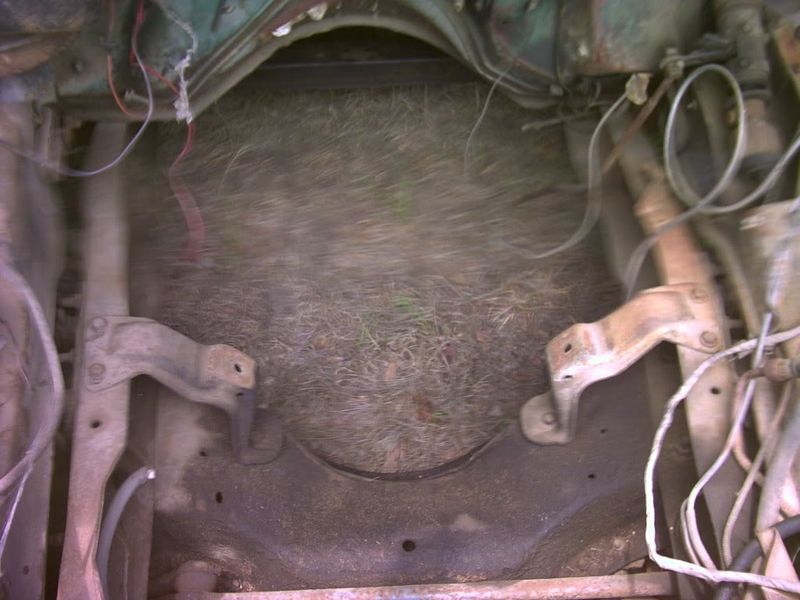

here is some pics of the truck and the susp i have to work with





post photo
post photo
post photo
post photo
tuckinlugs06   +1y
ok the stock lug pattern is 6 right now how does this one have 5...it looks like that it has stock arms so what spindle and bolt on here to give it 5 lug swap...or is there a 5 lug drum that could be it
98L150   +1y
dropmember runs $1450, plus you will need bags, steering rack, and steering column rods to hook up your steering column to the rack.
tuckinlugs06   +1y
cheaper to z and use stock arms ..i have to fund my own projects so ..ill do it the easyest way
tuckinlugs06   +1y
ok i got the front on the ground and now need to move to the rear and need to know how to get the rear to lay with the stock arms ...cause as of now they are hitting the bottom of the frame and the frame is not on the ground yet abbout 1.5-2" and thats with a 15" will small tires ...now how will i lay with 20's...i plan to 4 link it later on but now just want to get it bagged
