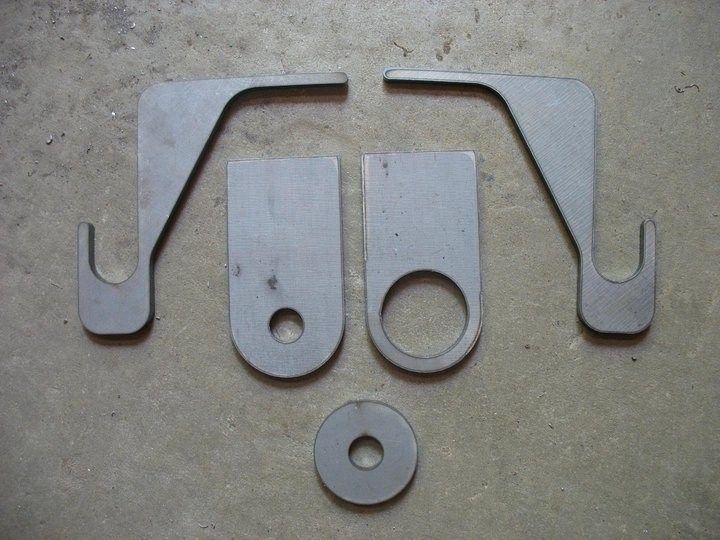

---------------------------------------------Originally posted by BagD72ChevyI'm not following the tabs? How will that work?---------------------------------------------I will post pics when they are finished. hopefully some time this week! fingers crossed!
---------------------------------------------Originally posted by BagD72ChevyI'm not following the tabs? How will that work?---------------------------------------------I will post pics when they are finished. hopefully some time this week! fingers crossed!
DisseveredCustoms
+1y

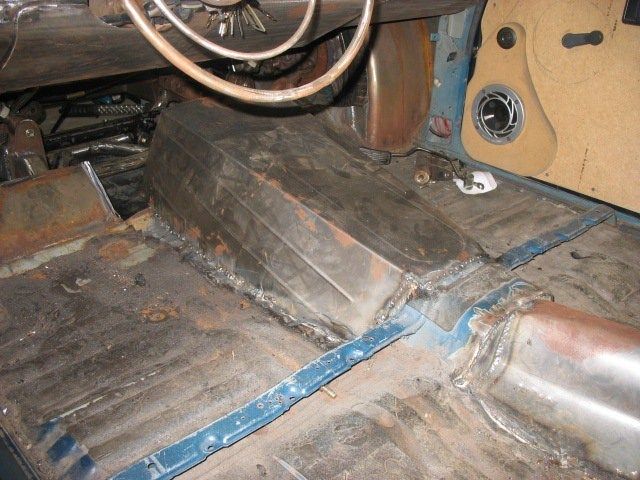

Here what I got done last night. Got the steering from the column to the rack mocked up, and got the transmission tunnel tacked in!! got the s
Here what I got done last night. Got the steering from the column to the rack mocked up, and got the transmission tunnel tacked in!! got the s
mjavy7
+1y
Congrats dude! You have done what most ppl steer away from doing-the fron 1/4 of the frame. I looks great too. I like what I see so far everything seems to be coming right along for you.
Congrats dude! You have done what most ppl steer away from doing-the fron 1/4 of the frame. I looks great too. I like what I see so far everything seems to be coming right along for you.
DisseveredCustoms
+1y

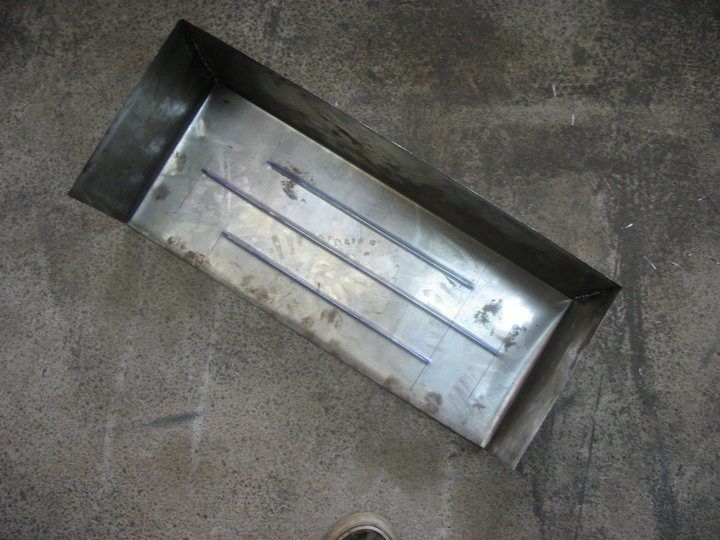

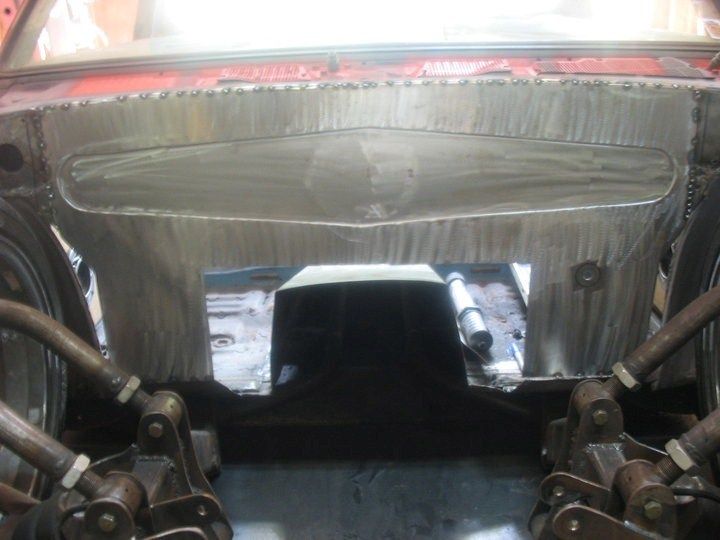

Ok here is the progress I got done today. Got the firewall all tacked in!! Here is the piece between the firewall and trans tunnel, to go around the bellhousing. It looked really good till I had to cut it to fit..LOL And here is my final pic for the night. Also in this pic if you look close you can see the tierod end adapters. They are just mocked up, I still have to adjust the upper control arms a bit after the fenders are back on
Ok here is the progress I got done today. Got the firewall all tacked in!! Here is the piece between the firewall and trans tunnel, to go around the bellhousing. It looked really good till I had to cut it to fit..LOL And here is my final pic for the night. Also in this pic if you look close you can see the tierod end adapters. They are just mocked up, I still have to adjust the upper control arms a bit after the fenders are back on
DisseveredCustoms
+1y

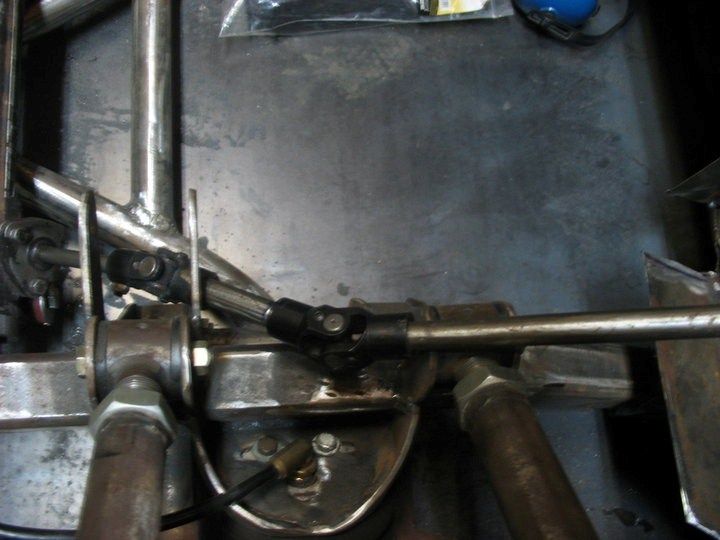

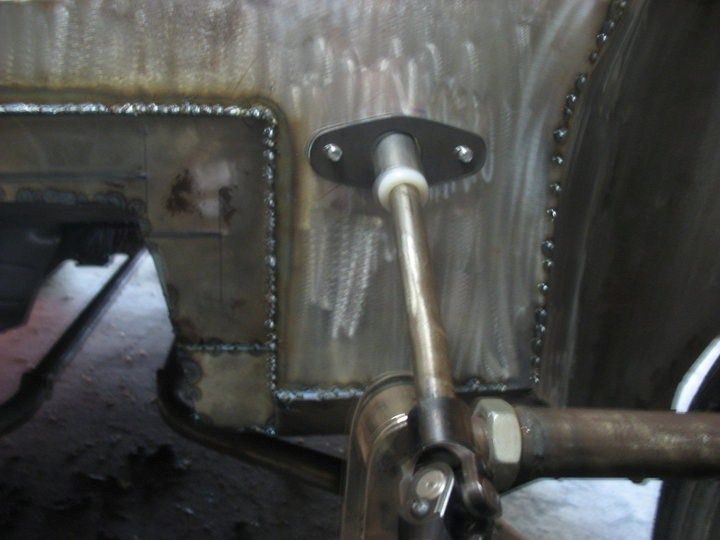

Little update, got the steering shaft support mount on the firewall made and installed. Works great just got to weld every thing up...ran out of welding gas!!!LOL
Little update, got the steering shaft support mount on the firewall made and installed. Works great just got to weld every thing up...ran out of welding gas!!!LOL
DisseveredCustoms
+1y
Edited: 8/22/2010 10:35:49 PM by DisseveredCustoms

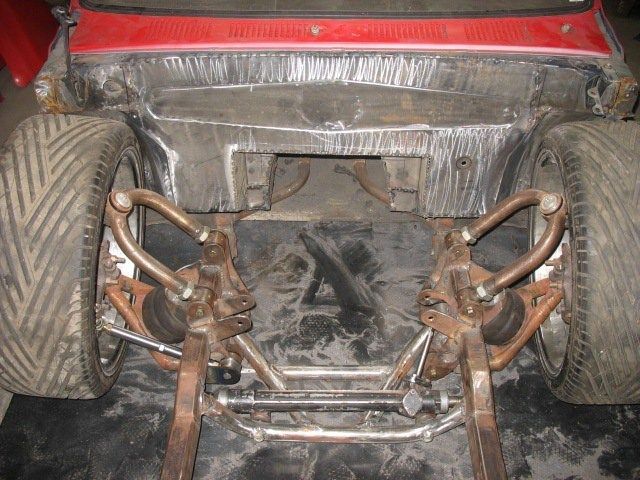

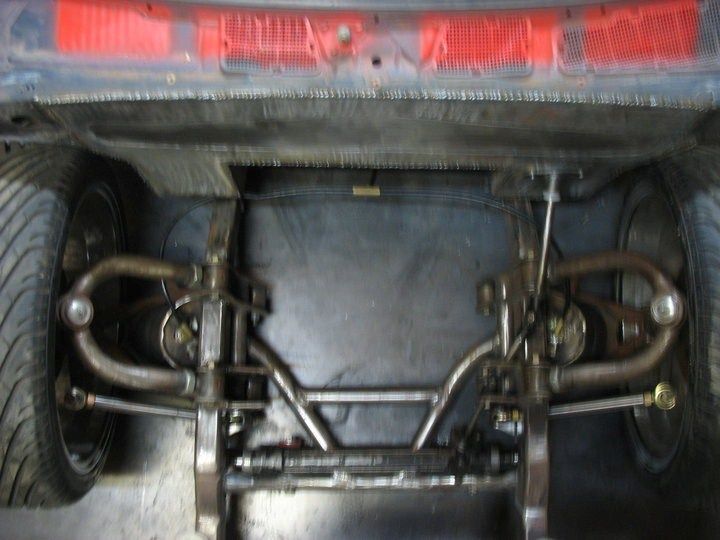

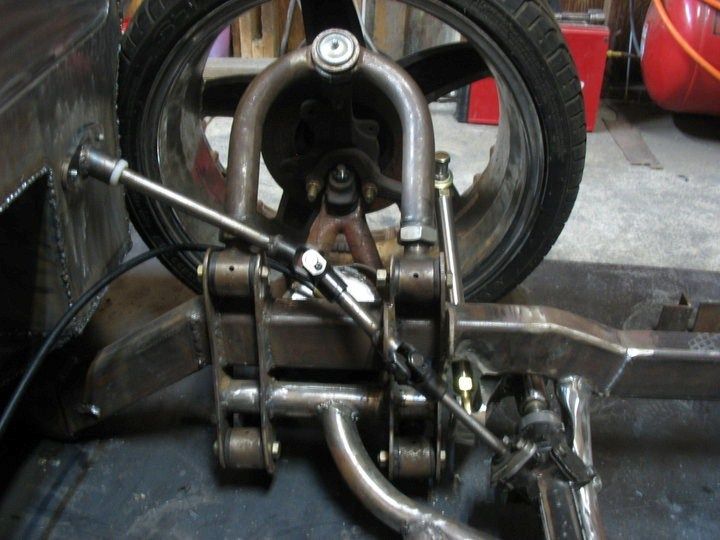

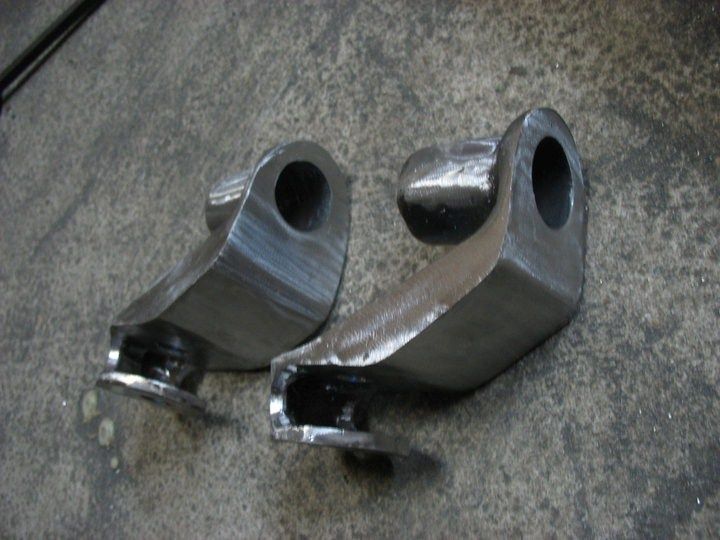

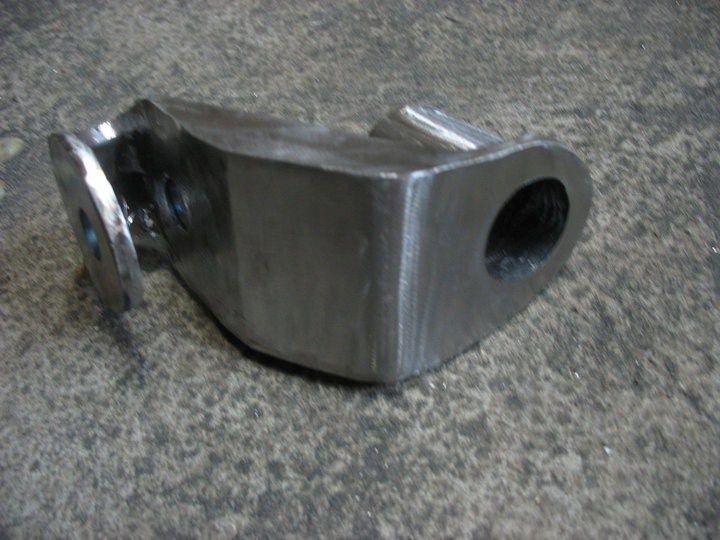

Ok I finally got the suspension all done (at least for RA). The first two pics are of the tie rod end to rack n pinion adapters Here is a over view of the front suspension And here is a side view. I am totally pumped bout the new set-up. I am barely getting any toe change threw-out the entire 10-12 inches of travel. I know the tie rod is not straight and the heims are binding at the spindle. But, when i finish up the new spindles I plan on correcting the problem then. OH and I did get all the firewall and trans tunnel welded up also. So now all I have to do is clean up all the welds and put her back together for RA.
Ok I finally got the suspension all done (at least for RA). The first two pics are of the tie rod end to rack n pinion adapters Here is a over view of the front suspension And here is a side view. I am totally pumped bout the new set-up. I am barely getting any toe change threw-out the entire 10-12 inches of travel. I know the tie rod is not straight and the heims are binding at the spindle. But, when i finish up the new spindles I plan on correcting the problem then. OH and I did get all the firewall and trans tunnel welded up also. So now all I have to do is clean up all the welds and put her back together for RA.
