Build-Ups \ square body ranger bodied on 22ssquare body ranger bodied on 22s
views 10435
replies 268
following 126
tacomaon24s
+1y
one is pressure and one is return its just all plumbed under the truck so it looks that way
one is pressure and one is return its just all plumbed under the truck so it looks that way
tre5
+1y
On the manifold you have a pressure going into the side of the block and a pressure into the bottom of the block. The center one on the bottom is the return.
On the manifold you have a pressure going into the side of the block and a pressure into the bottom of the block. The center one on the bottom is the return.
tacomaon24s
+1y
sorry guys one of the lines is just for looks it is capped off under the truck and does absolutely nothing one line runs to the front and one line is for the rear it is plumbed side to side not front to back if that makes sense. the left manifold controls the left side of the truck and the right manifold does the right side didnt want any crossing lines on the frame work. the truck has some of the switches wired up right now goes up and down fine. the coils are a little soft it was to be expected so with new coils and all adjusted should be good to go right now fully locked out in the rear im getting 15 inches of lift and about the same in the front however once i get rid of coil colllapse i should get around 5 more inches of lift front and back pics tomorrow.
sorry guys one of the lines is just for looks it is capped off under the truck and does absolutely nothing one line runs to the front and one line is for the rear it is plumbed side to side not front to back if that makes sense. the left manifold controls the left side of the truck and the right manifold does the right side didnt want any crossing lines on the frame work. the truck has some of the switches wired up right now goes up and down fine. the coils are a little soft it was to be expected so with new coils and all adjusted should be good to go right now fully locked out in the rear im getting 15 inches of lift and about the same in the front however once i get rid of coil colllapse i should get around 5 more inches of lift front and back pics tomorrow.
Juiced202
+1y
Absolutely beautiful truck and fabrication work. I am building a 1-6 myself, and can't wait to get it going!
Absolutely beautiful truck and fabrication work. I am building a 1-6 myself, and can't wait to get it going!
tacomaon24s
+1y

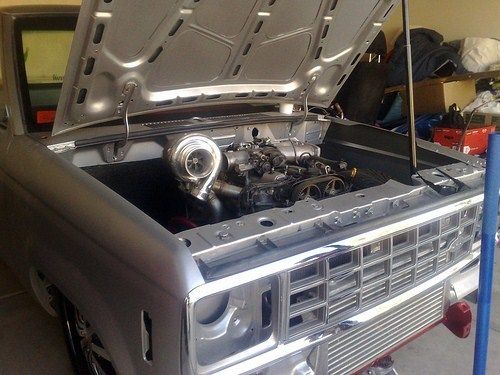

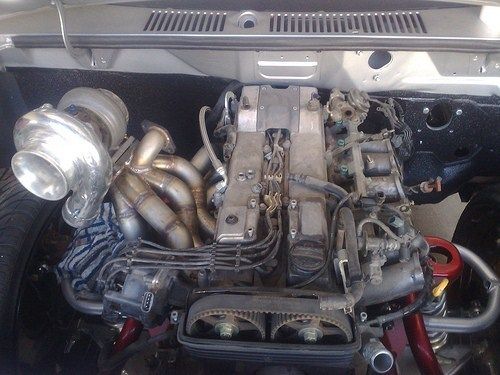

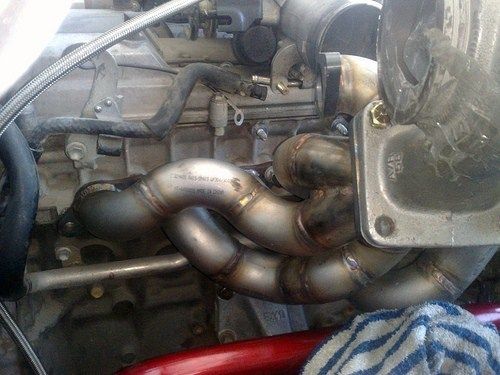

well getting further along been waiting forever but finally got my wiring harness back and turbo manifold done. so all that is left is fuel and brake lines and the new upper and
laydsuzu
+1y
That a t3? thats a big ole' turbo! lol that looks like what i had on my zu for a lil while then took it off to put ac in. I hope i can see this in person one day
That a t3? thats a big ole' turbo! lol that looks like what i had on my zu for a lil while then took it off to put ac in. I hope i can see this in person one day
tacomaon24s
+1y
i beleive it is a t4 its a 67 mm trim. really big for my little truck but its what everyone uses on these engines as far as i can find im on the supra forums alot. also had a custom self contained harness made for it and doing some computer upgrades as well like the aem standalone that makes me able to put alot of boost with a headgasket and headstuds and a few other things they are capable of 15 to 20 pounds of boost its crazy
i beleive it is a t4 its a 67 mm trim. really big for my little truck but its what everyone uses on these engines as far as i can find im on the supra forums alot. also had a custom self contained harness made for it and doing some computer upgrades as well like the aem standalone that makes me able to put alot of boost with a headgasket and headstuds and a few other things they are capable of 15 to 20 pounds of boost its crazy
