My Suicide Door Project

Edited: 3/11/2010 9:58:28 PM by truck action

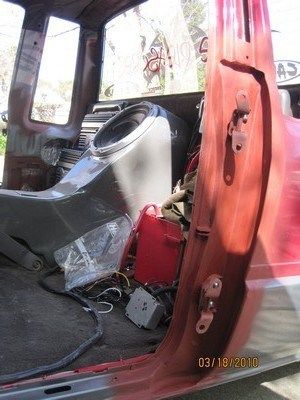

Got the seat belt problem fixed,removed the plastic shroud,moved a bolt over & lengthen the upper support, all over 1 1/4"

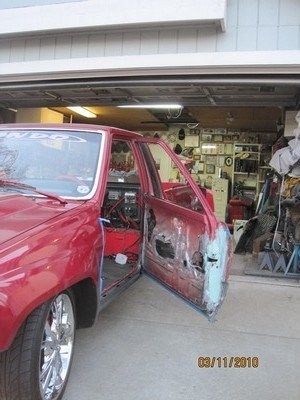

Rehung the passenger door & out the spacing worked out,reworked the handle to work smoother by adding another pulley,& got the location for the safety latch & soleniod worked out

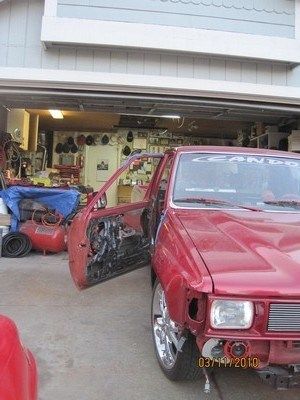

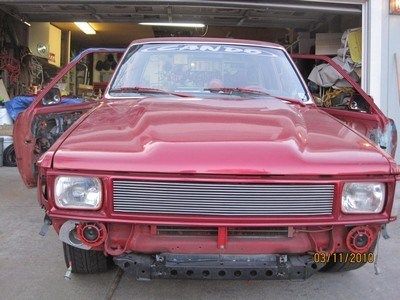

Got the drivers door hung & swinging

A lot of welding tomorrow & a lot of work still in front of me! But I can see the light!!

Got the drivers side all welded up & smoothed out

Edited: 3/18/2010 9:41:15 PM by truck action

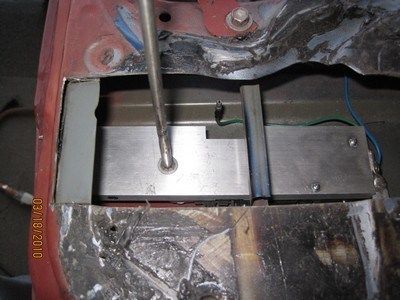

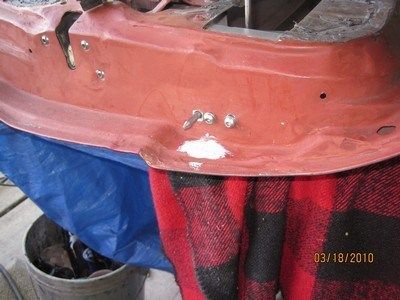

Also got the safety latch installed & the rod for the manual knob lengthened

Edited: 3/18/2010 9:49:04 PM by truck action

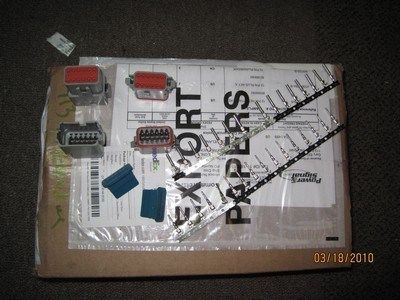

Edited: 3/18/2010 9:48:20 PM by truck actionTomorrow get the installed & hang the door & wire up,then do all again @ drivers side!These are the electrical I will be using,16 pin

Tomorrow get the soleniod installed & hang the door & wire up,then do all again @ drivers side!

This is pretty cool, I always wondered how this was done.
