havok said:
--------------------------------------------
Chopped Mazda said:
--------------------------------------------
I hope my dually arms are in there! Crossing my fingers :D
--------------------------------------------
yeah...taylor...look over there right quick!!!
havok said:
--------------------------------------------
Chopped Mazda said:
--------------------------------------------
I hope my dually arms are in there! Crossing my fingers :D
--------------------------------------------
yeah...taylor...look over there right quick!!!
jeebus @ mmw
+1y
Been a while since the last update, been super duper busy with tax season orders, so that swamped us here.
figured i would post up some pics for the guys that dont follow us on facebook:
Some fabricated spindles for an 88-98 FSC 1500

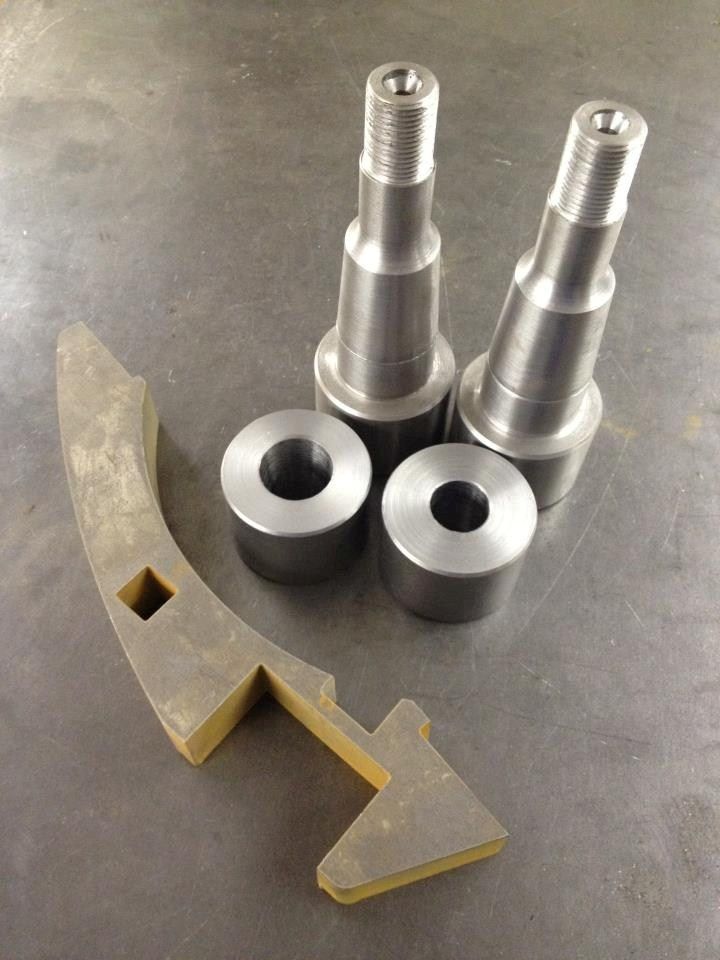

Started with the basics. Designed the spindle start to finish in solid works, then went through a few different options and decided on a final design and started working. turned the tapered shaft section from a solid piece of 2.5" OD 4140 stress proofed steel. this stuff machines great.

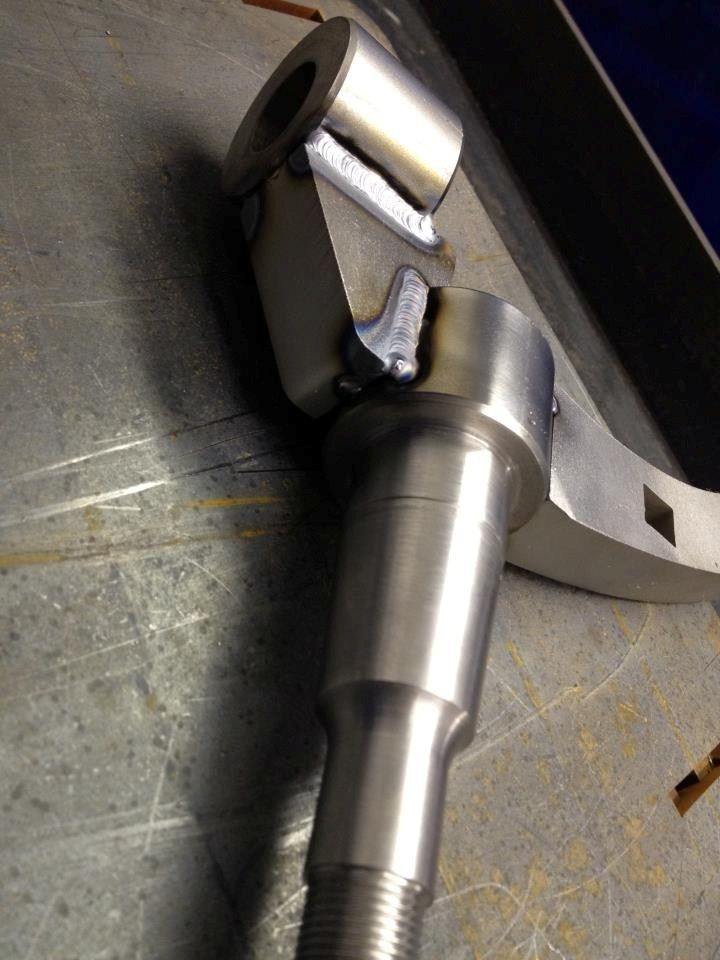

Cut some of the slugs i would use for the ball joint mount , and created some tapered holes to match the taper of the ball joints being used. Also i started slugging some of the main body of the spindle from 1.5" thick mild steel.

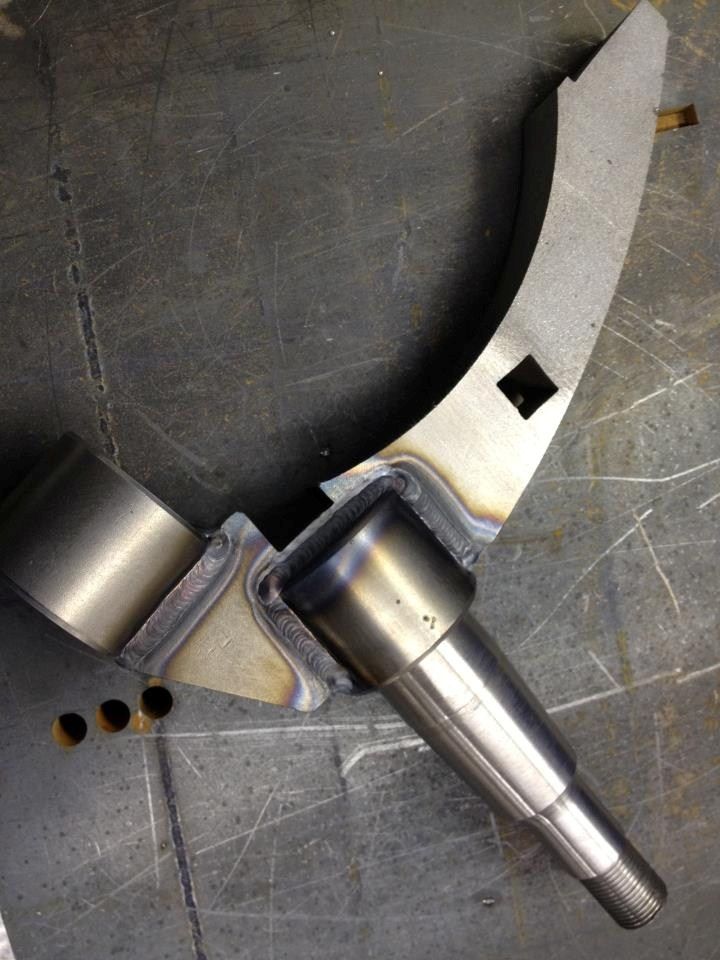

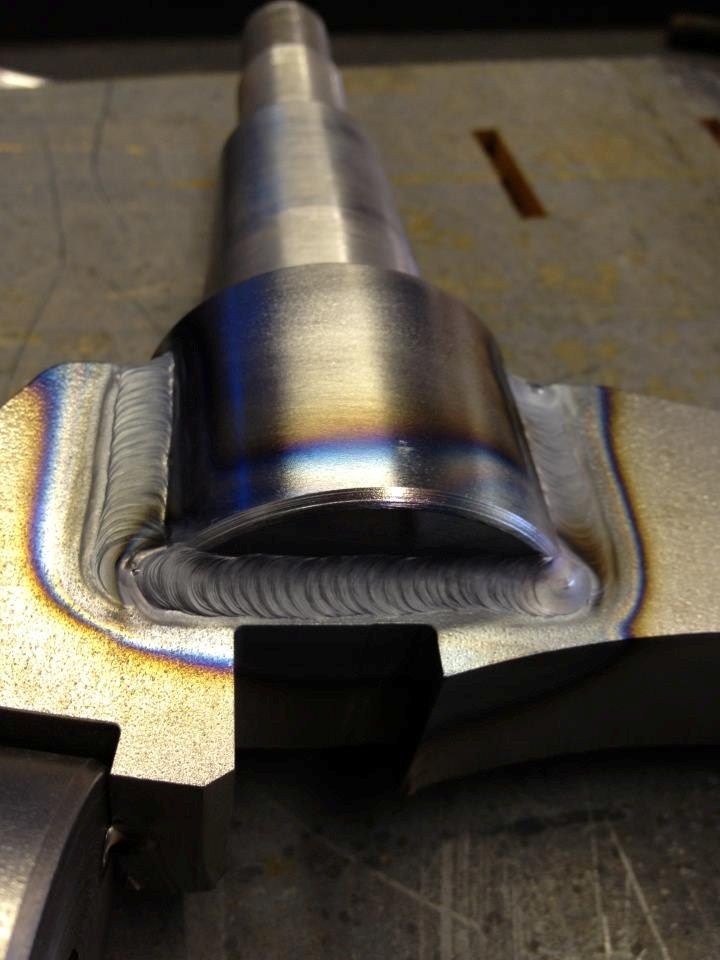

Then did this shit:

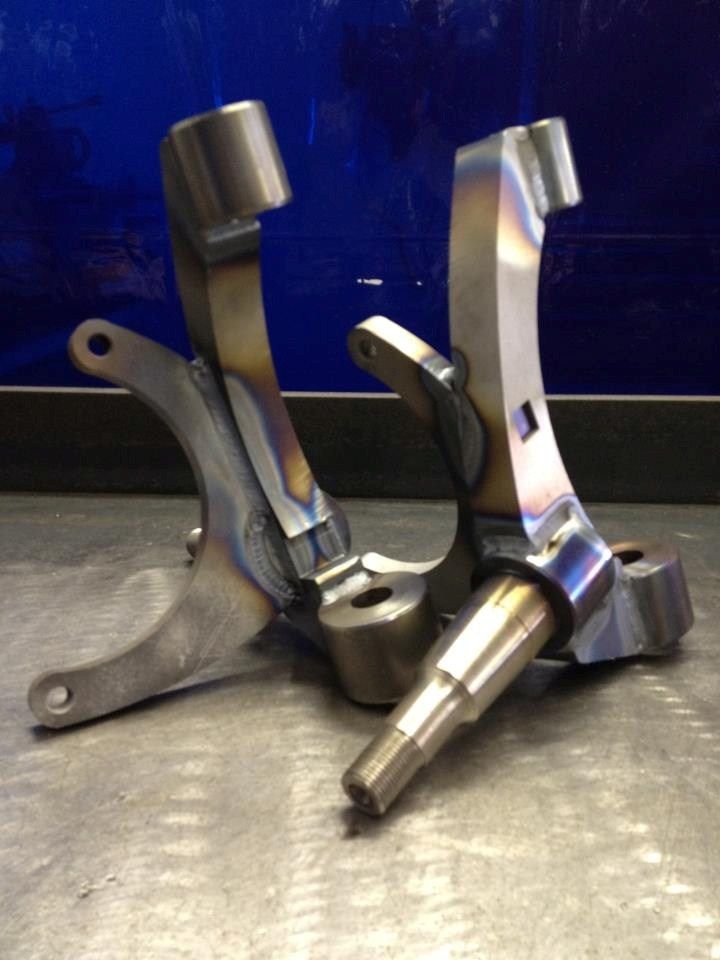

Obviously i have to mount some breaks to this truck, so i cut those and welded them in place.
I finished the design for the steering arm last week, and im cutting it out now to weld that on, i will update with those pics soon also.
Besides that, its been the usual around here. Pumping out arm orders, and designing a few new products as well. I have two new arm designs coming out soon, I think they will end up being pretty popular as well!
heres some misc arm photos since the last update:
Square body Dually arms to a 3/4 ton hub conversion :
LOTS of ranger sets, these have been popular lately!

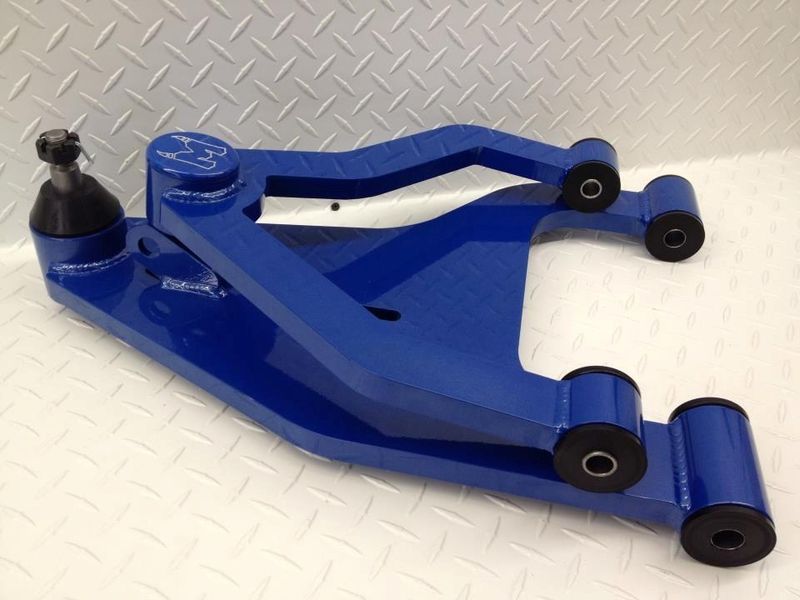

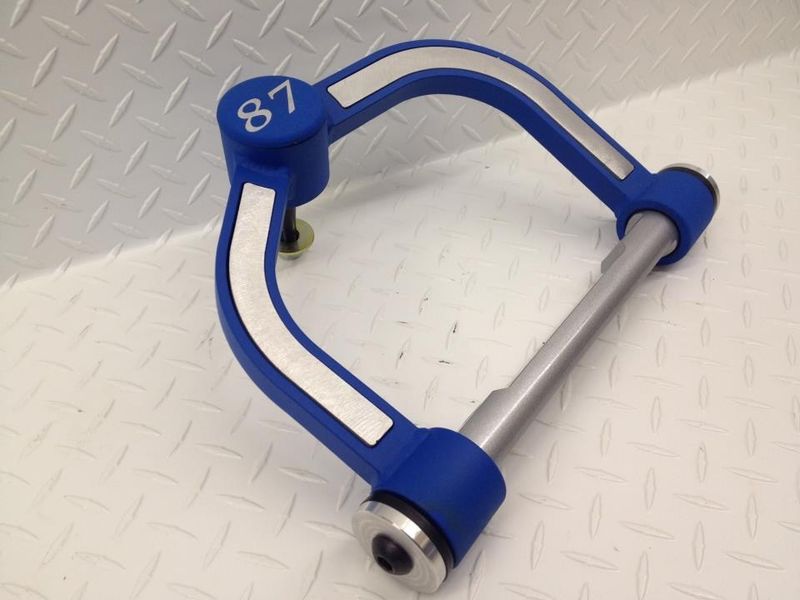

Did this custom set of arms with a aluminum insert into them, they are a flat blue as well. turned out cool looking.

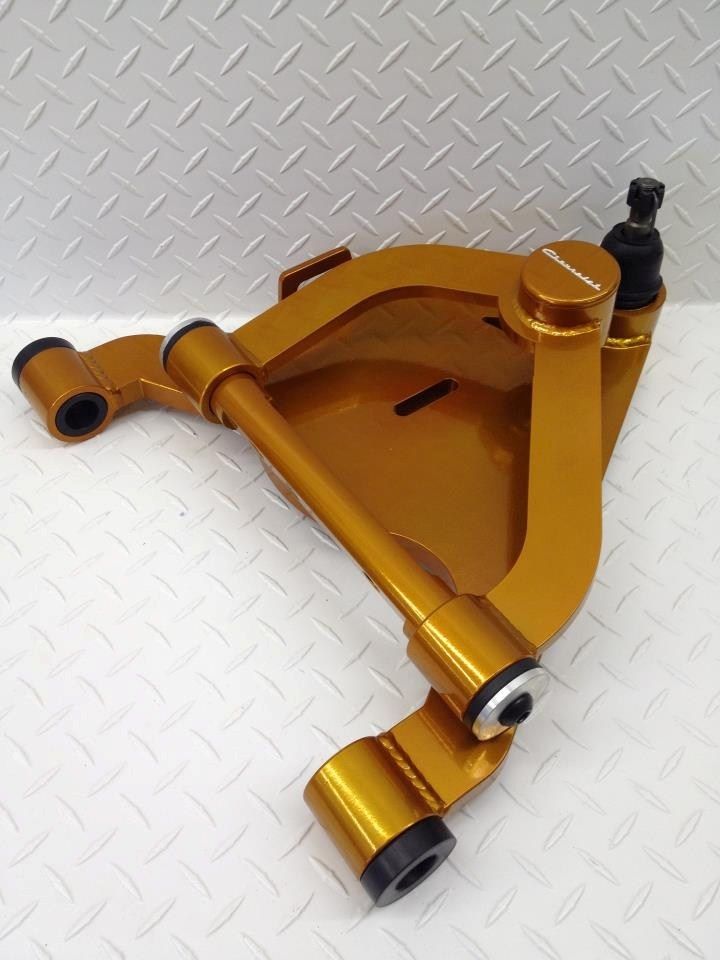

Did this great looking set of arms for a porterbuilt dropmember. great orange color, with some classic chevrolet script:

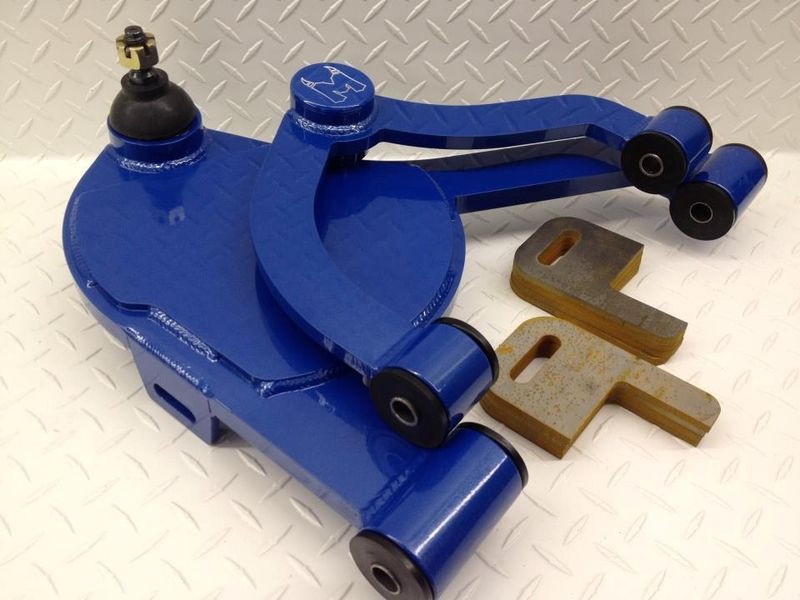

99-06 FSC 1500 upper and lower arm kit. With raised UCA mounts. Lays on 28s!

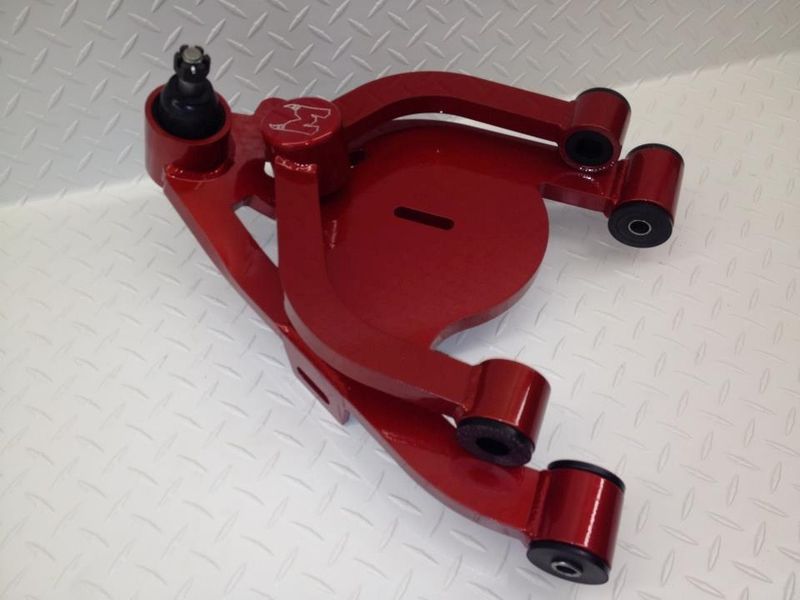

Candy Red S-10 Jeebus Joint Arms
figured i would post up some pics for the guys that dont follow us on facebook:
Some fabricated spindles for an 88-98 FSC 1500
Started with the basics. Designed the spindle start to finish in solid works, then went through a few different options and decided on a final design and started working. turned the tapered shaft section from a solid piece of 2.5" OD 4140 stress proofed steel. this stuff machines great.
Cut some of the slugs i would use for the ball joint mount , and created some tapered holes to match the taper of the ball joints being used. Also i started slugging some of the main body of the spindle from 1.5" thick mild steel.
Then did this shit:
Obviously i have to mount some breaks to this truck, so i cut those and welded them in place.
I finished the design for the steering arm last week, and im cutting it out now to weld that on, i will update with those pics soon also.
Besides that, its been the usual around here. Pumping out arm orders, and designing a few new products as well. I have two new arm designs coming out soon, I think they will end up being pretty popular as well!
heres some misc arm photos since the last update:
Square body Dually arms to a 3/4 ton hub conversion :
LOTS of ranger sets, these have been popular lately!
Did this custom set of arms with a aluminum insert into them, they are a flat blue as well. turned out cool looking.
Did this great looking set of arms for a porterbuilt dropmember. great orange color, with some classic chevrolet script:
99-06 FSC 1500 upper and lower arm kit. With raised UCA mounts. Lays on 28s!
Candy Red S-10 Jeebus Joint Arms
ohioratrodder
+1y
all these pictures and no shorted s10 arms :???: j/k everything looks good and thanks again
ohioratrodder
+1y
all these pictures and no shorted s10 arms :???: j/k everything looks good and thanks again
jeebus @ mmw
+1y
If i took pics of everything that i made, i would have no time for anything else lol
they shipped tuesday.
Taylor
they shipped tuesday.
Taylor
ohioratrodder
+1y
thats fine, i am already pleased you called to double check before you welded them and shipped them sooner then i thought. if the arms are half as good is the customer support i have nothing to worry about(besides my math lol)
jeebus @ mmw
+1y
You should see them any day now... Your only a few hundred miles from here...
Taylor
Taylor
maztang (ryan)
+1y
Badass stuff man! I follow along on facebook as well. Love everything you are doing!!!
