Project "Low Path"... 94 Pathfinder 4dr.......chassis done 2-7-12

Edited: 5/31/2010 9:55:34 PM by pugz

 QUOTED FROM MAT  --------------------------------------------

Ice;149201 said:

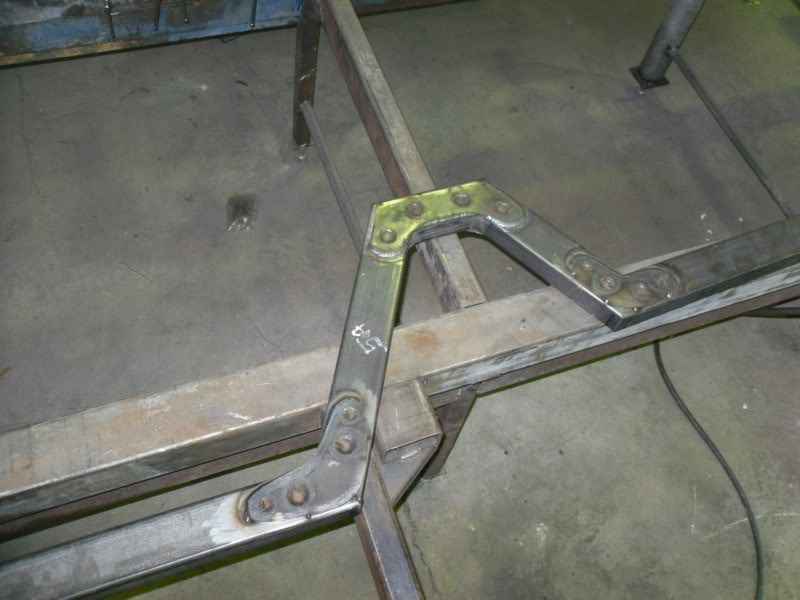

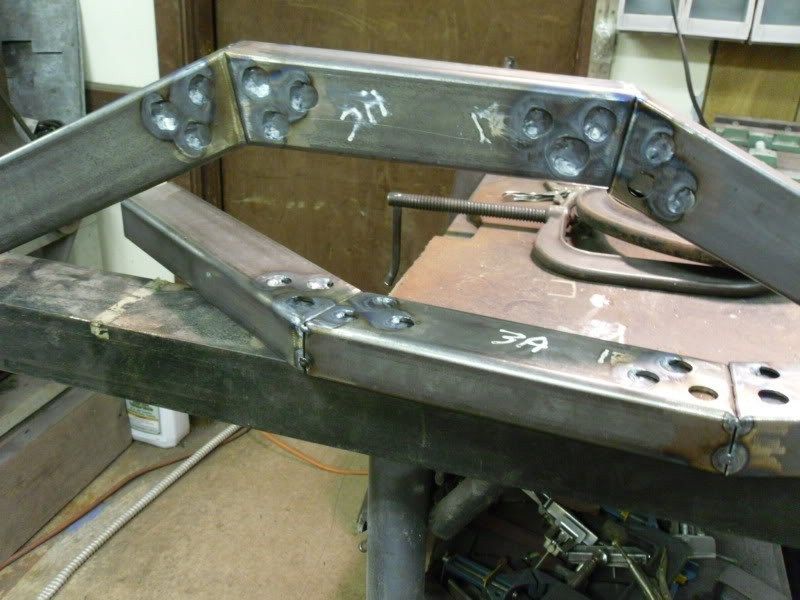

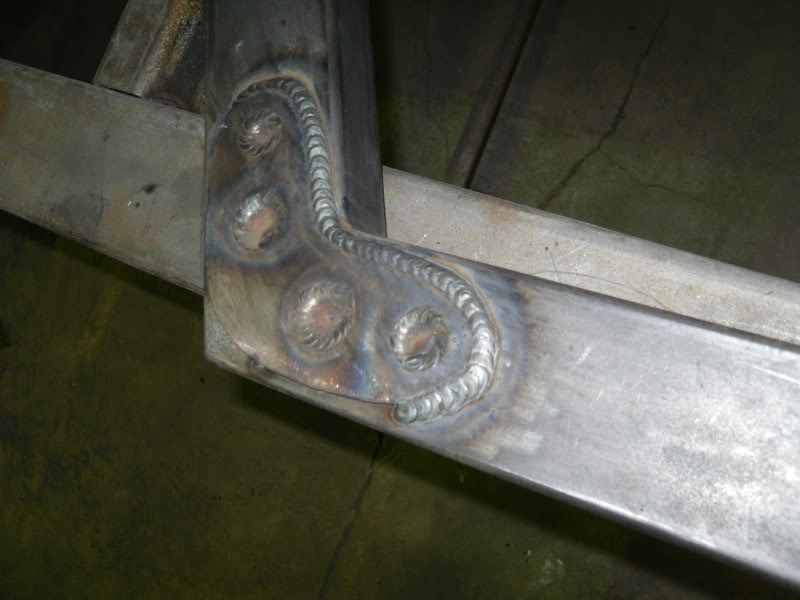

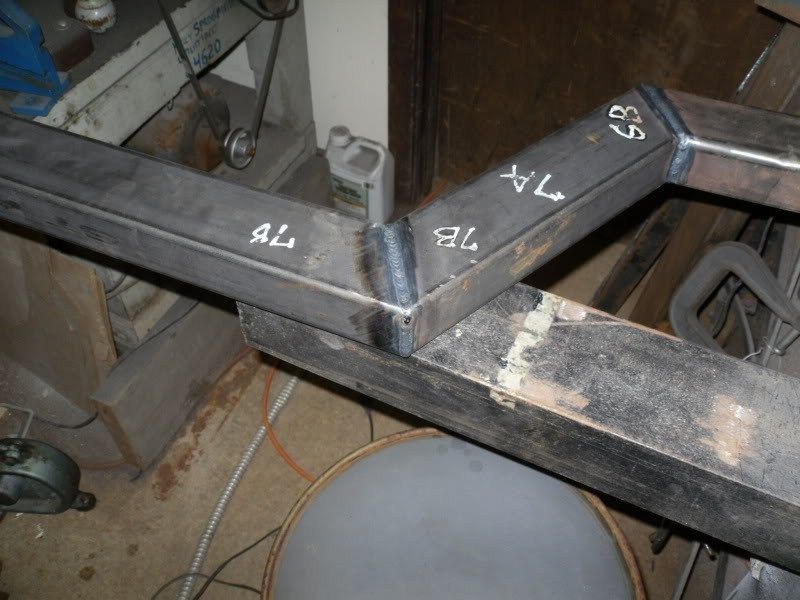

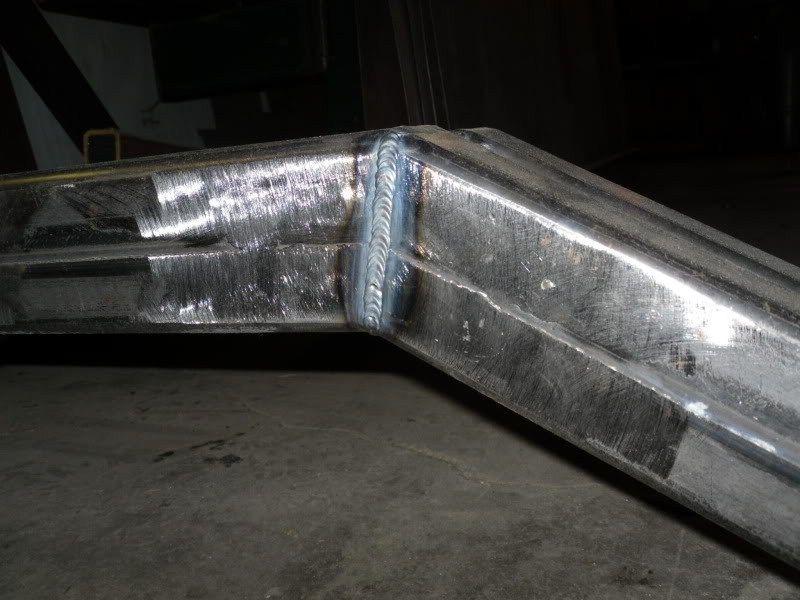

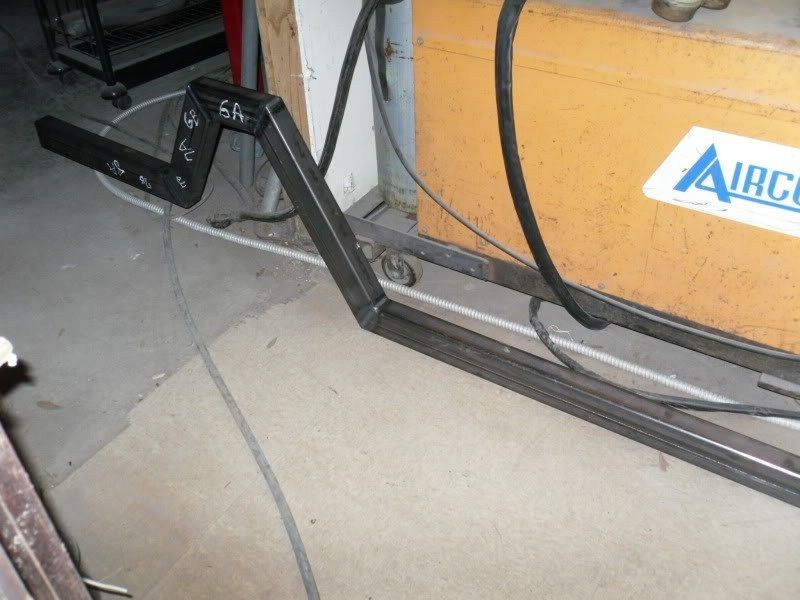

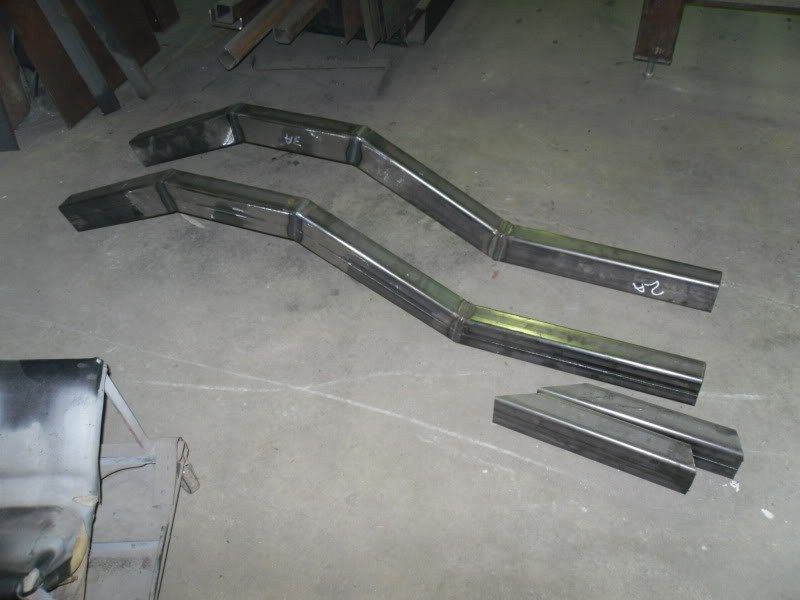

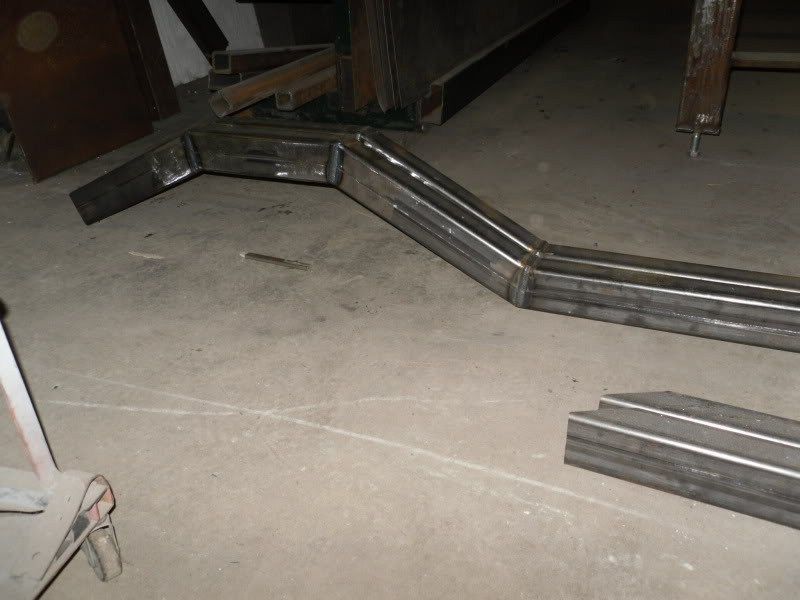

heres some more pics... im little behind.... but just the few things done, is real time consuming... alot of drilling, cutting , grinding, measuring, tig welding, mig welding and making sure everything is in line... lol.... ok , for the front, i did INNER fishplates(gussets for joints) ive beening doing this type of frame connections for YEARS... basicly , you drill holes in the frame rails, put a inner plate inside the joints.. weld the frame and the holes up .. this helps on stress at the joints and gives a clean strong looking frame rail.. i tig welded this all up .. then i started on the back... tig weld all the rear rails up .... then on the back , we used outer fishplates...i mig welded these in...

--------------------------------------------

frame looks sick pugz<!--session data-->

heres a lil update &nbsp;--------------------------------------------

Ice;152099 said:

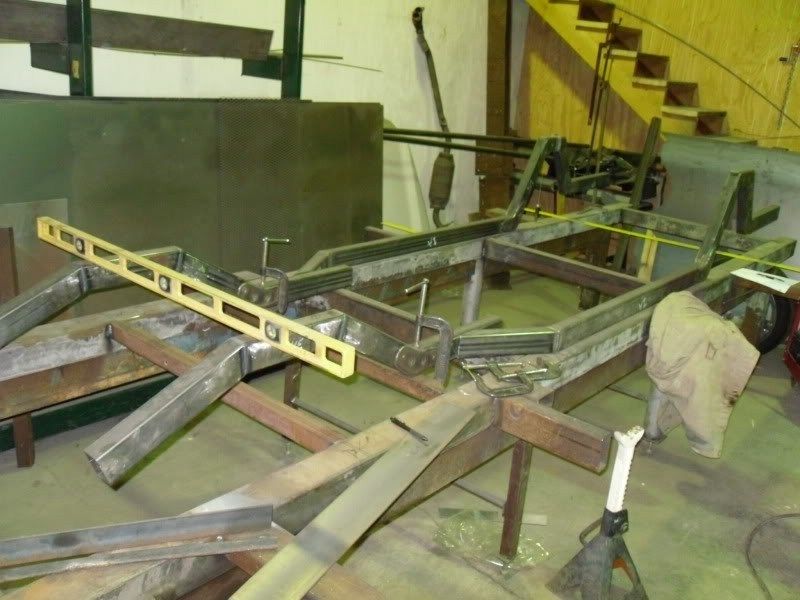

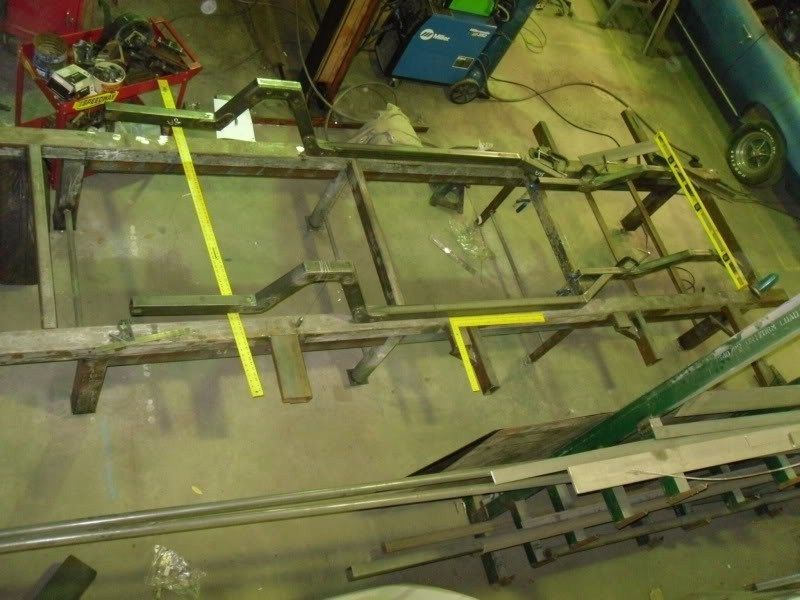

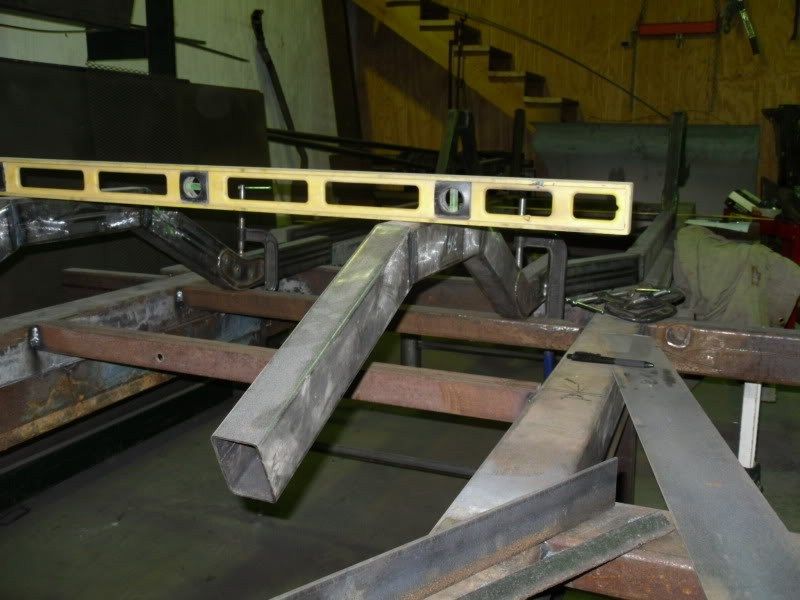

wish i had more to show, but ive been working and planning on the control arms and getting parts ready and etc... but heres the frame how it sites now...

--------------------------------------------

hey jason, dont sell or trade this one ok? ok good.&nbsp; frame looks sick, glad to see some great craftsmanship and someone who cares about their work

nah its not gonna be for sale for a while

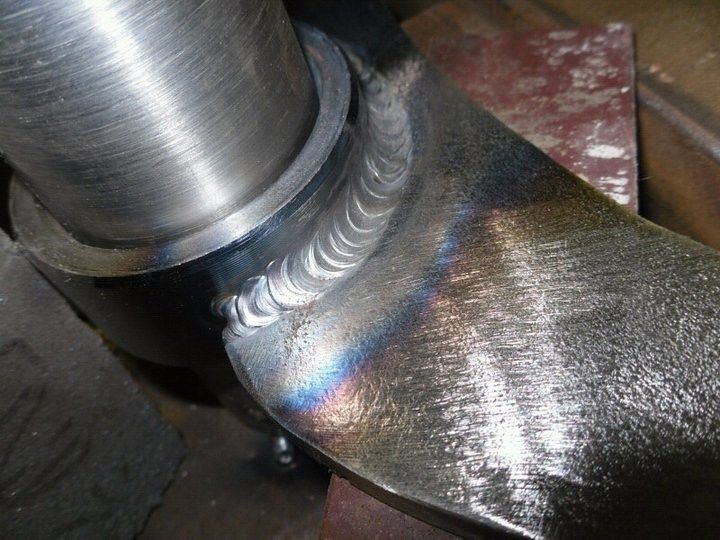

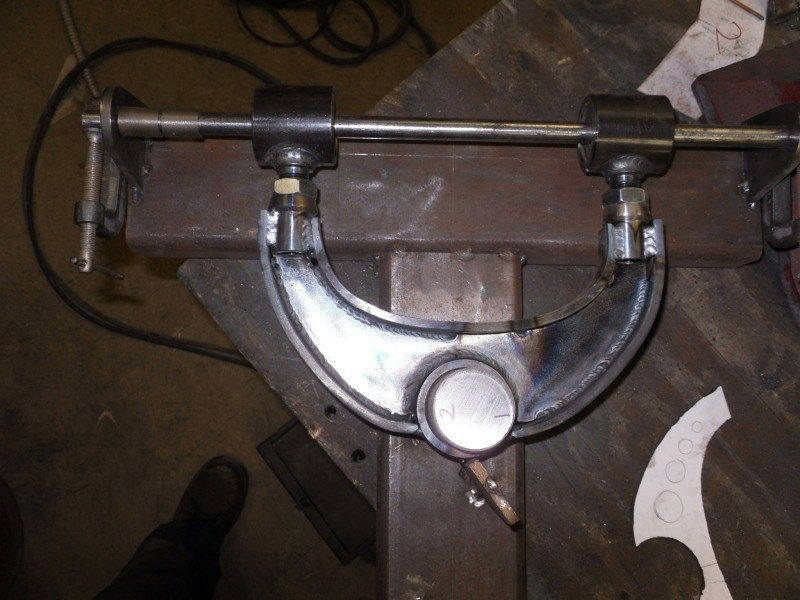

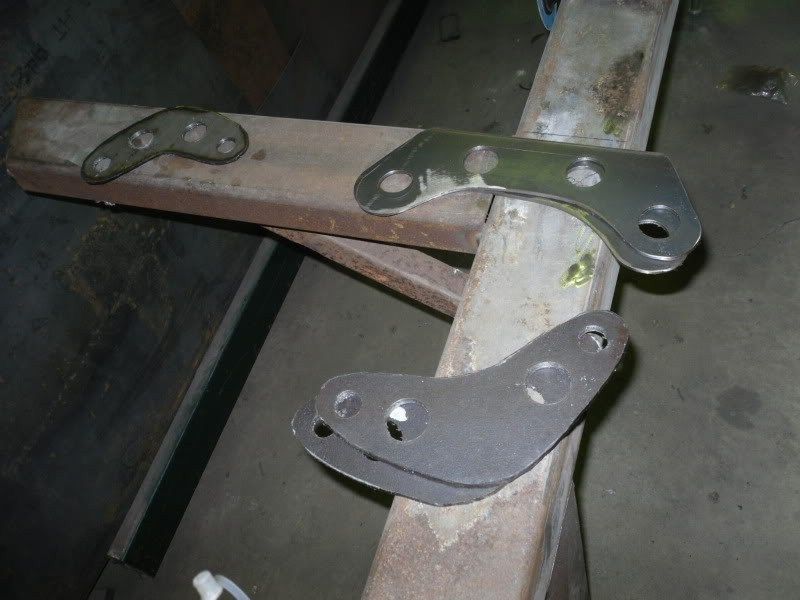

&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;upper arms taking shape

other side control arms taking shape.&nbsp; more updates soon&nbsp;

The frame and control arms are lookin great, can't wait to see more progress on them.

should have some more progress on them soon. i jsut worked out a deal on a motor swap. so its now getting a 6.0L &nbsp;
