mindlissmetalfab   +1y
Edited: 10/8/2010 11:07:44 AM by iLLblazer

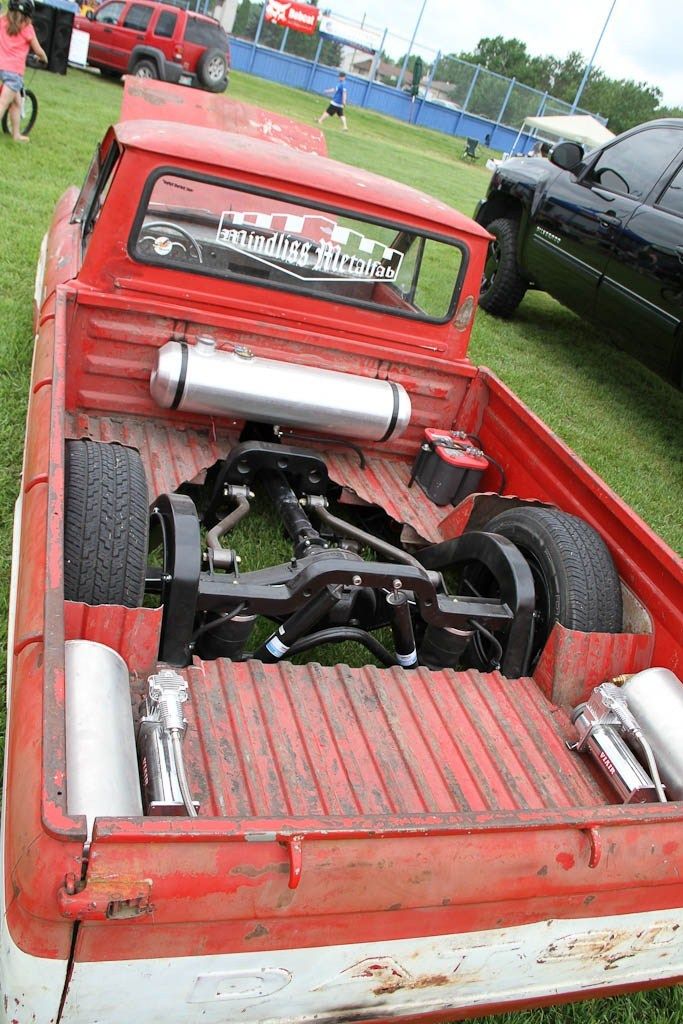

My Datsun is set up like that. no lateral movement issues, and it keeps things alot neater in my opinion.
post photo
jeebus @ mmw   +1y
Edited: 10/8/2010 11:32:54 PM by Chopped Mazda

Ive got bent 4link bars on my Ram as well. Ive had them for 4 years now with out a problem. Its the only way i would do it now to be honest, the look is sooo much more appealing.

However, it absolutely is weaker than having a straight bar, but in no way weak enough to fail as a 4link bar on a bagged truck, with the correct wall thickness tubing kept in mind, or allow any side to side movement at all.

Taylor
phat phabrikationz   +1y
--------------------------------------------

Chopped Mazda said:

... but in no way weak enough to fail as a 4link bar...

Taylor

--------------------------------------------

Be very careful with that statement!!!

If someone uses some really thin tubing, it could metal fatigue over time and use...
jeebus @ mmw   +1y
--------------------------------------------

SIRSCRAPEALOT said:

--------------------------------------------

Chopped Mazda said:

... but in no way weak enough to fail as a 4link bar...

Taylor

--------------------------------------------

Be very careful with that statement!!!

If someone uses some really thin tubing, it could metal fatigue over time and use...

--------------------------------------------



yea, your right. I changed it to note the wall thickness being used. I get in this habbit of thinking everyone uses .250 wall tube on stuff like i do.

Taylor
mindlissmetalfab   +1y
Mines 1.25 OD, .125 wall but i doubt my truck pushes much more than 75 hp LOL.
guiltybydesign   +1y
NEWNESS!!

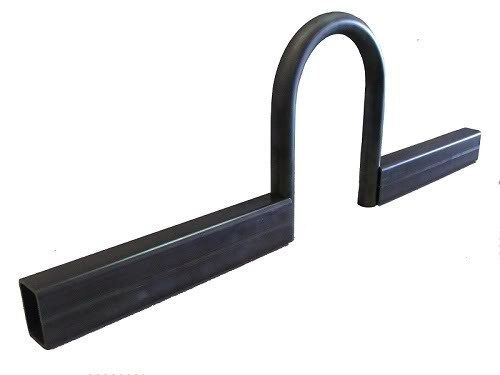

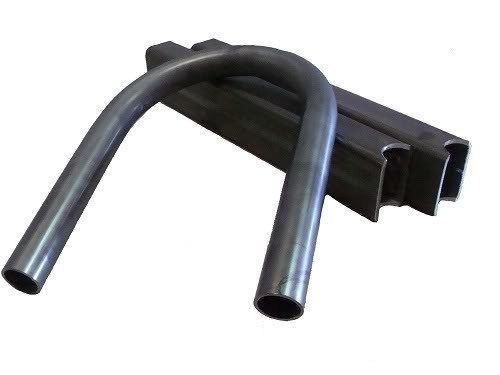

This crossmember kit is perfect to install anywhere you want it. Perfect for mounting your 4 link to. Its fully adjustable design allows it to be installed on almost any frame, custom or stock. The rail tubes can be trimmed to the correct width of your project and the center tube hoop can be trimmed to fit around your driveshaft. It comes 42'' overall width and 14'' driveshaft clearance. And now till the end of October theyre on sale for only $99!

Kit Includes:*3''x 2'' rails (3/16'' thick)1 1/2'' Driveshaft Hoop (.125'' wall)



http://guiltybydesign.net/?category=Crossmembers
post photo
post photo
guiltybydesign   +1y

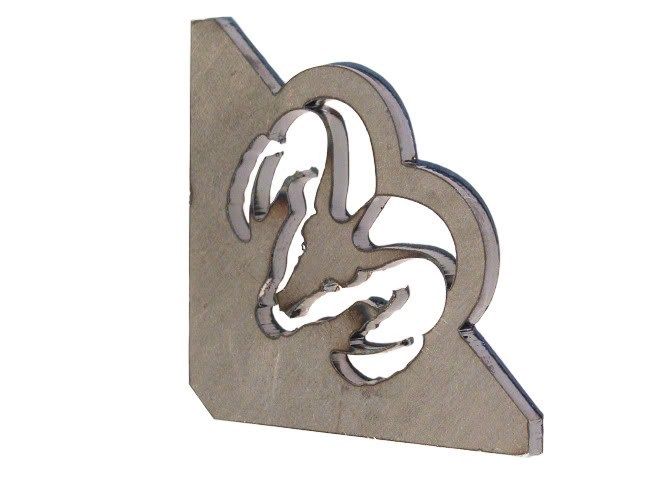

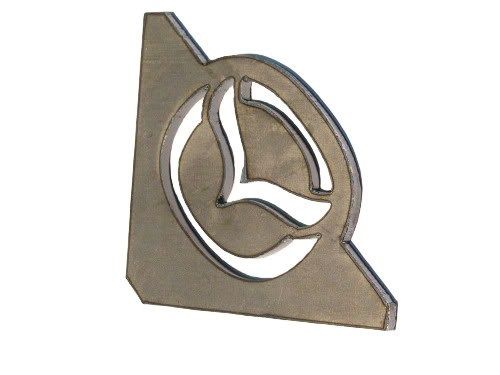

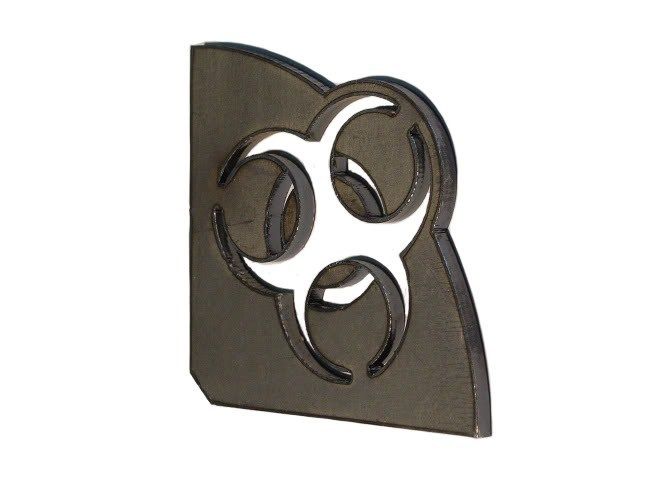

New gussets and frame tabs.

post photo
post photo
post photo
post photo
guiltybydesign   +1y
Bump
deflatd   +1y
what's the inside measurements on the hoop for that crossmember kit?
guiltybydesign   +1y
Its the same as my U bends, 7 3/4'' I.Dx 14''
