guiltybydesign   +1y
Edited: 9/1/2010 12:29:08 PM by Guiltybydesign

3 new gussets today.



http://guiltybydesign.net/?category=Bracketry&subcategory=Gussets

I also got these bad boys in the swag section

http://guiltybydesign.net/?category=Swag

Im now carrying Hyspecos link of Parker PTC fittings and colored airline.

As of now i have 3/8'' line in black, red, blue, green, orange, yellow, brown, and silver. all lines are rated at 150PSI and have a temp range of -40
post photo
post photo
post photo
post photo
post photo
guiltybydesign   +1y
ttt
guiltybydesign   +1y

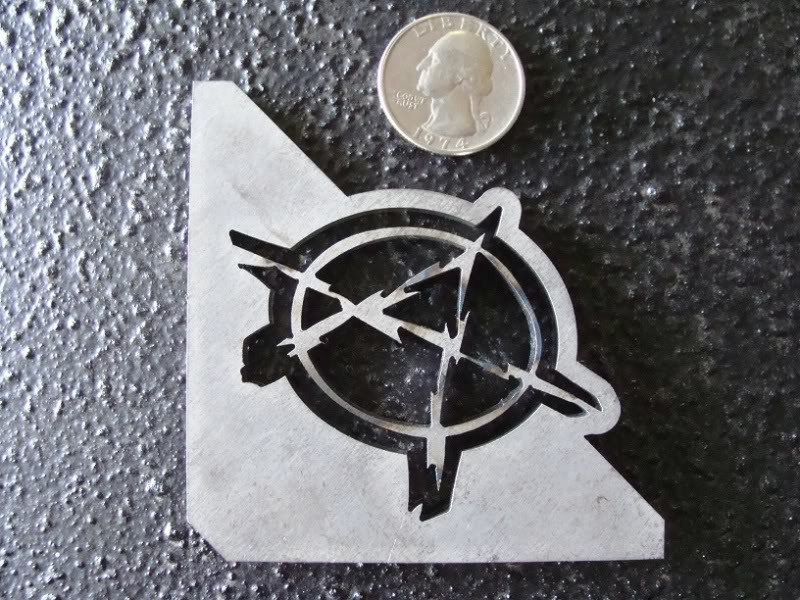

Customers gussetsHad to run nitrogen through the lazer to keep it cool enough to get this intricate but we got it done.

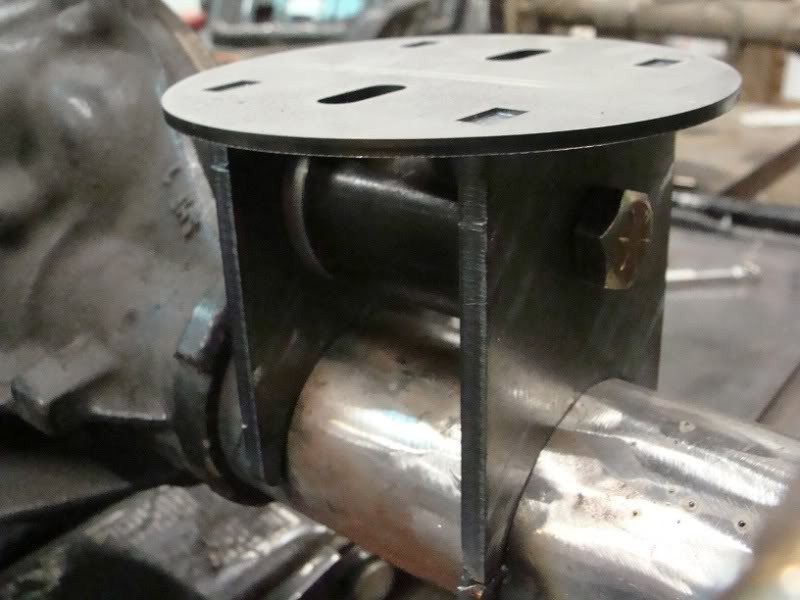

New axle mount.With this you can mount your upper 4-link bars to the lower bag bracket. Simply weld the top 4 countersunk tabs to the bag plate and grind smooth. Works with 2500 or 2600 lb bags and available for 2.75'' and 3'' axles.
post photo
post photo
guiltybydesign   +1y

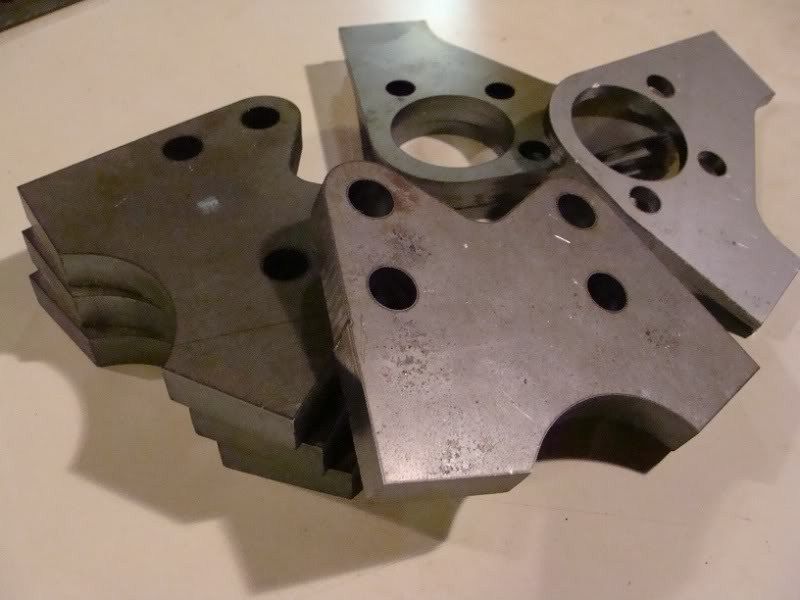

Balljoint plates for a customer. 1/4'' and 1/2'' mild steel.
post photo
jeebus @ mmw   +1y
holy shit man, the old upper mount on that customers truck was terrible. Damn good thing you fixed it, jesus. did he ever drive it like that?


Taylor
guiltybydesign   +1y
Luckily no, but from what i hear from his buddies he just really never drives it at all lol.
jeebus @ mmw   +1y
thank god. thats waaaaay to big of a truck to be driving around like that. that would be scarry!

btw, awesome bracket kit for it!

Taylor
edflores   +1y
--------------------------------------------

Guiltybydesign said:



New axle mount.With this you can mount your upper 4-link bars to the lower bag bracket. Simply weld the top 4 countersunk tabs to the bag plate and grind smooth. Works with 2500 or 2600 lb bags and available for 2.75'' and 3'' axles.

--------------------------------------------HMM. Could you make these but in a behind and under orientation?Like instead of a bag circle like this ==o so i could mount my sleeve bag and lower link bar in one shot.
post photo
guiltybydesign   +1y
Sure could, email me at Kyle@guiltybydesign.net.
guiltybydesign   +1y
bump
