IRS bag setups

im trying to get some ideas for a irs bag setup im workin on, lets see what you guys did on yours!!

Nobody has built a independent rear suspension setup?

what kind of IRS

Heres mine, kinda hard to see with the bed on. Lincoln Mark VIII.

any kind of irs, we are using a supra irs but im just trying to get ideas how to setup the bags.

ive been waiting to post mine on your thread cuz i am redoing the upper arms and lower rear arms for the 4th time....i will never ever ever ever ever ever do an IRS again.....if you havent started save the headache...stick to solid axle....i am too far to turn back and need the floor space

Tony, Its not too bad, but it is definitely simpler to stick with a Live axle. It took a ton of measuring and then I still had to remake two of the lower arms due to toe change. Lowkid I used a supra and only used the upper arms. I then built all of the lower arms and put the bags on the forward trailing arms. It rides real nice.

Just make sure you measure a thousand times and then cycle the suspension keeping an eye out for toe and camber change.

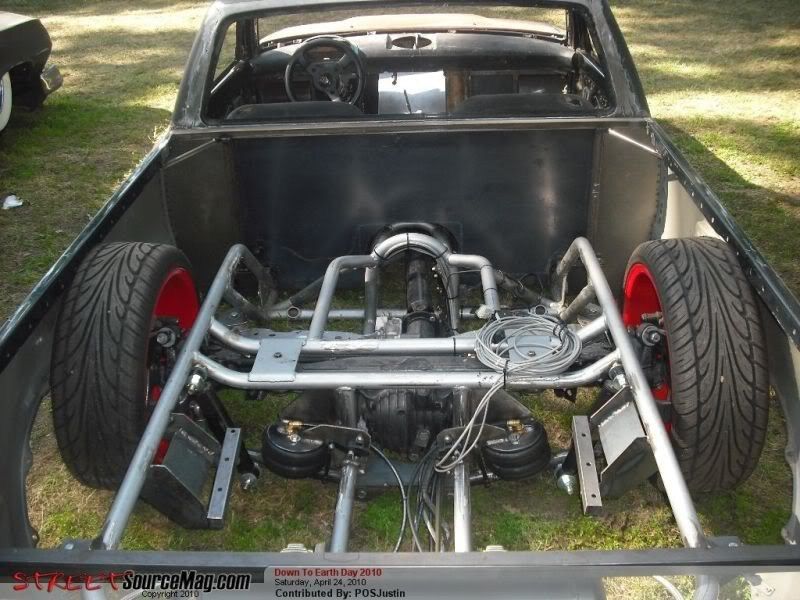

This is my RX-7 IRS, I put the bags on some link bars that attach to the IRS hubs where the factory struts used to go, Yours may be different but it give you an idea of a way to keep the bags and all that stuff low so you dont have to see it.

Edited: 8/30/2011 7:59:29 PM by toadfrog17
