ben shadys truck

Okay, that makes sense, I've seen that done before on Wheelers. I could not make it out from the picture. You might want to add a grease zerk fitting to the 2" tube so you can grease it between the tubes from time to time to keep it moving freely.

No it's 1/4" wall DOM.

It's got a zerk in it.. it's on the underside just can't see it in the pic's...

just wondern if ben mofkn shady go ever update w/ the truck...lol richie get control arms..done???

Its a piece of decroded crap so who cares if he updates it?

just a side note... 4 ya but ur good bout doing ur home work, Im pretty sure you will have to put a inline proportining valve in since you did a disc brake swap!!!! I still not a 100% sure if my mind serves correct but seems like we swap on my monte carlo and had to put one in... it maybe something you want to check on!!!
TRICKY DICKY

I'd get it out on the road & see how it stops before putting an adjustable proportioning valve in. I put disc brakes on the rear of my 1/2 ton Suburban & did not need a proportioning, the truck was so ass end heavy it would stop just like it was supposed too without locking up the rears before the fronts, even in the rain.

Someone's seen Napoleon Dynamite too many times.....lol


No photo updates,... All the fab is done.. Gonna paint it all tomorrow and reassemble the rear and plumb/wire it while I'm waiting on control arms

Your fab work is lookin sick...cant wait to see it layed out!

Well had a good weekend.. THe back is all finished.. Just gotta bolt on the wheels and tub the bed. Should be 100% finished by the time my arms get here tuesday.. Here's some pic's...

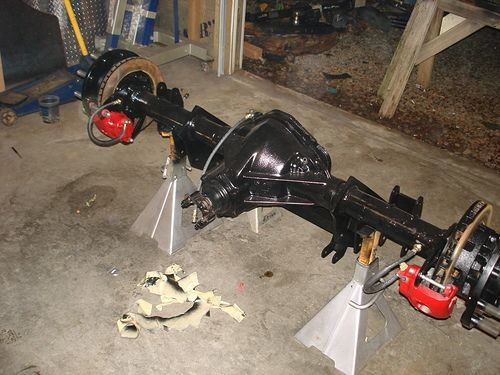

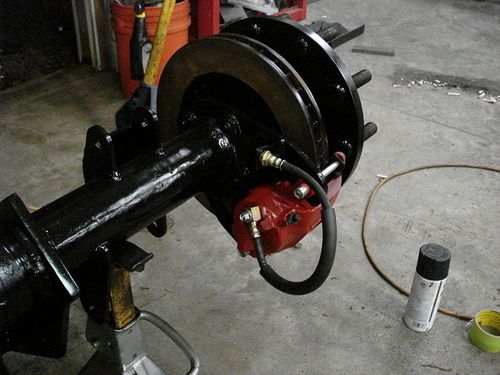

Rear axle all painted and assembled..





New drive shaft extended 3 1/8"



Wishbone crossmember all finished

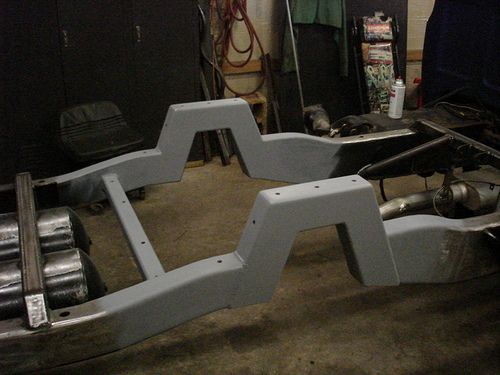

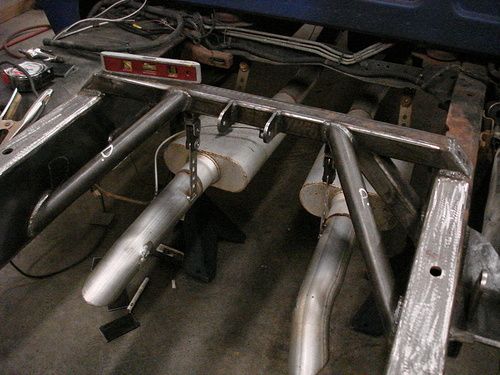

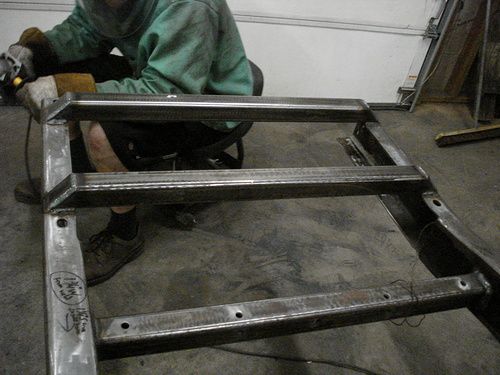

Tank Crossmembers

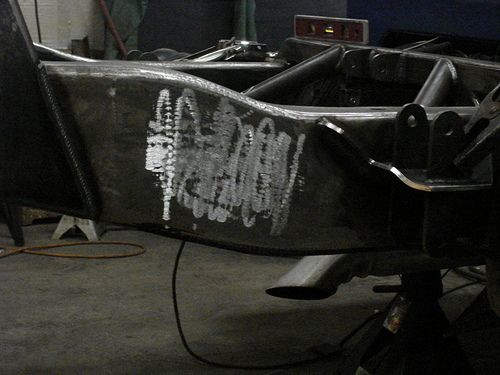

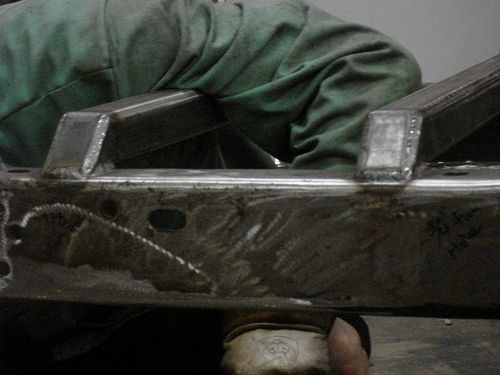

Welded up all the holes





Building a hitch

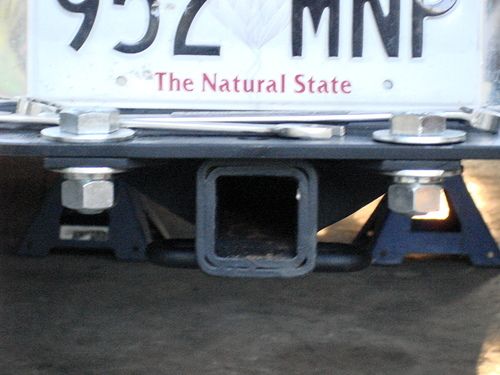

Hitch installed





Lil etching primer



Tanks mounted

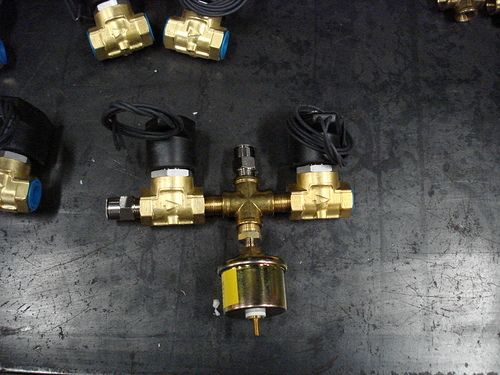

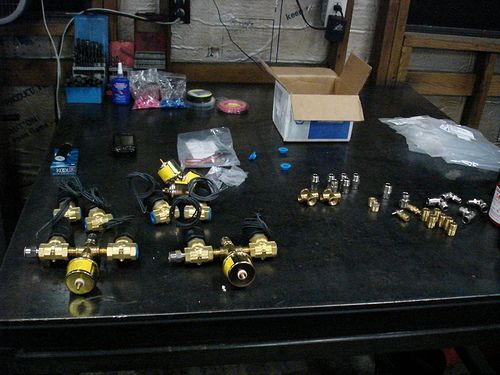

Started plumbing the valves while we were waiting on paint to dry





Gettin ready to bolt it all together

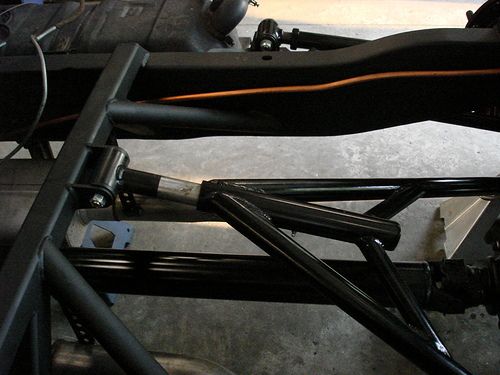

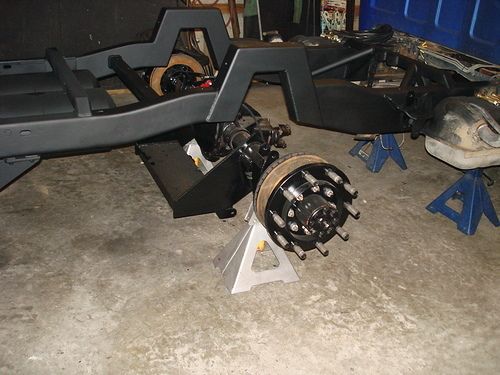

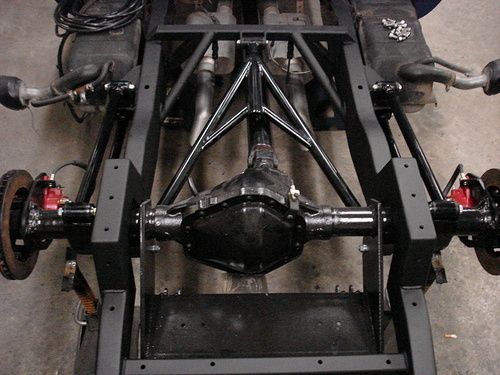

Axle,4 link and wishbone installed

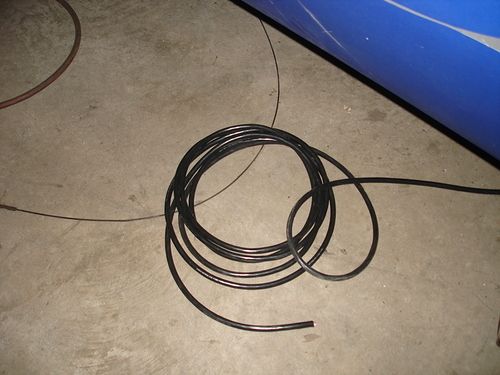

7 wire cable for the valves and sending units in the rear

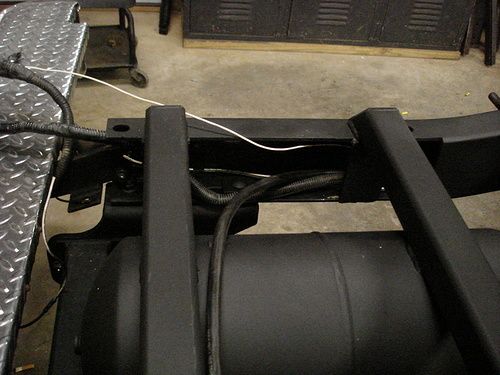

Wires all fished thru



No wires

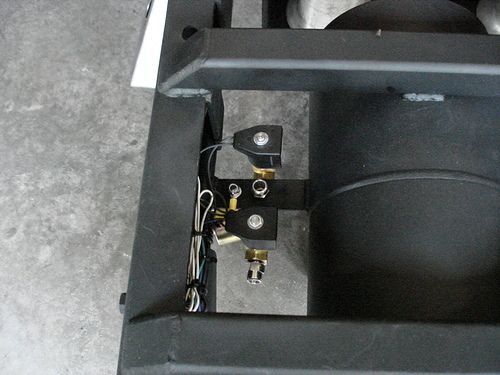

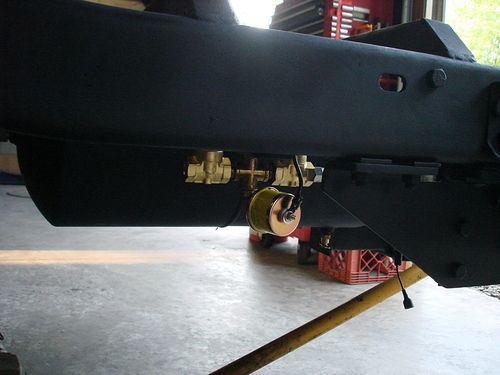

Rear valves installed and wired

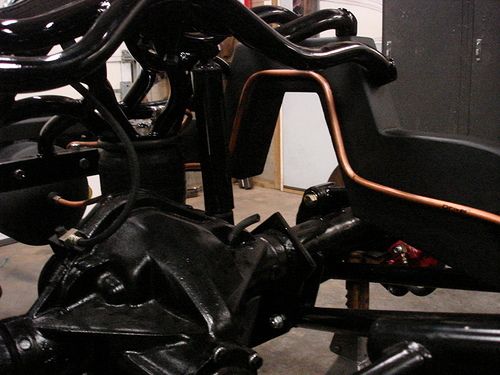

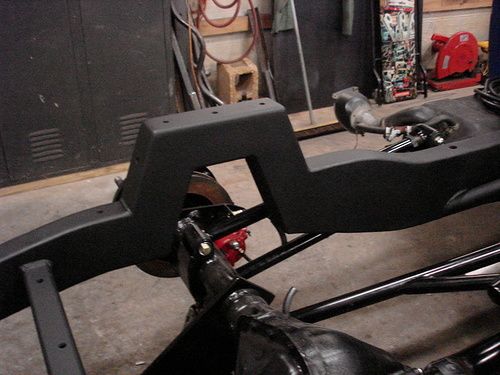

Crossmember in and bags installed



Wishbone at full lift.. Shows how much it'll slip.

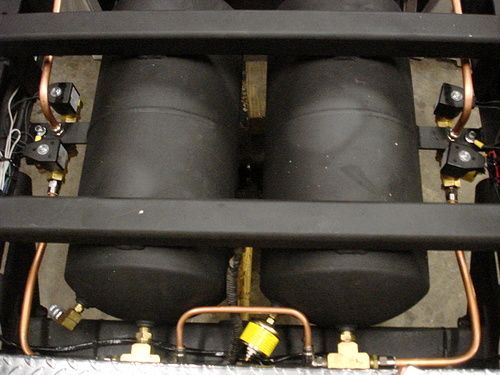

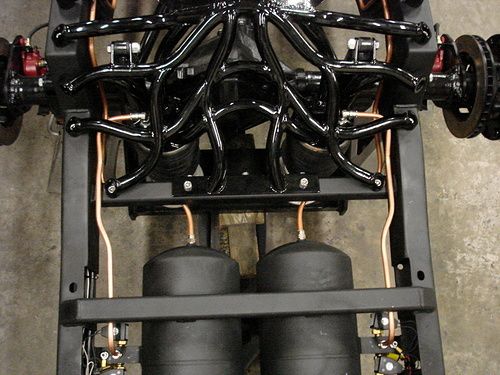

Tanks all plumbed

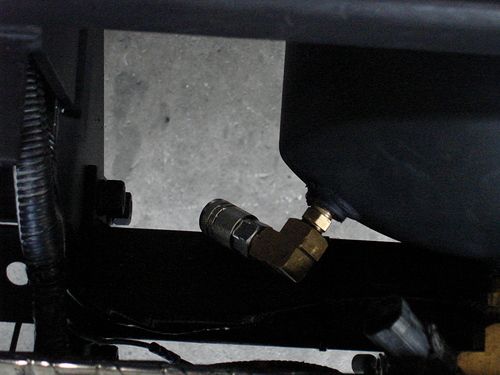

Airhose coupling

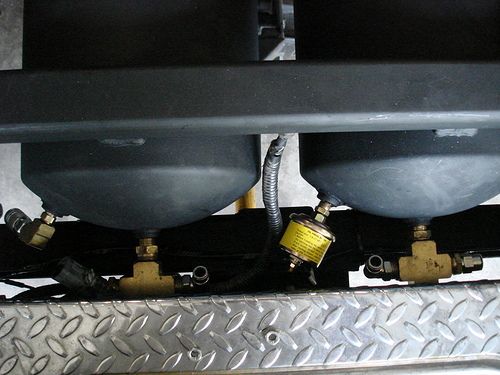

Finally plumbed





Now just need to anchor it.



That was it when I left.. HE was gonna finish the plumbing for the front to the valves and anchor it all.. Then start the engine driven compressor bracket.

Whatcha guys think?
