General Discussion \  part/sensor identification please help

part/sensor identification please help

General Discussion
views 2244
replies 12
following 4

rcogan   +1y
Another guy says he thinks its a neutral safety switch
any chance someone has a wiring diagram and/or some knowledge to help me figure out how to eliminate it?
sincitylocal   +1y
It looks like a neutral safety switch to me too.

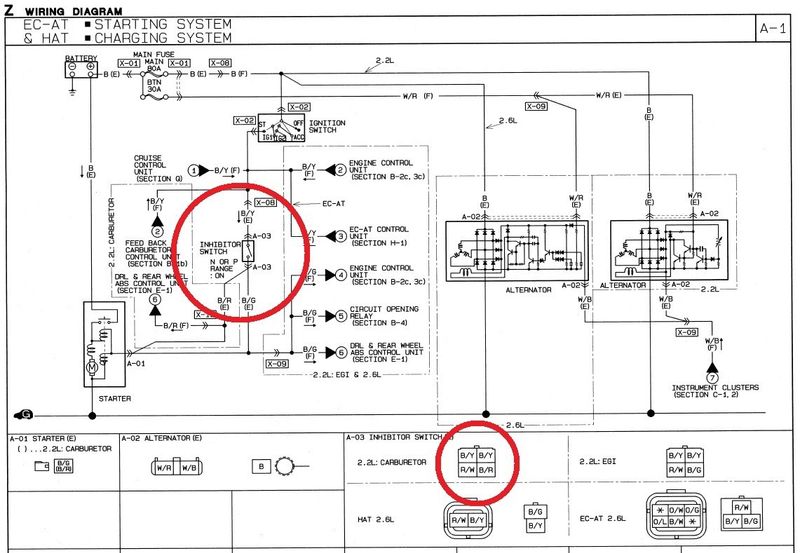

Right click and "view image" for larger version.

thread post photo


Jumper the black/yellow stripe with black/red stripe for carbureted
Jumper the black/yellow stripe with black/green stripe for EFI
It looks like your connector has the EFI colors.... or EGI, per diagram.
Post was last edited on Jan 23, 2014 02:01. This post has been edited 3 times.
rcogan   +1y
Thanks man
I will give that a shot when I get a chance
