what is this and where does it plug into?

2659 views
20 replies
7 following
K
what is this and where does it plug into?
mazdabon2nd avatar
mazdabon2nd
+1y
it plugs in the back of the alternator its the choke activation switch
mazdabon2nd avatar
mazdabon2nd
+1y
it might b a split wire meaning some one had connection junction in the middle of the 2 wires soo find the wire from the altenator and connect them b.c thats soposed to be in the back of the alternator
robbie avatar
robbie
+1y

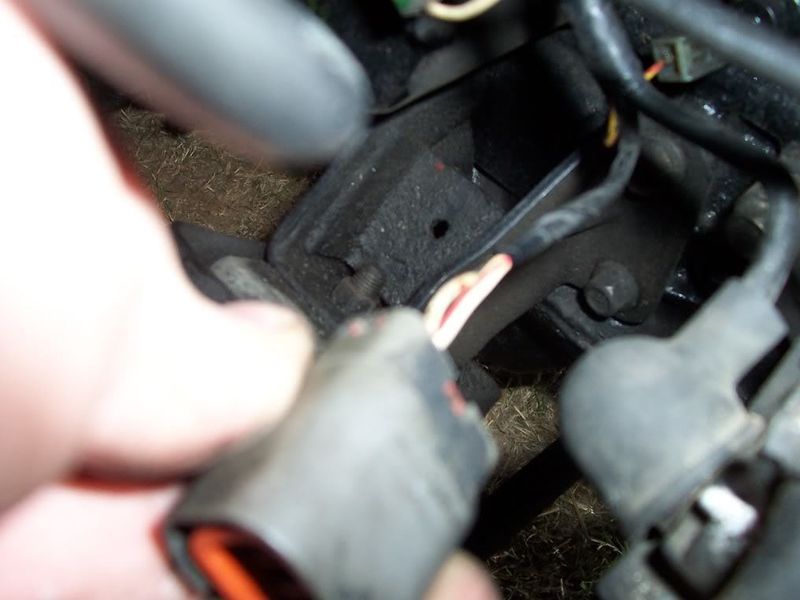

here is what is plugged into the back of my alternator.

thread post photo
russ d avatar
russ d
+1y
no, there is a male spade there that takes that plug. I've never seen one pulled up by the carb before but that is indeed the choke wire.

You're truck is about to run a whole lot better.
robbie avatar
robbie
+1y
what does the choke do?
robbie avatar
robbie
+1y
Ok I finally found it thanks for all the help.
thetornado avatar
thetornado
+1y
what was it to? the intake?
robbie avatar
robbie
+1y
it was the choke and plugged into the back of the alternator.
shawnb2000 avatar
shawnb2000
+1y
its the temp sending wire...on the block under the thermostat housing is where it plugs onto....a male spade on a stop sign shaped sensor under the radistor hose.
robbie avatar
robbie
+1y
nope it was the choke plugged into the back of the alternator.
