Rear Disc Brakes

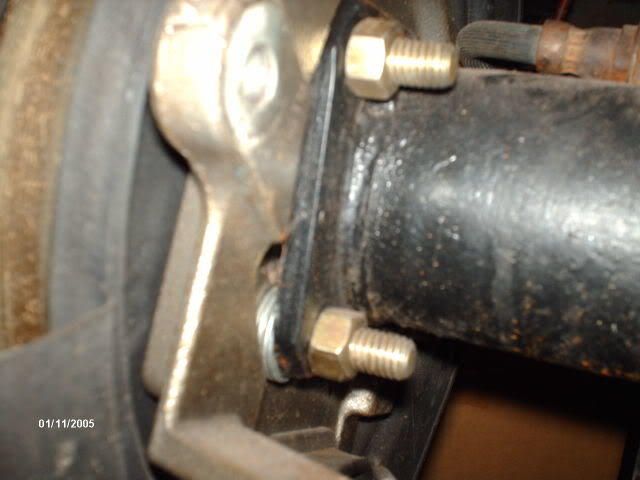

i had 4wd parts so I needed to get 3/16 of an inch space between the bracket and the flange I just used 3 washers on all four bolts and it came out fine just make sure to use 2wd rear rotors from a 98 up blazer i will get some better pics in a little bit

the best I can remember mine came off a 2wd any way, but I don't see why it needs to be spaced out though. is the flange or backing plate shaped alittle different? and thanks for gettin' the pics bro!

I had to space mine because the caliper/brake pad was rubbing the rotor

okay, i see. so what all is the difference between the 4wd setup and the 2wd? I never really ever looked into it. i got the setup years ago and never looked at them again until now. i had to narrow my rearend so figured what the hell, might aswell put them on now, lol.....

calipers are the same backing plate/dust shields are the same I am almost certain the caliper mounting bracket are the same I have both 2wd and 4wd here I need to check the only difference should be the rotors and maybe pads I can't remember

something would have to be different for you to have to shim it, ya think?

O yeah, i was just wonderin', what does the flange on your rear end look like, the flange where the backing plate bolts up? what year rear end is yours?

OK I just tore my setup apart you owe me LOL give me a few min I will post the pix my truck is a 97 2wd

You are the Fuckin' Man Nvious! I'm pay for you a lap dance whenever we meet!!!

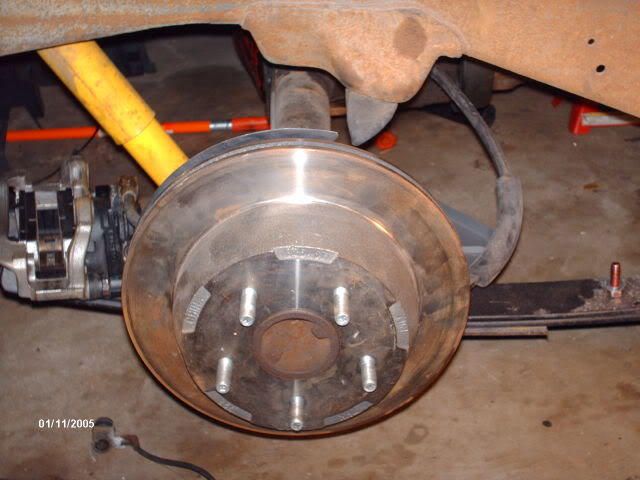

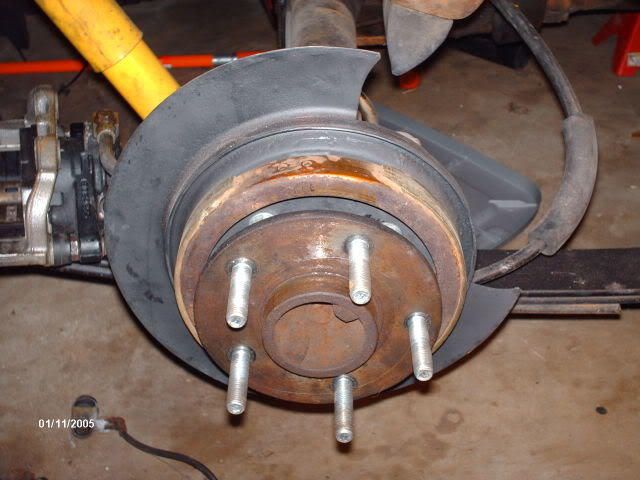

ok these pix blow but I tried



It is still apart if you ne specifics
