zaccutt   +1y
Yes they are cup holders. So right now I am waiting for about the 6th coat of black to dry, going for 8-10 plus about 6 coats of clear...

Zac
bigamigo   +1y


why
zaccutt   +1y
Lol so it won't chip.... Too much work getting it perfect to not protect it a lot. The lacquer goes on pretty rapidly, the can only calls for a few minutes between coats. Just about onto the clear now actually...

Zac
paparoach1983   +1y
well lets see it man that thing should shine like no other.
zaccutt   +1y

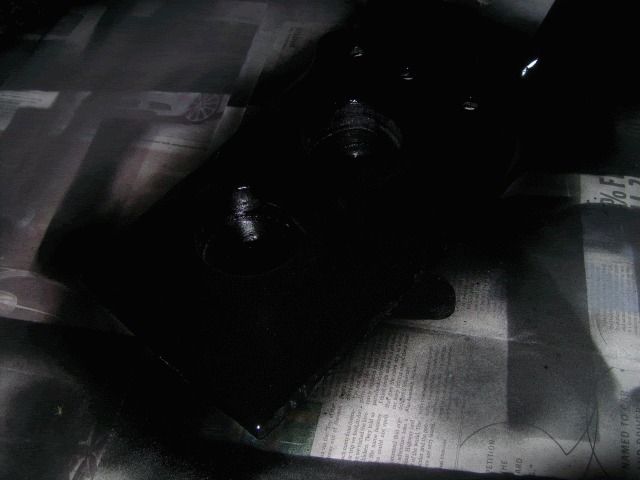

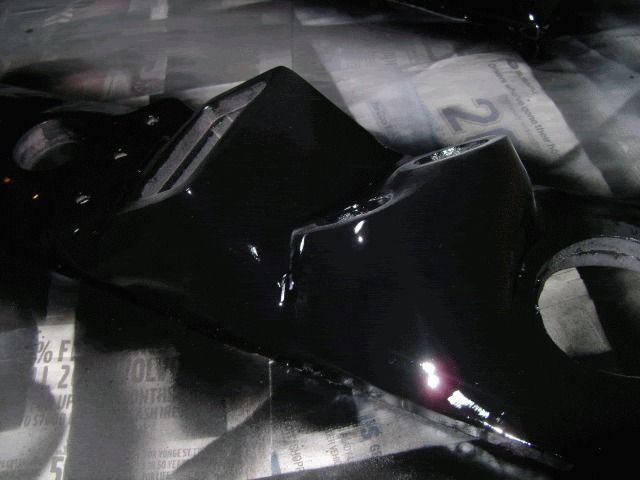

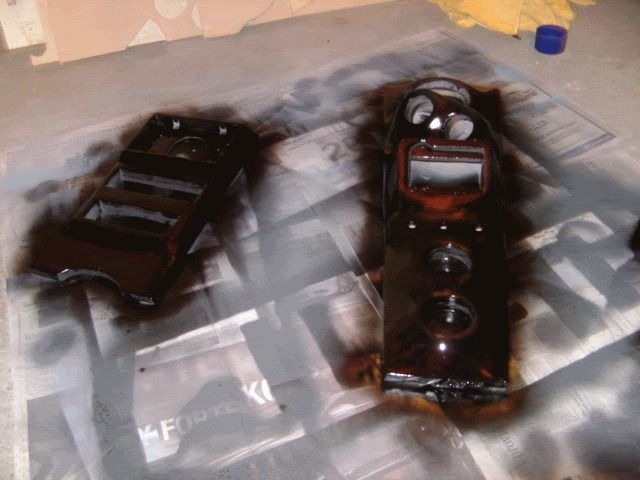

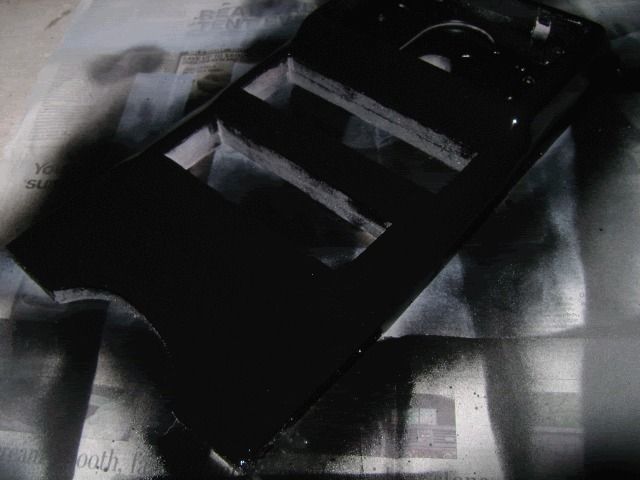

Well after fiber glass, 6 layers of fillers, a few coats of primer, 40, 80, 150, 240, 400, 600, 800, and 1000 grit sandpaper... 8 coats of black lacquer, 4 coats of clear... Here they are. However they were actually too shiny for my camera to pick up in the low light so I played around with some of the settings so these pics are a little weird but... be hold.

thread post photo

thread post photo

thread post photo

thread post photo


Zac
bigamigo   +1y
hope they dont stick to the paper
zaccutt   +1y

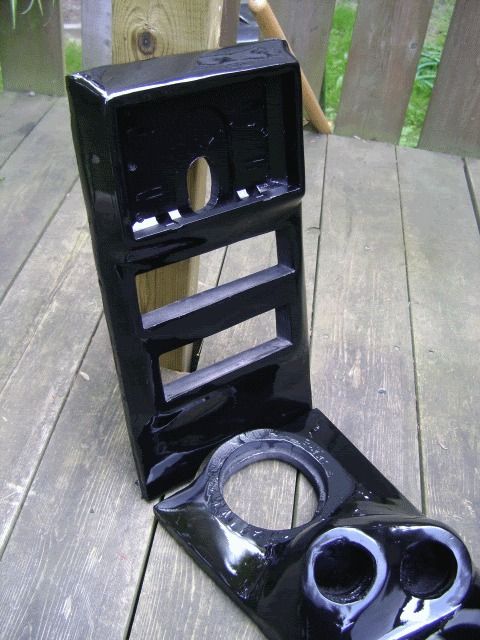

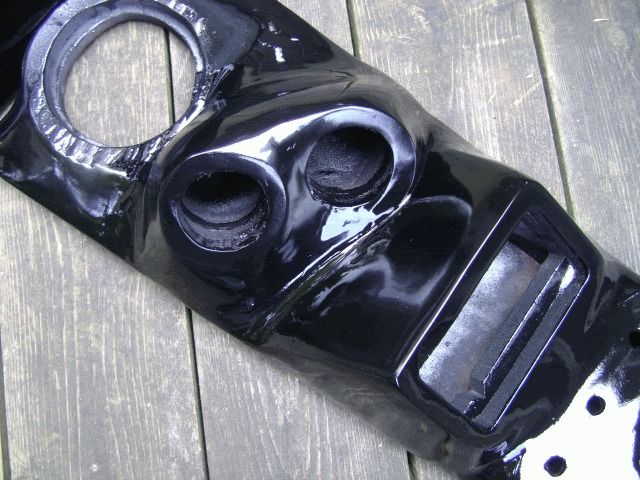

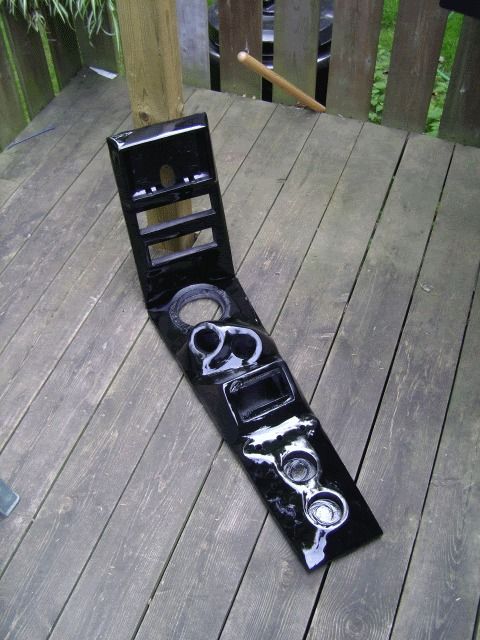

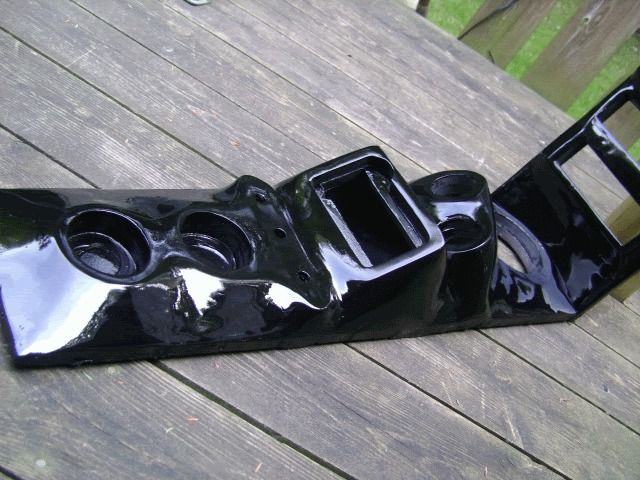

Nope not at all actually, here are some real pics:

thread post photo

thread post photo

thread post photo

thread post photo


Zac
bigamigo   +1y
very nice how are going to finish off the sides of the console ????????
zaccutt   +1y

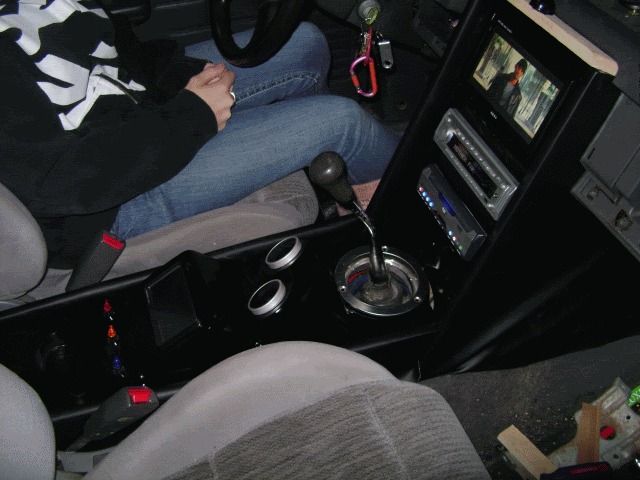

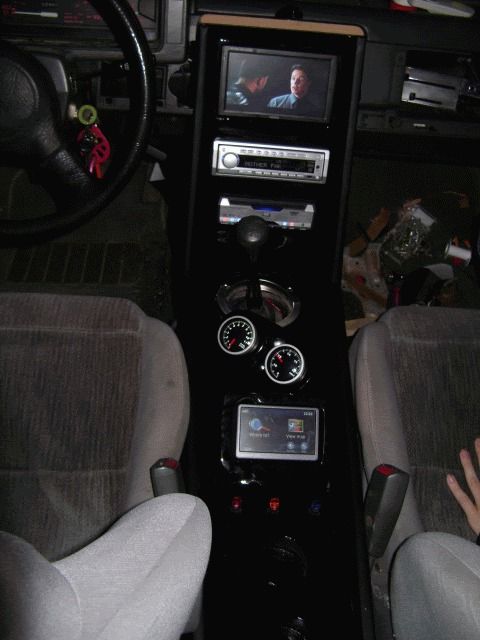

Well after a good long day of wiring and finishing everything else I managed to get it all up and running. Still lots of minor things to do but wow I'm so exhausted lol.

The vinyl on the sides still needs to be pulled down smooth because there is screws hidden behind it that I need to make sure I'm done with before sealing it all down hiding them forever.

Enjoy, I will get way better pics tomorrow...

thread post photo

thread post photo

thread post photo

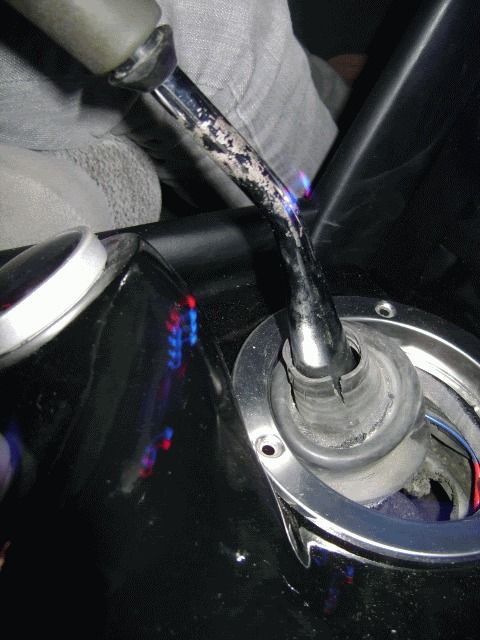

And amazingly enough while in second, this is the clearance:
thread post photo

Edit: Check out the DVD player reflection in the paint^ CHA-CHING. I'm pretty pleased.

Zac
Post was last edited on Aug 28, 2009 05:08. This post has been edited 1 times.
paparoach1983   +1y
looks like you need a new boot.
