Immortal1 - Round 5

Guess it's time for a small update.

Seeing I actually intend on being able to drive this thing legally, figured I would put some seatbelts back in. With no roof, had to fab up a new mounting point for the upper seatbelt mounting point.

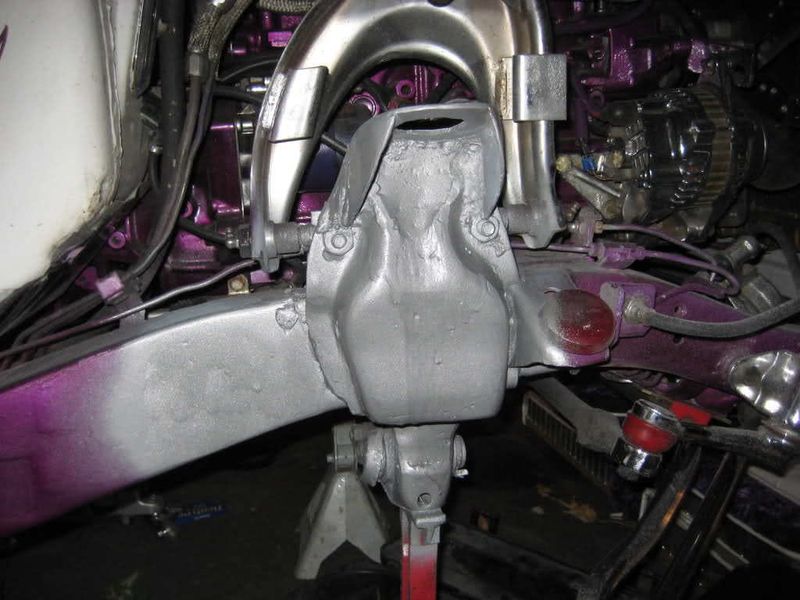

Been working in the front suspension, passenger side to move the cylinder mount up a bit more, yet still clear the upper control arm. Also figured while I was at it I would actually fill in all the open holes in the frame (the ones that you really could not see, but I know they were there). Also had to hack out the part of the frame by the LCA so it could pivot a little higher without hitting (sorry guys, could not bring myself to cutting chrome).

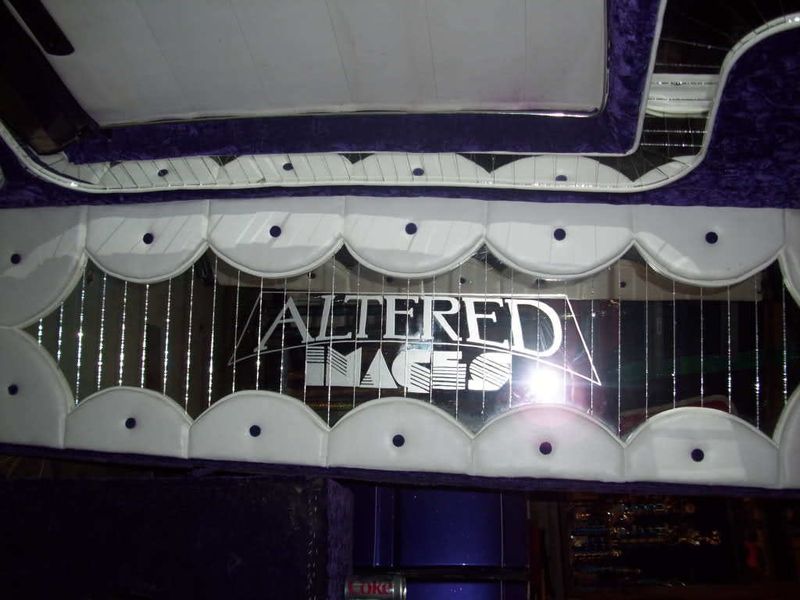

I am suprised that alterd images is still around lol I hung out with some of the guys from rochester a few times...

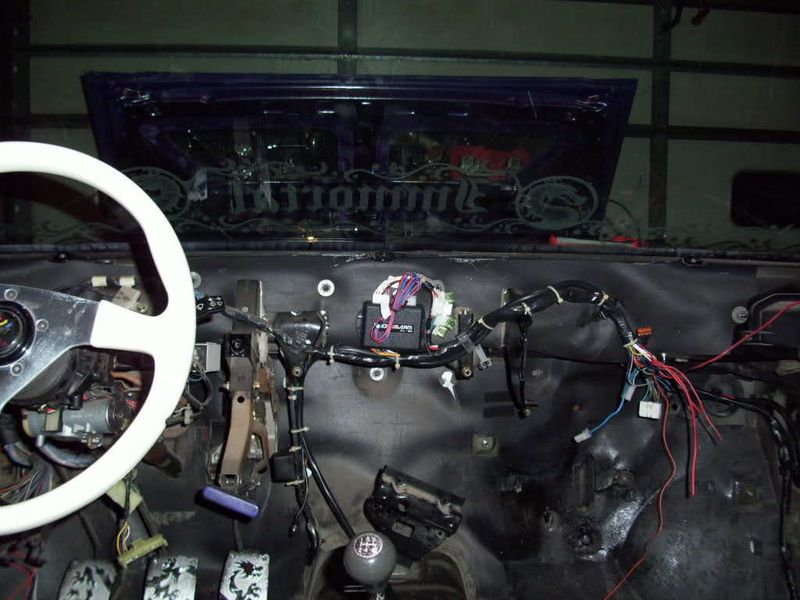

Been working on wiring issues for the past week. All "aftermarket" wiring has been removed and the factory harness has been pretty much stripped of non-essential or non-reusable wiring. Spent the afternoon installing the Code Alarm system which will also be capable of running the hydraulics.

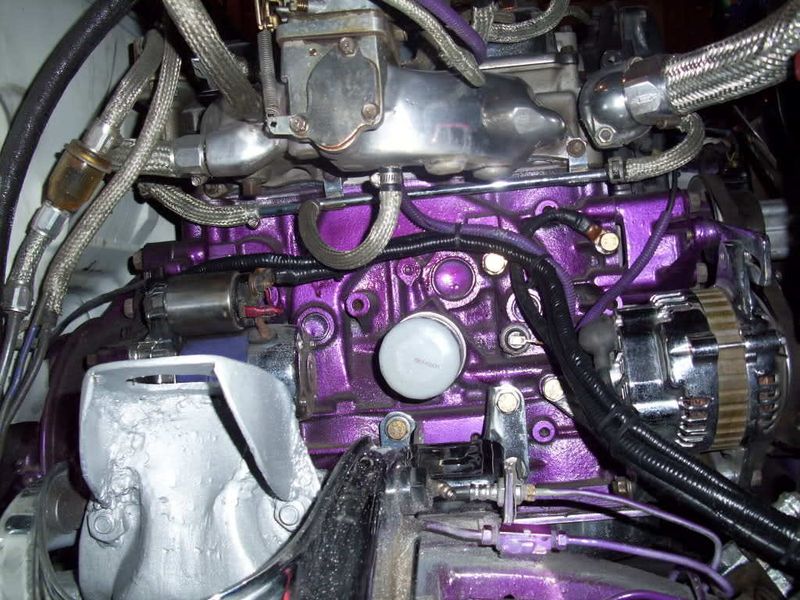

Re wired the Starter, Alternator, Engine ground, Water temp & Oil pressure.

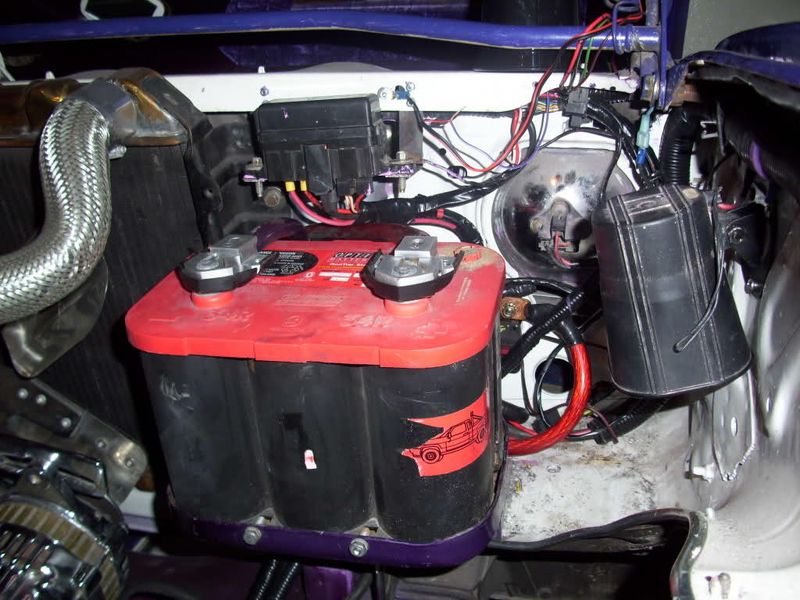

New layout for the battery & main fuses. Power from battery goes thru 0 gauge wiring to 150amp breaker (behind battery), then to main fuses. When truck is being stored, all I have to do is pop breaker and all power is removed (no more battery drain - which is part of the reason for the re-wire job). Not all the connections are complete yet so don't flame me to bad LOL

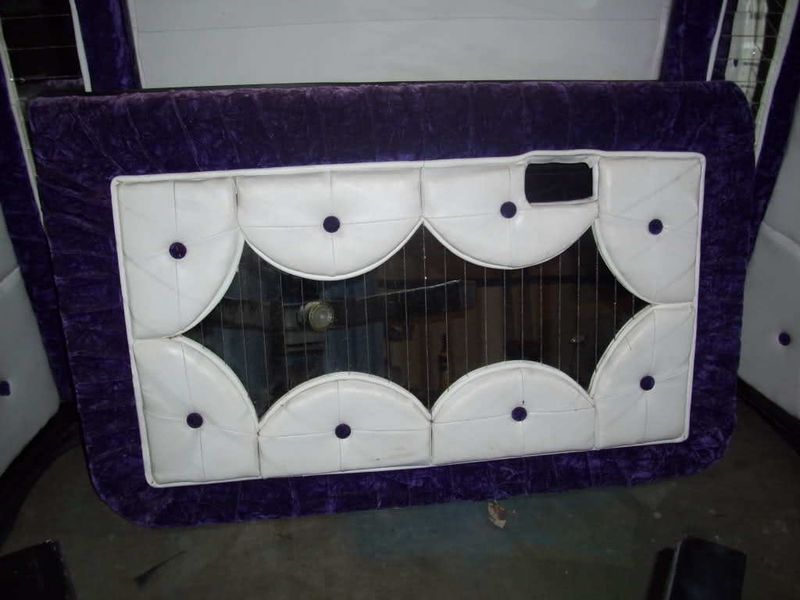

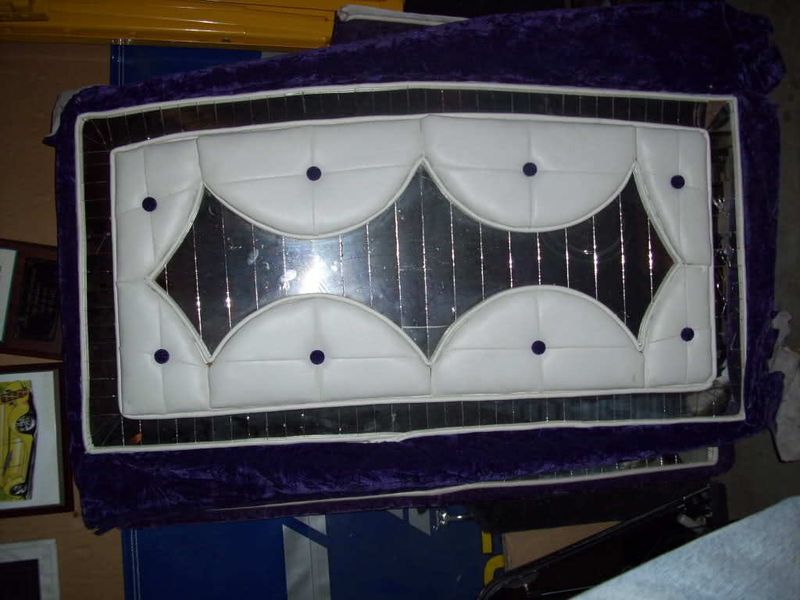

And just for old times sake - various pics of the old stuff....

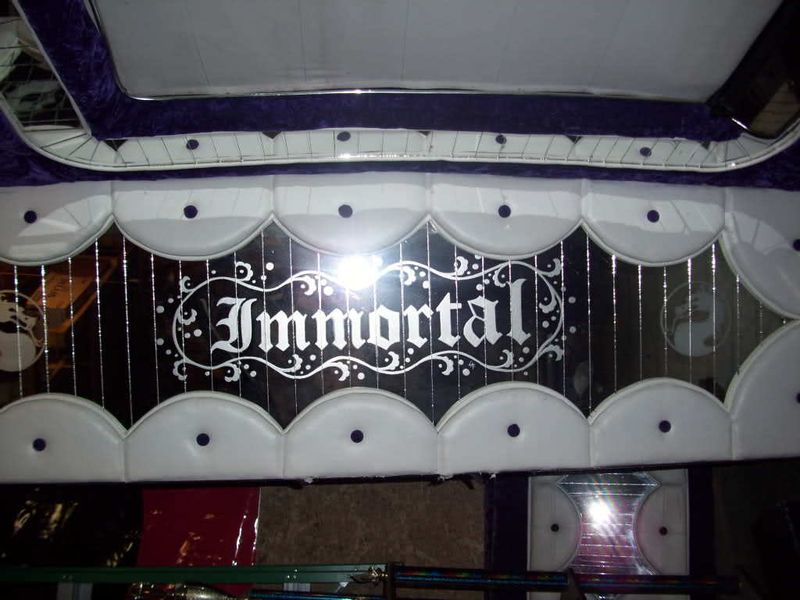

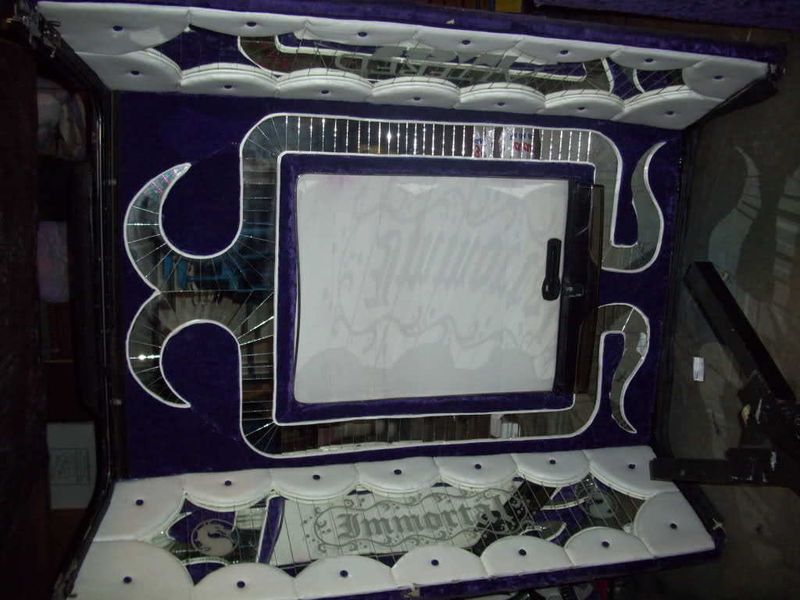

Old headliner from cab

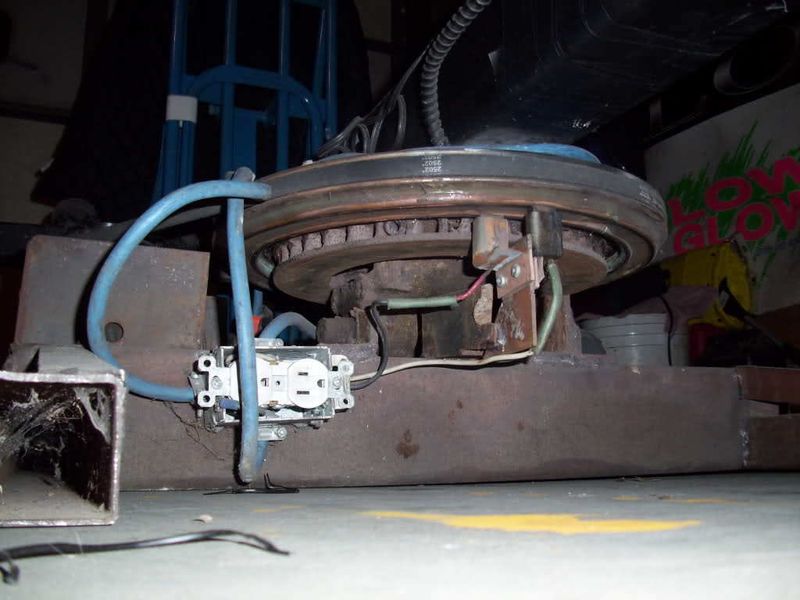

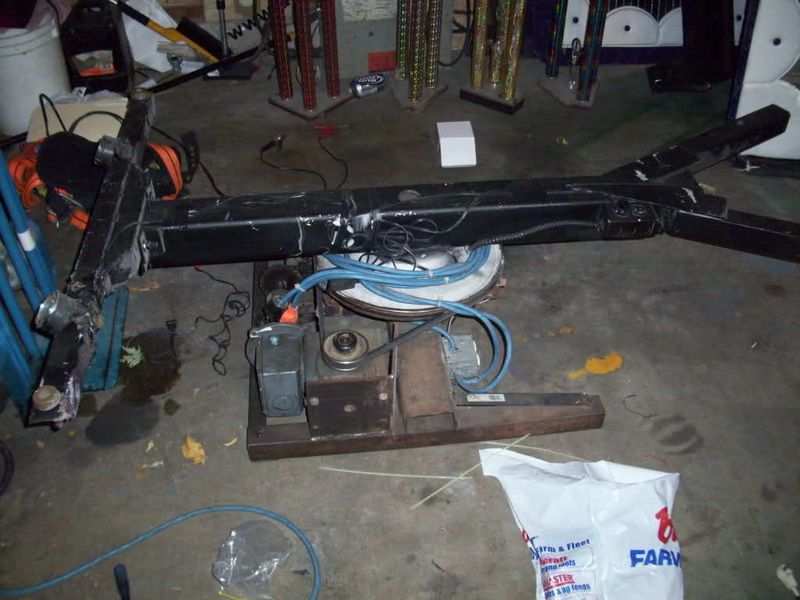

Figured I would also thow in a couple pics of the turn table which this truck spent many hours on LOL

cool

i cant wait to see this finished linn. it looks awesome.

looks awesome ,linn now i can really see how nice them kick panels are gonna look in there cant waite

looking good Linn! do you have any videos of the truck on the turn table? I would love to build one

sweet deal man cnt wiat to see it done looks awsome

Here ya go...

Stupid but Id like to know question.. Where u cut the fenders out instead of bare metal u put that black stuff over it whats it called where do u purchase it?

Thx


~B~

Ps: badass
