My project - new pics pg 10 7/22/15!

looking great.







-justin

very nice, keep up the good work man.

thanks guys

hell yeah! nice work. what about raising the upper mounts on the links to that the bags arent collapsed when it's laid? It would allow for a little more pressure in the bag at a much lower stance so it would feel like suspension under the truck. I left 3/4" un collapsed in my back half when laid on a 26" tire, my bags are dead center on a 29" end to end bar. I would have liked to have them back a few more inches but had the same problem with uppers in the way(not as bad as you though)

Thanks man, thats a real good idea. I don't plan on ever running as big of a wheel and tire as what is on there now, so the bag wont be fully collapsed. With a set of good shocks I think it will ride ok.

If anyone wants to see the calculations I did here's a link to them. Its an excel file if you're wondering.

LOOKS AWSOME!!

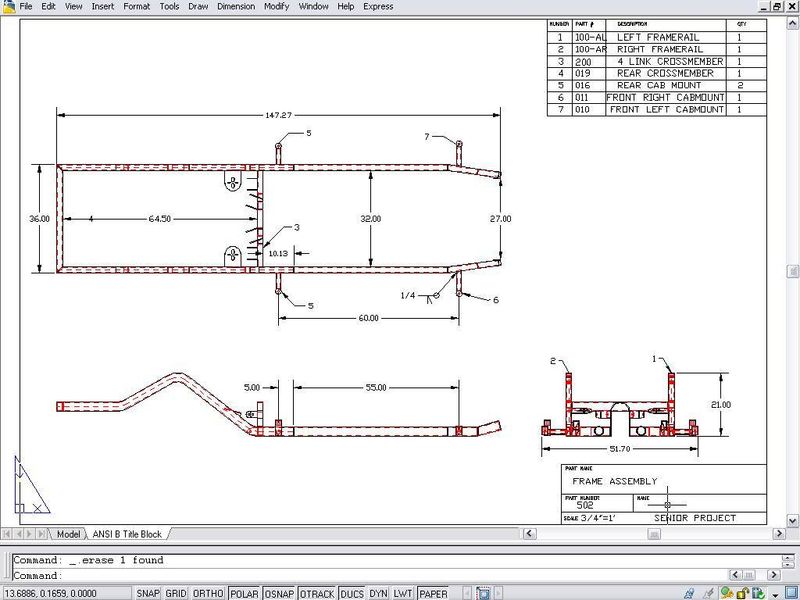

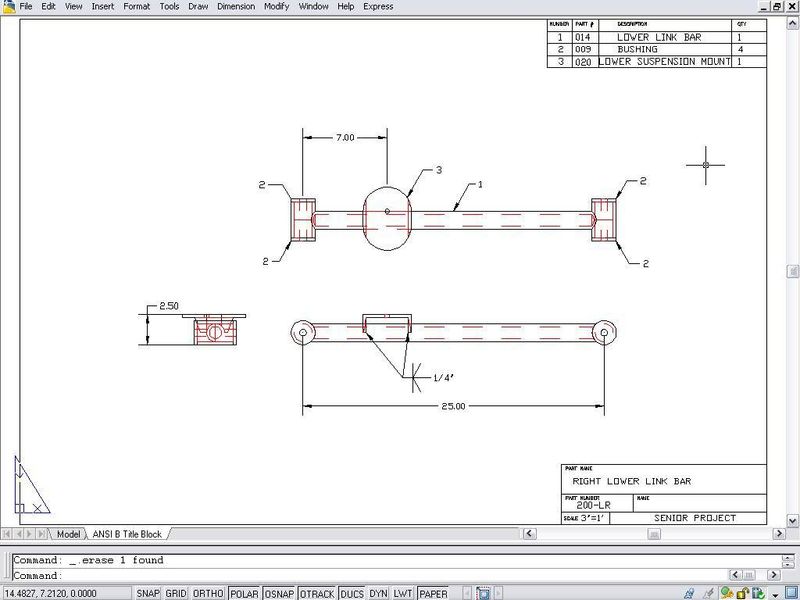

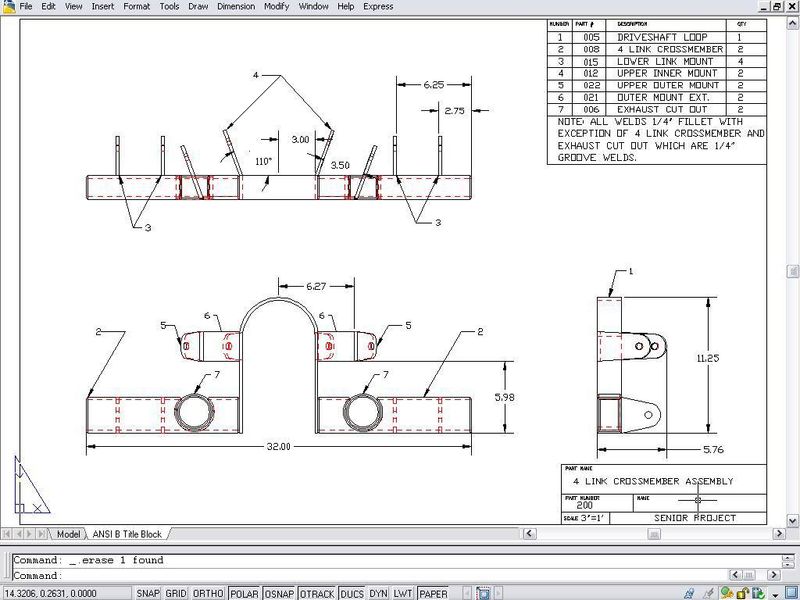

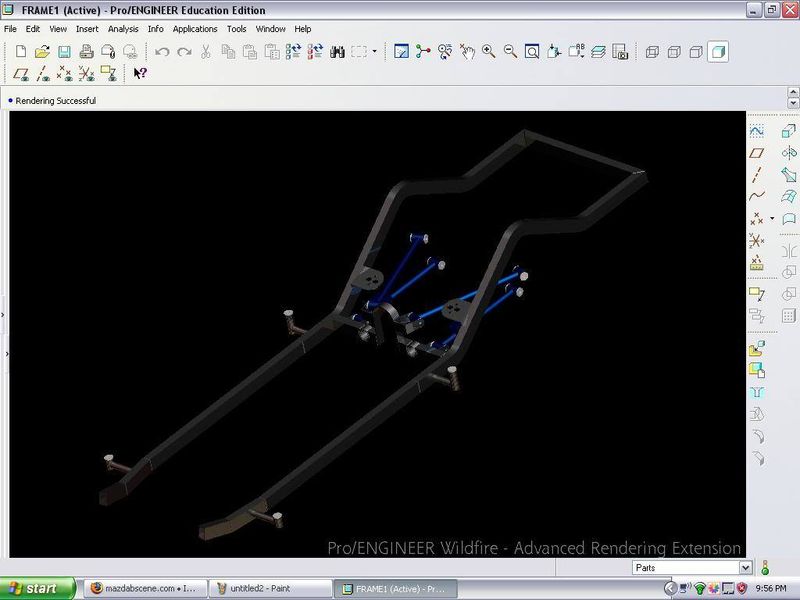

Here's a few random drawings from my 70 page report. I spent about 20 hours in front of the computer screen finishing things up from Thursday afternoon to Friday. The programs were not cooperating either which made things much harder than they needed to be. I'm glad to be done with that part of it.

Pretty sweet looking CADD work.

well im glad we got it to the school, long freakin night. id say its pretty impressive to have a bd truck on 22s with that much lift! now for the little things, then powdercoat. then the fun begins!
