yeah, I cant go much lower profile those wil end up on the back and I was going down a step for the fronts.

gonna look tits man

had some time to work on it

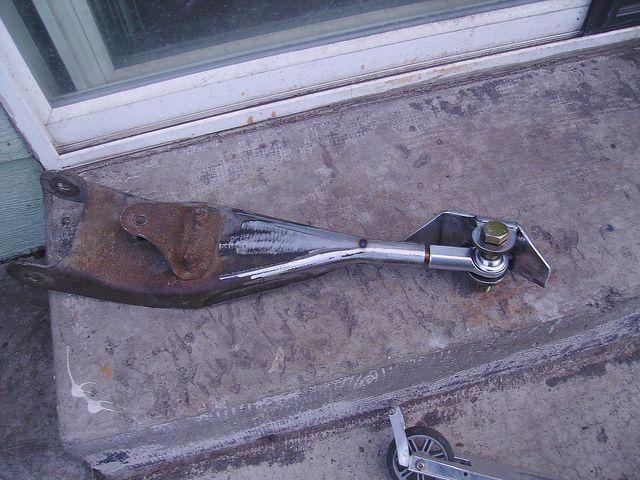

ditched raduis arm bushings in favor of Heims. Changed factory studs to 3/4-16" so I could use the heims.
[url=6107656523/:1h4gzcli]
[url=6107656523/:1h4gzcli]PICT0151 by mazdaminitrucker, on Flickr

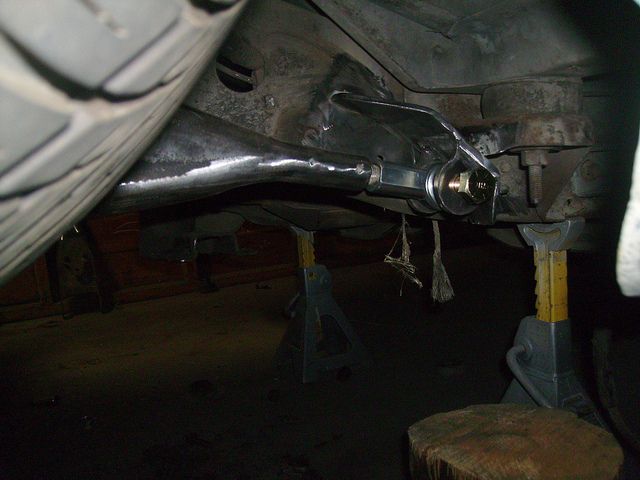

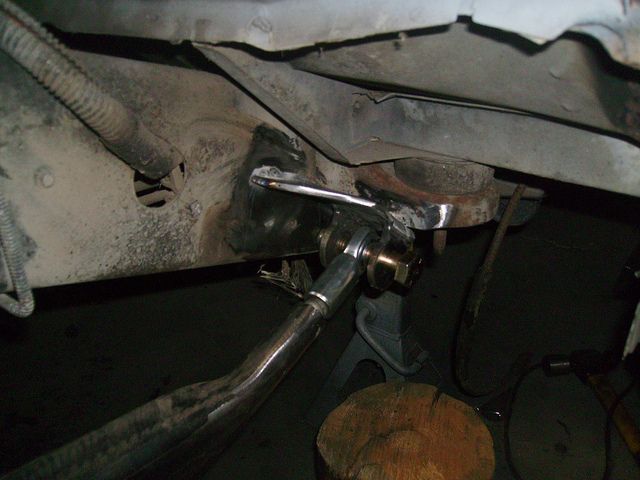

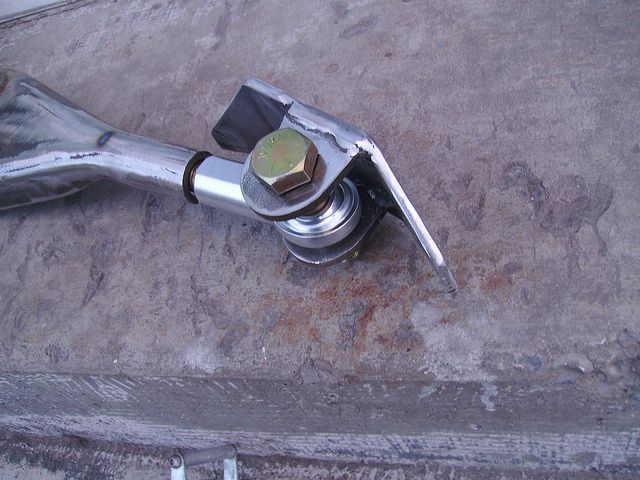

Fabbed up these new mounts for the heims, lets it move so smoothly also uses body mount as extra support once trimmed to fit. Waiting on the cone spacers, and jam nuts still.
[url=6108205450/:1h4gzcli]
[url=6108205450/:1h4gzcli]PICT0152 by mazdaminitrucker, on Flickr
full droop
[url=6108207764/:1h4gzcli]
[url=6108207764/:1h4gzcli]PICT0153 by mazdaminitrucker, on Flickr
layed

[url=6108206604/:1h4gzcli]
[url=6108206604/:1h4gzcli]PICT0155 by mazdaminitrucker, on Flickr

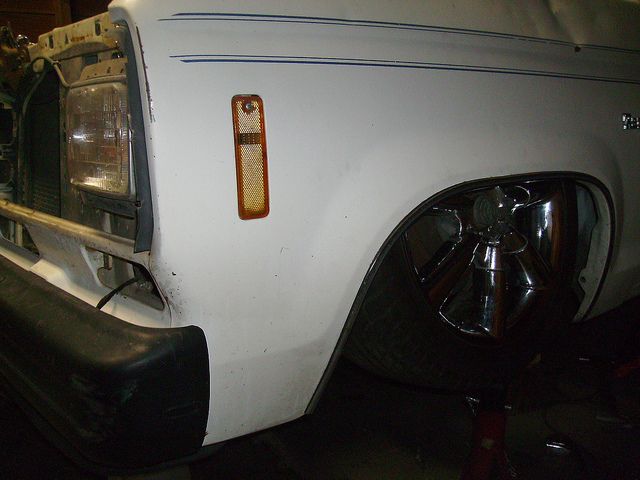

full tuckage
[url=6107660677/:1h4gzcli]
[url=6107660677/:1h4gzcli]PICT0154 by mazdaminitrucker, on Flickr

Very nice work on the radius arms, looks much cleaner.

friggin sweet

thanks fellas, shooting to work on it tomorrow after reroofing my addition.

got out sunday before the temps shot up.

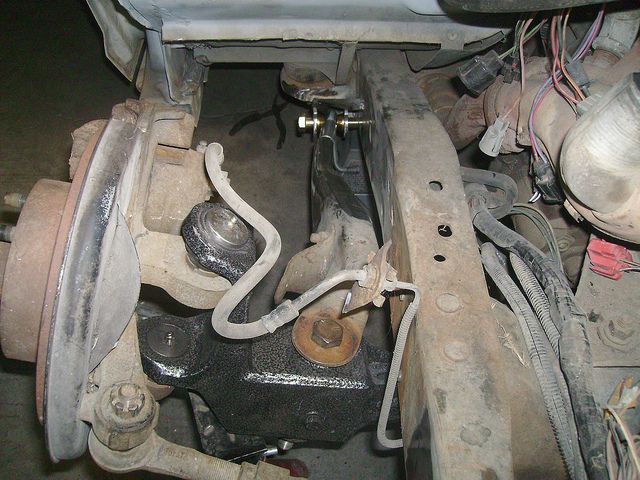

right side mounted
[url=6142706908/:1o5wzsfi]

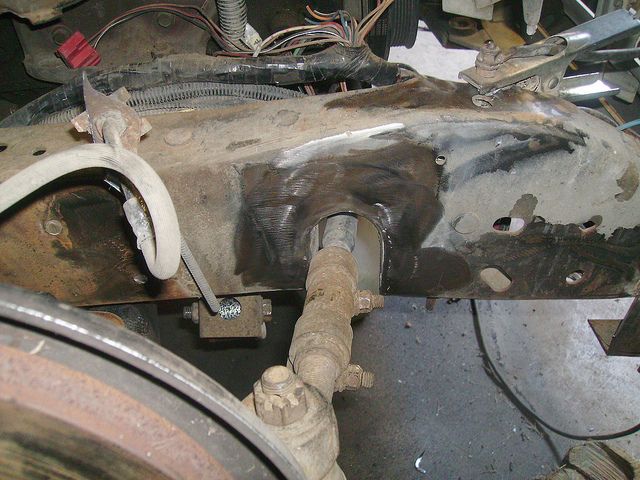

notched the pass. side framerail for the tie rod, it's time consuming when you do these with a sawsall, and grinder to make the half circle. Someday the plazma fairy will visit
[url=6142150235/:1o5wzsfi]

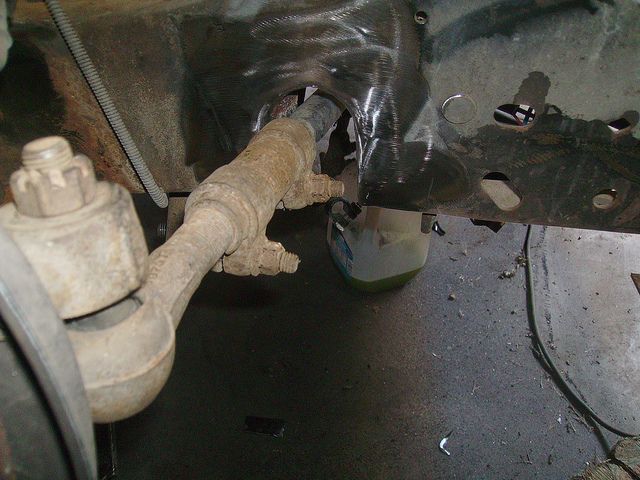

the notch I made goes to the other side when I box in the front frame.
[url=6142702936/:1o5wzsfi]

Now I've got to get some tube bent, then build the bag mounts.

very clean man. looks great!

hey look everybody, Mikey likes it! lol thanks Mikey

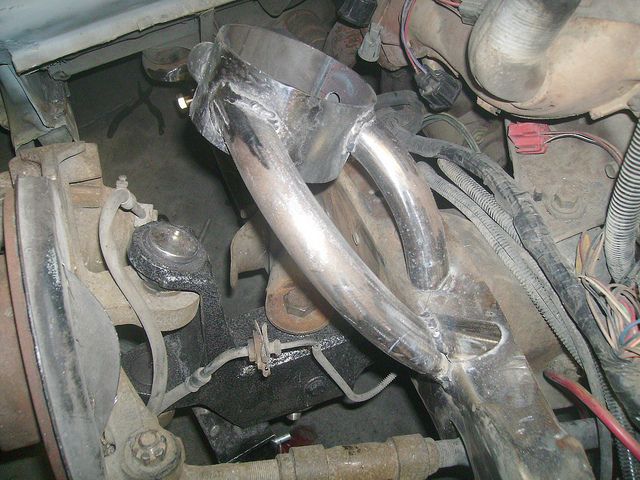

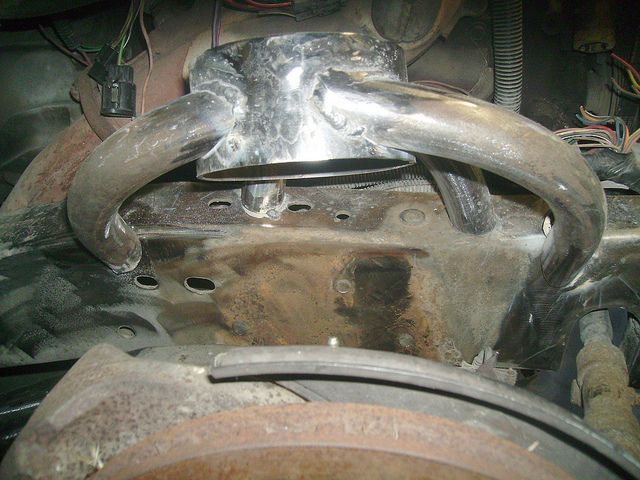

starting the I beam bag mounts, got to get plates on the upper, and build the lower mount.

[url=6171327512/:3je6b1gp]
[url=6171327512/:3je6b1gp]PICT0053 by mazdaminitrucker, on Flickr
[url=6171324652/:3je6b1gp]
[url=6171324652/:3je6b1gp]PICT0054 by mazdaminitrucker, on Flickr
