Project: Creampuff

haynes manuals are shit..... they are as useless as tits on a bull.... just my $0.02

Its got the stock Nikki on it for the time being, probably going to get a weber for it over the winter.

bible#p292556

here is a link to a shop manual, full parts list, and wireing diagrams dubbed the mazda bible lol

I thought that was for the 86-93 trucks?

It is. Haynes manuals may be shit, but the wiring diagram for our years is accurate

yes it is i have gone thru four or five wiring harnessess due to lack of knowledge till i got my hands on a book haha now i know these things thru and thru

Nothing too exciting to look at, but got all the welding on the frame done tonight and got it painted. Need to clean up the axle and paint the link bars and it will be getting put back together. Also started stripping the powdercoat off the air tank, oh so much fun
(sorry for the crappy pics, my phone wasnt cooperating tonight)

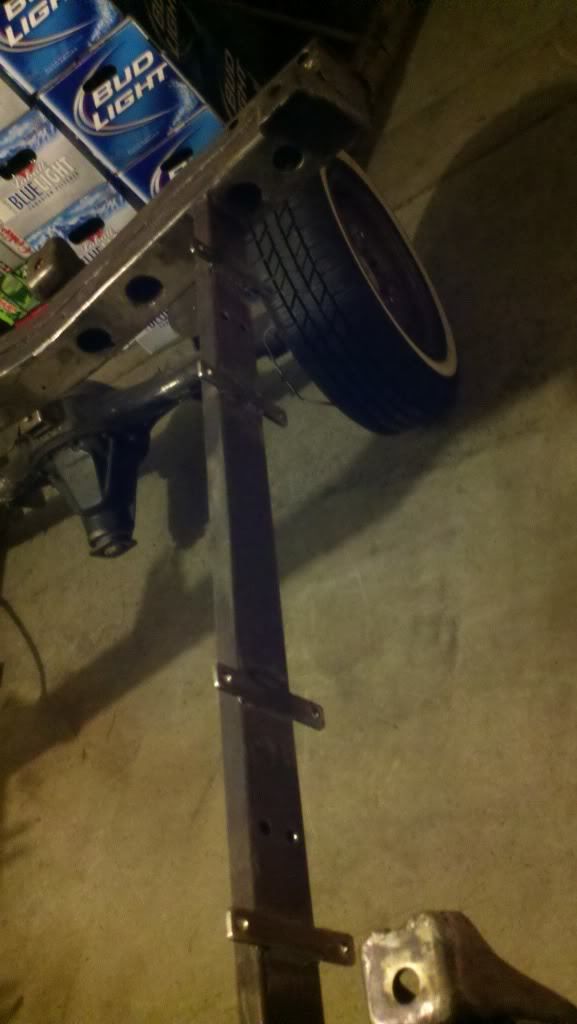

Front gas tank mount:

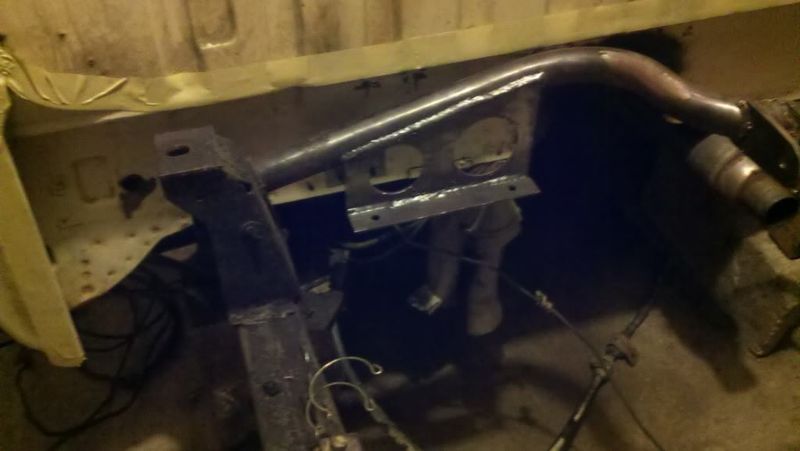

Compressor brackets:

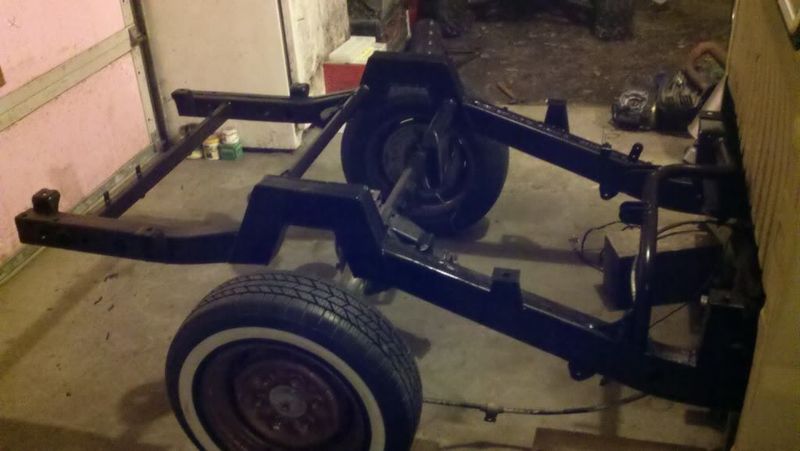

Painted:

Not much of an update but fro painted the gas tank, the axle and driveshaft got done last night. I painted the lower link bars and air tank tonight, gotta get them cleared tomorrow. Pics on the weekend when its going back together.

The suspension got put together yesterday, need to get a few brakelines and the gas tank can go back in. Gonna start plumbing and wiring today, pics as soon as I can get them to upload.

I'll be waiting on pics!
