well...bellhousing still not here. hoping for tomorrow cause i got this weekend off. Gotta take the tranny down so i can get the right slip yoke and get a different u joint and maybe have the driveshaft chopped down...but i wont know for sure till i get the bellhousing and get everything dropped back in.
jc50942
+1y
i could have stoped at maybe 2000 bucks but ive got like 4500 into it now with the tranny...that alone was 2400
jc50942
+1y
well...finally showed up so now i got something to do this weekend

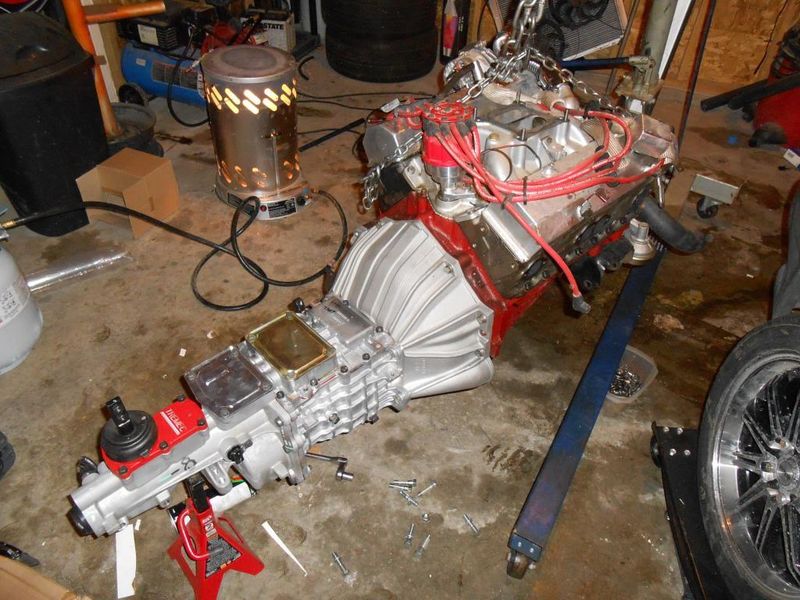

there it is all in one piece..been waiting for this for awhile...but still some fabricating to do.

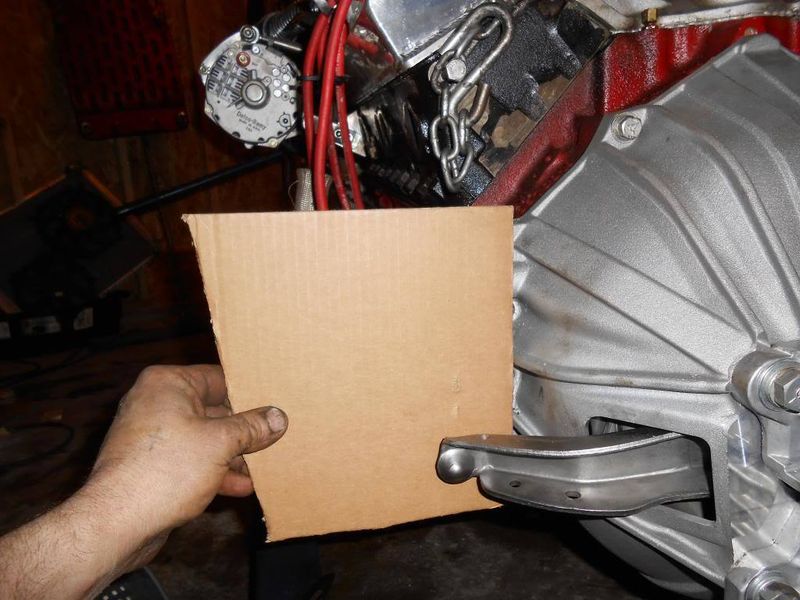

this is the start of making a bracket for the slave cylinder. I used some nice thick cardboard that was pretty close to the same thickness of metal i plan on using.
a sharp razor seemed to do the job

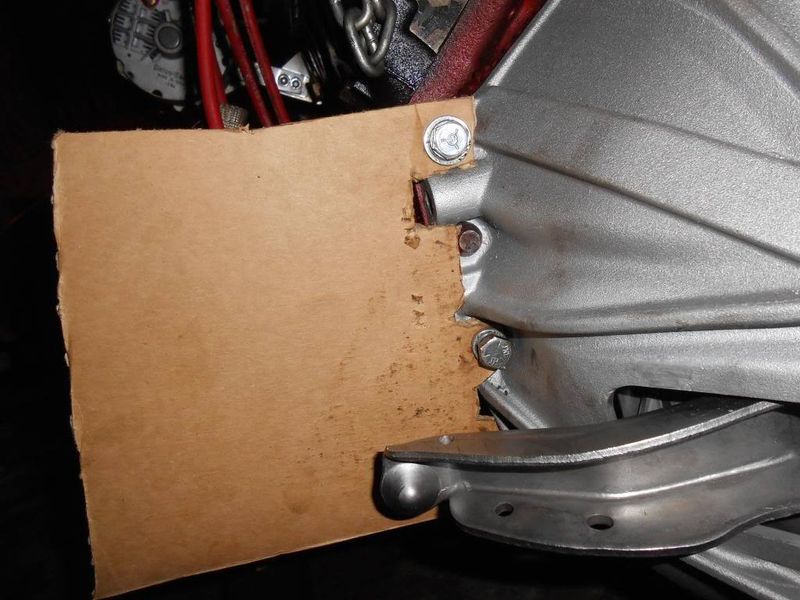

at this point i had the cardboard trimmed pretty close to what i needed and bolted down to the bellhousing. Now to get the hole for the slave.

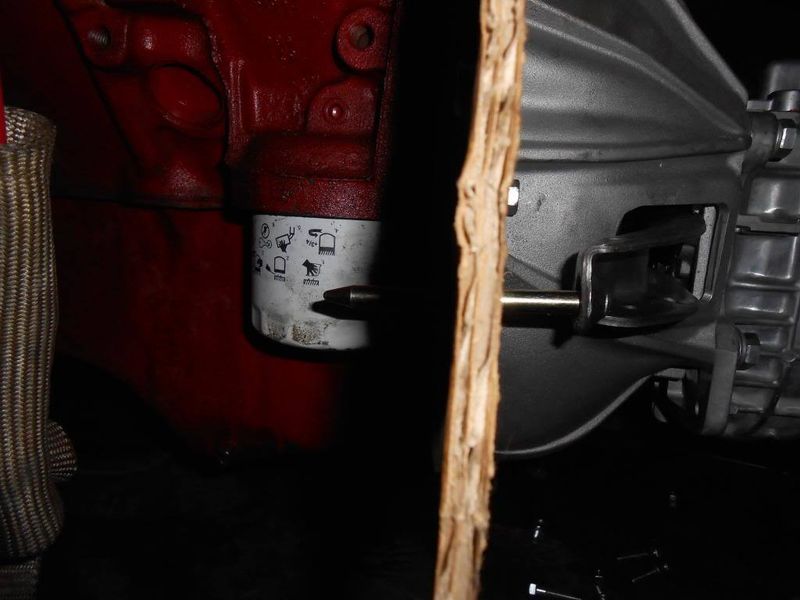

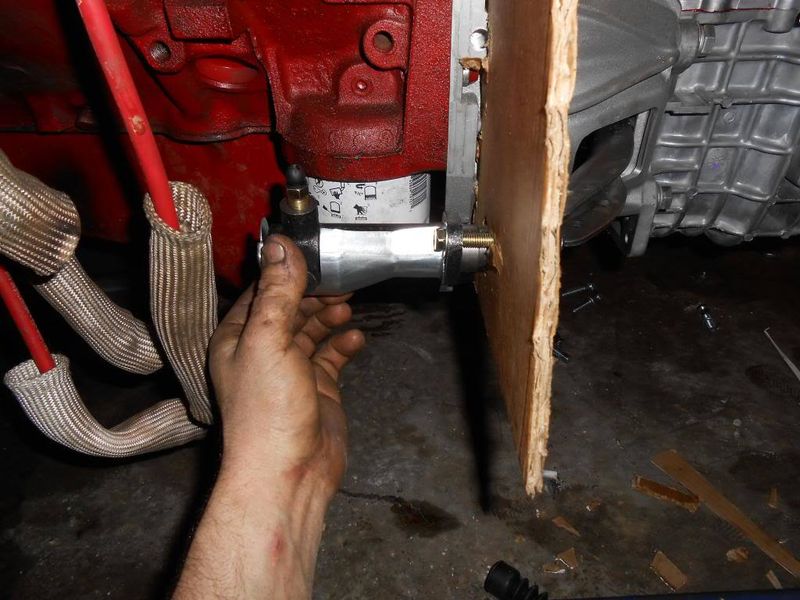

getting close...here the slave is really close to the fork so im gonna end up puttting a couple spacers in. The closer the better but i want a little bit of room to work with.

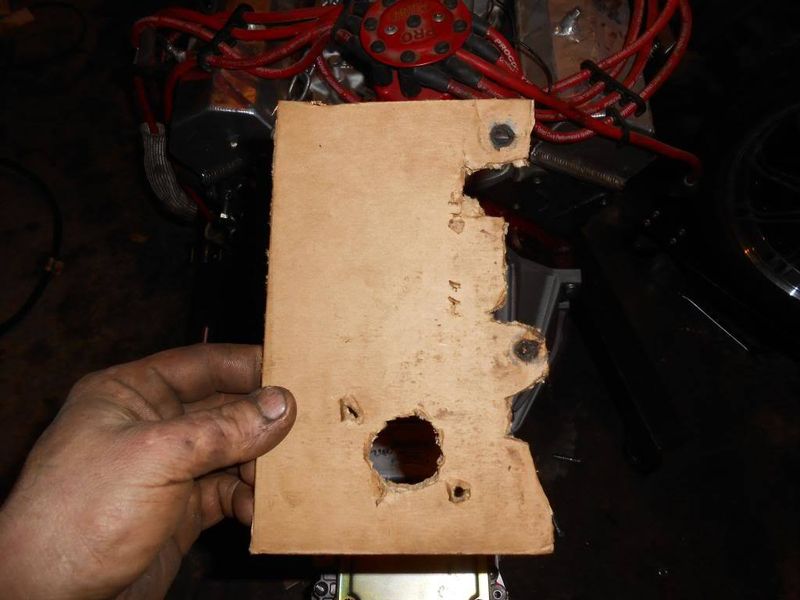

So this is what i ended up with for now till i get back to the shop tomorrow and refine it a bit more. Its a start.
there it is all in one piece..been waiting for this for awhile...but still some fabricating to do.
this is the start of making a bracket for the slave cylinder. I used some nice thick cardboard that was pretty close to the same thickness of metal i plan on using.
a sharp razor seemed to do the job
at this point i had the cardboard trimmed pretty close to what i needed and bolted down to the bellhousing. Now to get the hole for the slave.
getting close...here the slave is really close to the fork so im gonna end up puttting a couple spacers in. The closer the better but i want a little bit of room to work with.
So this is what i ended up with for now till i get back to the shop tomorrow and refine it a bit more. Its a start.
jc50942
+1y
so after the cardboard i went and got this.
got the torch out and got this far.
started smoothing out the edges
trimmed a little more, not quite there yet.
a little closer
a nice side view
top veiw
and basically the finished product.
got the torch out and got this far.
started smoothing out the edges
trimmed a little more, not quite there yet.
a little closer
a nice side view
top veiw
and basically the finished product.
jc50942
+1y
so after i got it stuffed back in the shifter was off a little.
so trimmed a little out.
so on to the clutch line. Front brake hose from a 4 runner.
10mm double flare for the rubber line side and 12mm bubble flare for the slave cylinder side.
so i got that all hooked up, bled the line out. Works good but i need to make some kinda gusset. The slave bracket flexes a little and i dont like it.
Moving on, i mounted, plumbed and bled my hand brake.
And made me a cool shifter. Not sure its gonna be permanent, we will see.
so trimmed a little out.
so on to the clutch line. Front brake hose from a 4 runner.
10mm double flare for the rubber line side and 12mm bubble flare for the slave cylinder side.
so i got that all hooked up, bled the line out. Works good but i need to make some kinda gusset. The slave bracket flexes a little and i dont like it.
Moving on, i mounted, plumbed and bled my hand brake.
And made me a cool shifter. Not sure its gonna be permanent, we will see.
