Mazda Projects \  RC's daily dragger(90 b2200 single cab)

RC's daily dragger(90 b2200 single cab)

Mazda Projects
views 12005
replies 49
following 13

rcogan   +1y

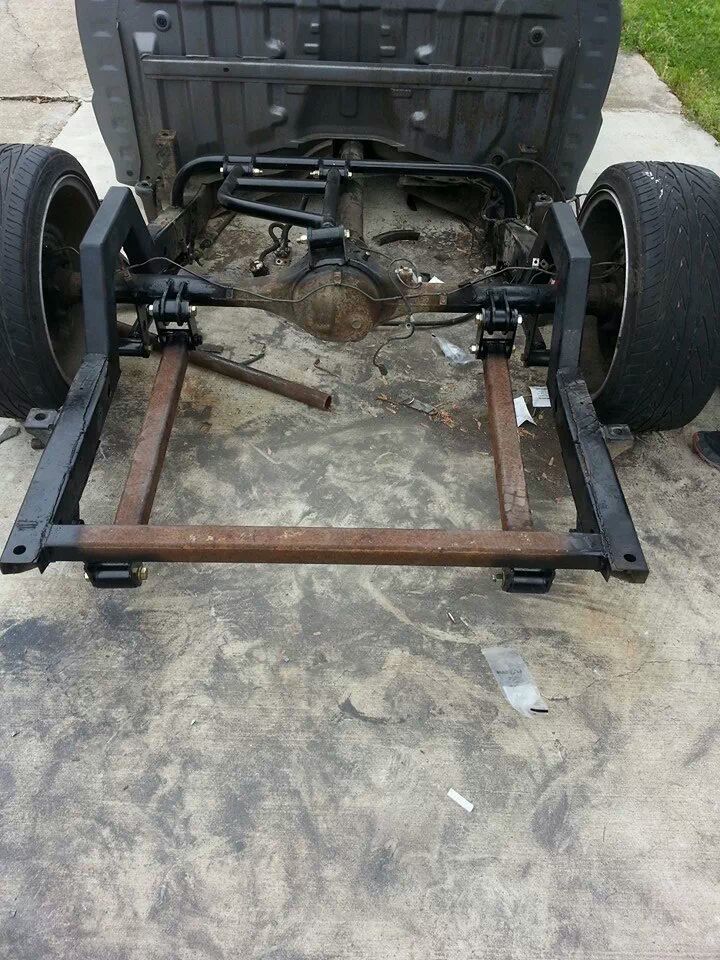

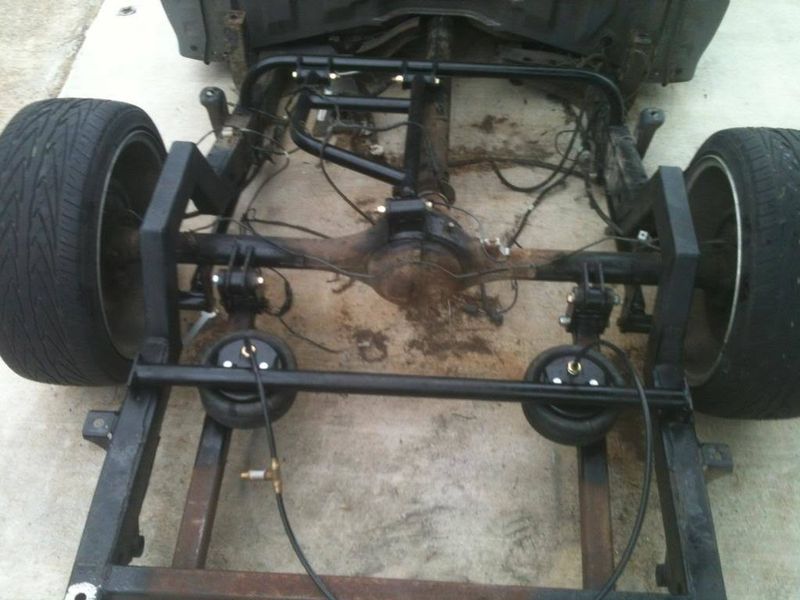

Small progress
5 link installed

thread post photo


thread post photo



need to mount bags on bars, shocks and gas tank
mymmeryloss   +1y
Lookin good
chaserjohndoe   +1y
what's up with the double joints on the bottom links? Won't that allow axle wrap?
rcogan   +1y
Not that i know of
the 3 link should stop axle rap, side to side and front to back movement
the 2 rear bars are for lift only
That pivot will help keep pinion angle right whike lifting and lowering
chaserjohndoe   +1y
ok, i didn't see the front bars until now. so your running a 5 link basically. with the 2 rears being for bags.
rcogan   +1y
Yes 5 link
bags mounted on rear bars
mazdawg(mikey)   +1y
shouldn't the link on top of the diff be level so it rotates properly with the front of the link? looks like its gonna bind up.
rcogan   +1y
doesnt bind at all

the suicidedoors 3link for s10s isnt level when layed out either
vajr86   +1y
With the bag bars coming out of side of axel may cause it to always have torque and wanting to wrap your axel. May want to have it on center on te top or bottom
rcogan   +1y

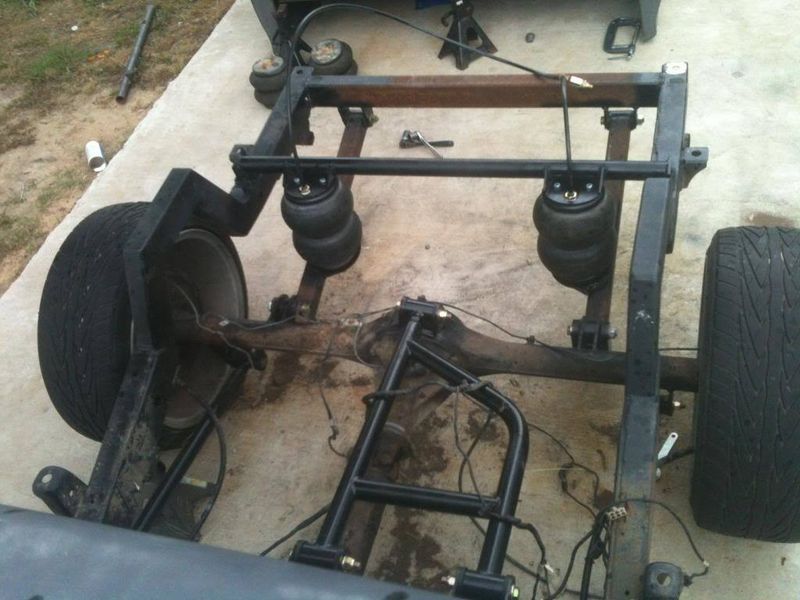

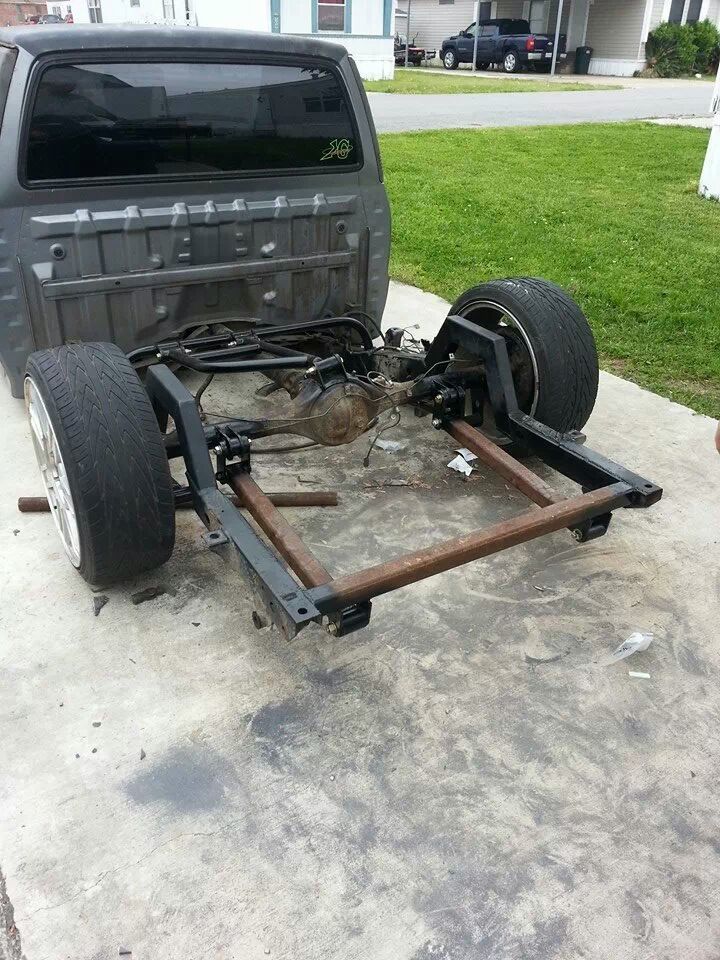

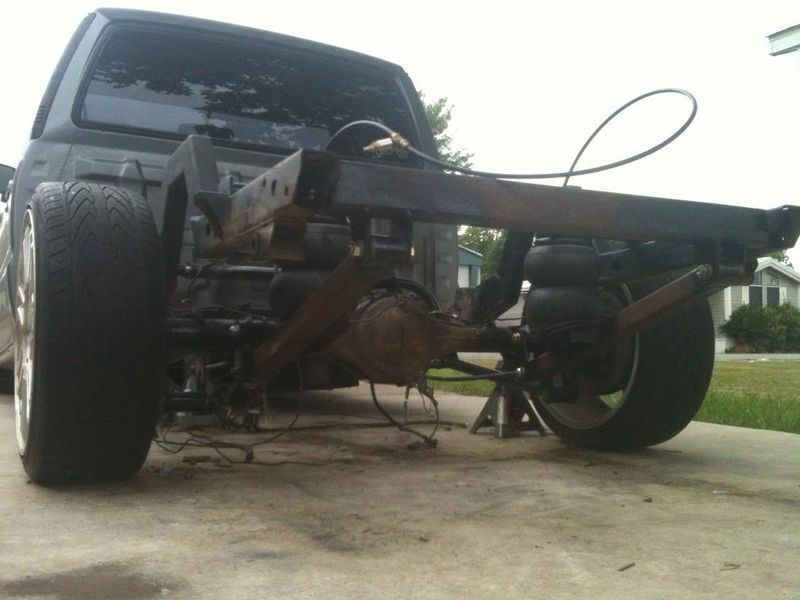

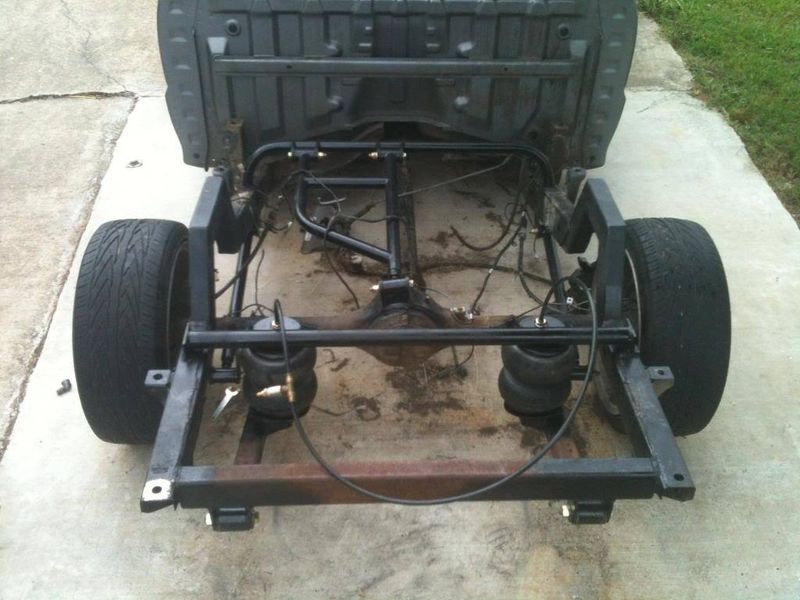

5-link complete minus shocks
thread post photo

thread post photo

thread post photo

thread post photo
