Fuel tank lines
b2200beast avatar
b2200beast
+1y
Can anybody post a picture of the location? I stall can't find. I have a standard carbureted b2200
Cusser avatar
Cusser
+1y

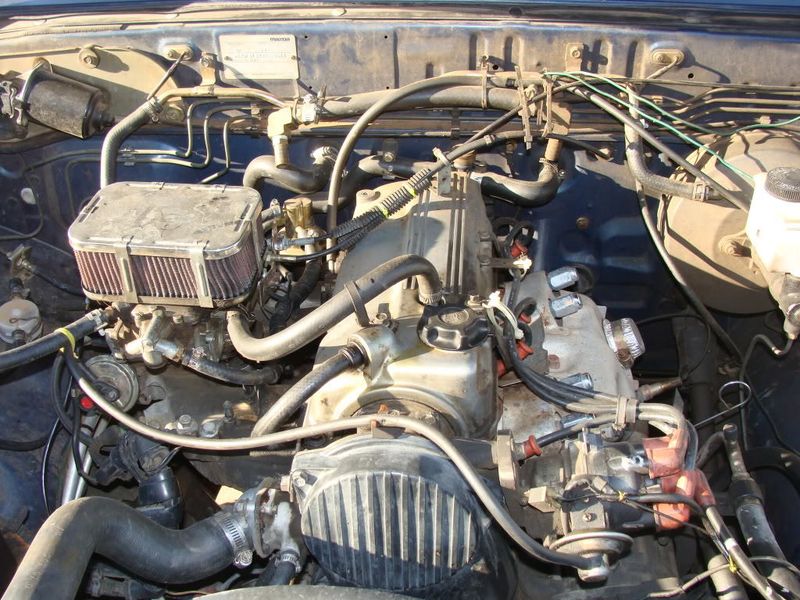

See on the extreme left border in this photo, halfway up (or halfway down). I've got a Weber carb, with a stock carb and air cleaner, somewhat hidden under the air cleaner stuff.
thread post photo

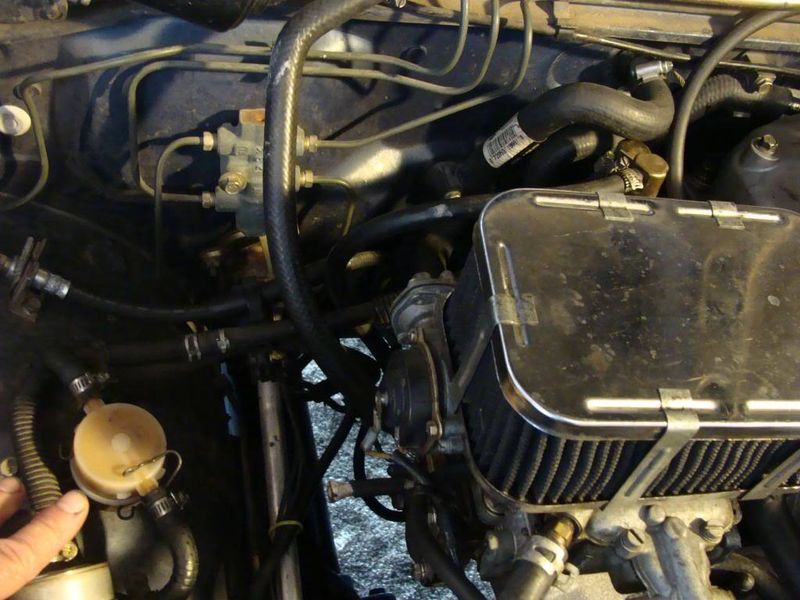

Here, pointing at it:
thread post photo
b2200beast avatar
b2200beast
+1y
Yeah I don't have it there. I guess I don't have one installed. How would I connect one to the fuel line? Would I just cut the gas line in half and connect my fuel filter to it. I've already purchased a fuel filter. If I do cut the line in half which one would I have to cut?


Sent from my iPhone using Tapatalk
dan woodland avatar
dan woodland
+1y
Yes you would just insert it into the line with two hose clamps, one on either end.

It looks like you have a stock setup, you'll have to trace the fuel line to figure out which one to cut. If you have two, it should be the larger of the two - the other will be your vent/return line.
b2200beast avatar
b2200beast
+1y
I figured it out! Thanks everybody.
I'm still stalling at red lights tho. Should I just upgrade to a weber carb. Or is there anything I can do in the mean time to keep it from stalling?
dan woodland avatar
dan woodland
+1y
Fuel pump?

b2200beast avatar
b2200beast
+1y
I just put a new fuel pump and fuel filter
