Mazda Engine General \  brake bleeding problems

brake bleeding problems

Mazda Engine General Mazda Engine Mazda Tech
views 5328
replies 59
following 11

cory_watson   +1y
finally had a chance to work on it. replaced the front left caliper due to broken bleeder screw and replaced the master cylinder and it has seemed to fix the problem.
rcogan   +1y
I changed master cylinder and bench bled it
Won't build up much of a pedal, randomly plug the 3 ports on master and sometimes it will build up a pedal and sometimes it won't(bleeding ones that are connected)
Small amount of pedal with truck off, goes all but to the floor with truck running

Did dump quart of fluid out of booster
dan woodland   +1y
Booster doesn't have fluid in it, it's a vacuum canister. Fluid came from the master, may have damaged the booster.

Booster tests... axzz35UUzJY7f

rcogan   +1y
Yea, master was leaking into booster
Apparently for a good while before I got it

Would a bad booster give me the other issues I'm having?
rcogan   +1y
So it fails test 1 and 2 bad

Holds pressure on test 3 pretty well, or so it seems to me

There's no valve so that apparently isn't for my truck(guessing, correct me if I'm wrong)

And I don't have a vacuum gauge for the last part
dan woodland   +1y

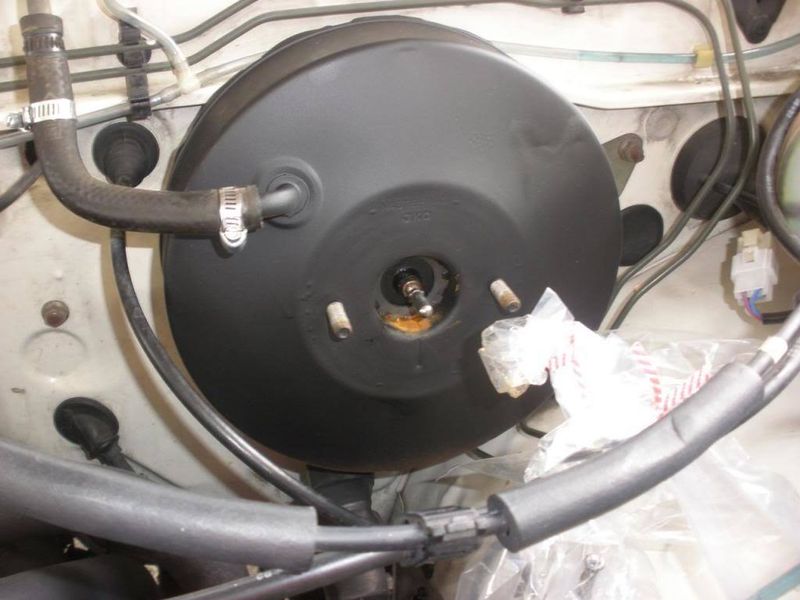

One way Valve is in the hose that goes to the hardline next to the top right of the brake booster. you MUST have that valve or your booster won't work.

You can see the hose on this picture at the left...

thread post photo


rcogan   +1y
So the valve is built in to the hose?
dan woodland   +1y
yes, a one-way valve.

Cusser   +1y
Valve is inside the hose, and hose has an arrow that says which way points to the engine.

I'm sure Dan has a used hose with valve for sale; if not I do.
rcogan   +1y
Alright. Thanks guys
Imma check it out when I get home later
