assdragginsdime
+1y
Some more pics

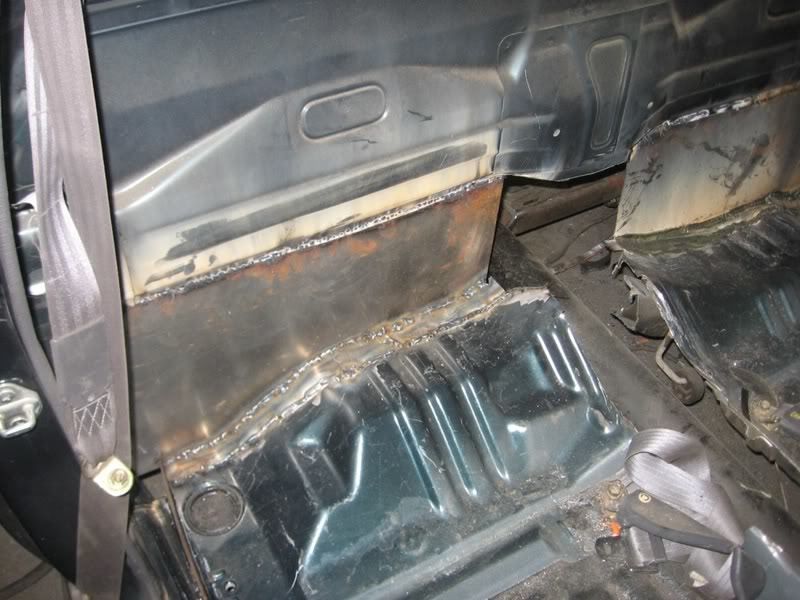

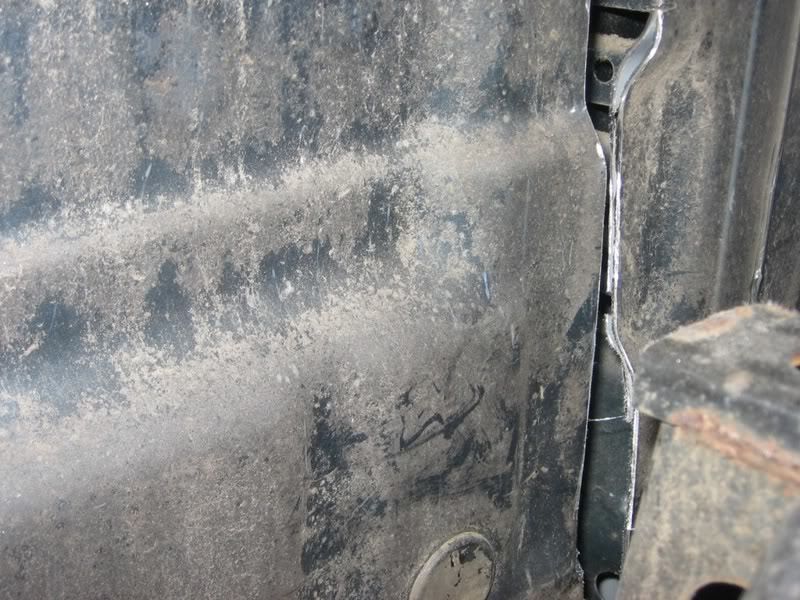

Back wall drivers side welded up
This is the passengeer side. You can see how becausue of the curves on the back wall, nothing lines up, which is why i made a new back wall.

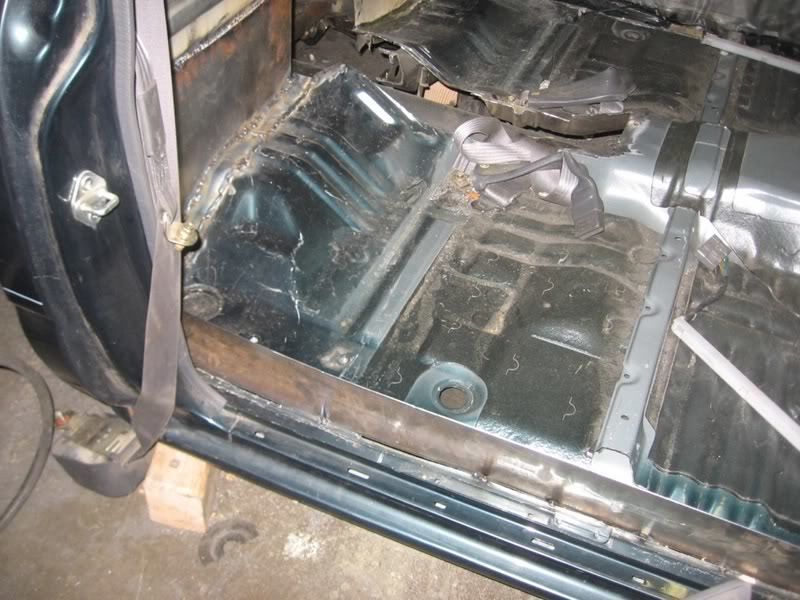

Drivers floor filler welded up
Passengeer back wall welded up
passenger filler plate tacked in place

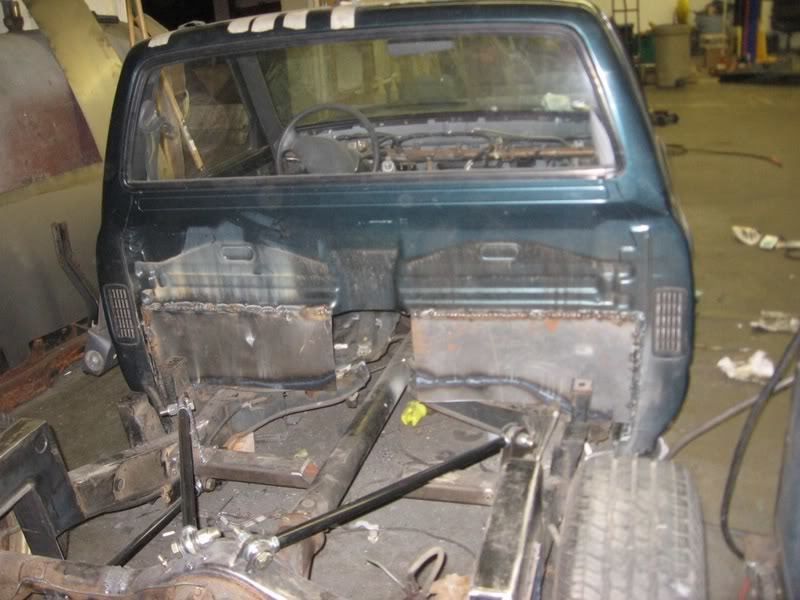

Rear view
Back wall drivers side welded up
This is the passengeer side. You can see how becausue of the curves on the back wall, nothing lines up, which is why i made a new back wall.
Drivers floor filler welded up

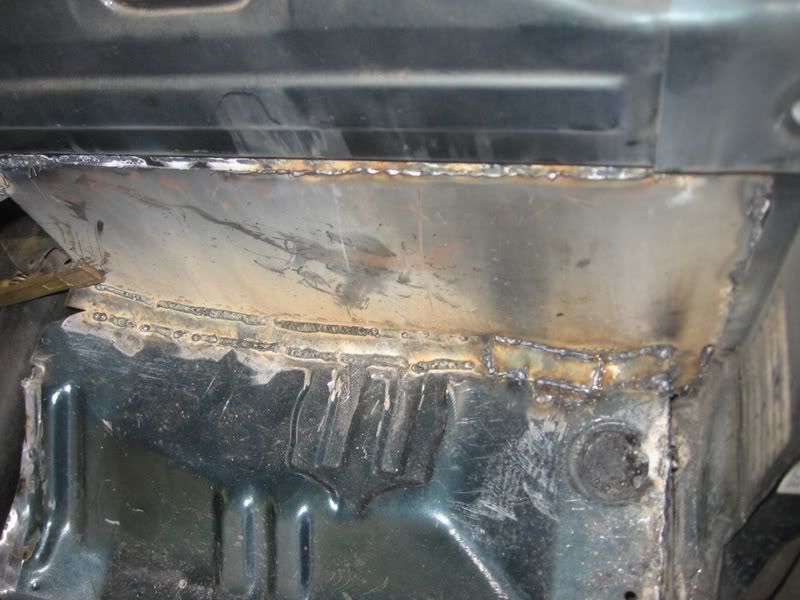

Passengeer back wall welded up
passenger filler plate tacked in place
Rear view
assdragginsdime
+1y
Thanks.
Im moving along on it. Still have a ton of stuff to do. Gotta finish the rear bag setup.. waiting on some upper brackets to be cut on the waterjet, finish the passengeer side filler, and the firewall fillers.. Tub the firewall, do the front, and bodydrop the bed. then i gotta mount all the air system and time the motor, do an exhaust system, and hopefully she'll be ready to rock. Planning on rollin it out by late june/july.
Im moving along on it. Still have a ton of stuff to do. Gotta finish the rear bag setup.. waiting on some upper brackets to be cut on the waterjet, finish the passengeer side filler, and the firewall fillers.. Tub the firewall, do the front, and bodydrop the bed. then i gotta mount all the air system and time the motor, do an exhaust system, and hopefully she'll be ready to rock. Planning on rollin it out by late june/july.
assdragginsdime
+1y
more pics

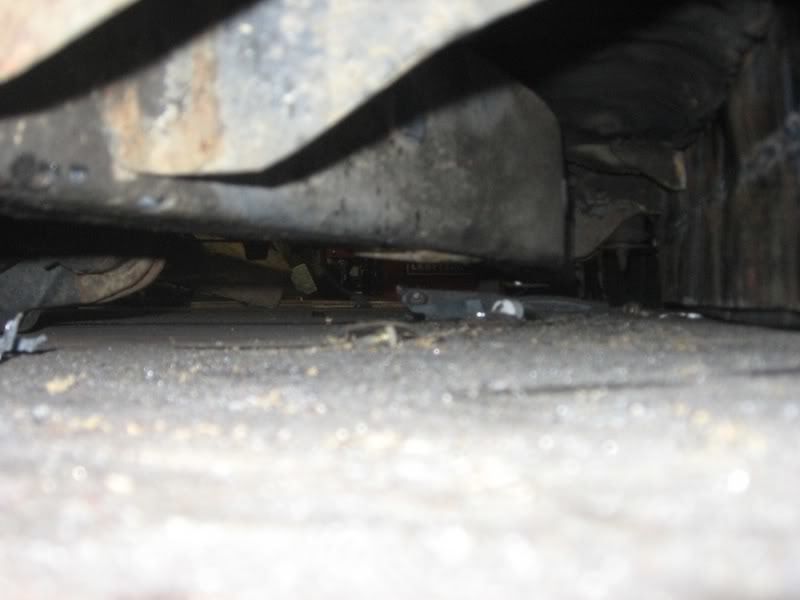

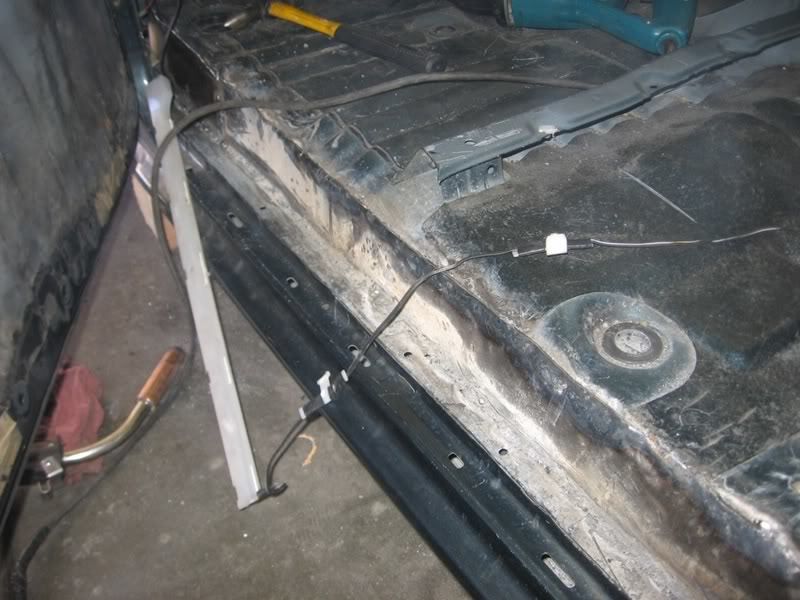

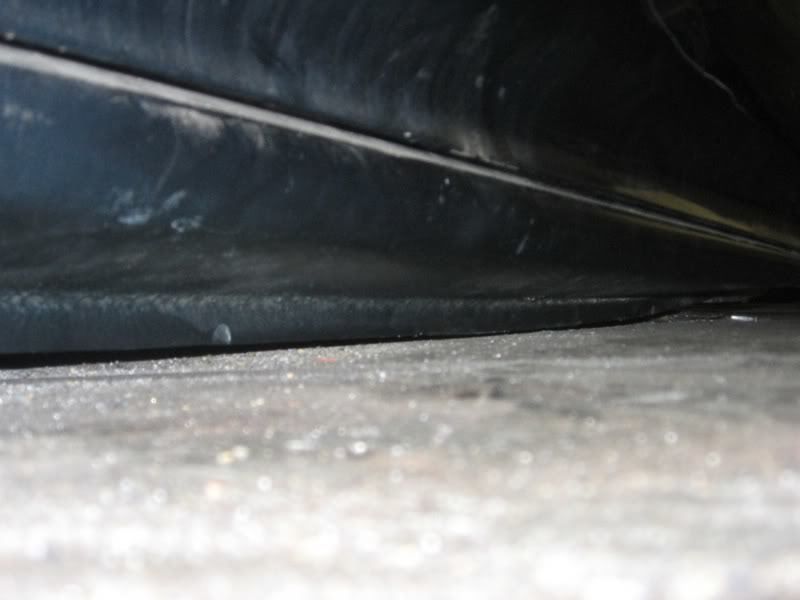

plenty should lay 1/4"-1/2" or so into the rocker

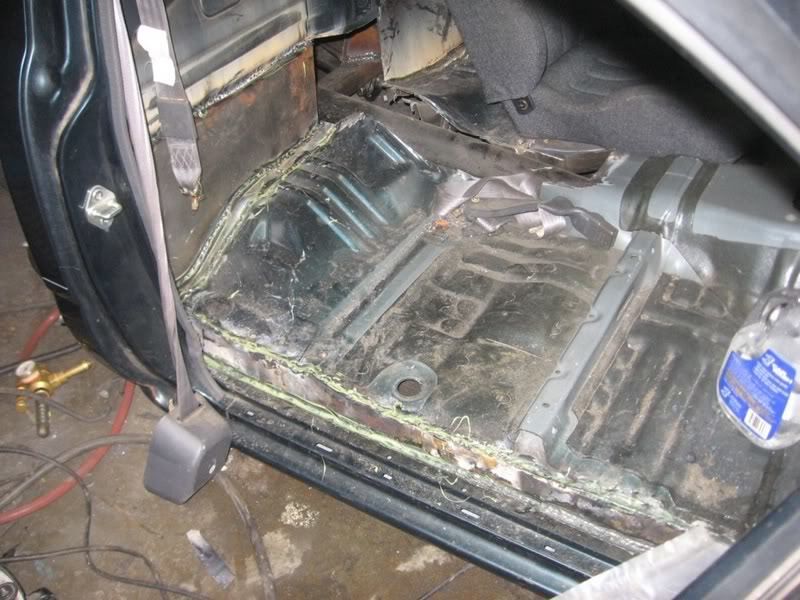

Passenger side welded up, And coated in panel bond to seal and give a little extra strength.

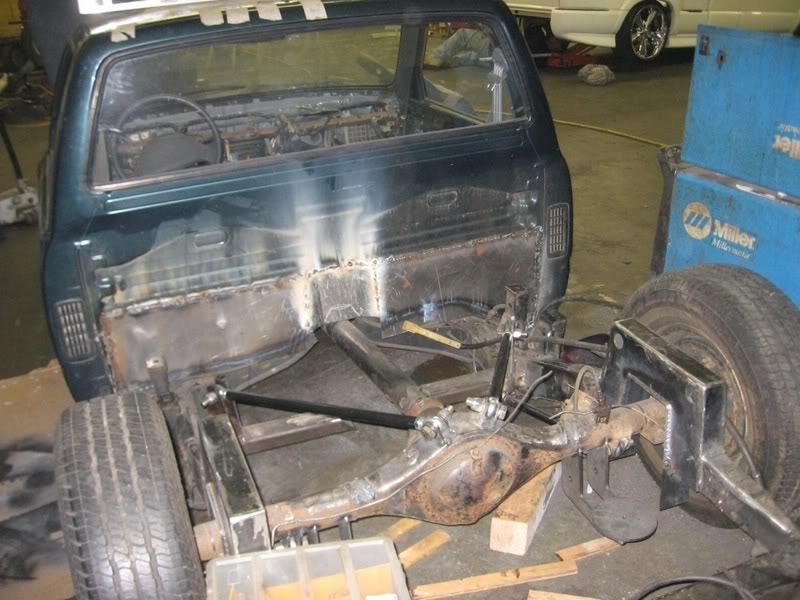

back wall pretty much done.

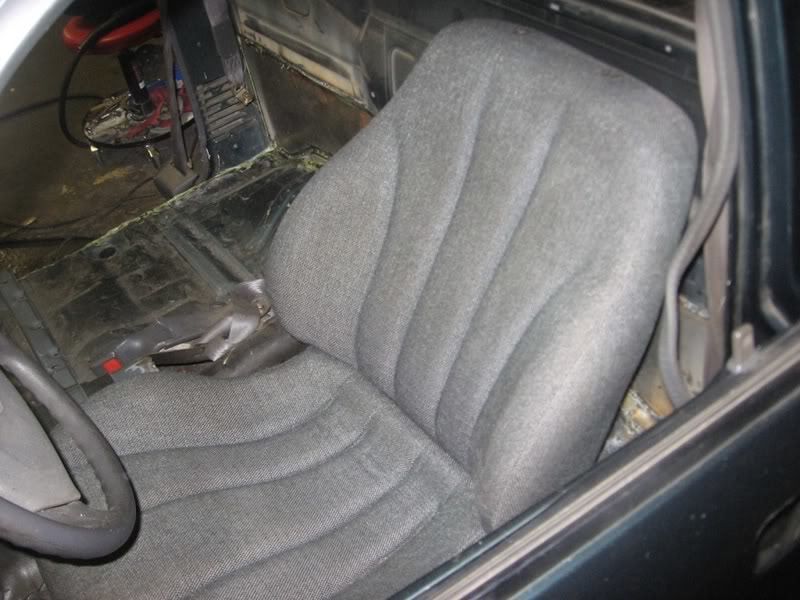

Cavalier seats. Give me ALOT more room to work with.. my head doesnt touch the headliner anymore lol
plenty should lay 1/4"-1/2" or so into the rocker
Passenger side welded up, And coated in panel bond to seal and give a little extra strength.
back wall pretty much done.
Cavalier seats. Give me ALOT more room to work with.. my head doesnt touch the headliner anymore lol
assdragginsdime
+1y
changed my mind yet again..

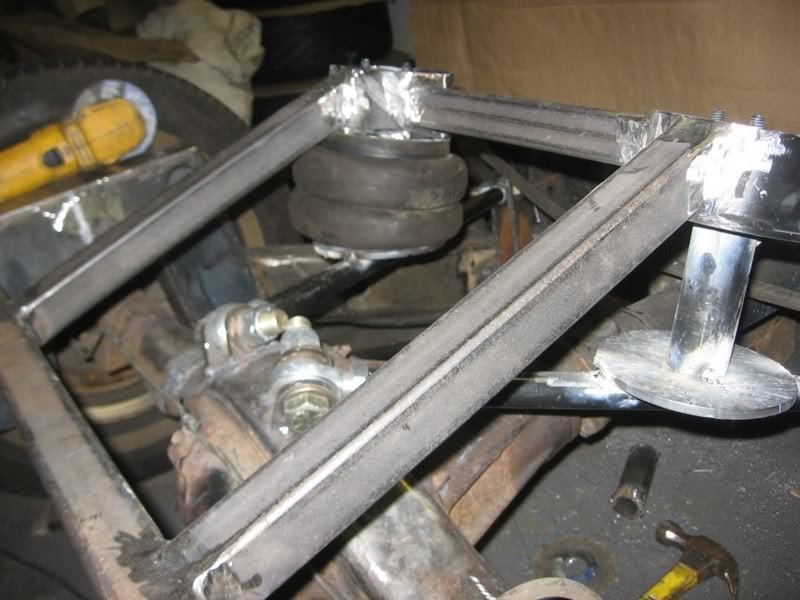

decided to scrap the idea of bags under and behind the axle.. So im going with them over the upper bars.. My buddy is going to cut me some 1/4" thick gussets on the water jet, for the bars.

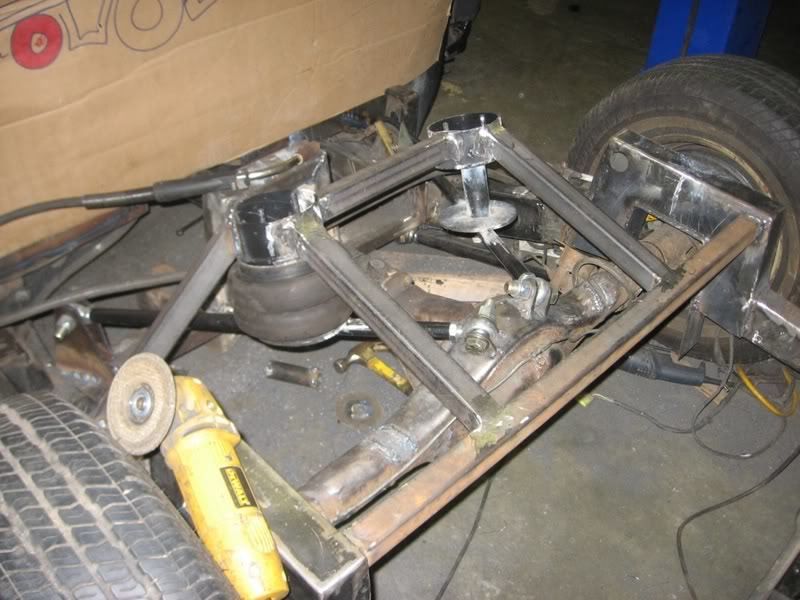

Got the upper setup mached up today. its going to need some tweaking, But thats why i left it all tacked.. i think all i need to fix is thet passengeer cup.. i think its on a little more of an angle than the drivers side.. Otherwise its about ready to be fully welded.
decided to scrap the idea of bags under and behind the axle.. So im going with them over the upper bars.. My buddy is going to cut me some 1/4" thick gussets on the water jet, for the bars.
Got the upper setup mached up today. its going to need some tweaking, But thats why i left it all tacked.. i think all i need to fix is thet passengeer cup.. i think its on a little more of an angle than the drivers side.. Otherwise its about ready to be fully welded.
assdragginsdime
+1y

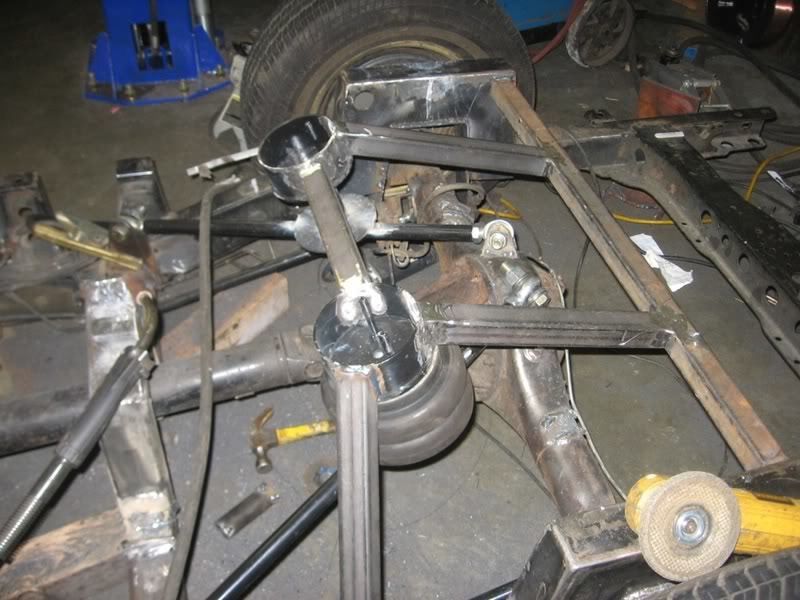

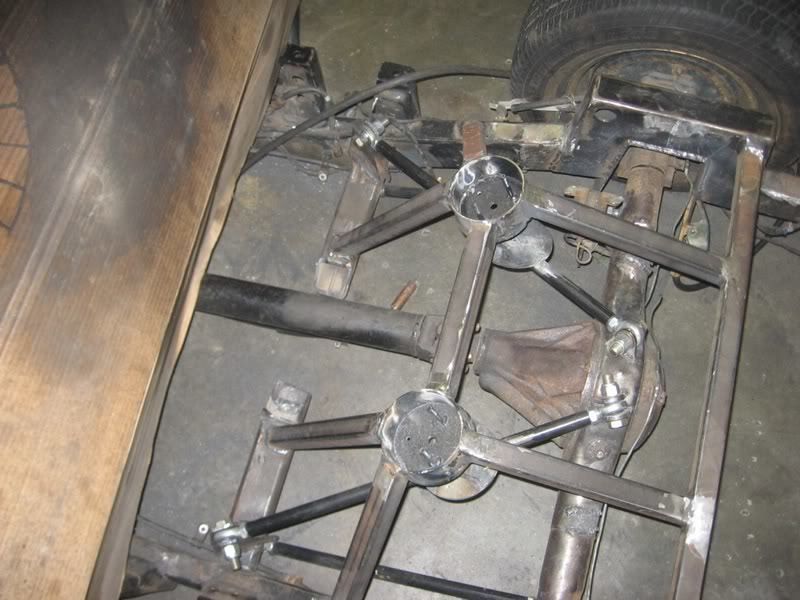

yea, i really didnt like how the rear setup came out.. So it came out, And i started a new one.. I think this ones much cleaner, And will probably be stronger too... Rear setup is just about done, Just need to cut my gussets for the upper bars, And mount the shocks and gas tank.. And it will be good to go.
Got a few more bars to setup, But shes almost there. I have the one bar on the passenger side, connecting the frame rail to the cup, And once i fix the driveshaft notch, im going to run 2 bars to the bar connecting the cups together.. Everything fits MUCH MUCH better on this setup.. And i think it looks alot cleaner too.
Got a few more bars to setup, But shes almost there. I have the one bar on the passenger side, connecting the frame rail to the cup, And once i fix the driveshaft notch, im going to run 2 bars to the bar connecting the cups together.. Everything fits MUCH MUCH better on this setup.. And i think it looks alot cleaner too.
assdragginsdime
+1y
Been a while since an update..

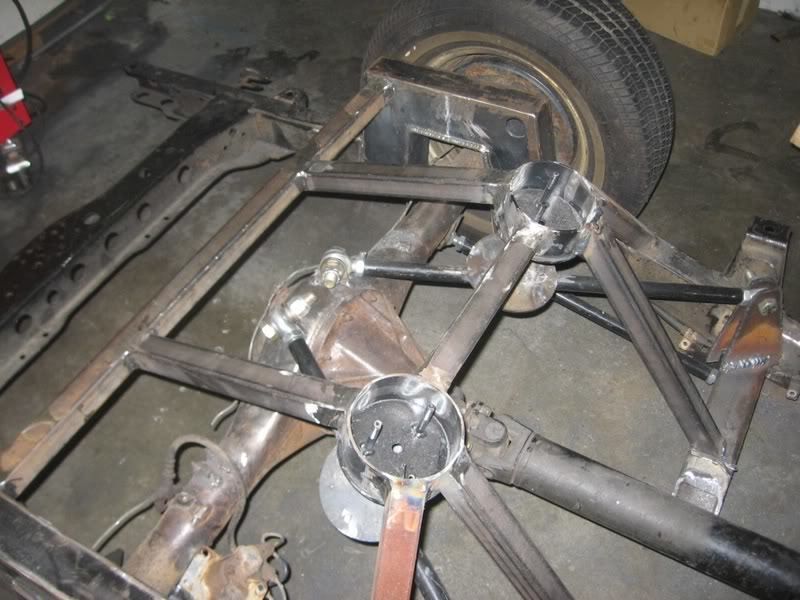

rear setup just about done
I am having gussets for the bars and lower bag plates cut on the water jet. Then all that i really need to do is cut the ends of the 4 link crossmembers straight and cap em off, and mount the shocks
I think im doing a canti setup with the shocks.. Because the area between the notch and the bars going from the straright bar notch to notch, and the cups, Looks way to empty. so that should fill it up..
Im working on the gas tank brackets right now. smoothed out the rear frame rails, and started making the tank bracket.

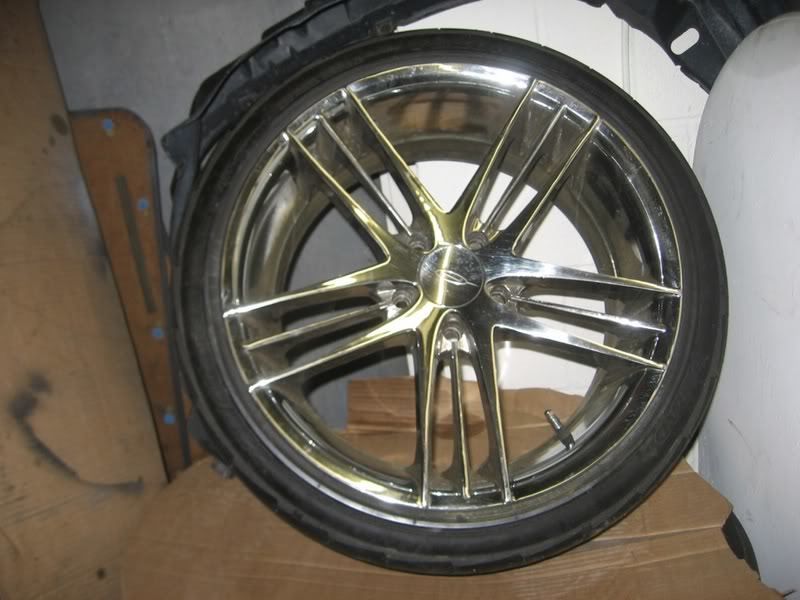

Also picked up some rims..
18" neeper DAGGs with tires on ebay for $180. They were local too so i didnt need to pay shipping..
rear setup just about done
I am having gussets for the bars and lower bag plates cut on the water jet. Then all that i really need to do is cut the ends of the 4 link crossmembers straight and cap em off, and mount the shocks
I think im doing a canti setup with the shocks.. Because the area between the notch and the bars going from the straright bar notch to notch, and the cups, Looks way to empty. so that should fill it up..
Im working on the gas tank brackets right now. smoothed out the rear frame rails, and started making the tank bracket.
Also picked up some rims..
18" neeper DAGGs with tires on ebay for $180. They were local too so i didnt need to pay shipping..
