I took cross measurements before and then i blocked the frame up, took everything off and cross measure again then tack the link on, and then do the bags. :fon:
///RA TROY
+1y
measure everything over and over agian it sould take you at least as much time measuring as it does to actually weld the 4 link in and if you dont know what to measure you should probably have someone that knows what there doing help you
Low_SST
+1y
Originally posted by coreymaurer1
wait...tack the axle to what???...
tack a piece of metal between the axle and side of the frame with the leafs on. when i did mine i used 2 pieces inside and out to keep it from twisting.

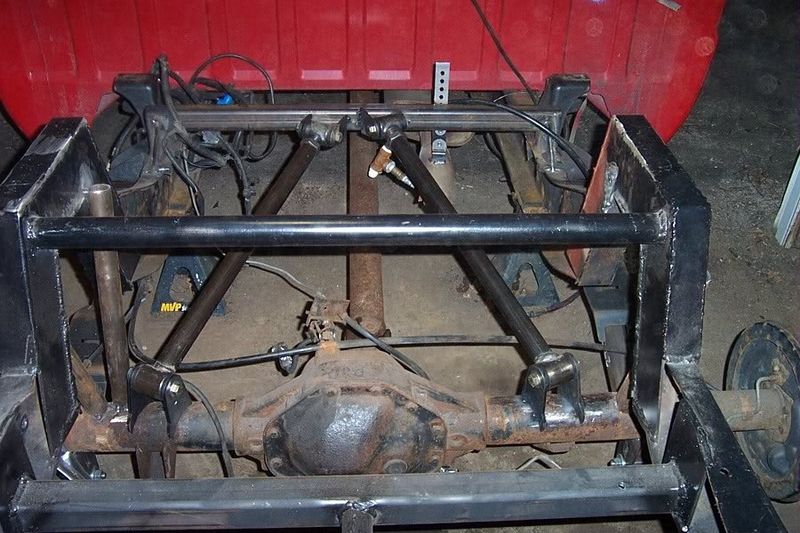

look at the left side of the axle...i did this on both sides to hold the axle on center and keep factory pinion angle. then once my upper bars were in i removed em and smoothed out the tacks.
wait...tack the axle to what???...
tack a piece of metal between the axle and side of the frame with the leafs on. when i did mine i used 2 pieces inside and out to keep it from twisting.
look at the left side of the axle...i did this on both sides to hold the axle on center and keep factory pinion angle. then once my upper bars were in i removed em and smoothed out the tacks.
AiredOut
+1y
Originally posted by Low_SST
Originally posted by coreymaurer1
wait...tack the axle to what???...
tack a piece of metal between the axle and side of the frame with the leafs on. when i did mine i used 2 pieces inside and out to keep it from twisting.
look at the left side of the axle...i did this on both sides to hold the axle on center and keep factory pinion angle. then once my upper bars were in i removed em and smoothed out the tacks.
Wow, is that ride height?????? Looking like a 4x4 there. Set the axle at ride height and make all the bars parallel to the groun, with the lowers and uppers parallel.
Originally posted by coreymaurer1
wait...tack the axle to what???...
tack a piece of metal between the axle and side of the frame with the leafs on. when i did mine i used 2 pieces inside and out to keep it from twisting.
look at the left side of the axle...i did this on both sides to hold the axle on center and keep factory pinion angle. then once my upper bars were in i removed em and smoothed out the tacks.
Wow, is that ride height?????? Looking like a 4x4 there. Set the axle at ride height and make all the bars parallel to the groun, with the lowers and uppers parallel.
fatboysS1O
+1y
Originally posted by bdroppeddak
if the midget is greased up, go for the hair, or else you wont catch him!
ok weird guy, where in the hell do you come up with this weird ass shit. lol im just askin cuz im half ass drunk and about fell out of my chair laughing at that off the wall stupid ass comment!
if the midget is greased up, go for the hair, or else you wont catch him!
ok weird guy, where in the hell do you come up with this weird ass shit. lol im just askin cuz im half ass drunk and about fell out of my chair laughing at that off the wall stupid ass comment!
TwistedMinis
+1y
When I linked my truck I used a plumb bob (weight on a string) and hung it from the frame over the center of the axle. Then drew the line where the string was on the frame, and did this on both sides. I then pulled the leafs, and centered the axle on the marks I made on the frame. I set my pinion angle where I wanted it, and made sure the rear end was dead center, then tacked it to the frame with some 1x1 tube. From here I installed my links, then pulled the axle to fully weld the tabs, and notch the frame.
time1
+1y
Originally posted by blazedbowtie82
When I linked my truck I used a plumb bob (weight on a string) and hung it from the frame over the center of the axle. Then drew the line where the string was on the frame, and did this on both sides. I then pulled the leafs, and centered the axle on the marks I made on the frame. I set my pinion angle where I wanted it, and made sure the rear end was dead center, then tacked it to the frame with some 1x1 tube. From here I installed my links, then pulled the axle to fully weld the tabs, and notch the frame.
Pretty much the same thing i did.
When I linked my truck I used a plumb bob (weight on a string) and hung it from the frame over the center of the axle. Then drew the line where the string was on the frame, and did this on both sides. I then pulled the leafs, and centered the axle on the marks I made on the frame. I set my pinion angle where I wanted it, and made sure the rear end was dead center, then tacked it to the frame with some 1x1 tube. From here I installed my links, then pulled the axle to fully weld the tabs, and notch the frame.
Pretty much the same thing i did.
nathansmc
+1y
Originally posted by AiredOut
Originally posted by Low_SST
Originally posted by coreymaurer1
wait...tack the axle to what???...
tack a piece of metal between the axle and side of the frame with the leafs on. when i did mine i used 2 pieces inside and out to keep it from twisting.
look at the left side of the axle...i did this on both sides to hold the axle on center and keep factory pinion angle. then once my upper bars were in i removed em and smoothed out the tacks.
Wow, is that ride height?????? Looking like a 4x4 there. Set the axle at ride height and make all the bars parallel to the groun, with the lowers and uppers parallel.
that is the smartest thing said here. SET PINION ANGLE AT DRIVING HEIGHT
Originally posted by Low_SST
Originally posted by coreymaurer1
wait...tack the axle to what???...
tack a piece of metal between the axle and side of the frame with the leafs on. when i did mine i used 2 pieces inside and out to keep it from twisting.
look at the left side of the axle...i did this on both sides to hold the axle on center and keep factory pinion angle. then once my upper bars were in i removed em and smoothed out the tacks.
Wow, is that ride height?????? Looking like a 4x4 there. Set the axle at ride height and make all the bars parallel to the groun, with the lowers and uppers parallel.
that is the smartest thing said here. SET PINION ANGLE AT DRIVING HEIGHT
