75 Dually Project - 22s and stylin

The thought of replacing the entire AC system was just driving me nuts. Don't get me wrong I have a Vintage Air system in another ride and it is great.

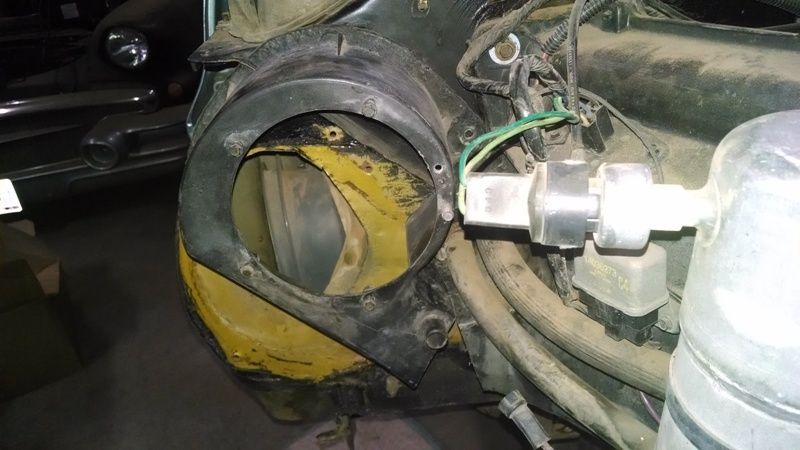

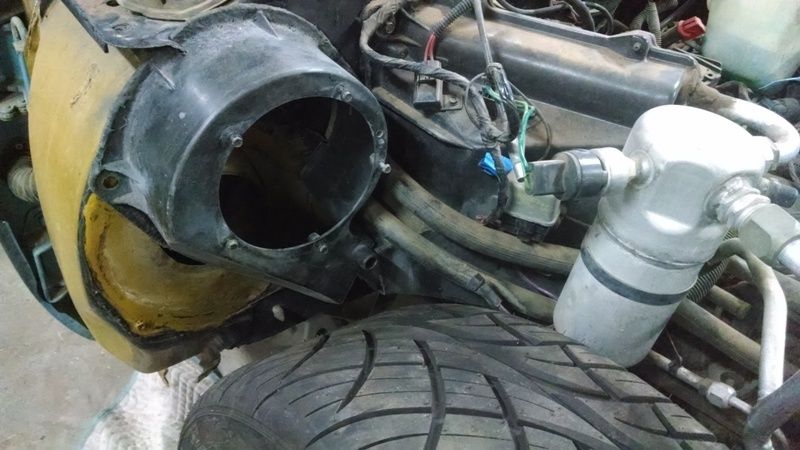

However my whole issue is that the tire at full drop was going to touch the plastic housing as I have shown in previous pics. To solve this I thought why don't I just rotate the blower assembly up out of the way. So after taking it apart and seeing the room I had available I went for it. Got out the sawzall and cut the housing. As you can see in the pics below it is a tight but nice fit.

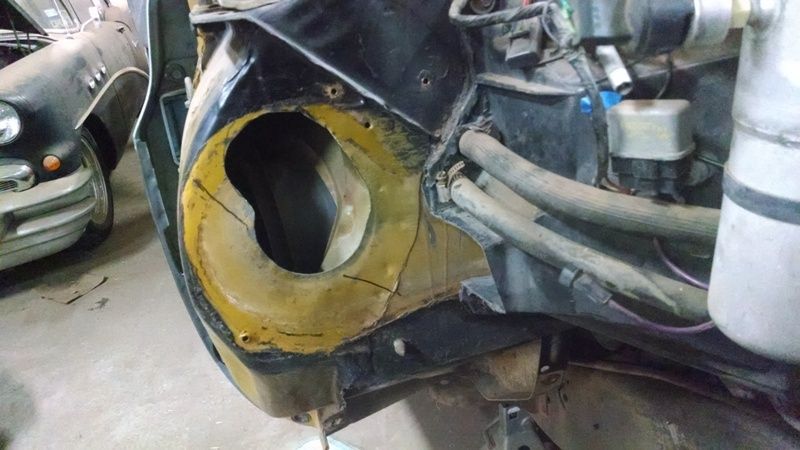

With the housing in the new location I had to cut out the hole in the firewall larger for the fresh air, and I also welded up the lower portion that was now outside of the housing. I did not take a pic of that, but might tomorrow. So now I have to glass in the new air tunnel. That should be fun! Not!

I know the tire has a ton more room now. I may have to do some small trimming here and there to get it perfect, but this I feel is a much better solution because the factory AC systems on these truck works very good and I wanted to keep as much of the stock system as possible. I might be all wrong on this and if so I will put an aftermarket system in and call it good, but I hope not...

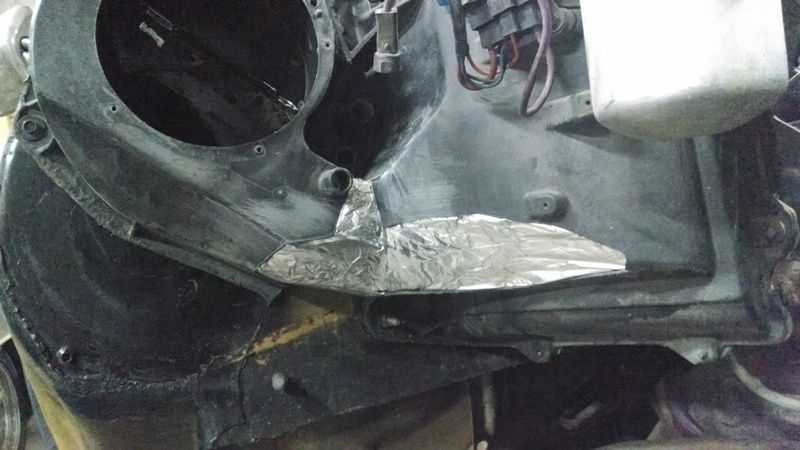

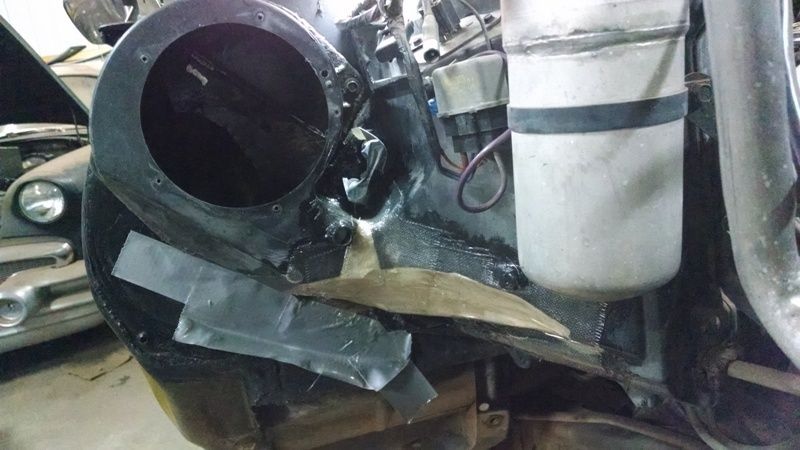

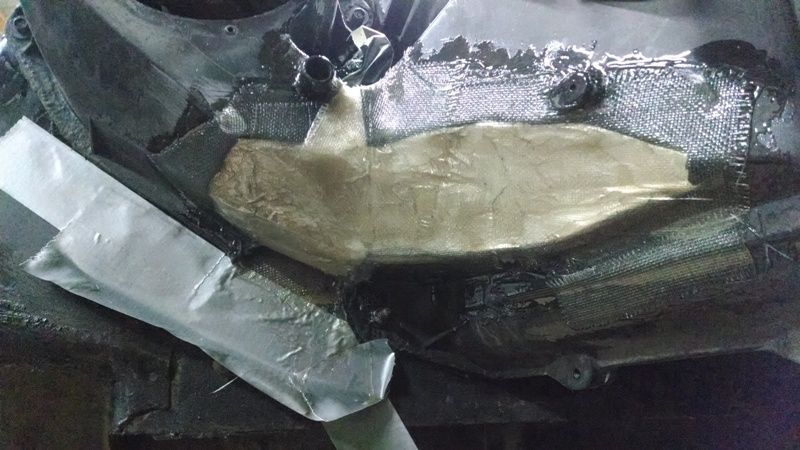

Tonight I finished up the blower motor modification. I laid aluminum adhesive foil on the inside of the structure. This gave me a firm inner structure as well as some additional heat reflective properties. Then I laid a couple of layers of fiberglass. Yes I got out all the air bubbles after these pics were taken...

I will sand it smooth tomorrow and shoot some paint on it.

Now it's on to some other jobs...

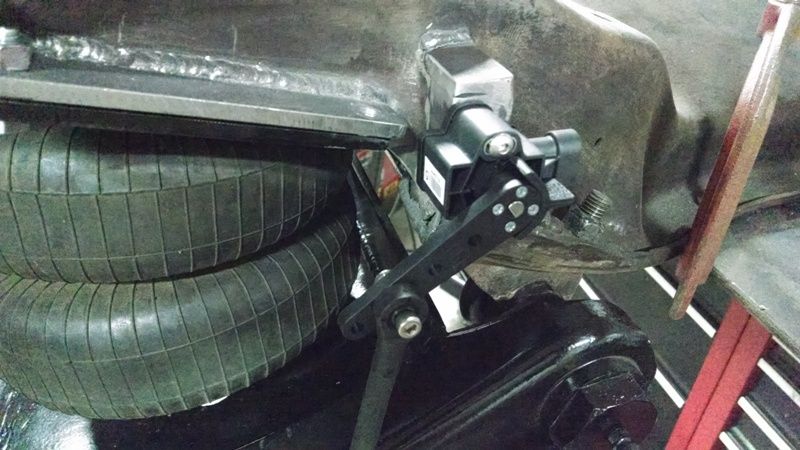

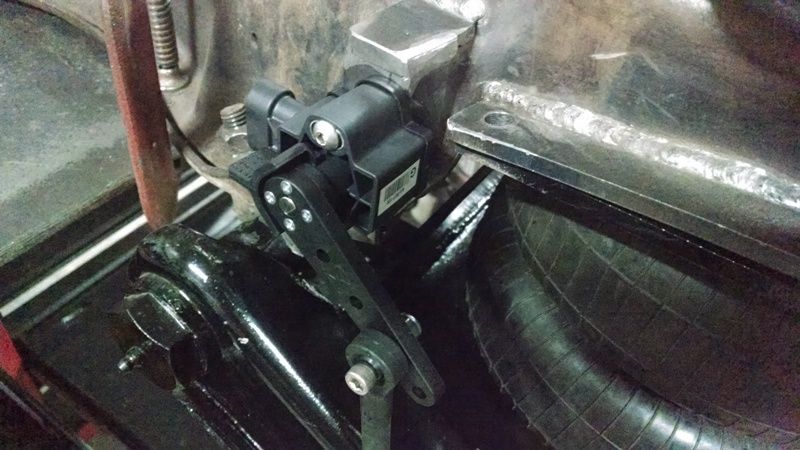

eLevel! Today I have been working on mounting the sensors for my Accuair eLevel system on the front suspension. I have mounted them on the backside of the cross member, and then I drilled and tapped the lower a-arm for the lower mount. I have the passenger side completed, and now I will now copy it on the other side to finish the job.

Not an easy job. Tons of measuring, and quadruple checking everything. Even had to pull the lasers out to make sure I was keeping everything straight, but in the end it moves through the arc very smoothly which makes the whole system function correctly.

I got the drivers side eLevel sensors completed over the weekend. This side took 1/4 of the time, thank goodness something went actually easy for once... Not that this ride has fought me, but more that everything on a 1 ton truck has to be over built (in my opinion). And that takes time...

I got the cross member painted and the holes drilled out for the air lines to exit the cross member as well. I also got the blower box on the firewall painted up as well.

Now my next task that needs to be attacked is all the holes that have to be drilled in the frame so that I can move the cross member up. I have decided to move everything up 1 1/4". Seems like it was the best compromise in the end. I have the passenger side fully drilled out and completed. Now I need to complete the drivers side frame rail, motor mounts, and move the steering box up the same distance as well.

I have decided to push myself to get this truck done by the end of July (budget/job/wife permitting). I am using the Heat Wave show in Austin, TX as my goal. The show is July 26-27, and I plan on being there. So now the crunch is on!

Sweet....my eLevel setup should be here Thursday......I done my front upper bag mounts like yours today and truck lays out nicely.....the oil drain plug on my Cummins is barely off the ground and still don't know if the hood is gonna fit.....always something lol

I can't wait to see how yours turned out. Take some pics and let me know what it looks like. Probably better than mine! LOL!

It looks almost just like yours......I cut mine with the torch though so its a little wavy lol....I'll get some pics this evening

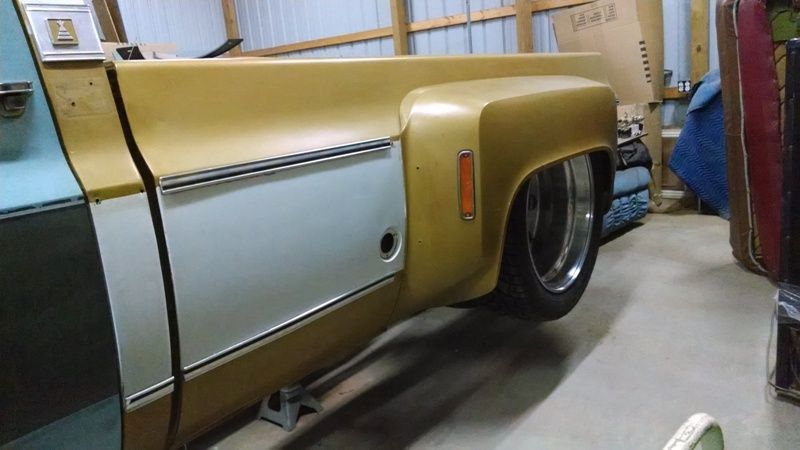

Got all my tires mounted today (finally!). So tonight I put the rear duals on. I was seriously crossing my fingers as I checked out the clearances as I raised the rear end. I was so happy to find out all the hard work paid off!! No clearance issues!!! I have 1/2" total clearance at the top when the rear is at it's lowest point.

The reason for the lack of clearance issues is Tennessee Wheel and Tire machined the face of the rear rims, and that gave me the 3/4" of clearance I needed. I cannot thank Trevor enough. If you want work done for your dually wheels that is the place to go!

I cannot tell you how happy I am that I do not have to modify the rear fenders. That saves me days and days of work. Now I can concentrate on some more important portions of the build.

Stay tuned!

I was working on the balance of the front end tonight. I got the steering box moved forward along with trial fitting the cross member. So far so good. Tomorrow I should have the front suspension completed. I will snap some pics when I get it done.

Nice work man truck is lookin sick anytime I throw my bed on my truck it makes me want to get it done that much worse even though I know it will Probly come off again in a few weeks keep up the work and the pics
