oops...i ripped the front bag mount off

did you cut the frame out and weld the plate in or just go over it

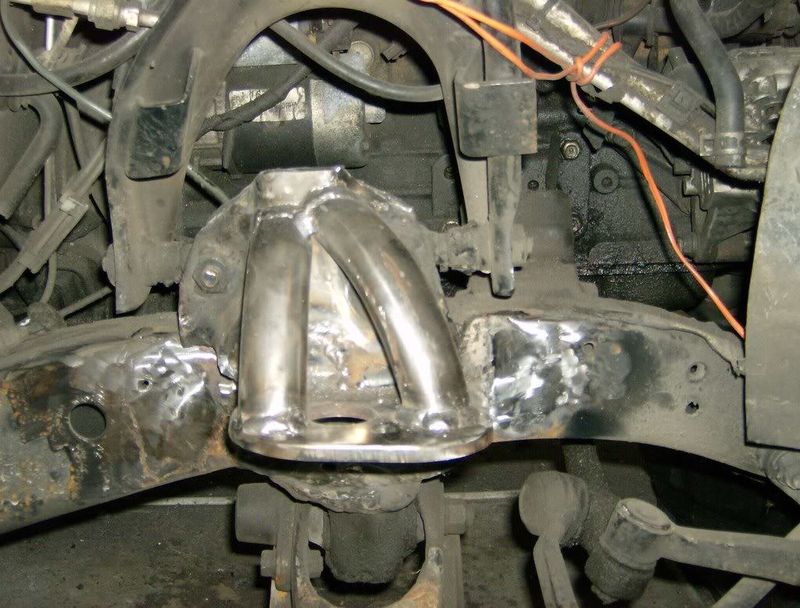

its plated over the frame to reinforce and make it stronger at the attachment point. It is welded all the way around the plate and then plug welded in the middle. When you cut all the stock metal off the frame and then grind it down it weakens the frame in that area and the frame will sometimes rip. I would weld the hole that you were talking about. When you put a stress that close to a hole it cant tear the frame.

can i just plate in between the gustes and around them and weld the brackets to the plates. or cut it all off and start over?

This set up isnt finished yet, it will have gussets down and we are capping the shock tower where we cut it off. Its just an idea i had to try.


THE SLAM SHACK
"COME GET LAID AT THE SHACK"

i like the way it looks, i just dont trust the shock tower for any support. the tubes look sweet though.

after rewelding all the factory seams on the shock tower for strength and running gussets down where else are you supposed to get support from without using the shock tower?

im not trying to critize your work, when my bracket broke it bent my shock tower back past the steering linkage and it was a pain in the but to get it back down to the original spot. thats the reason i put the two gustes running upwards. but im no pro at it as you can see!! the first pic on page one i redid the welds when a good person on here brought it to my attention but the welds didnt penitrate the bracket that well. i think it was the wire i used. when i re did them the second time i used .035 my teacher said it will be strong enough if i put down multible welds to support it, because of my machine being a 110 amp mig.

Is that .035 solid core or flux core?

.035 on a 110 volt should be flux! If your going to use the 110 volt or .035 you need to run flux or go 220 to use such a thick wire!

I would'nt even suggest going to a smaller wire size in solid core for 110 to do this kind of work.

Metal prep is key as well...

I'd hate to say it, but maybe you should rip off the bracket you have on there now and do it right the way we told you with all these pointers!

im taking the truck to a local guy who specializes in bagging and bodydroping. he is going over all my messups and bagging the back with me i have just linked up with him and he does all the baddest trucks around here. i seen alot of his work and it is incredible. if i can get some pics of his stuff ill post them up.

Cool, you'll really learn alot from that guy. I'm sure you don't need me to tell you that though, lol...
