how to: re-index torsion bars (with pics)

Ooo ok. I think there's another half moon type deal with threads that goes on top.

Damn think you could send a pic of it up close so I can rig something alike or try to get the rest of parts

Sure ill try to do it tomorrow.

Wait was there 2 half moons maybe its the nut

Ya there should be 2. One on the bolt head side and the other to thread the bolt into.

Crap I bet the store will never carry them isk what to call em

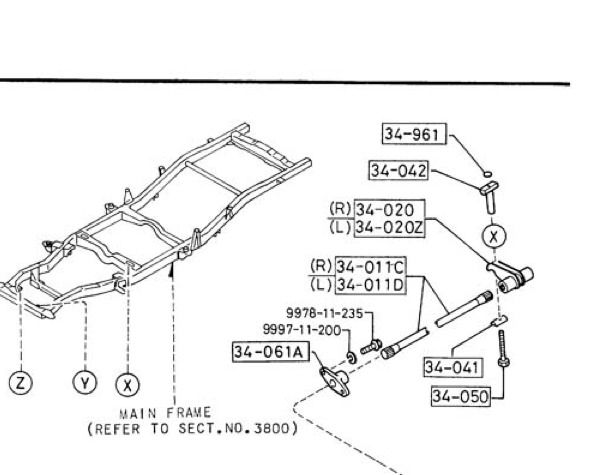

I checked a couple parts explosions and couldn't find them either. Try the dealer or hit the junk yard.

Here it is. It's called an anchor swivel. The P/N on the early trucks is UB3934042A.



I tried to finagle one out the other day but it didn't want to come out easy. I didn't have a lot of clearance to work with either so that was probably my problem. I'll try again to snag some in a week or so and let you know if you still need them.

Also, the lower half moon is also called an anchor swivel too - so be careful if you end up ordering a pair or else you might end up with two more lower halves.

Thank you! I stripped out my upper anchor and right now is got a bit and nut holding it... need to replace asap. Any one ever order one??

sent while peering deeply into my soul.... trying to find that lost apex seal again.....

so doing the re-index on the bars lower the just the front or the whole truck? going to attempt to do this
