Mazda Projects \  My Build (updated 9/16/07 )

My Build (updated 9/16/07 )

Mazda Projects
views 9147
replies 50
following 20

phatkix   +1y
looks good, i like the color.
mosher   +1y

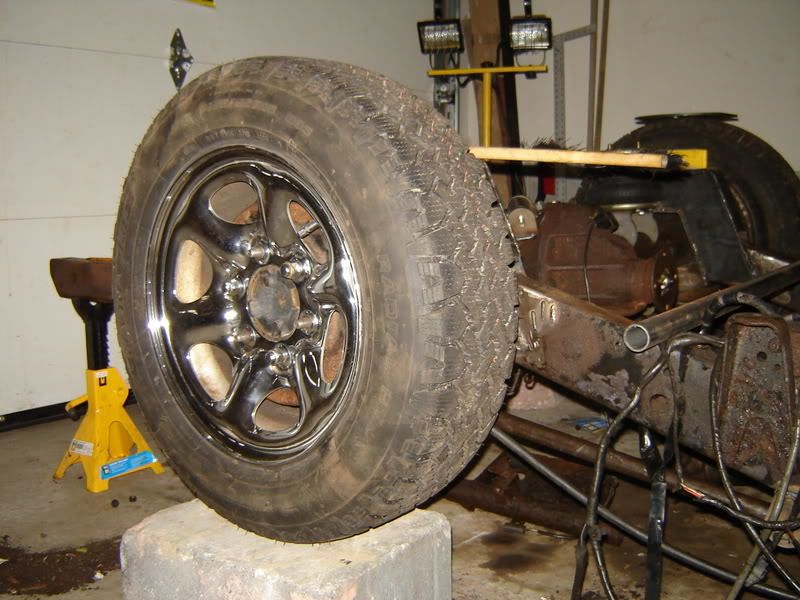

here's an up date on the truck so far.....

thread post photo
mosher   +1y

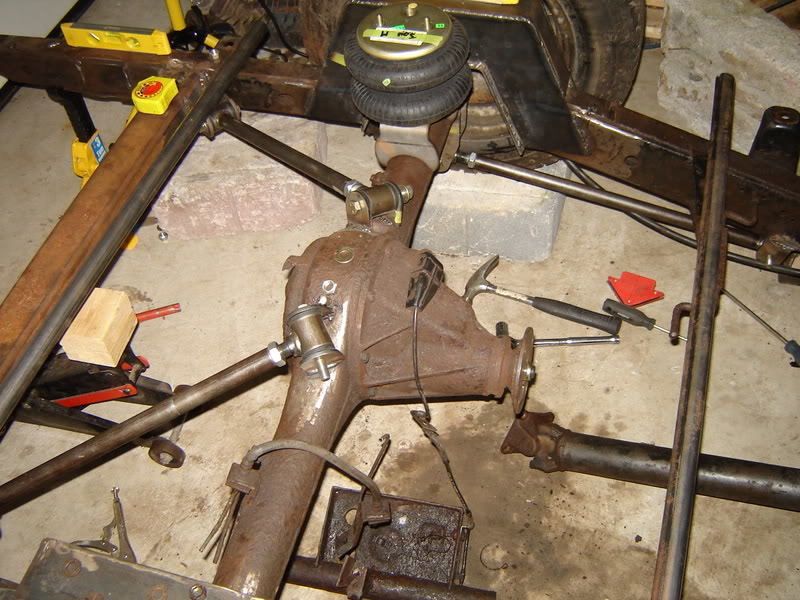

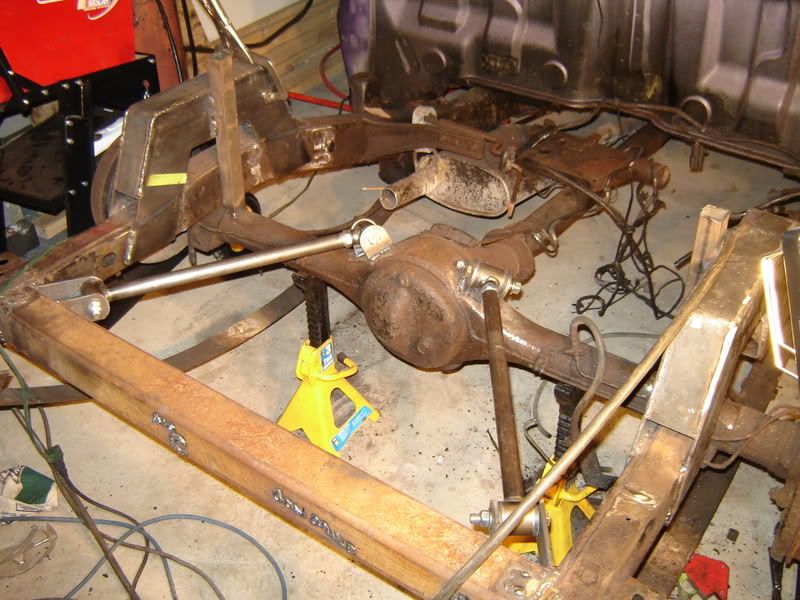

got the 4 link done and the notch just gotta do the crossmember
also ordered my air compressor and stuff should be in some time this week

thread post photo


thread post photo
twisted minis   +1y
Your upper bars are going the wrong way.
gravity5   +1y
I won't even say it.....but your gonna hate the spilt 4...I have it on mine and I dread it every day....forward next time.....but progress is looking good though.
maztang (ryan)   +1y
looking damn good bro. i also hate the 50/50 4 link. my truck wobbles all over when i am driving down a rough road. but it is coming along nicely bro.
jsnpdy22   +1y
I hate the 50/50 4 link also, had to learn the hard way. I had to much pinion angle when aired up. I cut it off and moved the upper bars forward. Only have about 1 degree in pinion angle change now.
madmazda   +1y
Looks good...Didnt you buy that thing off Richie? on this site?? I was gunna buy that truck, its Lookin good though, Keep us posted on updates.
mosher   +1y
yes i got the truck off richie and for the angle is good at frist it was bad then after adjusting the bars now its good
twisted minis   +1y
I'm not talking about the angle. A 50/50 setup will not deliver power correctly to the frame. a Full reverse (although still not great) will work better than a 50/50 setup. However you should try to always run all the bars forward, or at least in the same direction.
