Hey, everybody! I bought my first truck, a Mazda b220 standard cab, in about november of 2007. I used to be into the Euro scene around my area, and Ive tweaked a few vws. But now its time for somethin different. A few of my buds are into minis, and Ive been knocking some ideas around with them for a bit. Finally, I decided to get a truck of my own, and see what I could make of it. A few friends chipped in, and we are renting some shop space, where we are hackin on my truck and my brother Robs 97 cavalier.My friend Jon and him have been a huge help in keeping this progect going, both hands-on, and helping figure everything out. Thanks guys!
Anyways, heres some pics... Shes still a work in progress!

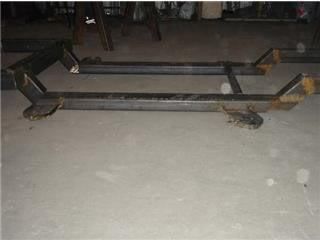

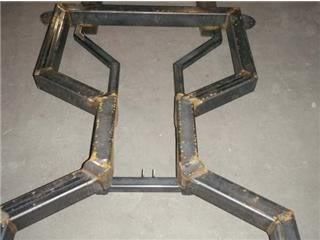

Heres the frame. We jigged and built it at my work over the Christmas shutdown. Its mostly 3x4x1/4 tubing, seal welded, and drilled at intersections
://i196.photobucket.com/albums/aa311/mrbobatari/mazdaframe5.jpg

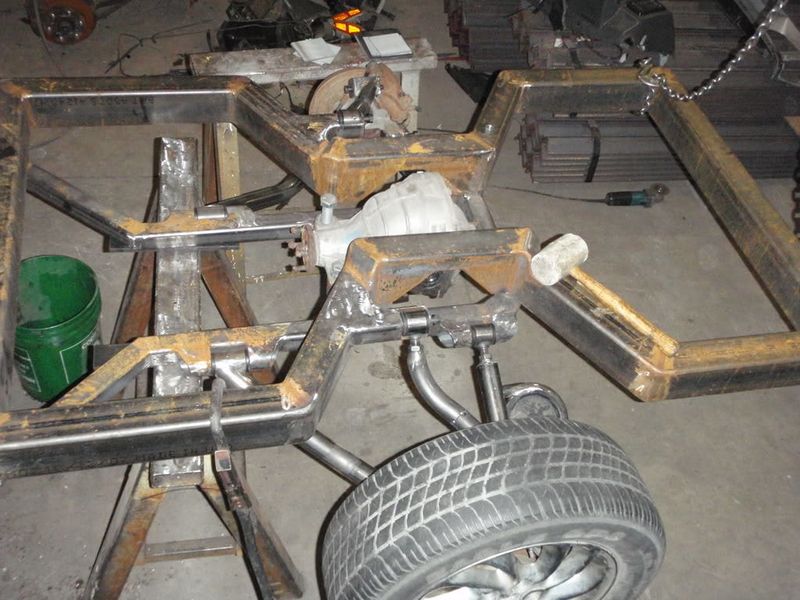

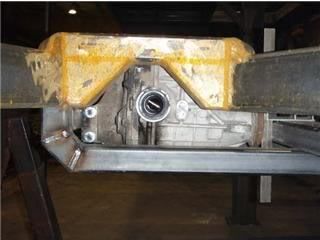

The diff bolted in place

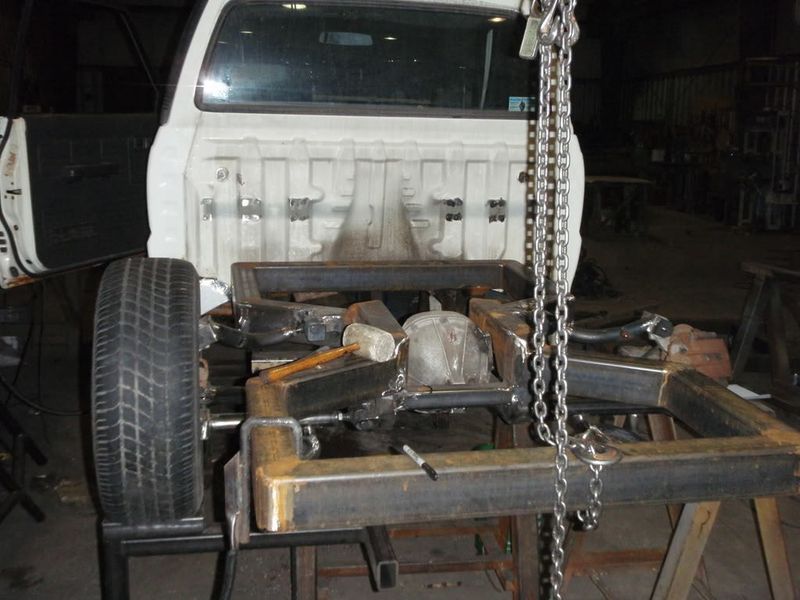

Working on the rear suspension

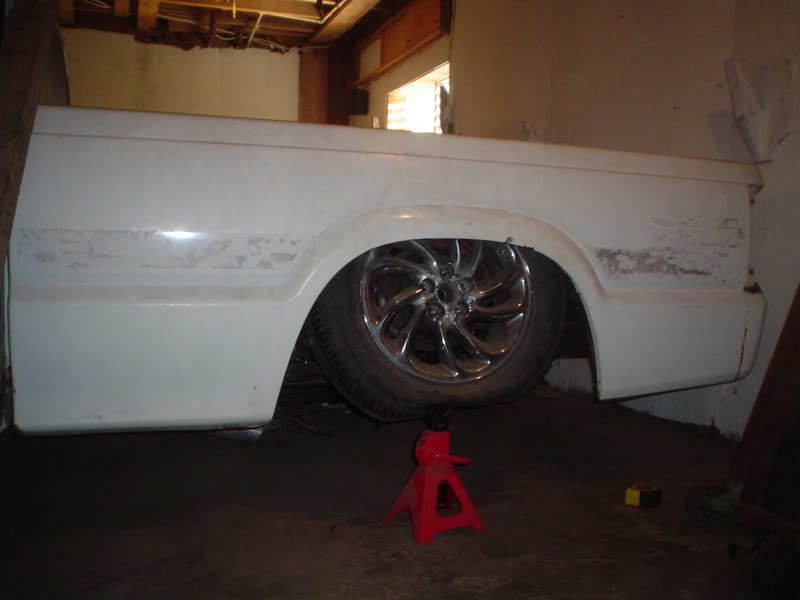

Making way for 225/60/16s (about the same OD as 20s) and a bit more motor

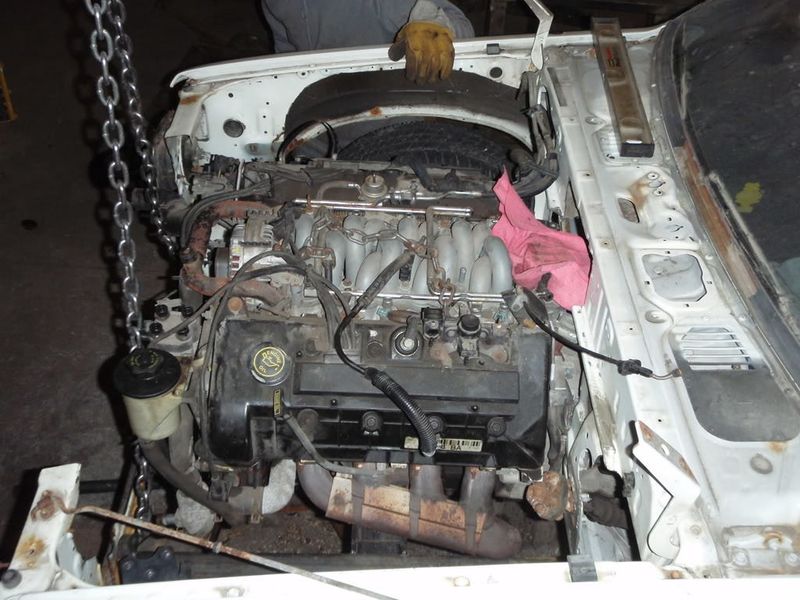

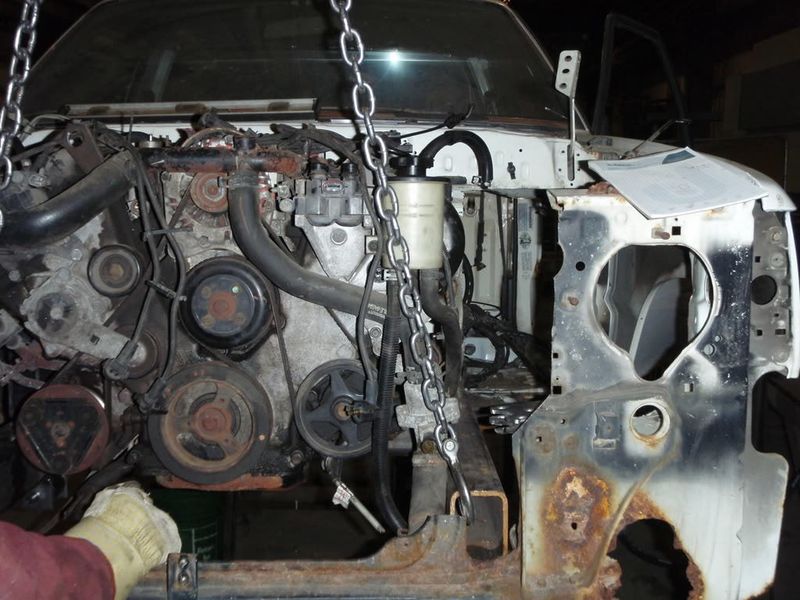

The new engine (the entire driveline is from a 93 Lincoln mkVIII). It fits under the stock hood with only minor trimming, and the bottom of the oilpan sits about 3/4 inch higher than the bottom of the frame.
Fitting up the front suspension

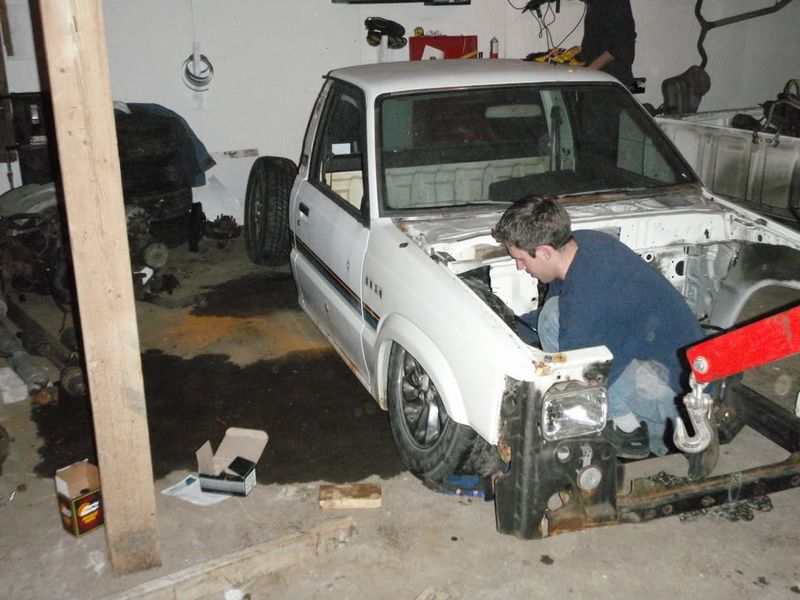

Home sweet Home! Back at our shop for body and suspension work!

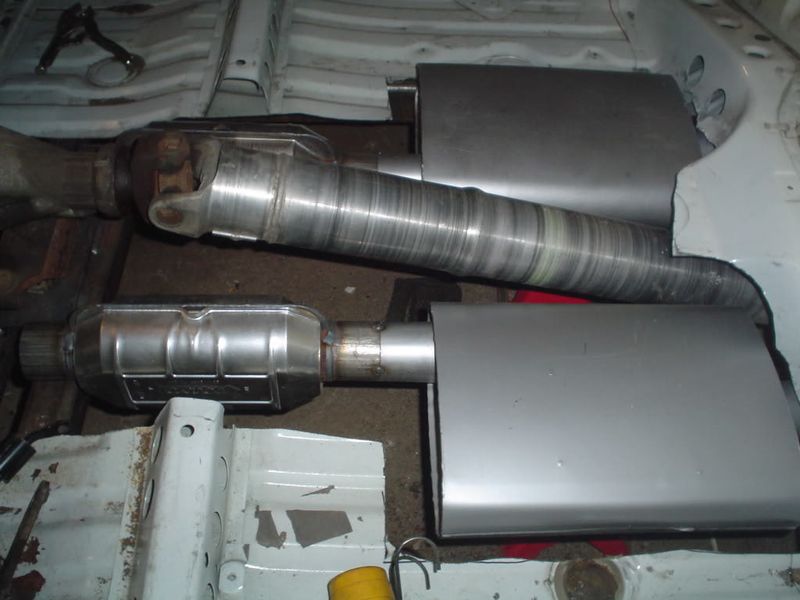

Set up for dual exhaust (in the lincoln, this is good enough for 300bhp)

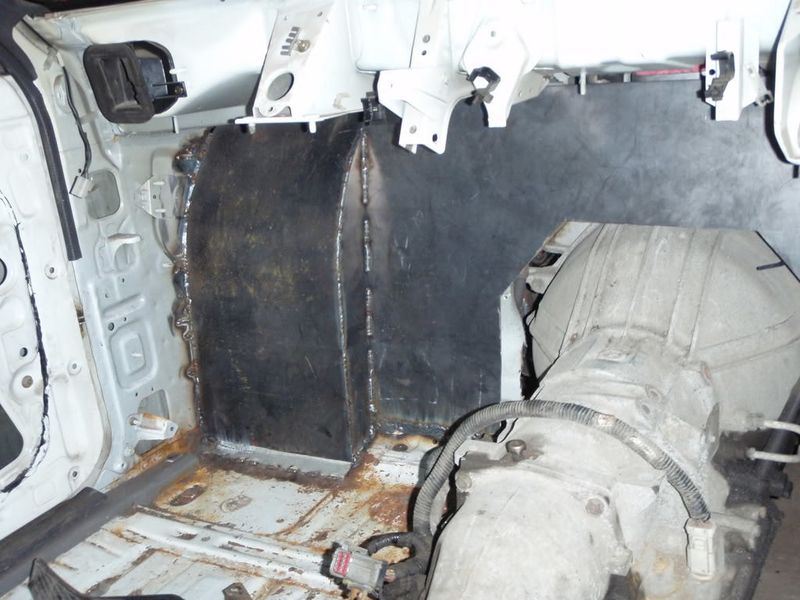

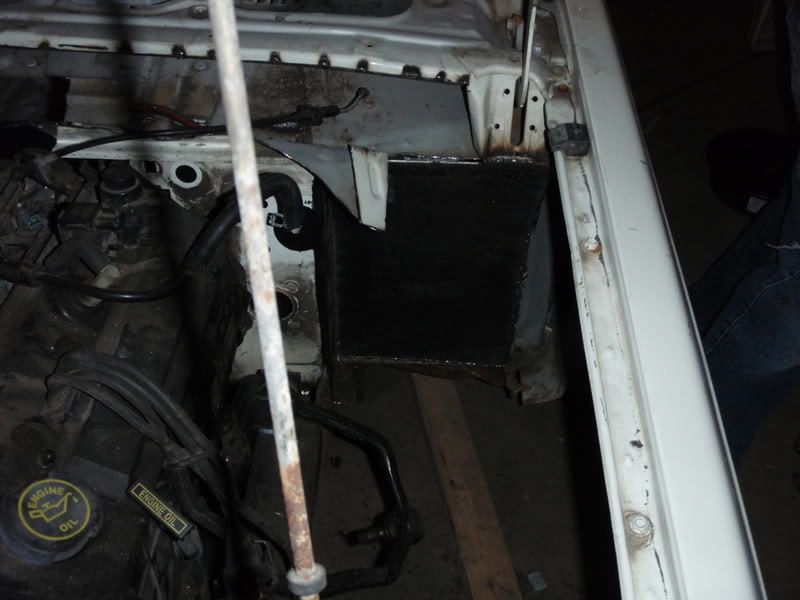

Smoothed firewall and wheeltubs
no room for a brake booster or master so they are stashed under the dash, operated by a cantilever system
The tilt bed setup
We are using the factory wiring to run it. In retrospect, it would have been a lot easier to do a 5-0 carbie!
A shot of the sub box. It fits snugly behind the factory rear seat from the Lincoln, which Im using for my seat. You can see a bit of the work to the floor area under the seat to make room for the mufflers, and to hide the amps.
We are currently reworking the front and rear suspension stuff to get it to lift a little more. We plan to lay rocker over 20s, with the stock floor BD, and the stock bed bottom. The bed needs only 1/4 inch ground clearance when tilting.
Thats all for now, I will try to keep updates coming as much as I can
Thanks for looking!
Anyways, heres some pics... Shes still a work in progress!
Heres the frame. We jigged and built it at my work over the Christmas shutdown. Its mostly 3x4x1/4 tubing, seal welded, and drilled at intersections
://i196.photobucket.com/albums/aa311/mrbobatari/mazdaframe5.jpg

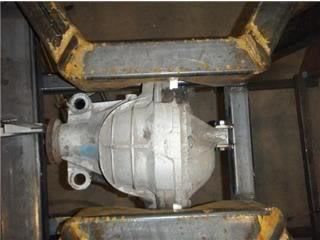

The diff bolted in place

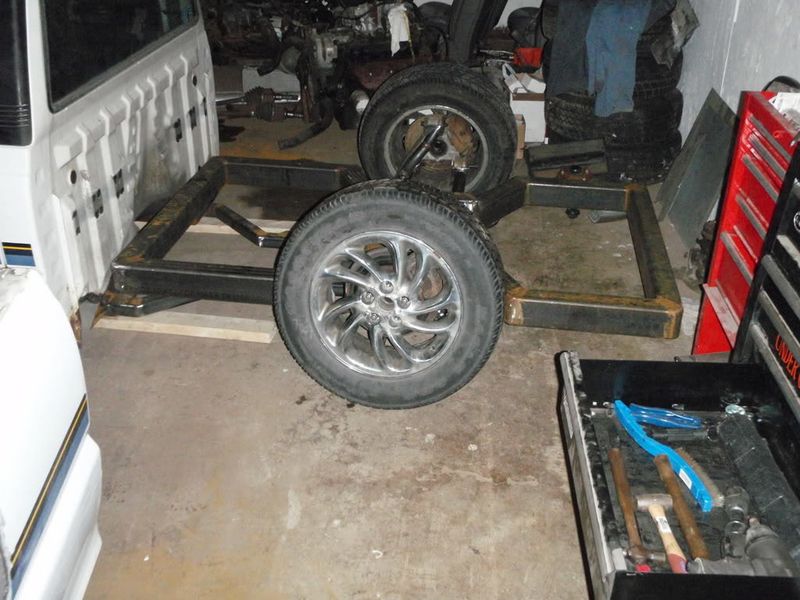

Working on the rear suspension
Making way for 225/60/16s (about the same OD as 20s) and a bit more motor

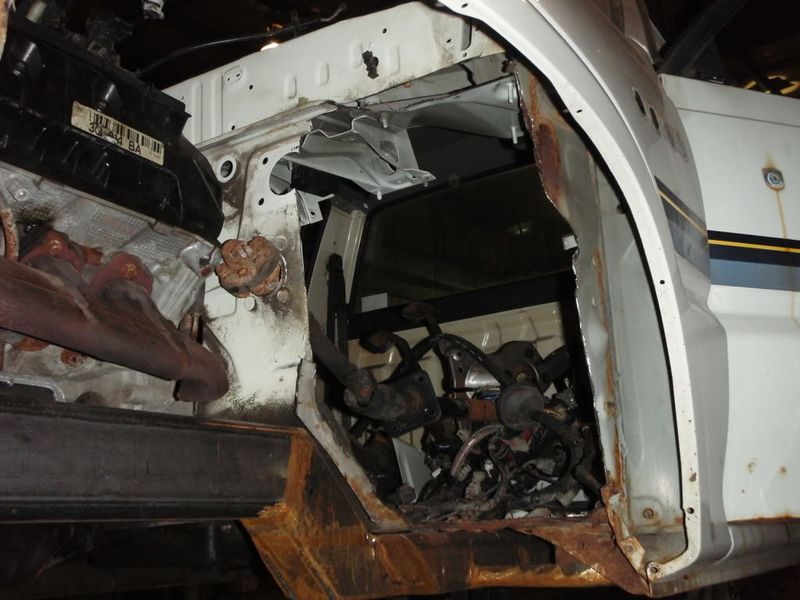

The new engine (the entire driveline is from a 93 Lincoln mkVIII). It fits under the stock hood with only minor trimming, and the bottom of the oilpan sits about 3/4 inch higher than the bottom of the frame.
Fitting up the front suspension
Home sweet Home! Back at our shop for body and suspension work!

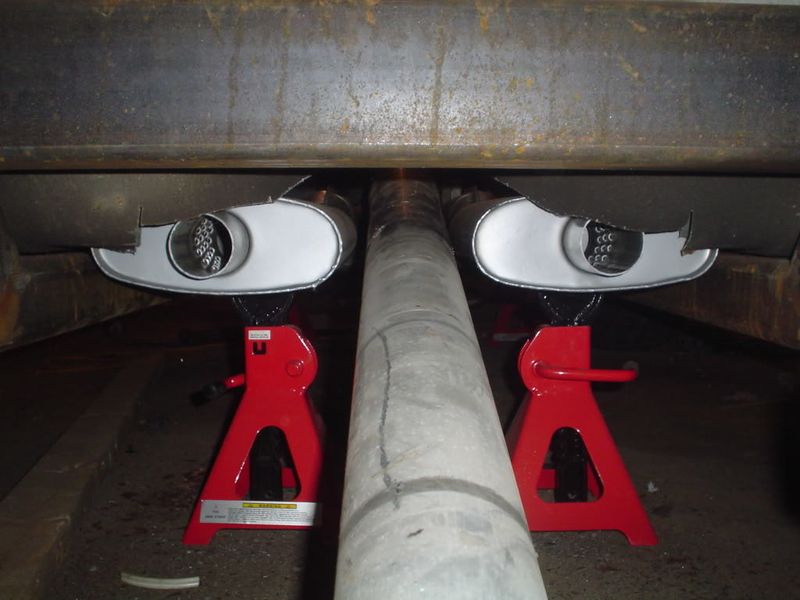

Set up for dual exhaust (in the lincoln, this is good enough for 300bhp)

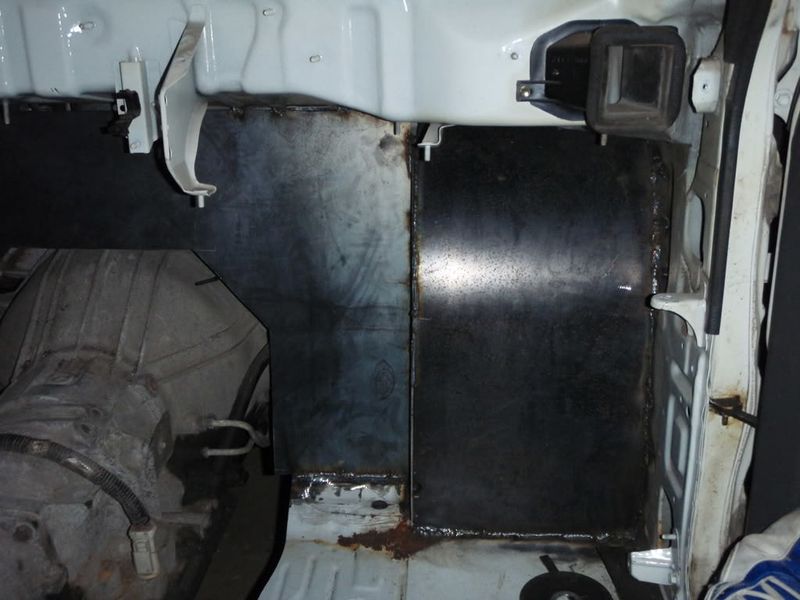

Smoothed firewall and wheeltubs

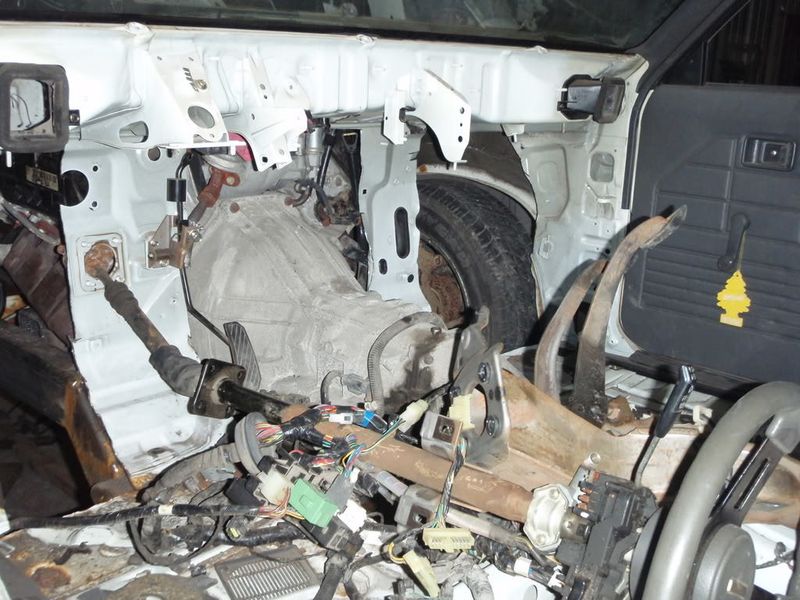

no room for a brake booster or master so they are stashed under the dash, operated by a cantilever system

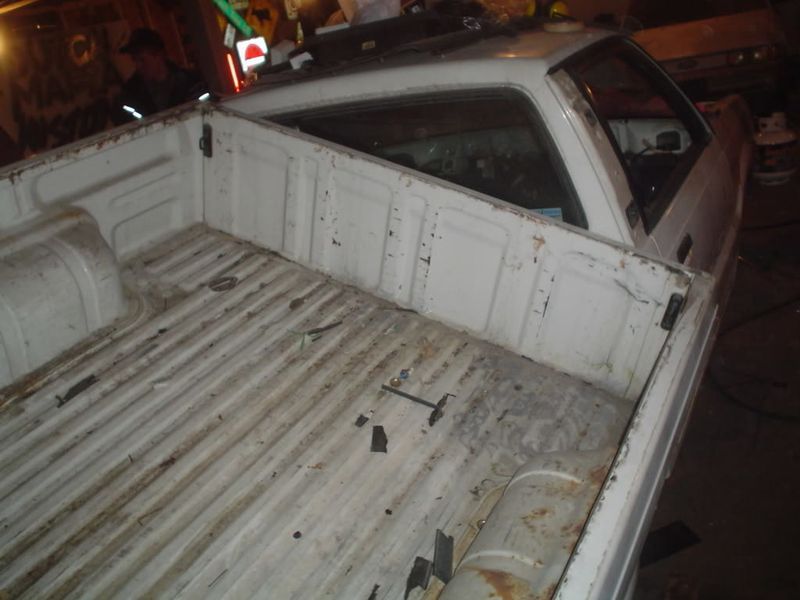

The tilt bed setup
We are using the factory wiring to run it. In retrospect, it would have been a lot easier to do a 5-0 carbie!

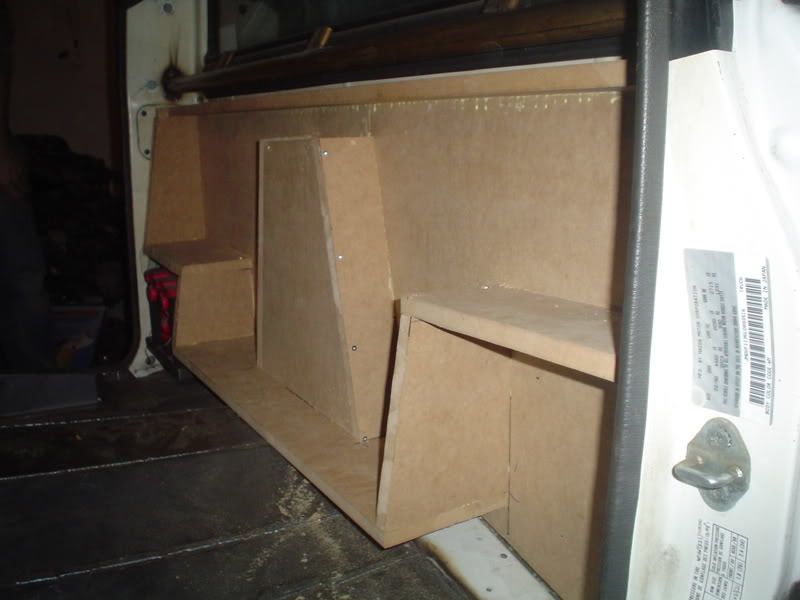

A shot of the sub box. It fits snugly behind the factory rear seat from the Lincoln, which Im using for my seat. You can see a bit of the work to the floor area under the seat to make room for the mufflers, and to hide the amps.
We are currently reworking the front and rear suspension stuff to get it to lift a little more. We plan to lay rocker over 20s, with the stock floor BD, and the stock bed bottom. The bed needs only 1/4 inch ground clearance when tilting.
Thats all for now, I will try to keep updates coming as much as I can
Thanks for looking!
Post was last edited on Nov 06, 2009 12:11. This post has been edited 2
times.
maztang (ryan)
+1y
holy hell man. this is a badass truck. very nice work and i can't wait to see more pics. nice job!
elbine69
+1y
^^What he said. That thing gets wicked camber in the back and looks so sick. And welcome to the site
dmkustoms
+1y
Thanks Guys! Went to the shop, put in a few hrs on front suspension. We finally got it to cycle properly, and get enough lift to clear the wheels. I can turn my front wheels! While we were there, I grabbed some shots.

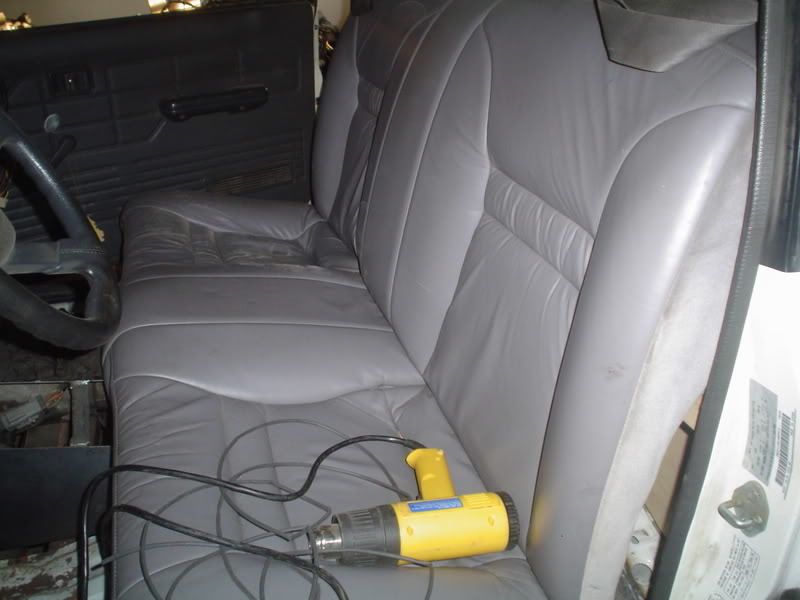

Heres the seat from the Lincoln. It had to be narrowed a little on the bottom so the doors could close.

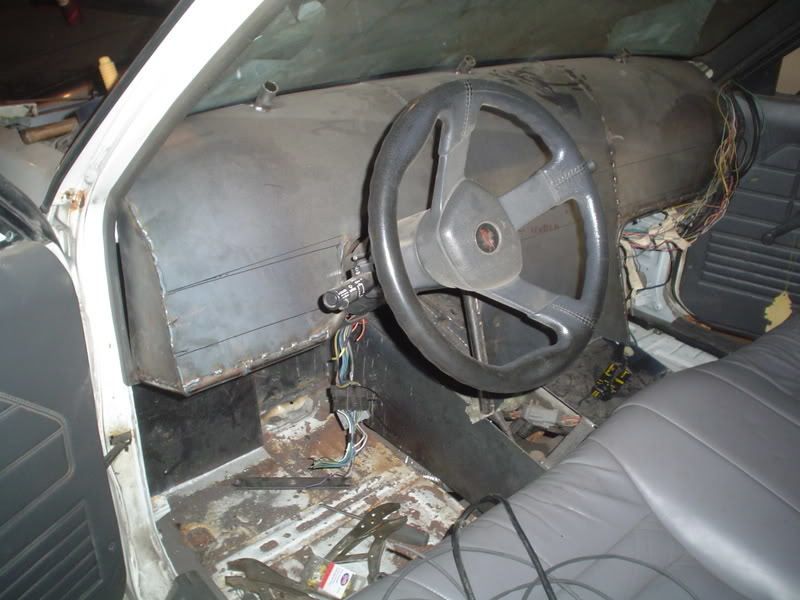

A shot of the sheetmetal dash and steering column out of a Lumina van I wanted a column with a shifter and minimal switches, plus a wide variety of aftermarket steering wheels.

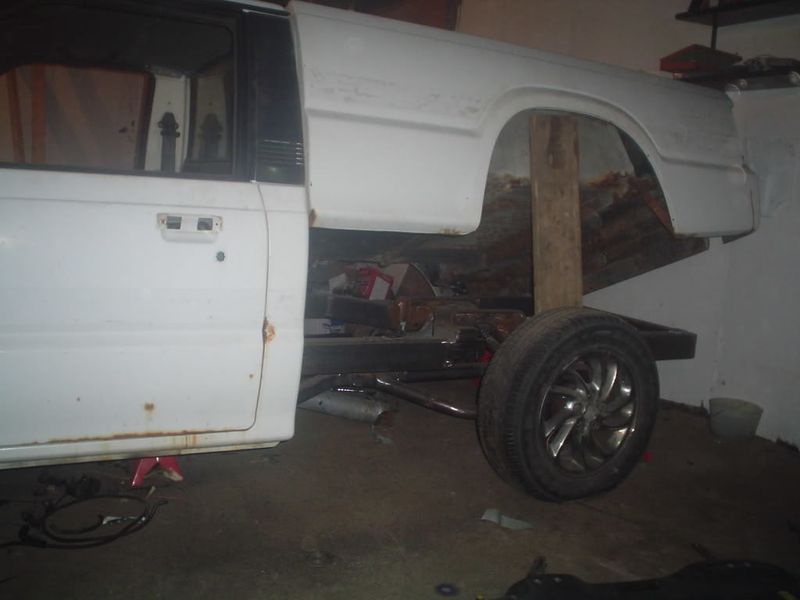

And heres a pic of the wheel lifted into the rear well (yeah, its flat, but you get tghe idea)
