Immortal1 - Round 5

That is sick bro! I love it.

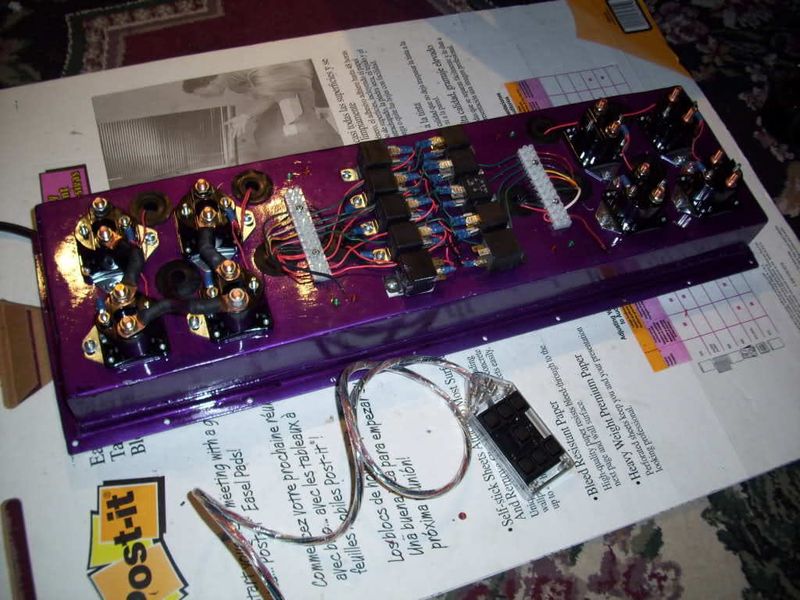

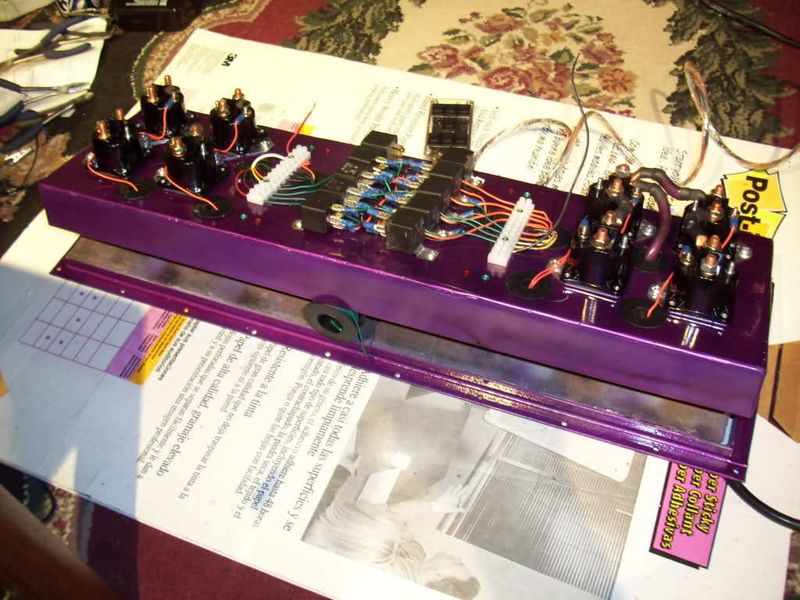

Well I guess it's time for another update. Almost have the rear cylinder mounts complete (will have pics soon). Since the weather has been very uncooperative (cold) I've been working on the battery hold down / solenoid setup. It's not quite done yet but you get the general idea. Refer to the previous pic showing the batteries - the following basically is bolted down overtop of the batteries. The upper box is hinged to allow access to the batteries for charging. Eventually I will have a plexy glass box built that will go over the entire solenoid / relay assembly. Oh, and thanks DEV, the AVS controller works perfectly.

Looks great Linn

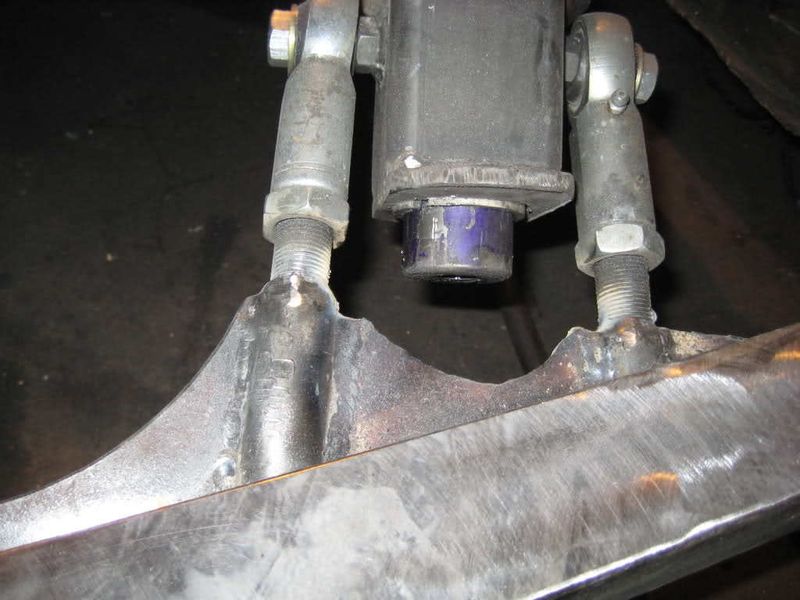

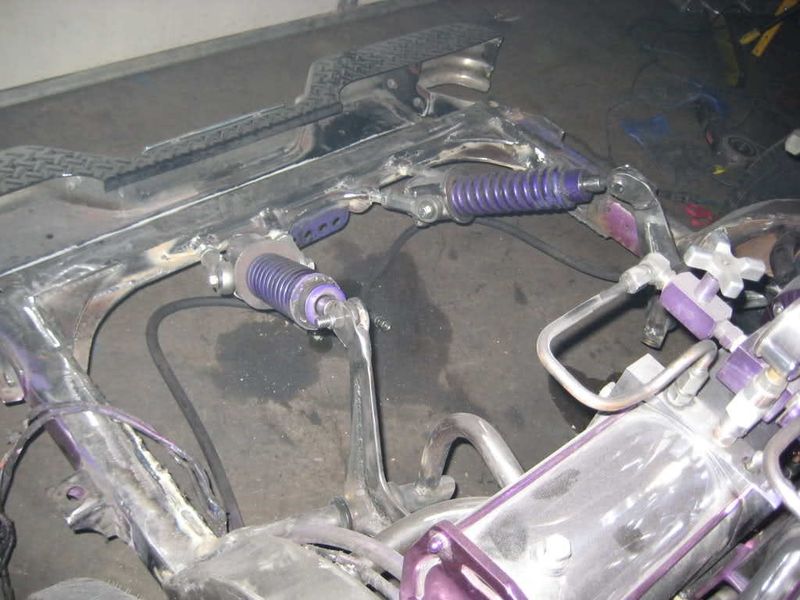

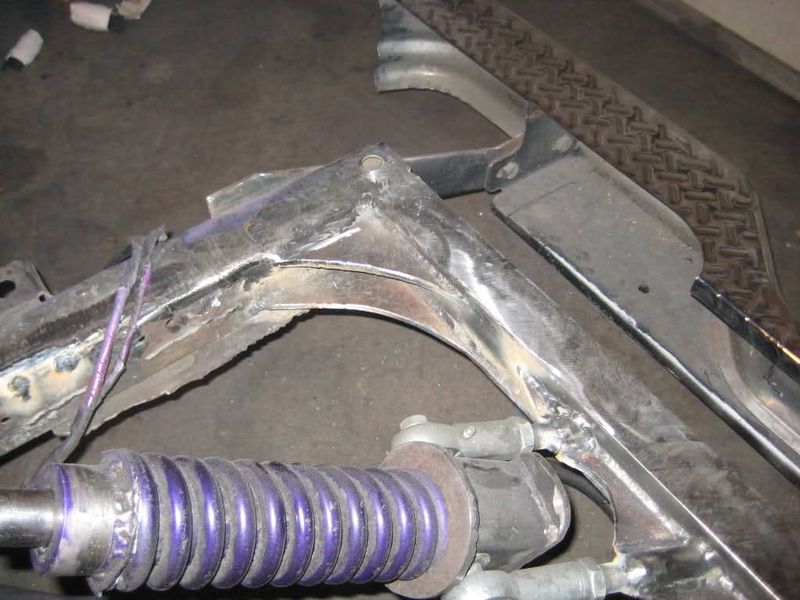

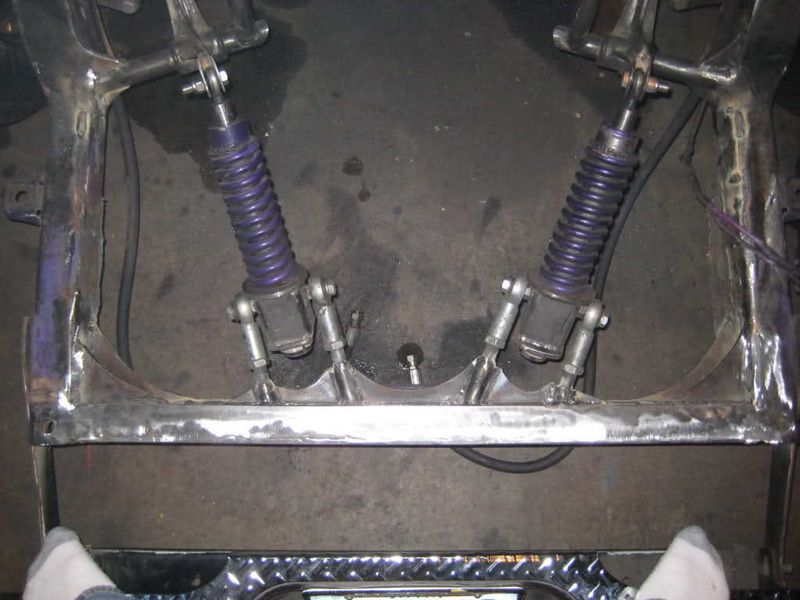

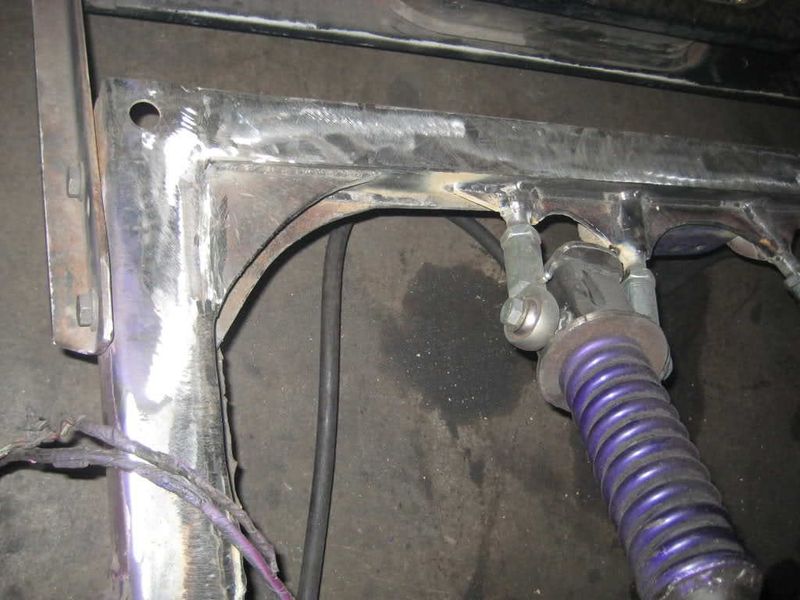

Guess it's time for another update. Finally finished reinforcing the rear cross member where the cylinders mount. Haven't cleaned it up much but you get the general idea. Will eventually do a techi on the slide mounts for the cylinders / springs. Still need to fab up mounts for the shocks so I guess that will give em something to finish and post on New Years day (assuming my head does not hurt to much LOL)

wow that looks awesome... thats alot of solenoids... how many switches? oh and post more pics of the canti set-up

A few new pics for the whores LOL. Will have more by Sunday.

Dude a cantilever set up with hydros must equal insane lift. Looks good man.

Thanks Jeff - not sure on the total lift but it should be around 9-10" depending on how much the spring compresses as the back end goes up. The suspension should get progressively stiffer as it goes up.

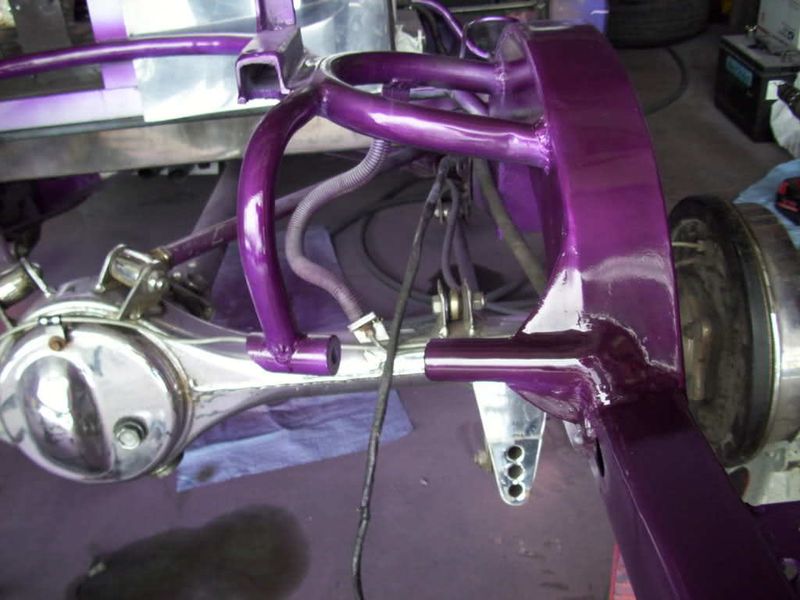

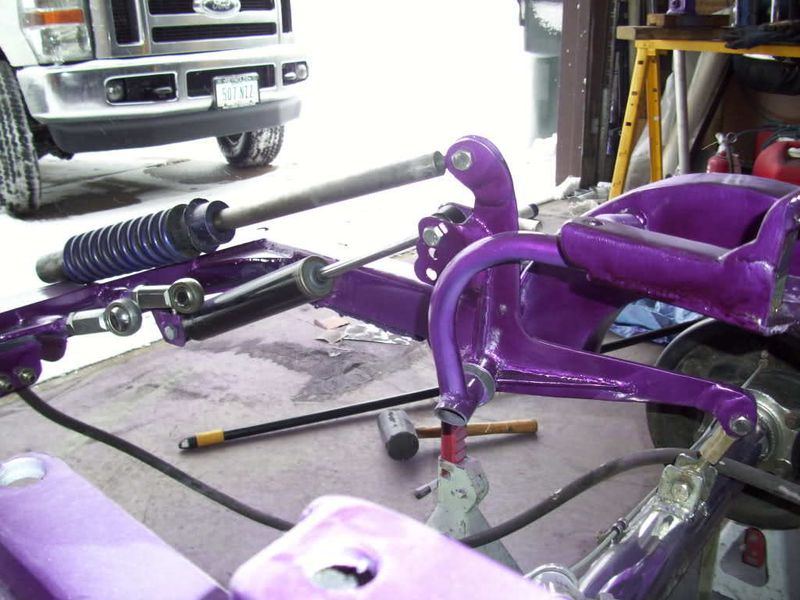

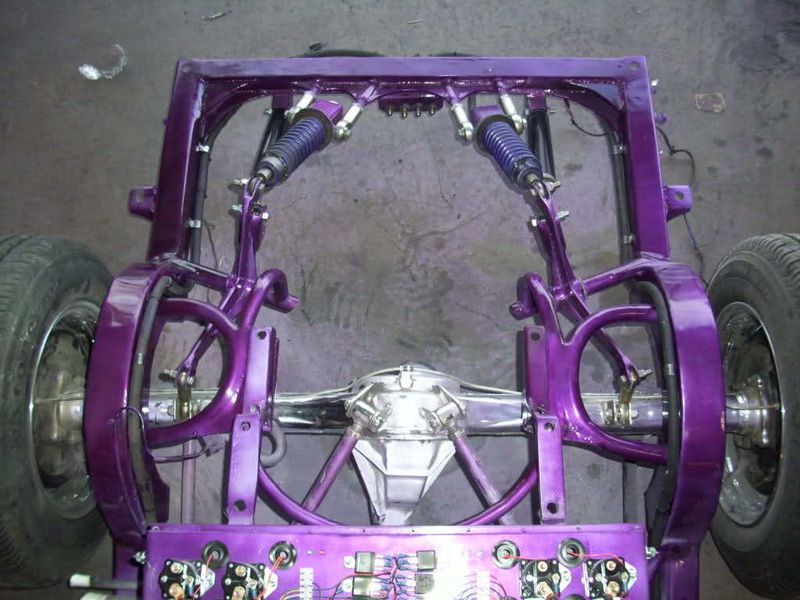

Overall pic of the progress so far. Let me know what ya think - good or bad.

One other note - the bar that is directly over the front part of the cantilever is basically the limit stop for up and down travel.

looks sick .especially a hydro set up like that ,awesome,more pics

the whores enjoy the pics so far, looks awesome Linn.
