B2200 Rebuilt top to bottom and going low!

no i plan on adding them in... didnt even think about needing to weld in the shock mount to the lca before painting it..... but i deff plan on adding them.... its my first build so i tend to over look things sometimes and have to go back and fix it

cool deal.

ok everyone im back.. i took a little time off had to buy a new daily driver, and then dump a ton of money in to it and i dont think thats over yet lol i just got a 2000 ford explorer awd xlt... nice truck has leather and all power options... but being me i had to replace damn near everything in the front to make sure noting was broken... so now im back and ready to work the the b again im broke now, but have plenty of things to do that are cheep to keep working on so hopfuly updates will follow soon.

ok ok its been a while... but here's a few pics of some of the parts i painted this week, the going has been slow, because of all the repairs i had to do to my new daily driver... but all that's left with that is dropping the trans. and replacing the torque converter... and then hopefully the repairs are done anyway back to the Mazda... here's the pics.

sorry for the crappy pics... it was bad lighting in the garage tonight.

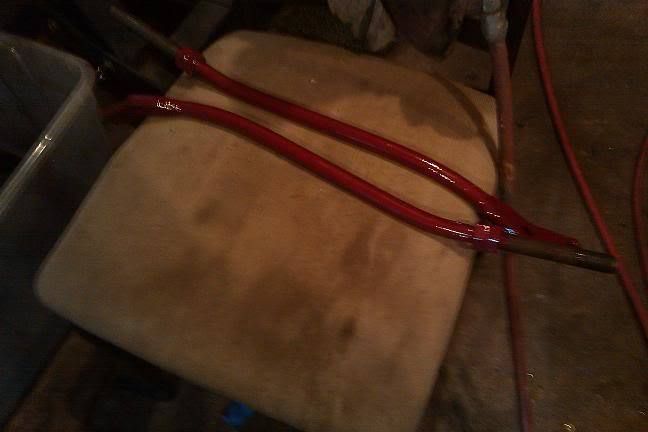

here's the tension rods painted

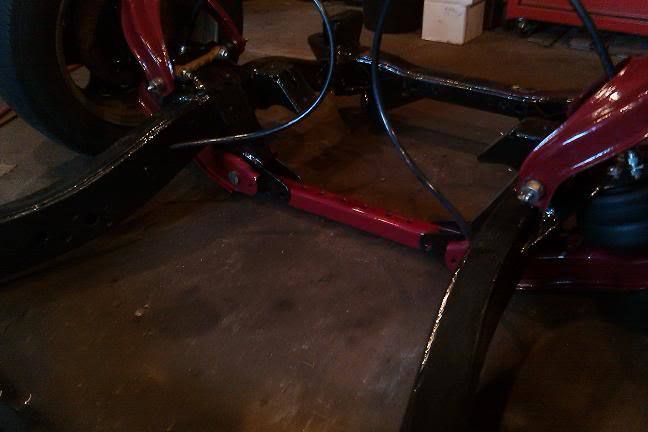

the front oil pan cross member painted

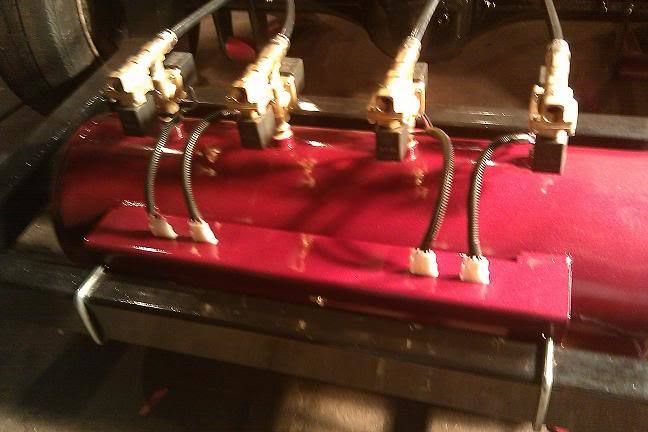

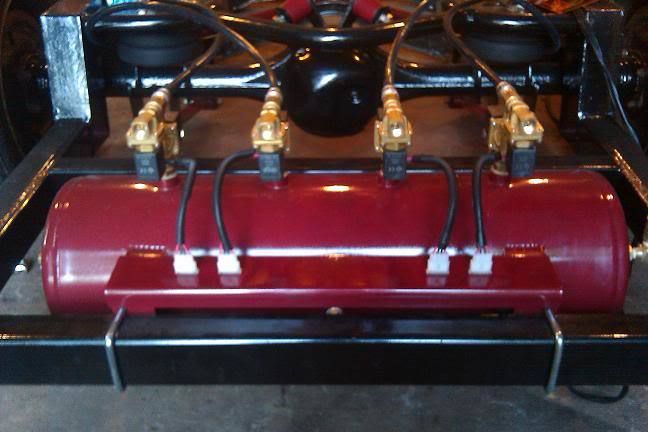

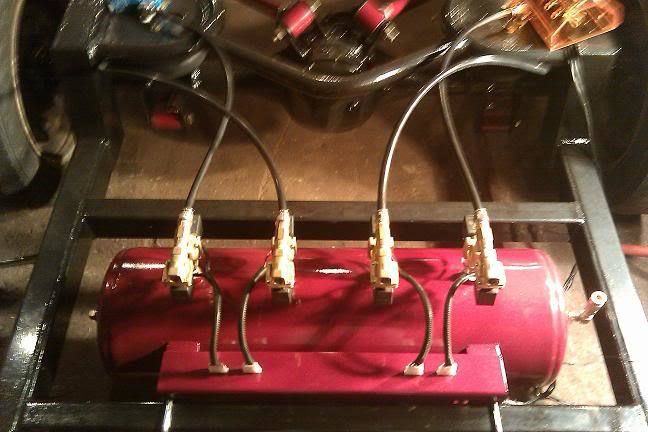

and here's the part i like the best... i made a cover plate for the rear section of the air tank to harness all the electrical lines for the valves

wow thats lookin titz

yeah man that is definately clean

Bad ass!! I just read this whole thread and I must say you are really hitting all the details most over look. Great job on the valve wiring!

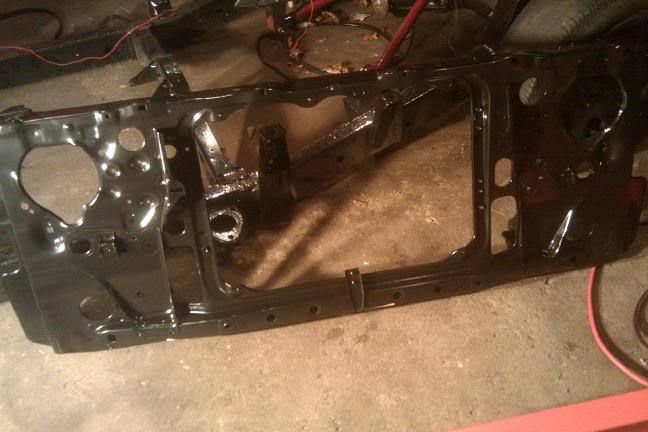

wow its been a long time... well I ordered my radiator support, and now I'm working on getting some body mounts, and building the front end of the body. I found a shop that will sand blast the whole body for $350, which I think is totally worth not having to sand both the inside, outside and remove any rust... but anyway here's the new radiator support

ordered my body mounts for under the radiator support yesterday, they should be in tomorrow, but im going to have to fab my own cab mounts due to how the dealership wants for new ones. anyone have any ideas on how to fab some new ones up? im ust planning on taking the old ones out getting some specs on them and using universal bushings with custom mounts but any other ideas will be helpful thanks

hey can you take pis of the back side of the rad support thanks
