You can disconnect that sensor on the pumpkin. Then unplug the box under your driver's seat. That is the ECU for the ABS. The ABS valve mounted on the frame can be removed and the rear lines plumbed with a t fitting. I relocated mine on the frame notch on the first build, then removed it entirely. I never noticed any difference in the way the brakes operate.
mazdadropped
+1y
Cross member

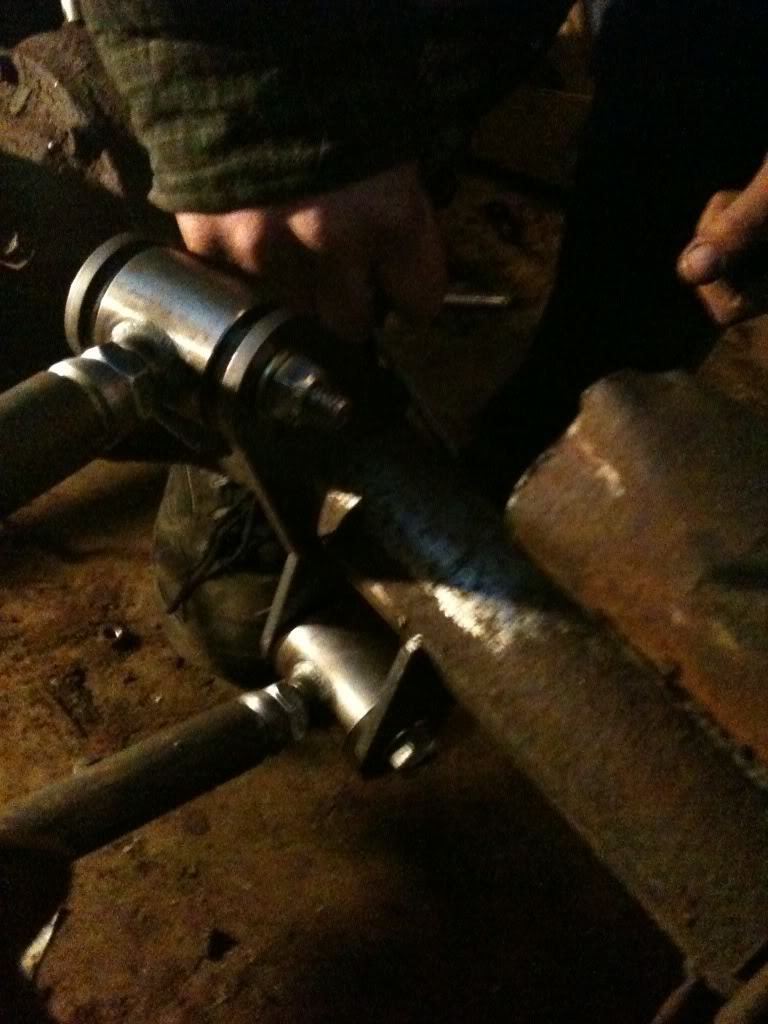

bar cut to size , bushing put in
Tacked in place, you can see the second ones also ready to be tacked in place
sorry about the shitty cell phone pics but next weekend the frame will be gone
and the lower bar will be tacked and the top bars will be tacked in and everything will be welded
Thats what u guys get for pictures at 6 am,working all night and lots of drinking and smoking but i can assure u they are in proper position
Cross member
bar cut to size , bushing put in
Tacked in place, you can see the second ones also ready to be tacked in place
sorry about the shitty cell phone pics but next weekend the frame will be gone
and the lower bar will be tacked and the top bars will be tacked in and everything will be welded
Thats what u guys get for pictures at 6 am,working all night and lots of drinking and smoking but i can assure u they are in proper position
mazdadropped
+1y
More Photos : yes crappy cell phone pics but when the gas tanks hooked up again and its mobile u guys will be able to see what it accually looks like but in good qaulity but not untill i finish the rear frame who wants to see a 4 link with stock frame and suspension right ? also i like the shitty pictures kinda keeps u guessing on whats going on enjoy for now
mazdadropped
+1y
its ten inchs off the ground might cut into the bed floor and put the fuel cell infront of it
hunterw
+1y
the xmember looks good. i always liked that look. btw...your not going to put your upper link arms at that agle are you? its just sitting there i hope haha. everything looks great though man. im glad you are finally getting to work on her
mazdadropped
+1y
lol no the upper arms arent going where its sitting in the pic thats accually the lower bar already tacked in the proper spot and glossy black frame or brown not sure which either way engine bay interior and frame will be ll the same colour maybe raw with clearcoat ?
mazdadropped
+1y

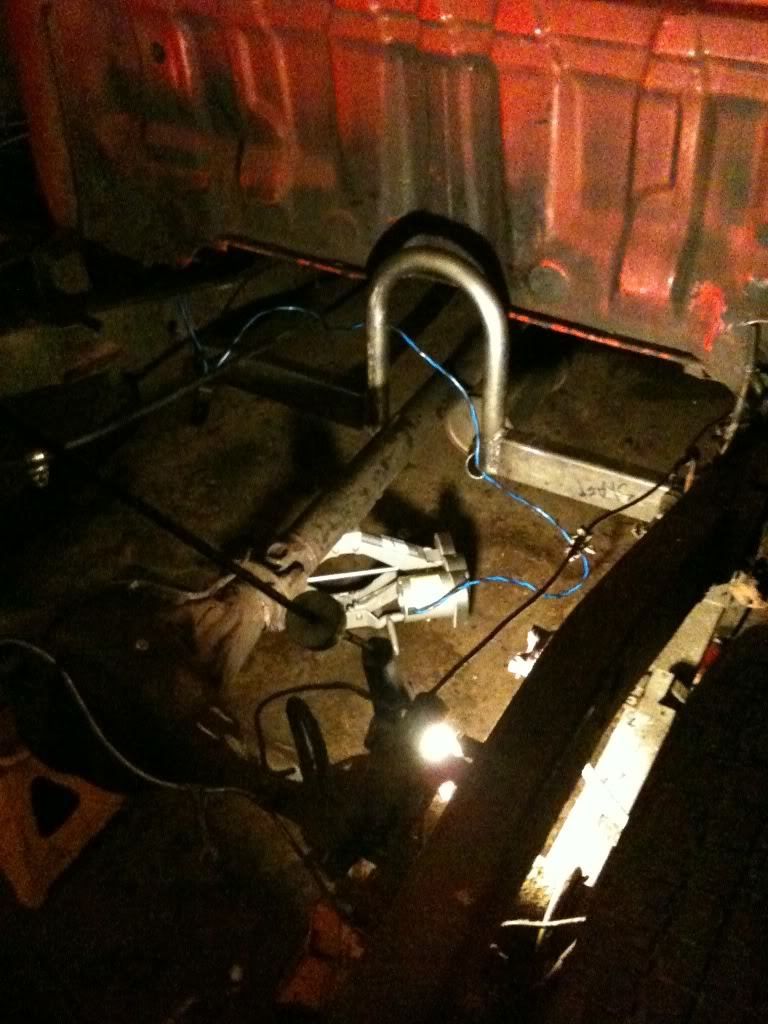

Lowers tacked in place

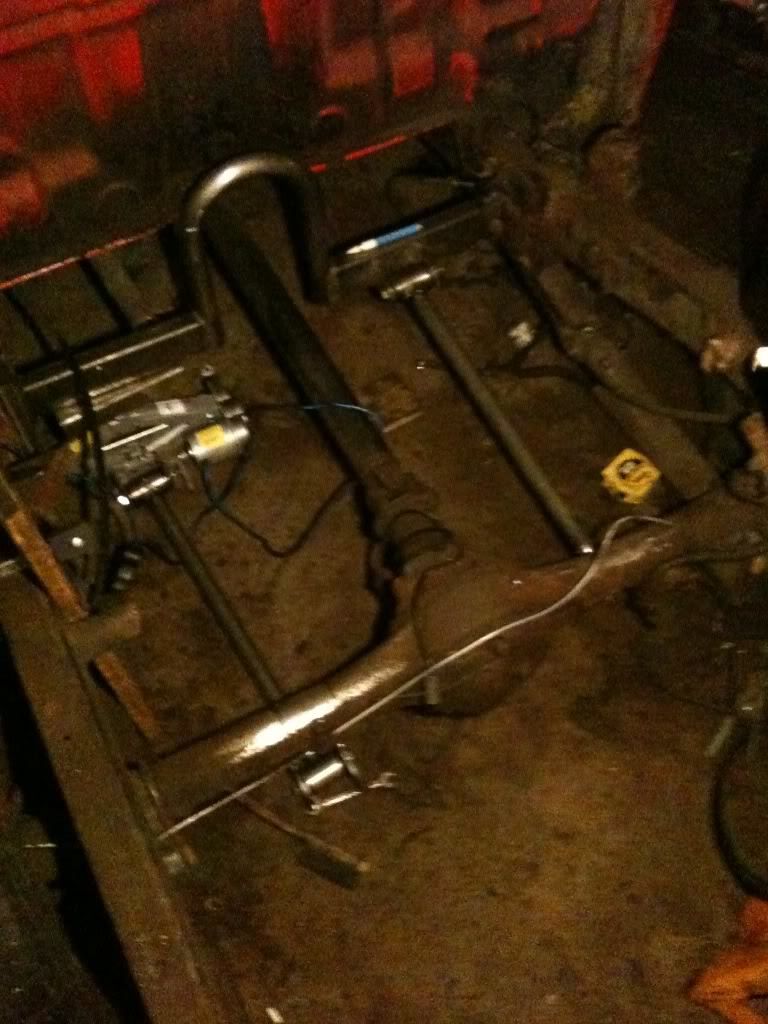

Lowers again

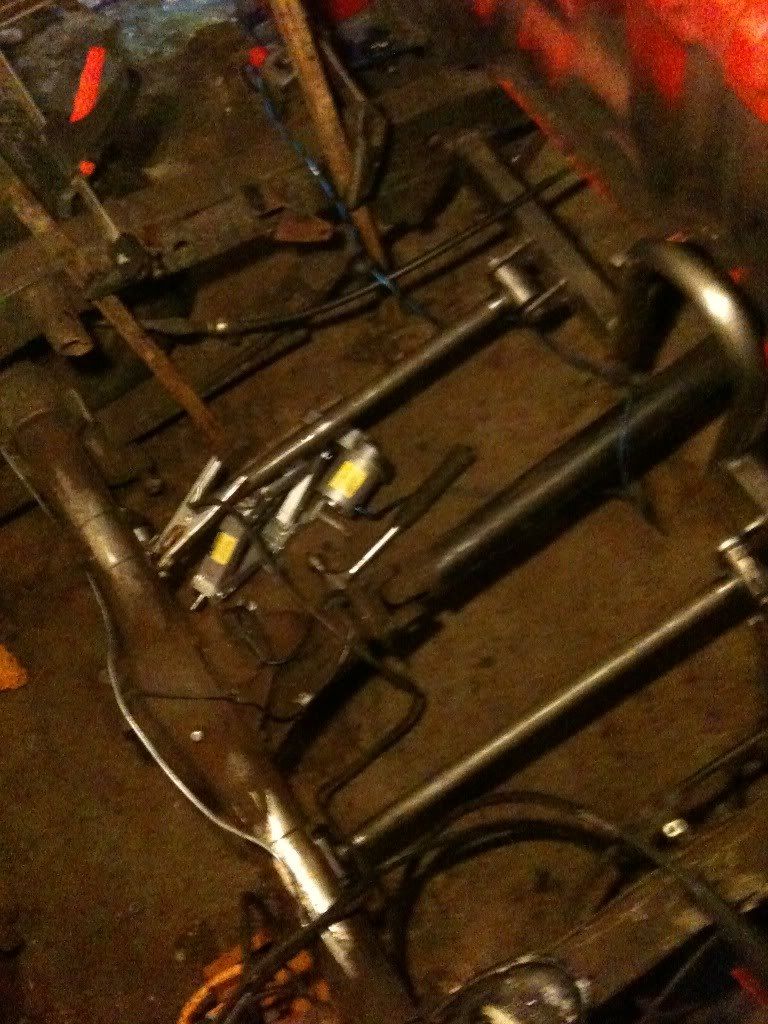

Top view With drivers side upper bar in place

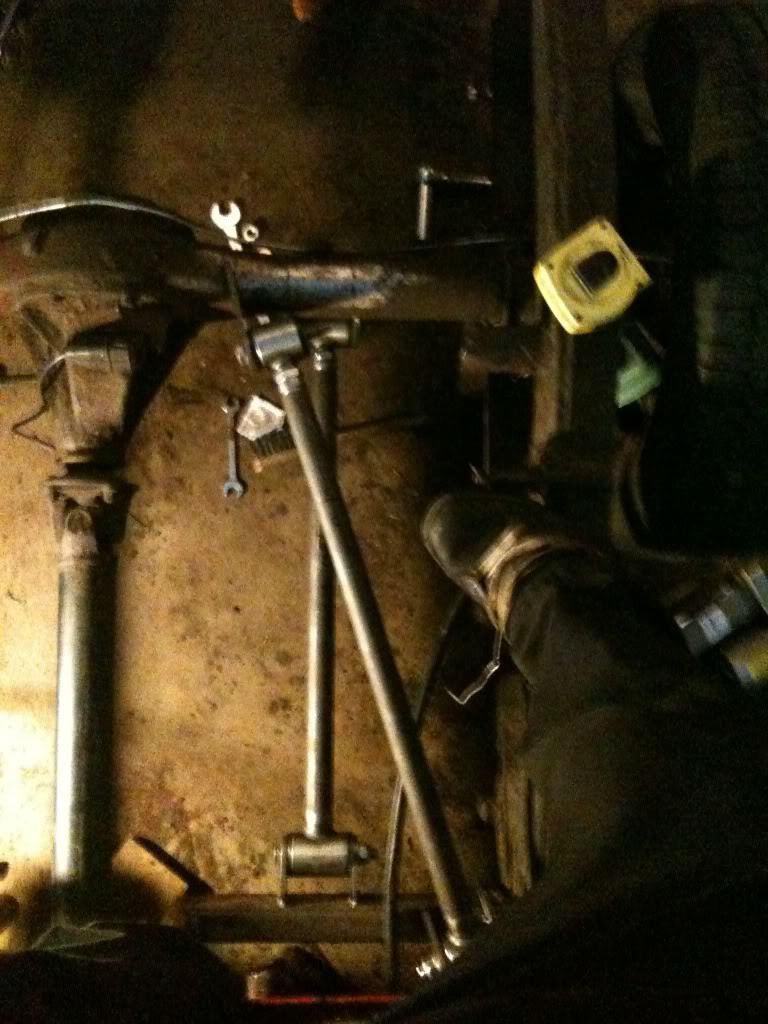

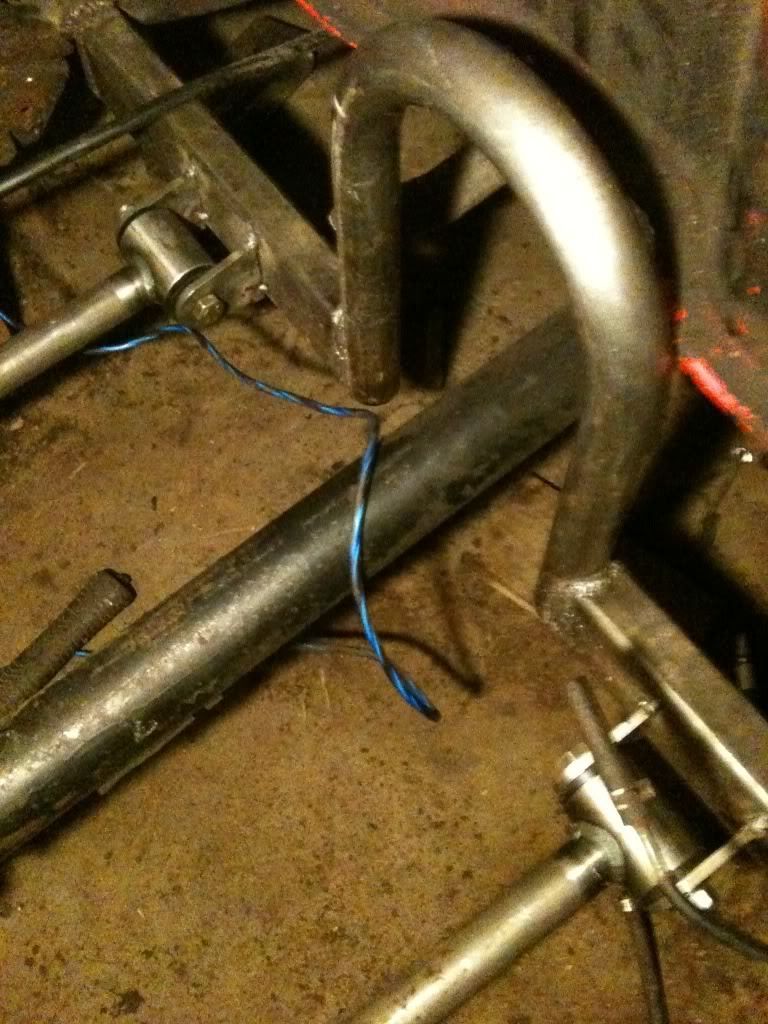

Driveshaft crossmember with the upper and lower bars tacked in place

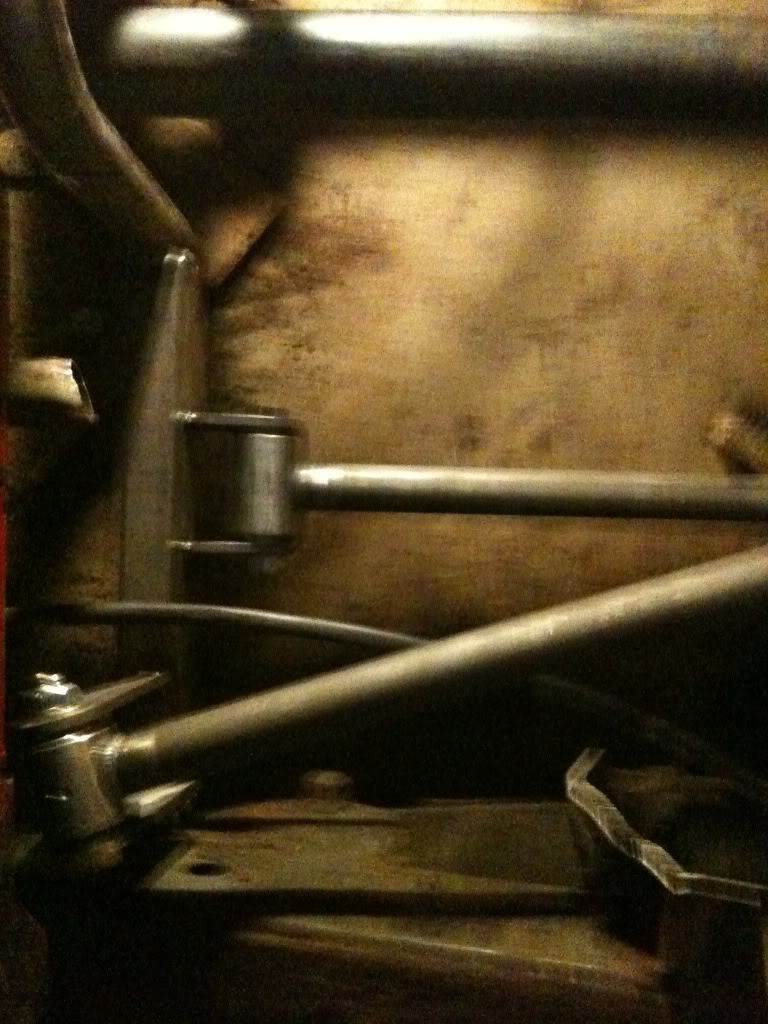

Where the rear axle tabs are mounted

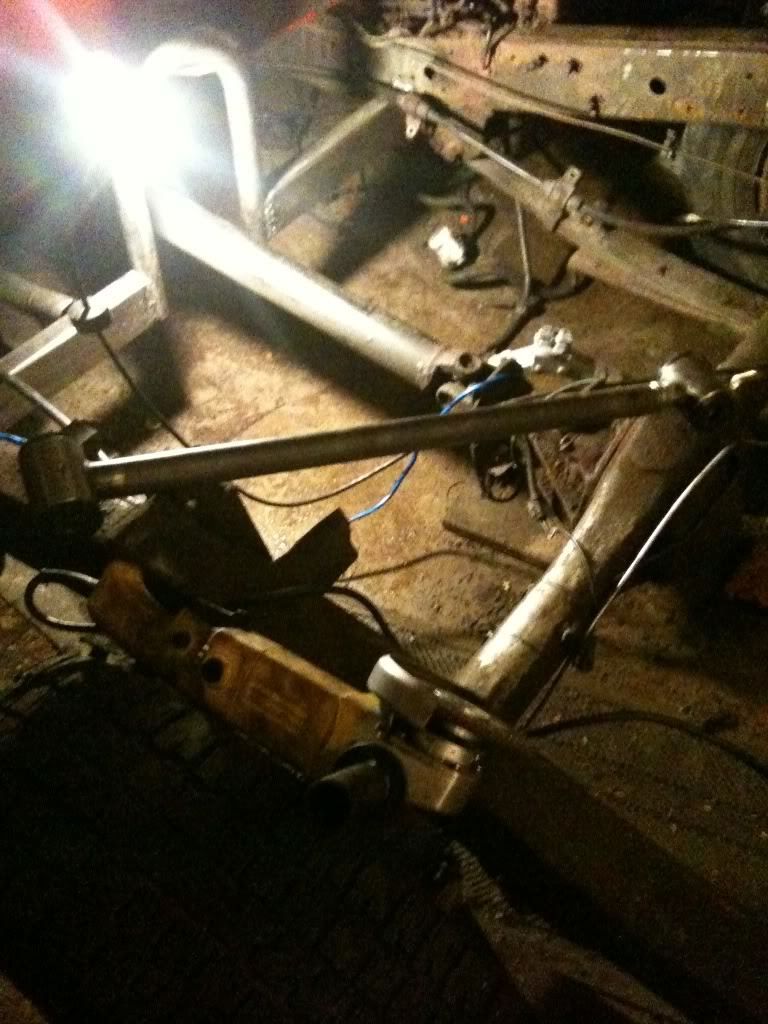

So some progress done , lowers are tacked in place , the upper was mocked up its a bit more than 40 degrees , in order to get a perfect 40 they gotta be both connected like a wishbone in the center,they have been cut 6 1/4" the lower was cut 8" and the upper bar crosses the lower bar which looks ugly from above , also another note the driveline isnt straight so everything looks off center but its not i was told if i put the bag on the bar is near the crossmember ill get more lift
