1989 Mazda,Before,After,And Between.

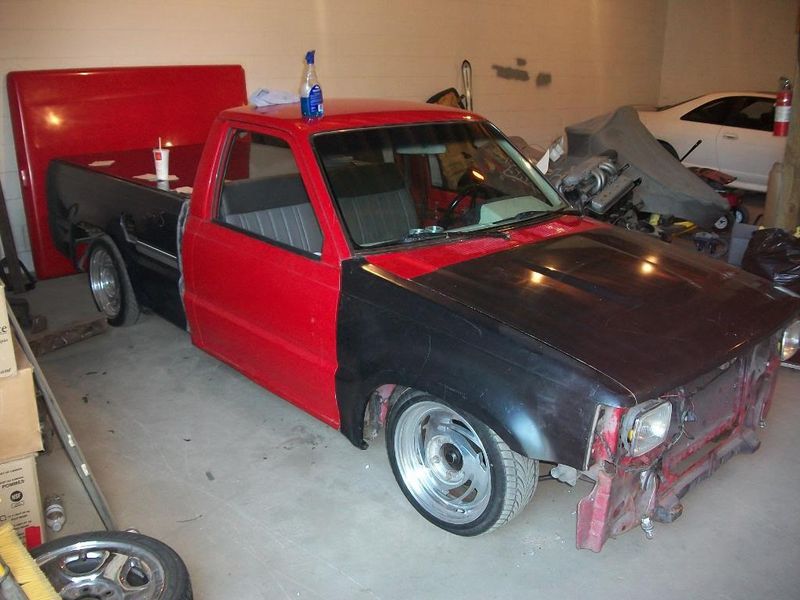

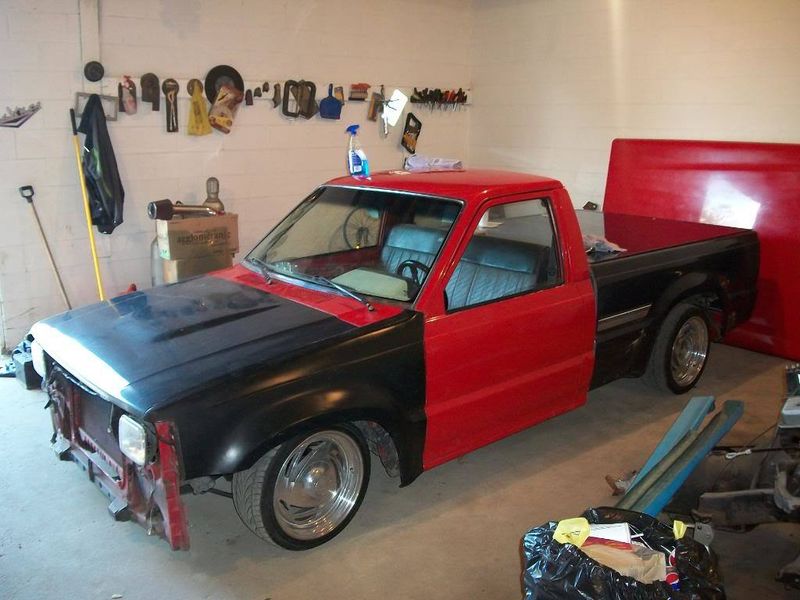

going to redo the whole front end, ran tubing to take the place of the front end i cut out, you can see front left of coresupport musta been in a wreck ordered a new coresupport today, says plastic...dont know about that but its only 100$ and beats me having to dig in a pull and pay,anyways heres some more pics

ok so that shoulda caught yall up on whats going on, so to sum it up

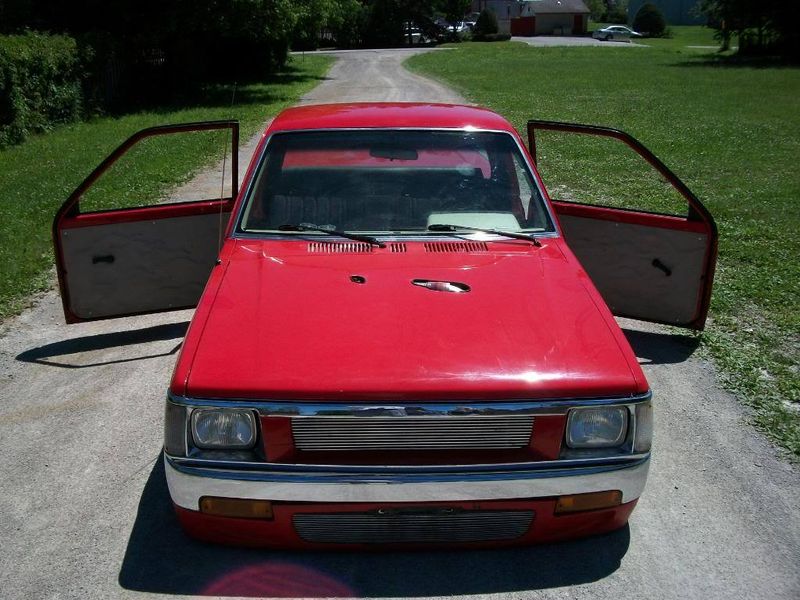

before bags

after bags,frame,ground

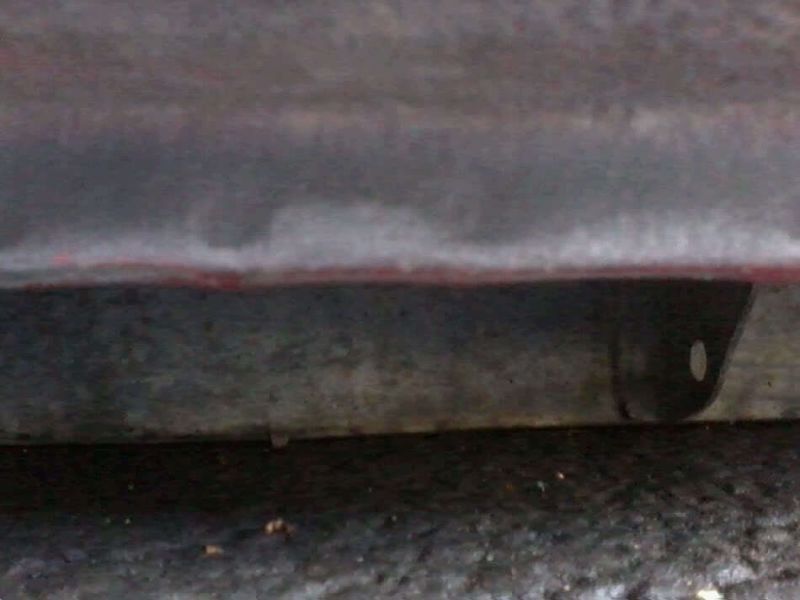

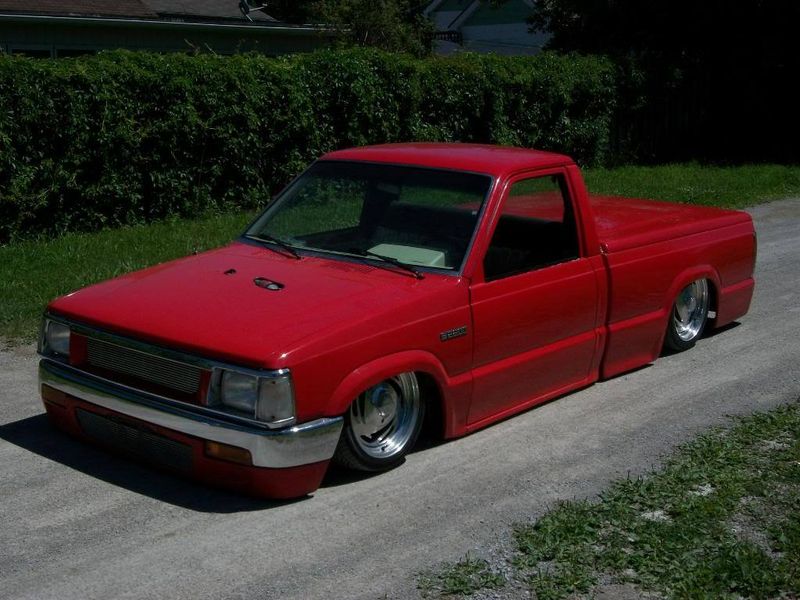

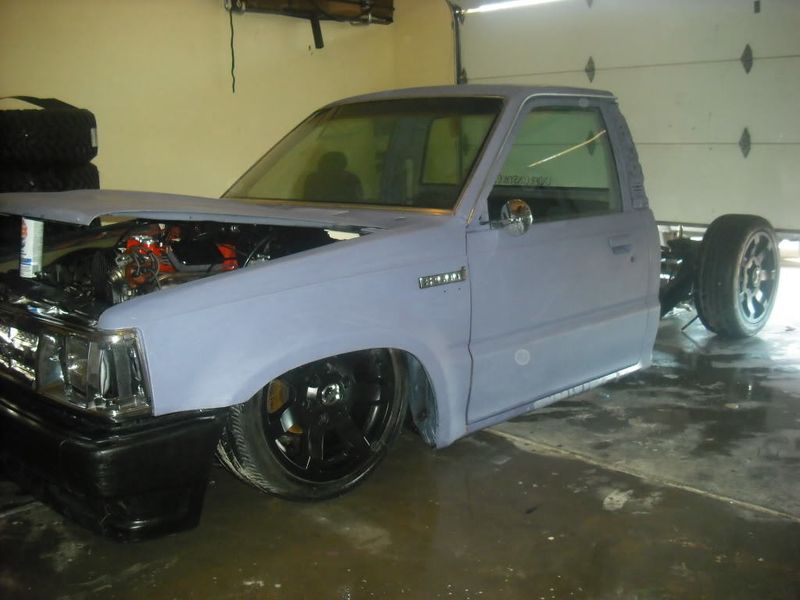

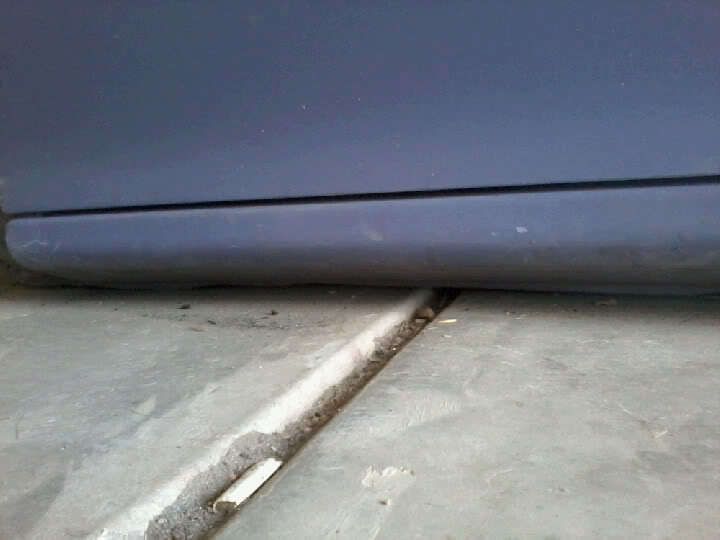

after bodydrop

ok now my most recent problems, the guy that had the truck b4 me thought he was mcgubber or something and wired a pushbutton allllll jacked up, so i ripped it all out, and i cant get my truck to start... im getting no spark from coil, or plugs....now heres my situation if im just touching power wire ( red/white) to my starter wire (black/red) it wont create a spark will it? i will need to complete the ignition process right? untill next time cya

Good Process.
Good Lookin B!

thanks broseph

Rims look pretty damn shiny! Nice job. And $80 for the rims is a steal! So far the project is looking pretty good.

Great build thread, keep it up!

dz,linn,baha thanks doods!, no one knows about the question i asked a couple up?

Ok, will do my best to walk you thru the problem....

Assuming your truck has a manual transmission (because I am to lazy to go look), there is a black w/yellow wire that runs down the steering column to a switch on the clutch pedal under the dash - this switch prevents the truck from starting unless the clutch is pushed in.

from the switch, there is a Black w/green wire that goes thru the firewall all the way to the small terminal on the starter motor. This series of wires carries a 12+ signal.

Now for the ignition side of life... from the ignition switch there is a small Black w/white wire that runs down the steerin column thru the firewall and out to the ignition coil, positive terminal. When the ignition switch is turned on you should have a 12+ signal all the way to the coil.

If your truck ran before, the rest of the woring should be intact.

Hope this helps. Don't know if the drawing will help or not but figured I would include it.

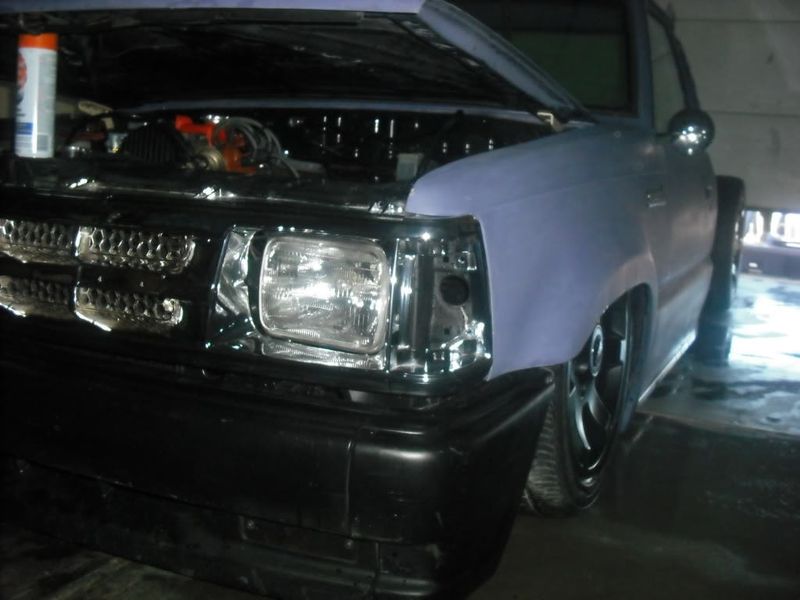

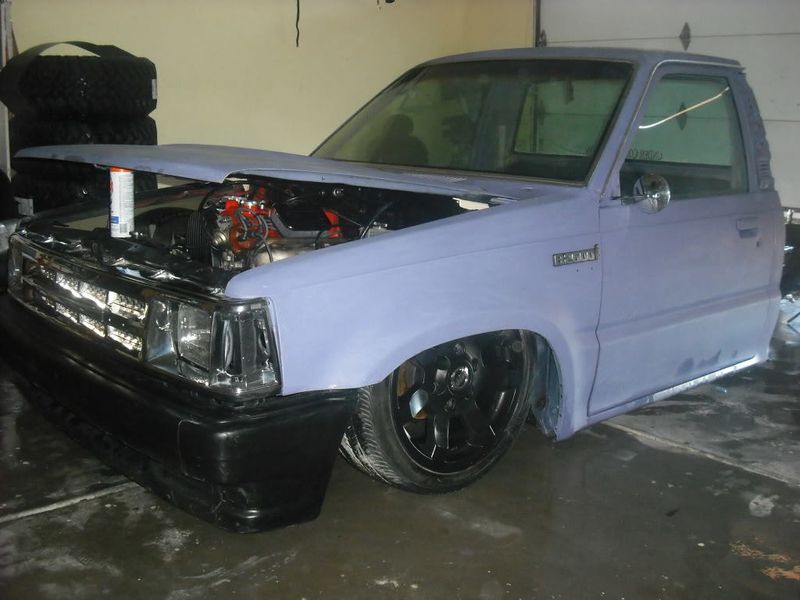

very nice bro truck is looking great hope you find the box you want here is a pic of mine with the 4x4 box on it and ya I have to get the box dropped down still but this is a before look.

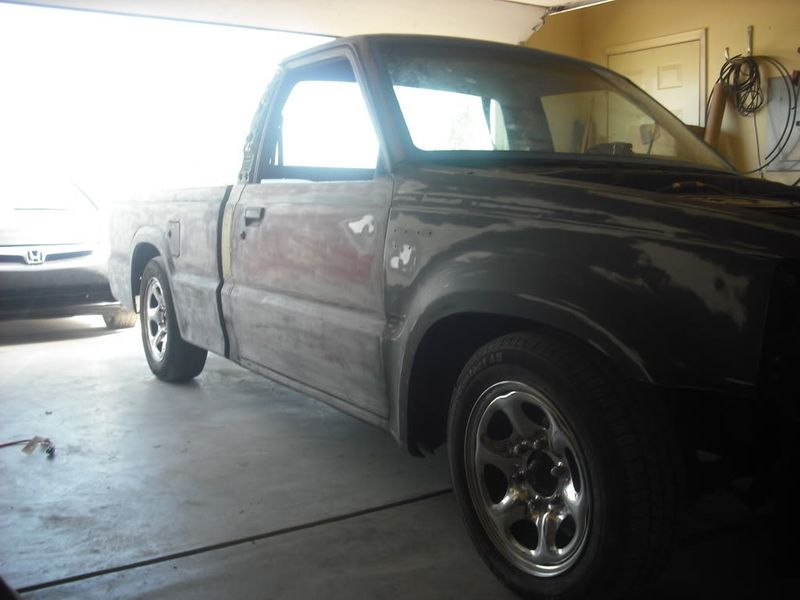

this is how it looked when I got her.


This is with some of the parts i had for here and the 4x4 box



I know how bad you want one and I think I might have one for you if you can get up here. Just busting your balls over the 4x4 box LOLhahahahaha
