Page 105 of 132
Mini Truckin General \ Michigan Metal Works ---- Updates : Please Read.Michigan Metal Works ---- Updates : Please Read.
views 56192
replies 1319
following 232
jeebus @ mmw
+1y
These are a new set of arms ive been working on for a while, that im just getting ready to let loose.
These here are pictured for the 1964 Impala, but will fit many other vehicles in that model range, the complete list i will update soon.
Anyways, these arms are narrowed .5" on each side. The upper arm uses a aftermarket x-shaft that is a lot less bulky than the stocker, it also includes jeebus joints in the upper arms, that will allow for 19 degrees more travel over the stock ball joint. The uppers are fully TIG welded, from .500 plate steel and all DOM tube.

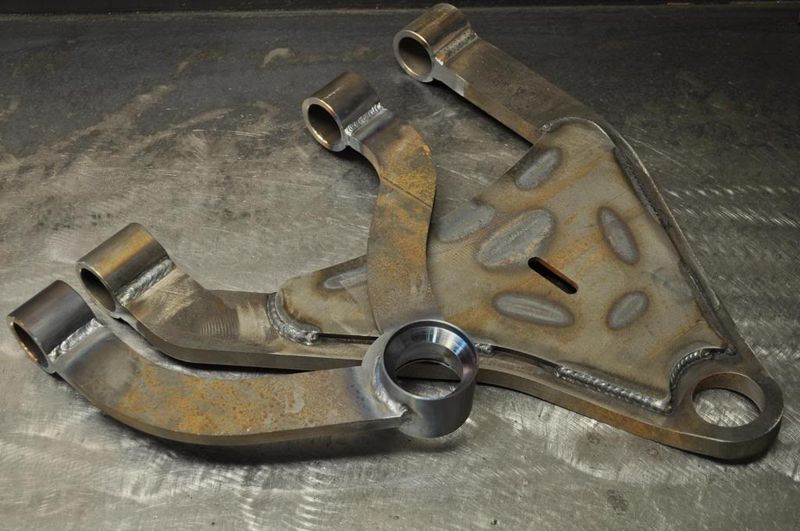

The lowers are designed to use a replacment ball joint for the stock bolt in unit, this new style ball joint gets 11 degres more travel, and is a much more modern design, and is designed to be used in a compression application. These arms are made from .750 plate, with .250 plate added for the bag mount plate. This new design will cut down on weight a bit, and have a completely new look to the arm. The lowers are fully MIG welded, and will also come with a new fabricated lower x-shaft as well.
I hope to get them back from powder coat late this week, and i will post up pics when i do! Im pretty excited about these, they are turning out to be a really nice arm!
Taylor
These here are pictured for the 1964 Impala, but will fit many other vehicles in that model range, the complete list i will update soon.
Anyways, these arms are narrowed .5" on each side. The upper arm uses a aftermarket x-shaft that is a lot less bulky than the stocker, it also includes jeebus joints in the upper arms, that will allow for 19 degrees more travel over the stock ball joint. The uppers are fully TIG welded, from .500 plate steel and all DOM tube.
The lowers are designed to use a replacment ball joint for the stock bolt in unit, this new style ball joint gets 11 degres more travel, and is a much more modern design, and is designed to be used in a compression application. These arms are made from .750 plate, with .250 plate added for the bag mount plate. This new design will cut down on weight a bit, and have a completely new look to the arm. The lowers are fully MIG welded, and will also come with a new fabricated lower x-shaft as well.
I hope to get them back from powder coat late this week, and i will post up pics when i do! Im pretty excited about these, they are turning out to be a really nice arm!
Taylor
jeebus @ mmw
+1y
Awesome! Glad you like them man, im sorry i couldnt send them all at once, the uppers are still at powder coat.
let me know your shirt size as well, so i can toss one in when i ship them out.
Taylor
let me know your shirt size as well, so i can toss one in when i ship them out.
Taylor
unusualfabrication
+1y
I heart MMW! But seriously on those new plate arms it looks like the bottoms under the bag plate are just hollow and then the bag plate is welded to the top. If so, pretty clever!
Rob Clayhill
+1y
I havent seen any prices on your 4link kits, but my bro's going to need a F/B setup with bag on bars for his mazda when its tax time.
What do you make for them and whats the price?
What do you make for them and whats the price?
jeebus @ mmw
+1y
--------------------------------------------
1SICKCANYON said:
Can you do a set.of Colorado/canyon drop spindles?
--------------------------------------------
yep.
1SICKCANYON said:
Can you do a set.of Colorado/canyon drop spindles?
--------------------------------------------
yep.
